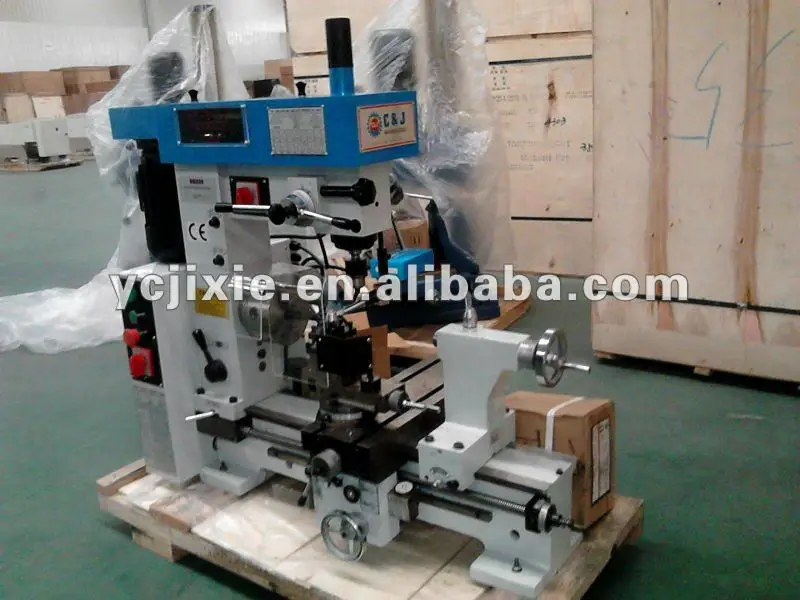

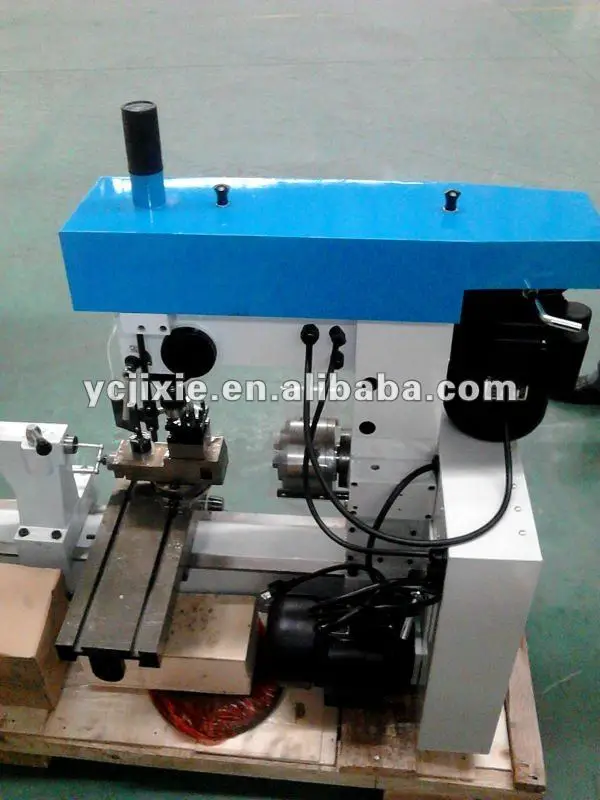

HQ500 3 in 1 lathe drilling and milling machine
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (646045939):
Product Overview
Description
HQ500 3 in 1 lathe drilling and milling machine
A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation and economization
Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils'
Making, etc.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation and economization
Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils'
Making, etc.
HQ500 3 in 1 lathe drilling and milling machine
FEATURE:
Compact, versatile combination machine.
Adjustable height drill/mill head increases capacity.
Large MT4 spindle bore.
Fine feed handle and clutch for precision milling.
Headstock provides two step of feeds.
Spindle is supported by high precision bearing.
Headstock is constantly oiled during operation.T-slot cross slide.Adjustable gibs for the slideway.
Power longitudinal & cross feed.
Right & left hand threads cutting is available.
High precision chuck.Equipped with emergency stop button.
Tailstock may be offset for turning taper.
HQ500 3 in 1 lathe drilling and milling machine
MULTI-PURPOSE MACHINE | HQ500 | HQ800 | |
TURNING | Swing over bed | 420mm | 420mm |
Distance between centers | 500mm | 800mm | |
Max. longitudinal travel | 440mm | 740mm | |
Max. cross travel | 200mm | 200mm | |
Taper of spindle | M. T. 4 | M. T. 4 | |
Spindle hole | φ 28mm | φ 28mm | |
Step of spindle speed | 7 | 7 | |
Range of spindle speed | 160-1360r. p. m | 160-1360r. p. m | |
Barrel travel | 70mm | 70mm | |
Taper of center | M. T. 3 | M. T. 3 | |
Metric thread range | 0.2-6mm | 0.2-6mm | |
Inch thread range | 4-120T. P. I | 4-120T. P. I | |
Longitudinal range of automatic feeding | 0.05-0.35mm / 0.002-0.014 inch | 0.05-0.35mm / 0.002-0.014 inch | |
Cross range of automatic feeding | 0.05-0.35m / 0.002-0.014 inch | 0.05-0.35m / 0.002-0.014 inch | |
DRILLING & MILLING | Max. drilling capacity | φ 22mm | φ 22mm |
Worktable size (L*W) | 475× 160mm² | 475× 160mm² | |
Max. end mill | φ 28mm | φ 28mm | |
Max. face mill | φ 80mm | φ 80mm | |
Distance between spindle center and column | 285mm | 285mm | |
Distance between spindle and worktable | 306mm | 306mm | |
Headstock travel of up and down | 110mm | 110mm | |
Spindle taper | M. T. 3 | M. T. 3 | |
Step of spindle speed | 16 | 16 | |
Range of spindle speed | 120-3000r. p. m | 120-3000r. p. m | |
Swivel degree of headstock | ± 360° | ± 360° | |
MOTOR | Motor power | 0.55Kw/ | 0.55Kw/ |
SHIPMENT DATA | Packing size | 1130× 580× 1100mm | 1430× 580× 1100mm |
N. weight/G. weight | 245kg/280kg | : 275kg/325kg | |
Loading amount | 40pcs/20’ container | 32pcs/20’ container | |
