Product Overview

Description





Product Description

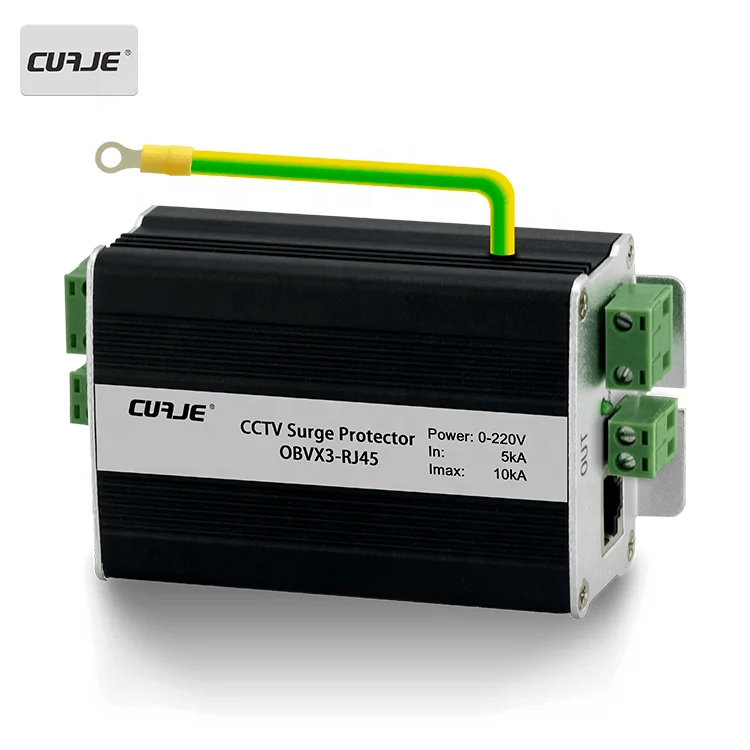

 CCTV lightning protector


 Security Camera Surge Protector


 Power, Data and Video in a Single Unit


 Hybrid GDT and Diode Technology


 24, 120, 230V Configurations


 Compact Aluminium Housing


 Options for 1 or 2 Pair or Cat.5





Model and Meaning


OBVX-3-BNC   (Video / Power / Data)


OBVX-2-RJ45   (Video / Power)


OBVX-2-BNC    (Video / Power)








































































































Model:    OBVX-3-BNC / OBVX-2-RJ45 / OBVX-2-BNC



Power



Nominal Voltage Un



24Vdc



120Vac



230Vac



Maximum Voltage Uc



30Vdc



150Vac



255Vac



Line Current IL



5A



Nomimal Discharge Current In (8/20µs) kA



5kA



Maximum Discharge Current Imax (8/20µs)



10kA



Protection Level Up



0.3kV



0.8kV



1.2kV



Connection



Screw terminal : maximum 2.5 mm2



Failure Mode



Power failure and green led off



Data



Maximum Voltage Uc



8Vdc



Nomimal Discharge Current In (8/20µs) kA



5kA



Maximum Discharge Current Imax (8/20µs)



10kA



Protection Level Up



20V



Connection



Screw terminal : maximum 1.5 mm2



Failure Mode



Short-circuit status (transmission fault)



Video (BNC / RJ45)



Maximum Voltage Uc



6Vdc



Nomimal Discharge Current In (8/20us) kA



5kA



Maximum Discharge Current Imax (8/20µs)



10kA



Protection Level Up



20V



Connection



BNC female coaxial connector / RJ45



Failure Mode



Short-circuit status (transmission fault)












Dimension







application


2.Application (1).jpg2.Application (2).jpg





Certifications







Company Information


5.About US (1).jpg





contact information


6.Contact US.jpg





Packaging & Shipping


packing: standard export carton


shipping: 3 days after receiving the payment
