Waterproof Heat Resistant Removable Thermal Insulation Jacket, Blanket, Cover, And Mattress

Product Overview

Description

Waterproof Heat Resistant Removable Thermal Insulation Jacket, Blanket, Cover, And Mattress

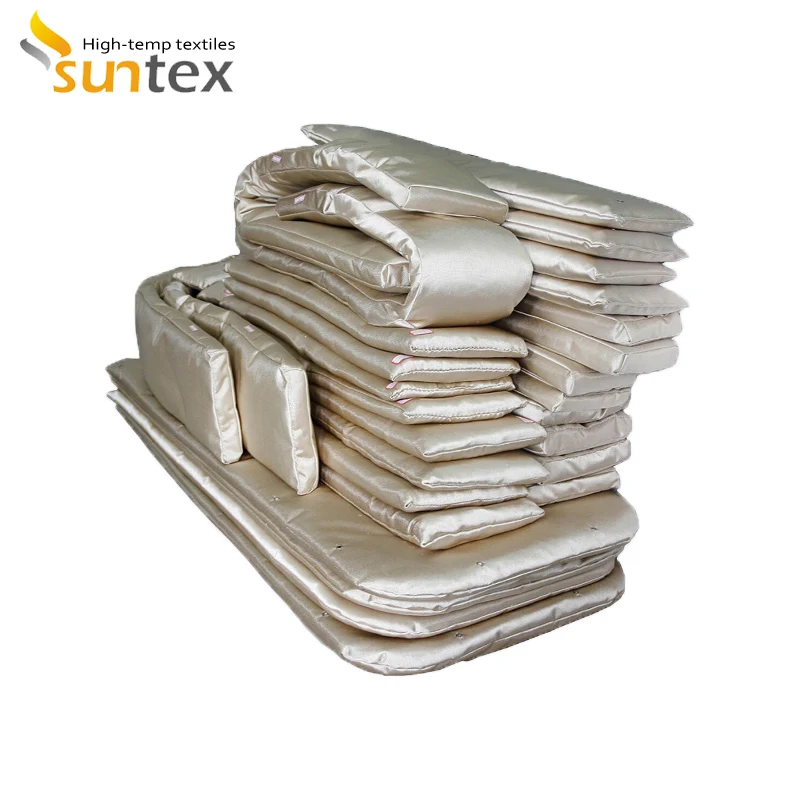

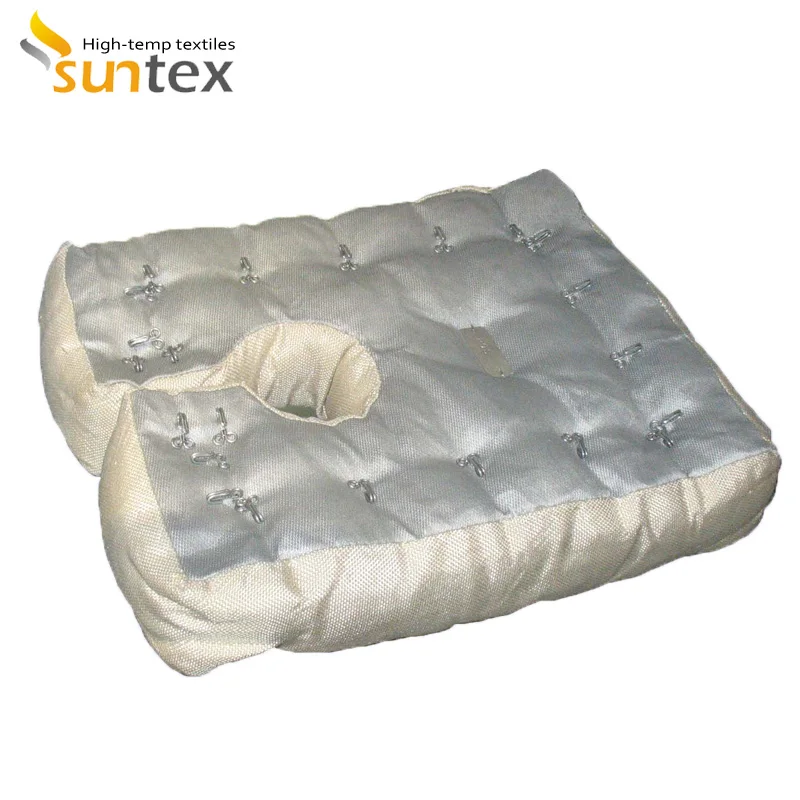

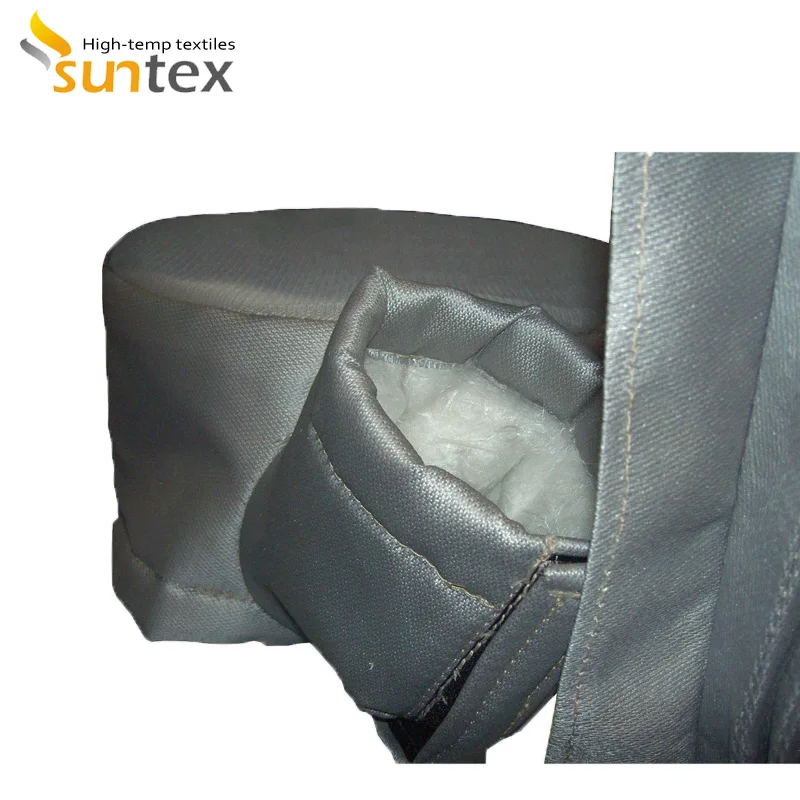

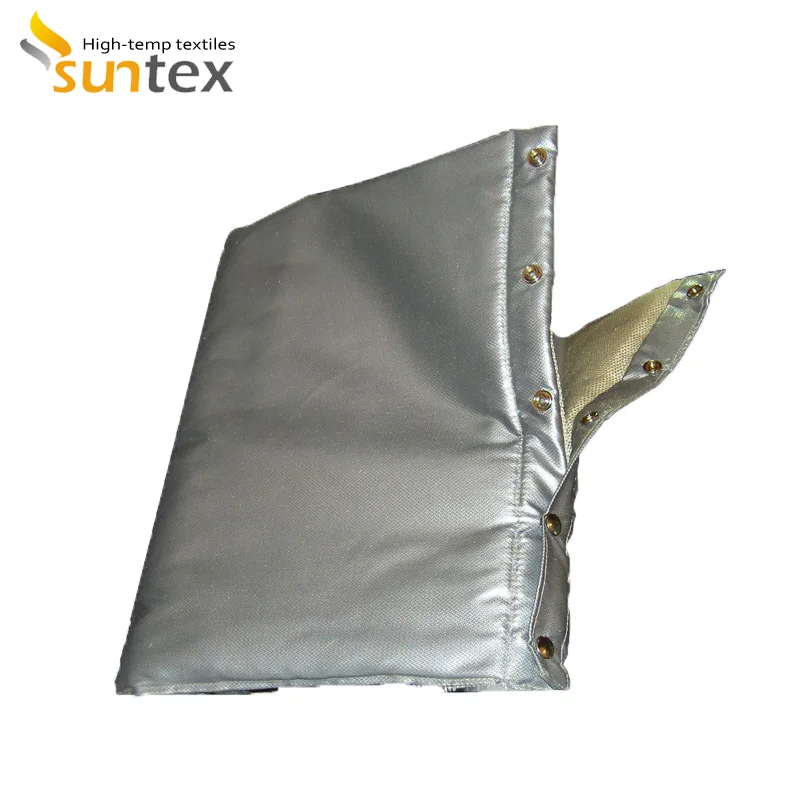

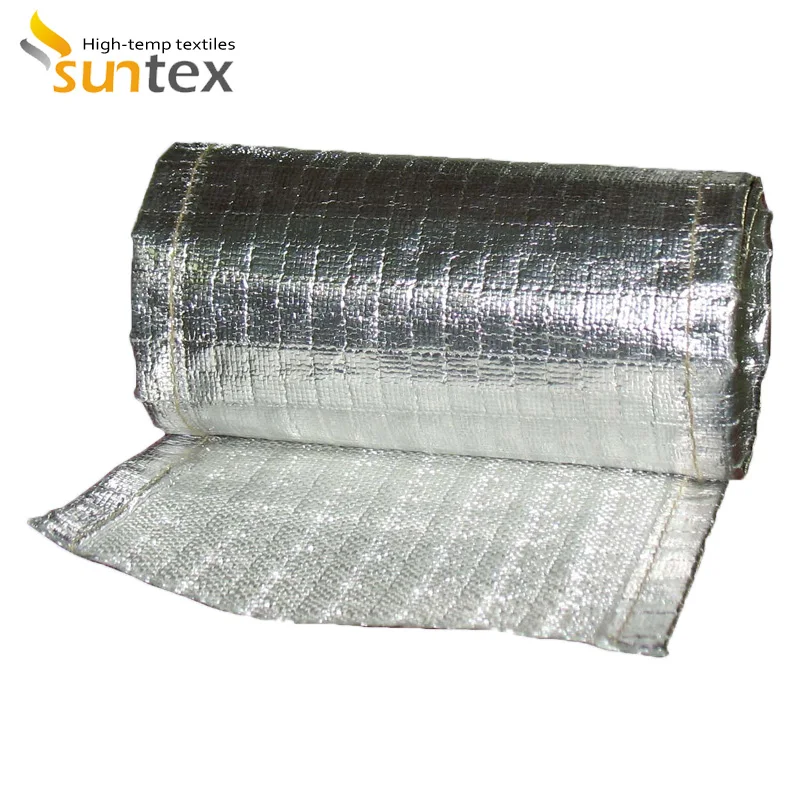

    Suntex industrial thermal blanket is widely used in various kinds of industrial machinery, containers, turbine covers, valve, flange covers, jackets for pipes, other industrial thermal insulation. It is designed to reduce heat transfer and save energy for machines working in the requested temperature.



Ⅰ.Surface materials and stuff

    Suntex has been continuing to research, develop and manufacture industrial textiles since it born. By taking advantage of our knowledge of industrial textiles, it ensures us to select suitable industrial textiles to meet the customer's requirements of high-performance needs. From the surface fabric to the stuff materials, Suntex selects suitable and cost-effective materials to fabricate. The combination of the selected materials can be worked in the extreme environments of temperature from -600C to 12000C and chemical corrosion.



Ⅱ.Sewing thread

    Suntex uses high-quality sewing thread to meet the customer's needs. We are using these threads in our products.



Ⅲ.Accessories

    Velcro, grommets, anchor pins, loops, zippers are available in different styles and shapes. These accessories are added to ease the installation of our products.



Removable Insulation Blankets Fabrication Process

• Analyzing the customer's constraints


• Designing product by professional software


• Participating in the trials


• Continuing to modifications and improvement of our products


• Product approval


• Producing

Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.



Style No.	Base fabric	Coatings	Color	Weight		Thickness		Working temp.
				(gram/m2)	(Oz/yd2)	(mm)	(inch)	(0C)	(0F)
GF430P-SI1413	Fiberglass	Silicone	silver grey	510	15	0.4	0.016	260	500
GF430P-SI2423	Fiberglass	Silicone	silver grey	560	16	0.45	0.018	260	500
GF660P-SI2453	Fiberglass	Silicone	silver grey	960	28	0.76	0.030	260	500
GF880P-SI2463	Fiberglass	Silicone	silver grey	1380	41	1.25	0.049	260	500
GF600-WS210	Fiberglass	Weave-locked	Green	630	19	0.6	0.024	550	1000
GF800-WS212	Fiberglass	Weave-locked	Blue	830	24	0.75	0.030	550	1000
GF430-PTFE213E	Fiberglass	PTFE	Grey/Black	530	16	0.45	0.018	550	1000
GF430-AL1110	Fiberglass	Aluminum Foil	Silver	470	14	0.4	0.016	550	1000
GF430-AL1300	Fiberglass	Aluminized polymer film	Silver	450	13	0.4	0.016	550	1000
TGF1000-GP225	Fiberglass	Graphite	Black	1100	32	1.5	0.059	700	1290
TGF2050-GF235	Fiberglass	Graphite	Black	2270	67	3.5	0.138	700	1290
TGF880-GP225	Fiberglass	Graphite	Black	980	29	1	0.039	700	1290
TGF1000-VE226	Fiberglass	Vermiculite	Tan	1080	32	1.5	0.059	750	1380
TGF1000-CS2110	Fiberglass	Calcium Silicate	White	1080	32	1.5	0.059	700	1290
TGF1000-CS2111	Fiberglass	Calcium Silicate	Green	1080	32	1.5	0.059	700	1290
TGF1000-CS2112	Fiberglass	Calcium Silicate	Blue	1080	32	1.5	0.059	700	1290
