Product Overview

Description

SHENPENG GK35-6A bag closer sewing machine, bag closing sewing machine





APPLICATIONS



• SHENPENG GK35-6A bag closer sewing machine, bag closing sewing machine could closing of all sorts of filled bags;


• Equipped with pneumatic guillotine type crepe tape cutter;

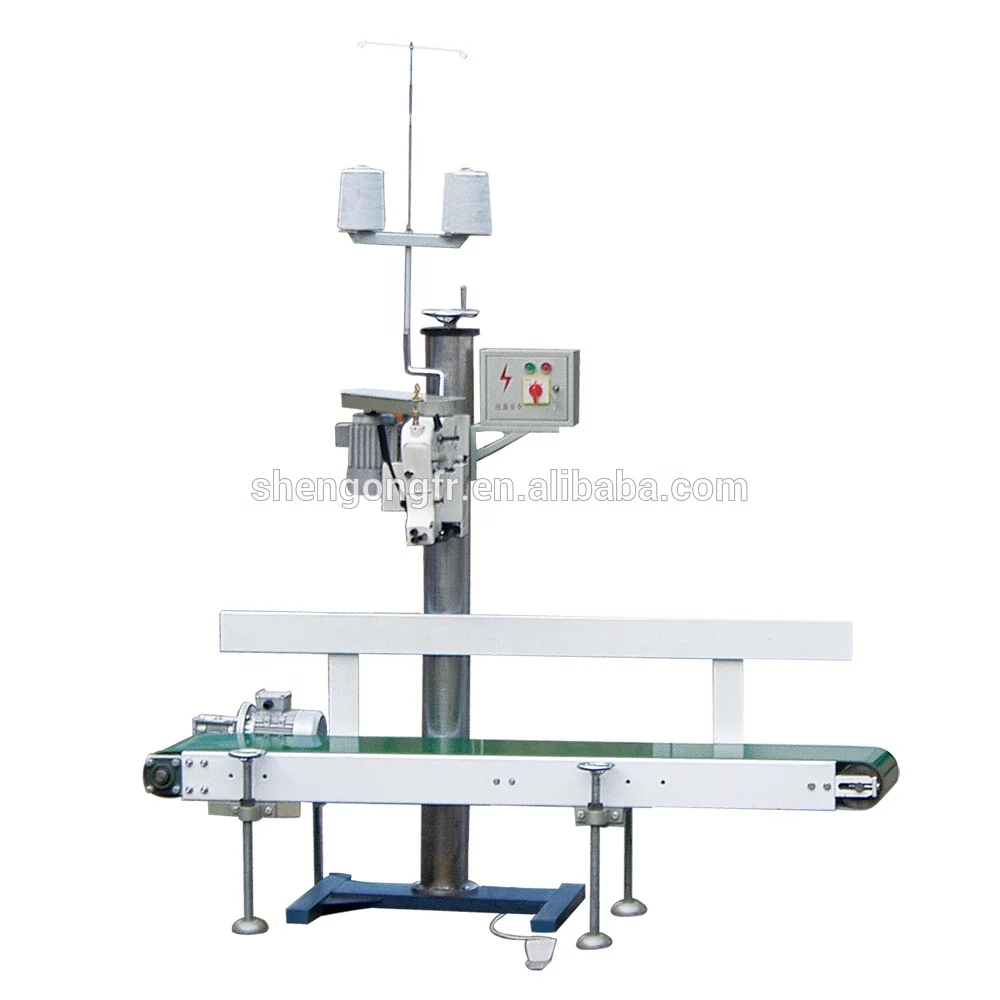

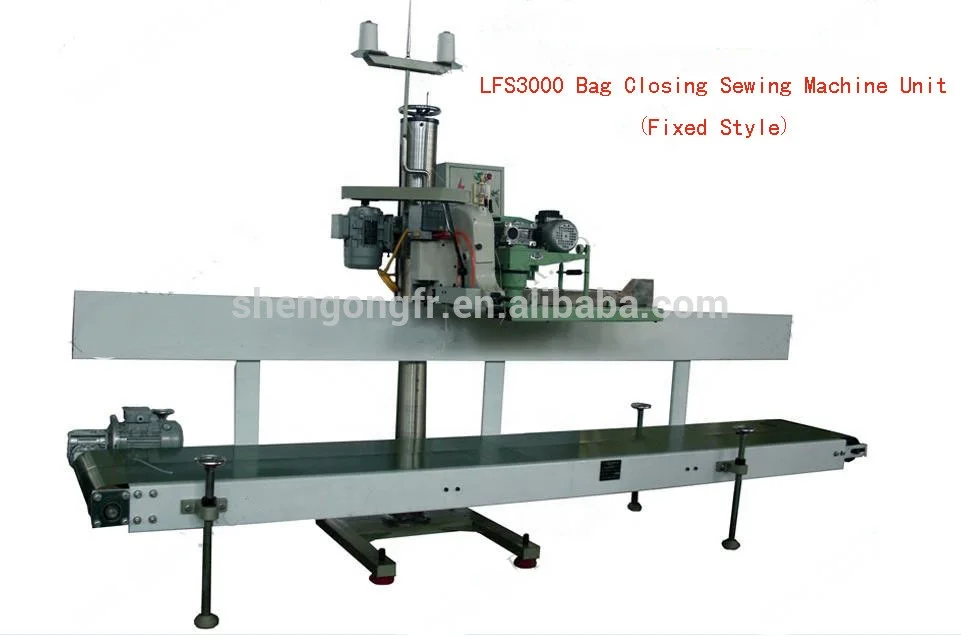

• Could match with SHENPENG pedestal , bag folding ,LFS conveyor or other conveyor to be automatic bag closing system .


• Bag folding and LFS conveyor could match with stepless speed regulation motor.

SHENPENG GK35-6A could replace Newlong DS-2 and Union Special 80800R.





FEATURES



1. Single needle double thread chain stitch 401;



2. Max. sewing speed up to 2,000 spm;



3. Sewing capacity up to 11mm (7/16 in.), 32 plies of paper;



4. Adjustable stitch length from 6.5-11mm;



5. Built-in pneumatic guillotine type crepe tape cutter;



6. Built-in sight feed oiler;



7. Main parts are made of copper alloy and high duty alloy;



8. Rolling bearing adopted in crankshaft;



9. Easy maintenance semi closed structure;



10.Photoelectric automatic start / stop;



11.Best automatic bag closer machine for crepe tape sewing.



SPECIFICATIONS



Model	GK35-6A
Max. Sewing Speed	2,000 spm
Max. Sewing Capacity	11mm (7/16 in.), 32 plies of paper
Stitch Length	6.5~11mm
Stitch Type	Single needle double thread chain stitch 401
Presser Foot Lift	16mm (5/8 in.)
Feed Type	Drop feed
Control	Automatic
Air Supply	0.4MP 3.5NL/min
Crepe Tape Width	55mm
Lubrication	Sight feed oiler and manual
Needle	80800x 200~250#
Weight	30kg/35kg
Machine Dimension	350*240*440mm
Packing Dimension	500*500*325mm

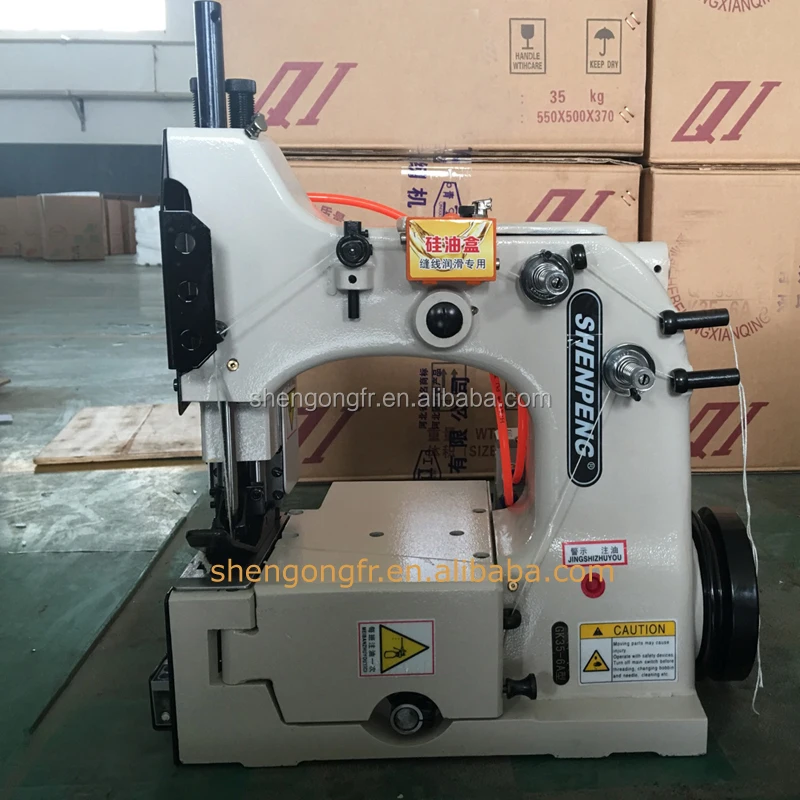

GK35-6A Bag Closing Sewing Machine

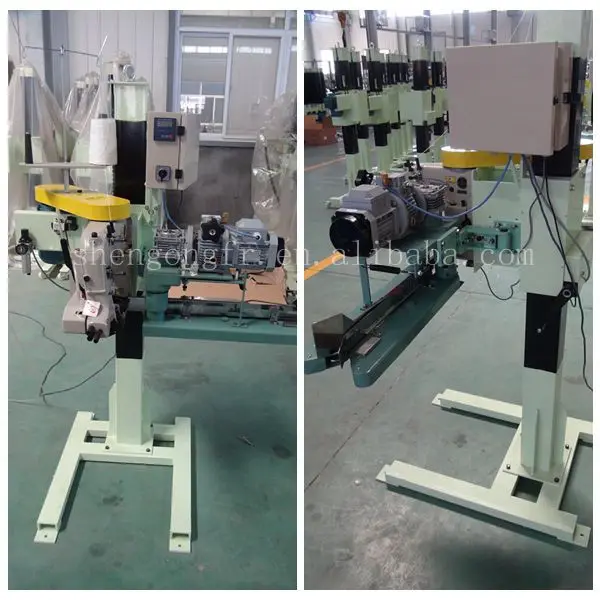

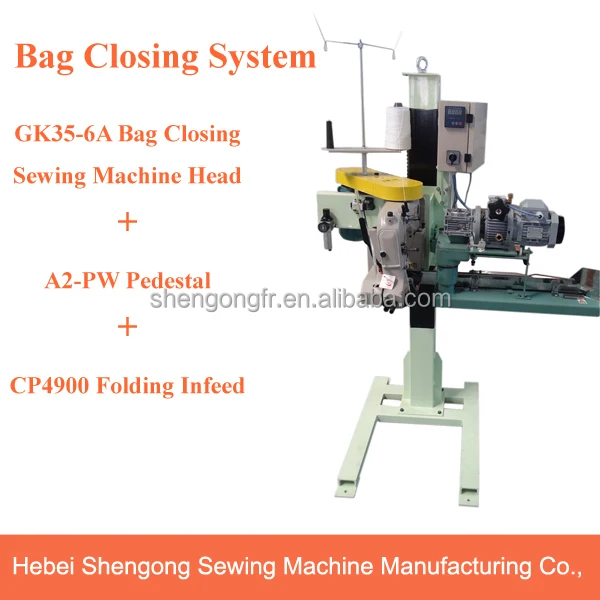

GK35-6A + A2-PW Pedestal + CP4900 Folding Infeed

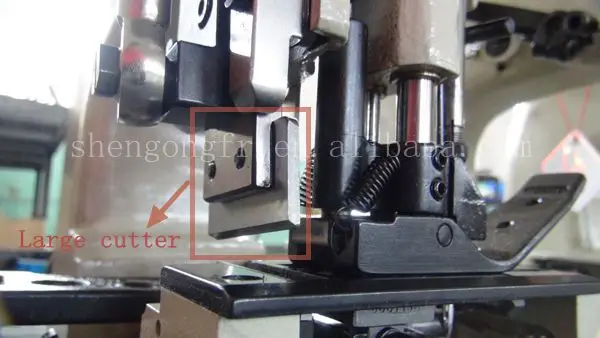

GK35-6A Large Cutter And Presser Foot

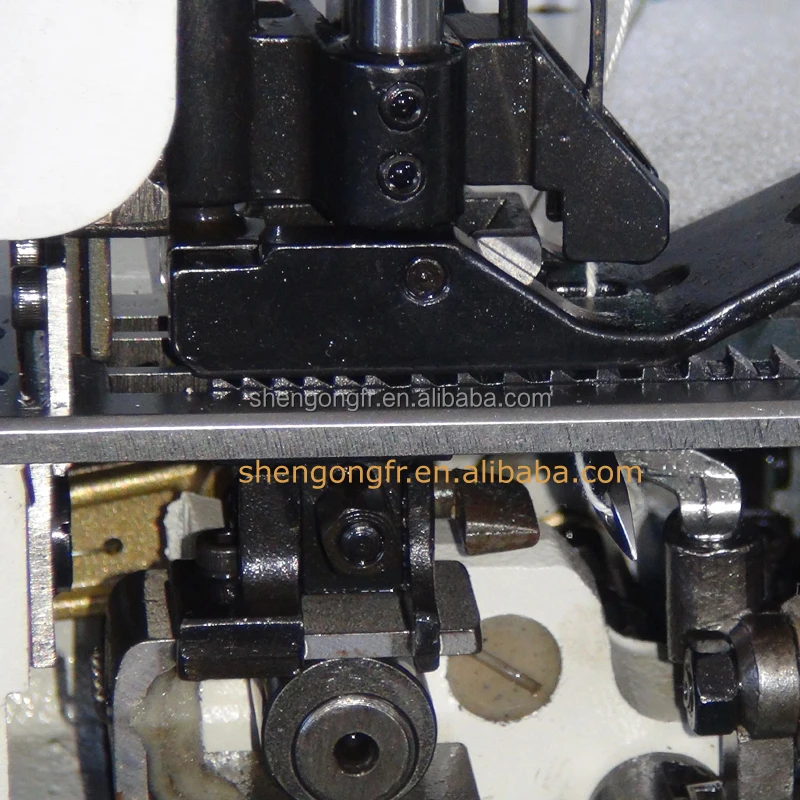

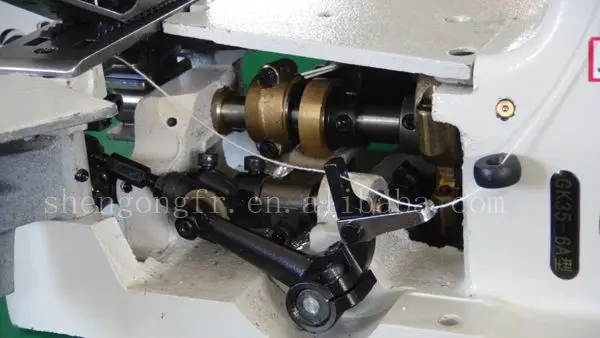

GK35-6A Internal Structure

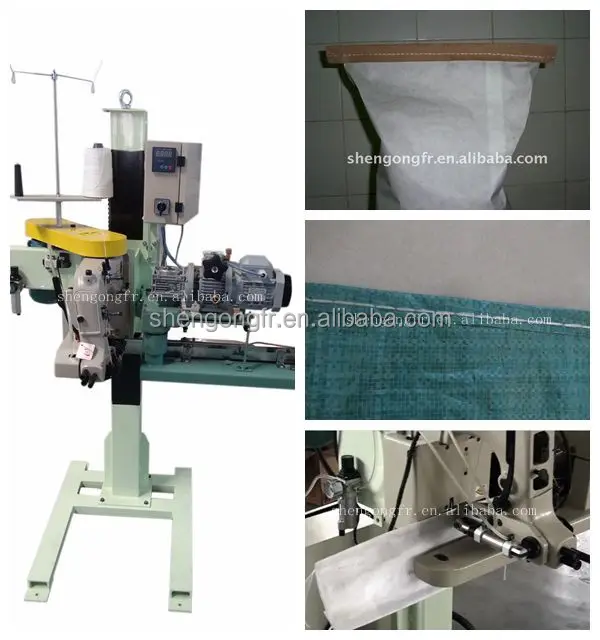

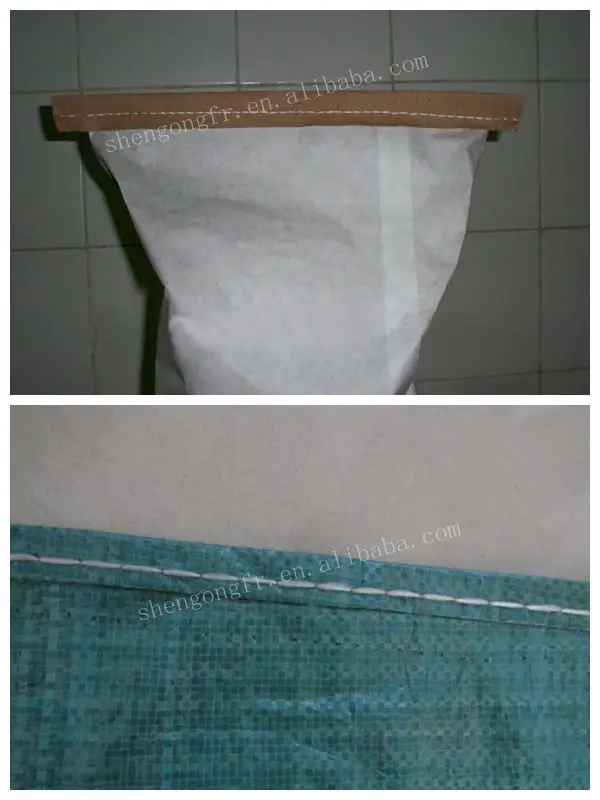

GK35-6A+A2-PW+CP4900 And Sewing Sample
