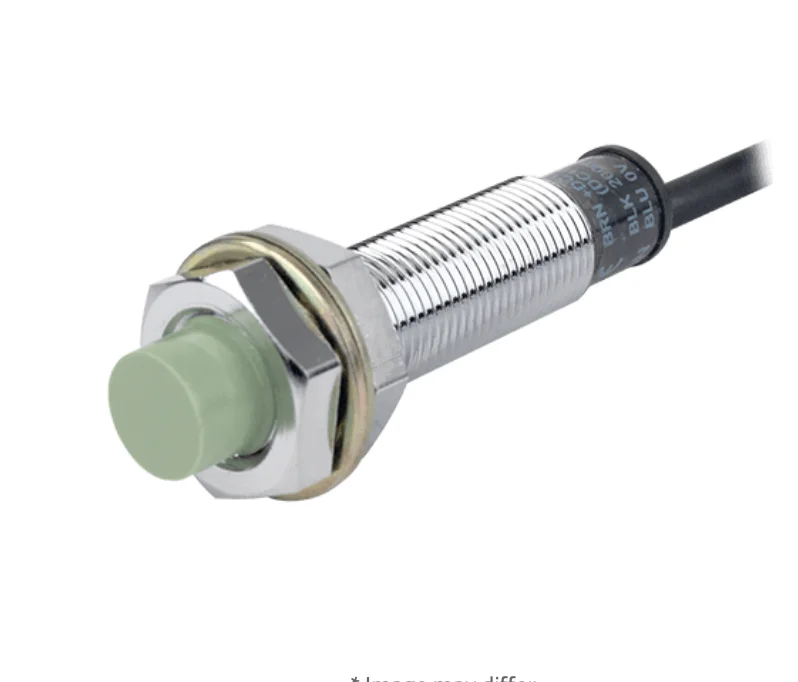

Autonics proximity sensor model PRL12 4DN Korea M12 inductive proximity sensor waterproof

Product Overview

Description

• Wire type and power : DC 3-wire type 12-24VDC


• Sensing side diameter : M12


• Sensing distance : 4mm


• Installation : Non-shield(non-flush)


• Standard sensing target : 12×12×1mm(iron)





Data sheet

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M12
Sensing distance	4mm
Installation	Non-shield(non-flush)
Standard sensing target	12×12×1mm(iron)
Response frequency	500Hz
Current specification	Current consumption: Max. 10mA
Control output	NPN Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67
Approval
Body length	Long body
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	Approx. 88g(approx. 76g)
