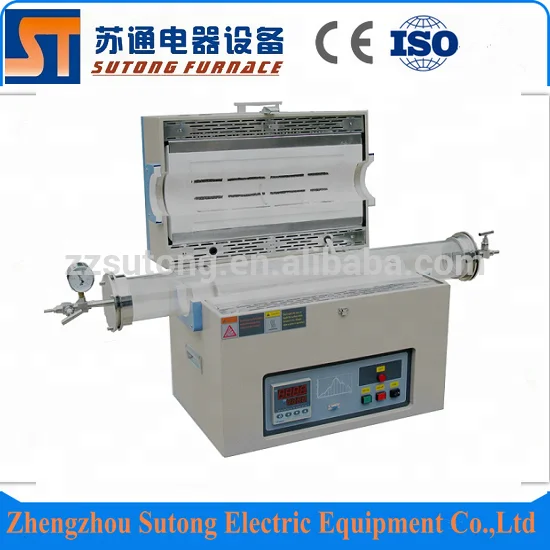

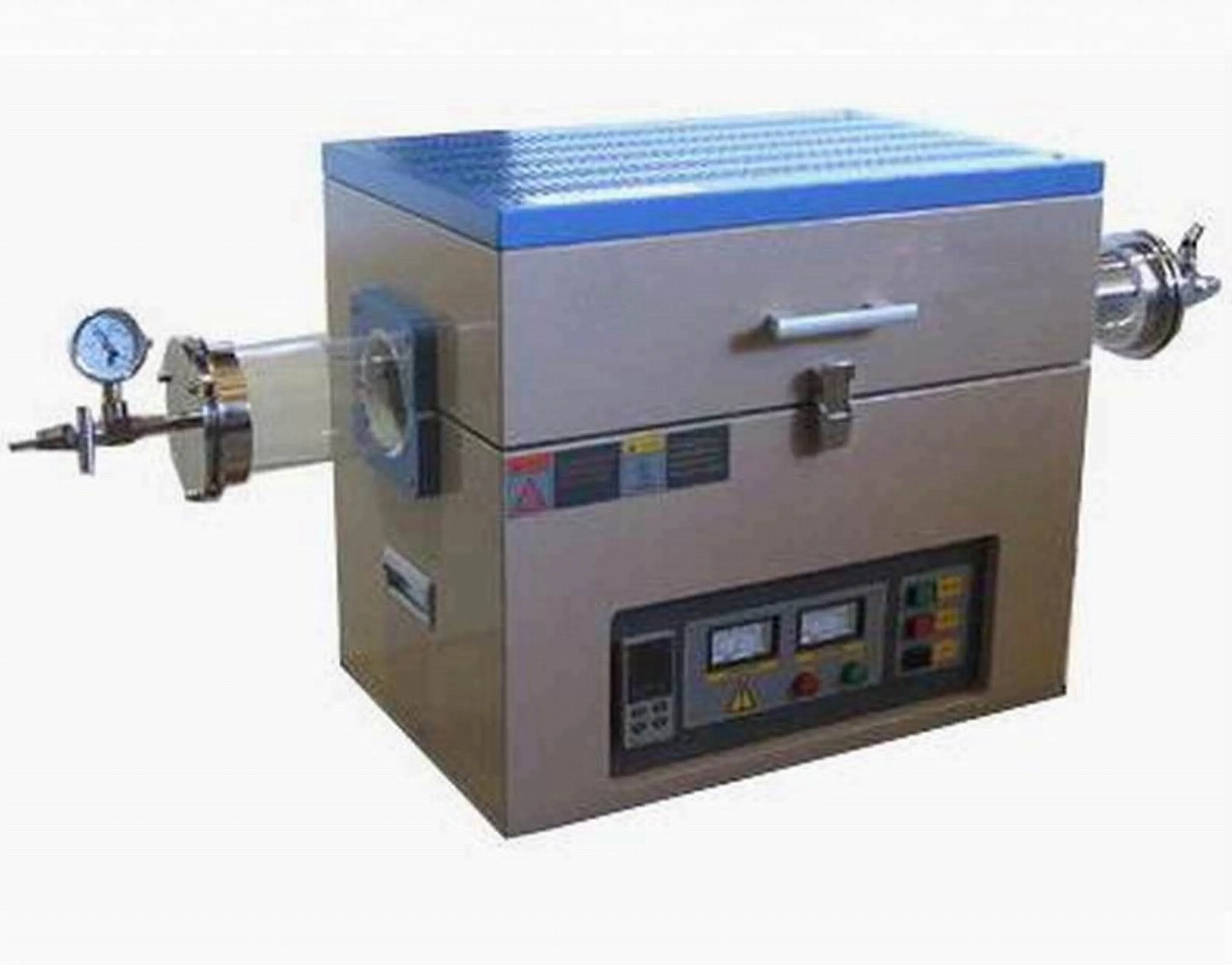

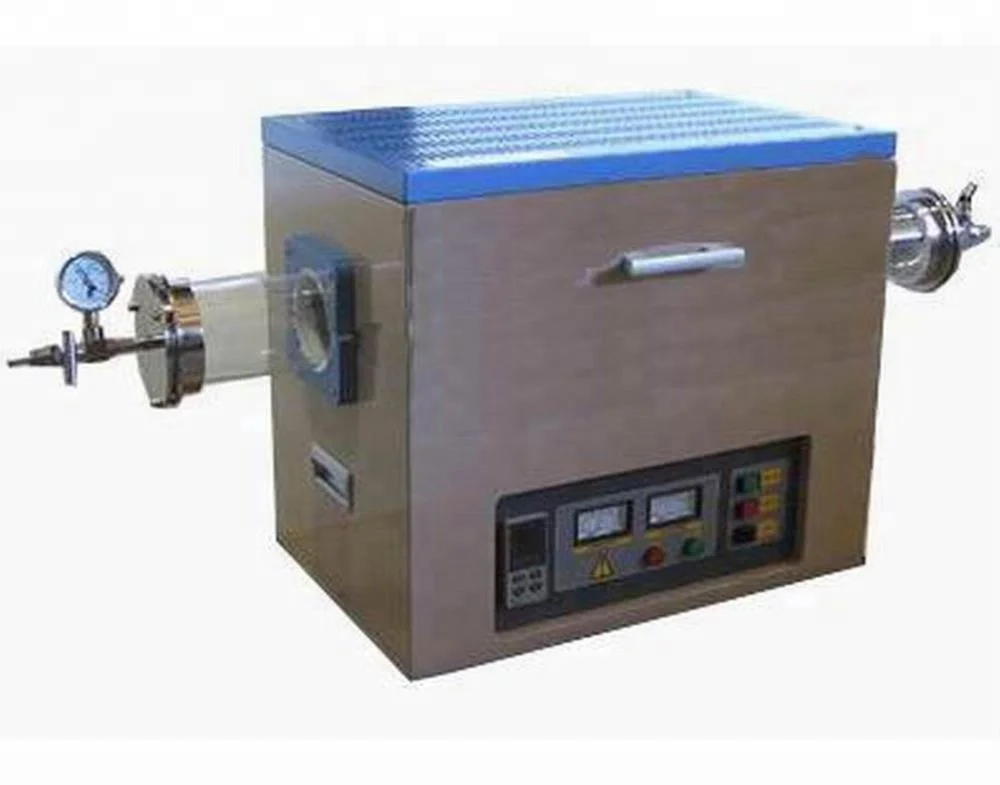

1200C vacuum tube furnace with K type thermocouple
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (646998694):
Product Overview
Description
1200C vacuum tube furnace with K type thermocouple
We offer OEM service for you!
A. ST-1200RG tube furnace feature
a). ST-1200RG series tube muffle furnace, heating element embedded in the chamber wall. When Muffle furnace heating, can ensure uniform temperature in the furnace.
b). Muffle furnace chamber of the use of advanced lightweight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40% . Heat preservation effect is good,temperature increase speed increased a times, save energy. Furnace service life by four times.
c). Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.
d). The 30 period of programmable intelligent digital temperature controller control temperature,high degree
of automation, convenient operation.
e). Can be installed computer communication module and RS485 communication interface, to realize the remote control.
B. ST-1200RG series tube muffle furnace of application
ST-1200RG series tube muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
C. Samples of the main performance indexes
| Product name and model | ST-1200RGV-2 Tube Furnace |
| Heating tube size(OD×L) | Φ50x400 mm (2"x16") |
| Chamber insulation materials | lightweight aluminum oxide ceramic fiber |
| Maximum temperature | 1200°C (working time not more than 3 hours) |
| Working temperature | 400-1100°C (adjustable, continuous working) |
| Temperature controller way | Based on the microprocessor 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Sensor of measuring temperature | K type thermocouple |
| Heating elements | Fe/Cr/Al Alloy resistance wire |
| Ultimate vacuum | -0.1MPa |
| Vacuum pump specifications Model | TW-0.5A, pumping rate:0.5L/s, power:120W |
| Furnace shell structure | Double ventilation cooling structure |
| Cooling way | Fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
D. ST-1200RG tube muffle furnace conventional model
| model | Heating zone (OD×L mm) | Rated power | Work power | Vacuum pump specifications |
| ST-1200RG-1 | Φ50x300 mm(2.0"x12") | 2.5KW | AC 1-phase, 110V-240V, 50Hz/60Hz | TW-0.5A;0.5L/s;120W;110/220V |
| ST-1200RG-2 | Φ50x400 mm(2.0"x16") | 3.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-3 | Φ60x300 mm(2.5"x12") | 2.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-4 | Φ60x400 mm(2.0"x16") | 3.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-5 | Φ80x300 mm(3.0"x12") | 4KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-6 | Φ80x400 mm(3.0"x16") | 4.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-7 | Φ100x400 mm(4.0"x16") | 5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-8 | Φ150x400 mm(6.0"x16") | 6KW | TW-1A;1L/s;120W;110/220V | |
| ST-1200RG-9 | Φ200x400 mm(8.0"x16") | 7KW | TW-1A;1L/s;120W;110/220V | |
| ST-1200RG-10 | Φ250x400 mm(10"x16") | 8KW | TW-1A;1L/s;120W;110/220V |
Any specific requirements,please inform us, we can design for you specially.We offer OEM service for you.
E. More-temperature zones furnace
1. Product Appearance
a. Two-temperature Zones Corundum Tube Furnace
b. Two-temperature Zones Quartz Tube Furnace
c. Vertical 3-temperature Zones Furnace
2. Features
Multi-temperature Zones Furnace is split with several heating systems in a furnace body which can create different heating zone temperature.The heating systems can work independently as well as cooperate according to requirements. It can also be installed computer communication module and RS485 communication interface to realize the computer remote control.
3. Applications
This kind of products are widely used in chemical experiments,petrochemical industry and so on.

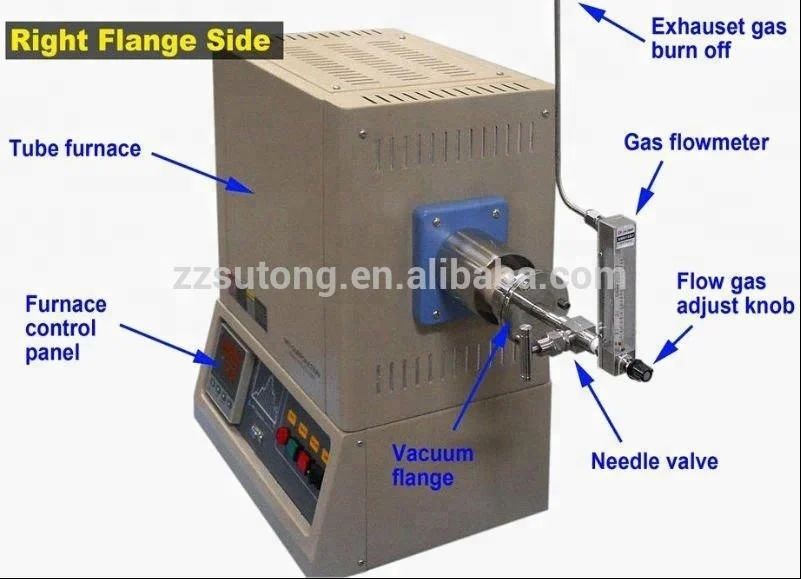

F. Furnace with accessories
