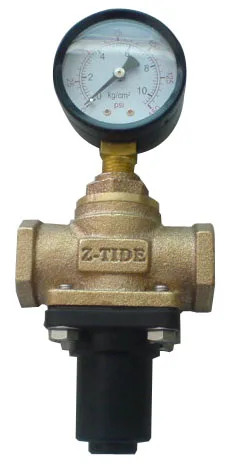

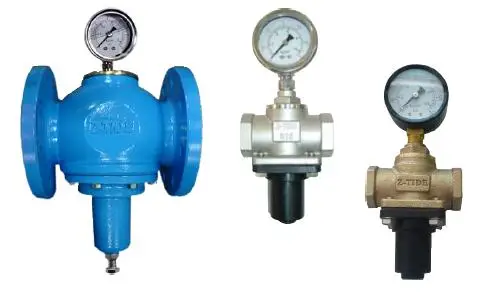

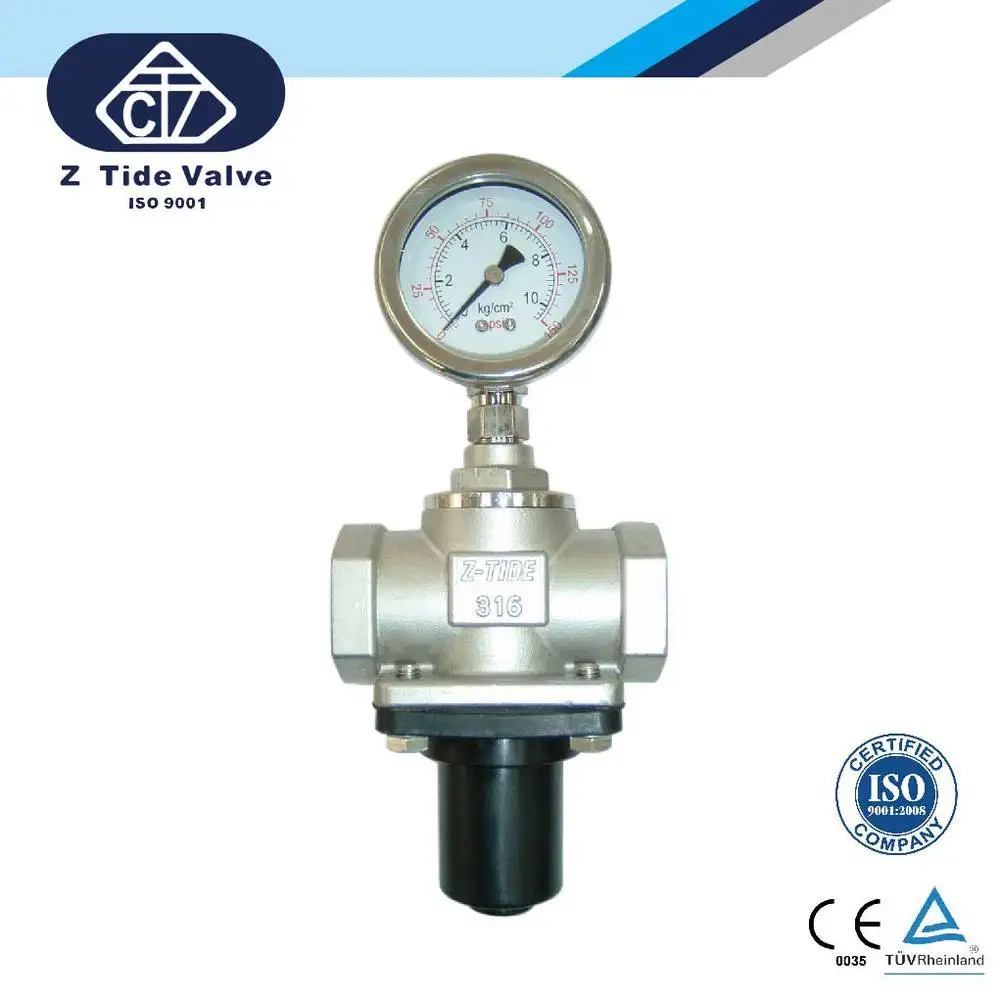

Made in Taiwan Direct Acting and Diaphragm Pressure Reducing Regulator Valve in Stainless Steel and Bronze for Water and Air



Product Link:

https://www.z-tide.com/index.php?action=product_detail&cid=88&id=703



Product Description



Product accent

* The gate is designed for opening status, which will not influence the water supply function

   under unstable inlet pressure condition.
* When the outlet pressure responds directly to the pressure control chamber and adjust the

   setting pressure, it responses quickly and adjust the pressure accurately.

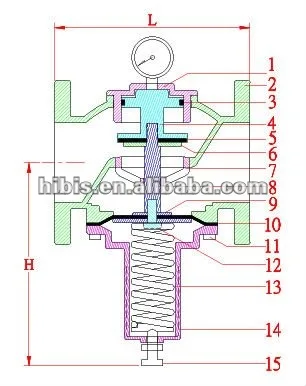

Bronze-Flange Type-illustration

Upper Cover : Bronze
Main Body : Cast Iron
U-ring : NBR
Piston : Bronze
Sealing Spacer : NBR
Diaphragm Washer : Brass
Shaft Guiding Seat : Bronze
Center Shaft : Brass
Diaphragm Fixed Washer : Electroplated Iron
Diaphragm : CR/EPDM
Fixed Bolt : Stainless Steel
Fixed Bolt : Stainless Steel
Spring : Spring Steel
Lower Cover : Cast Iron
Adjusting Stem : Stainless Steel



ize(PT)

Connect type

H(mm)

L(mm)

2"

Flange Type

150

190

2"

Thread Type

150

190

2.5"

Flange Type

165

210

3"

Flange Type

200

225

4"

Flange Type

220

250



Pressure Adjusting Range
* 1 kgf/cm2 ~5 kgf/cm2
* 4 kgf/cm2 ~9 kgf/cm2 (special order is needed for other range)
* Valve Body Testing Pressure:21kgf/cm2


Maximum Applied Pressure: 16 kgf/cm2



Pressure needed from fully-closed gate to fully opened gate

* 1 kgf/cm2 (1 kgf/cm2 =14.2 psi)


Applied Temperature: -15°C ~ 80°C


Applied Fluid: Fresh water

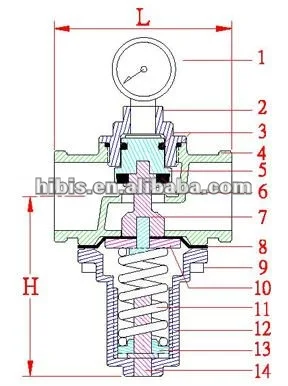

stainless steel-Flange Type-illustration

Gauge: Stainless Steel
Upper Cover : Stainless Steel 304
O-ring : NBR
Body : Stainless Steel 304S
Piston : Stainless Steel 304
Sealing : NBR
Shaft : Stainless Steel 304
Diaphragm : NBR
Fixed Bolt : Stainless Steel 304
Diaphragm Washer : Electroplated Iron
Spring : Spring Steel
Spring Cover : Polyamide 66
Spring Washer : Brass
Adjusting Bolt : Brass



NO.

size(PT)

H(mm)

L(mm)

RDT-15

1/2"

70

60

RDT-20

3/4"

70

70

RDT-25

1"

80

80

RDT-32

1 1/4"

85

90

RDT-40

1 1/4"

110

110

RDT-50

2"

115

115



Applied condition: Water


Pressure Adjusting Range
* 1 kgf/cm2 ~5 kgf/cm2
* 4 kgf/cm2 ~9 kgf/cm2


Valve Body Testing Pressure: 21kgf/cm2


Maximum Applied Pressure: 12kgf/cm2


Applied Temperture: 15°C~80°C
