Product Overview

Description

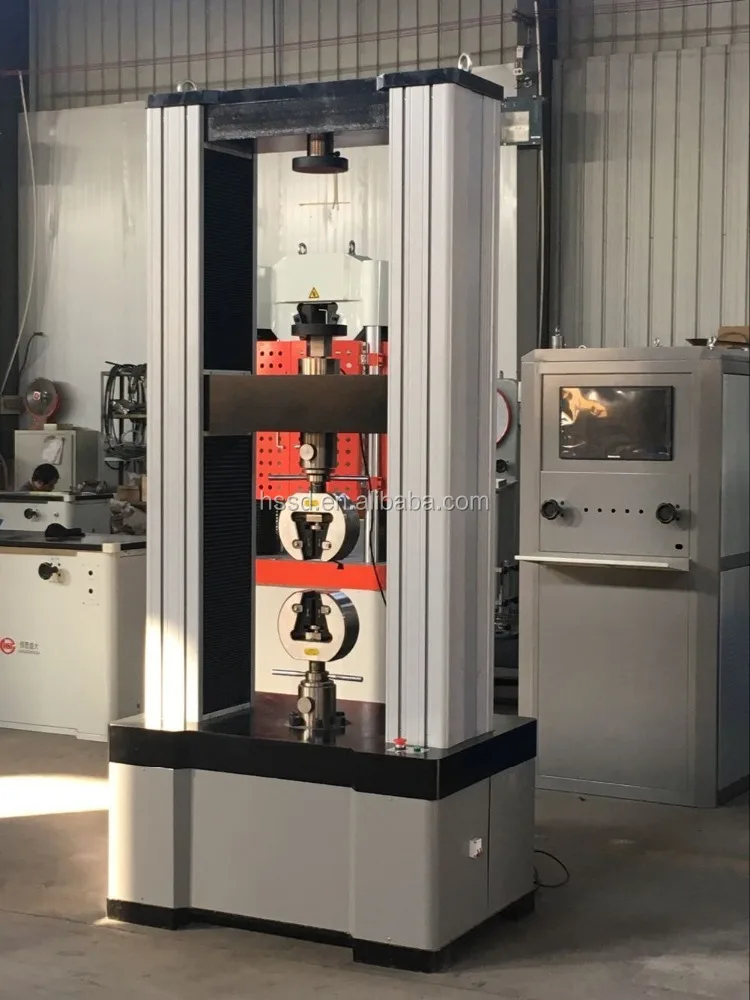

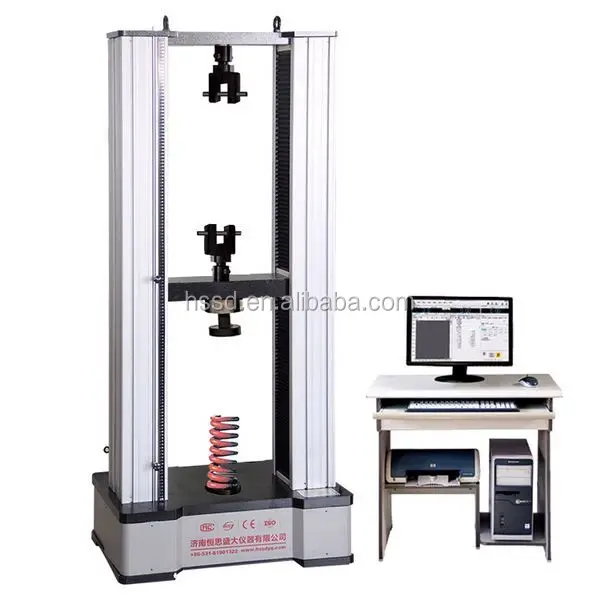

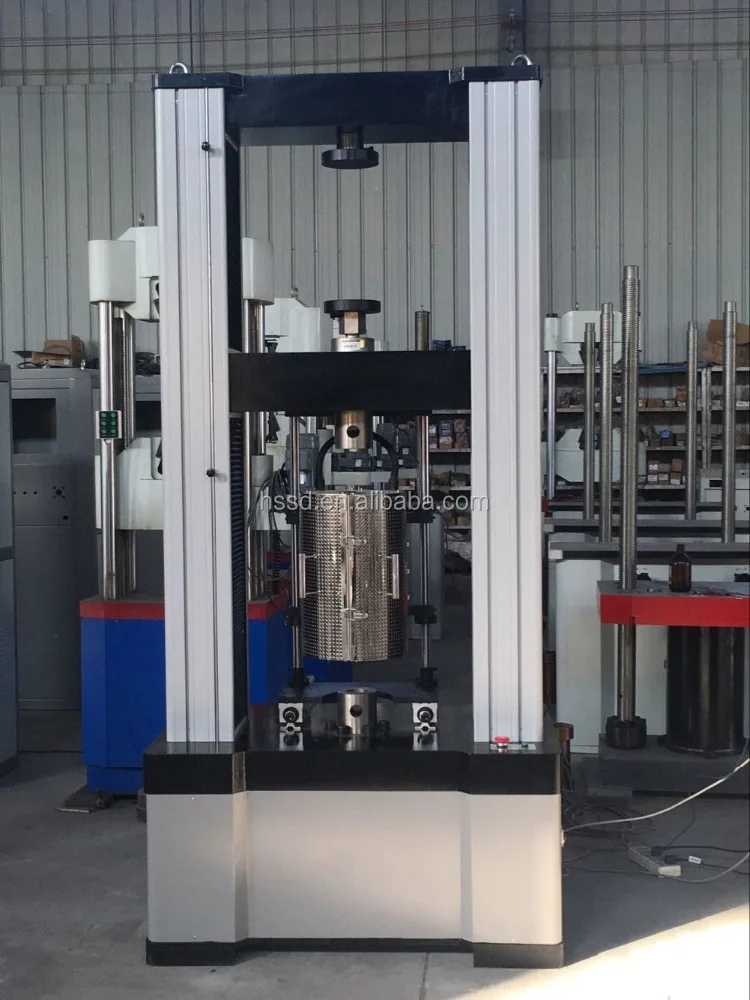

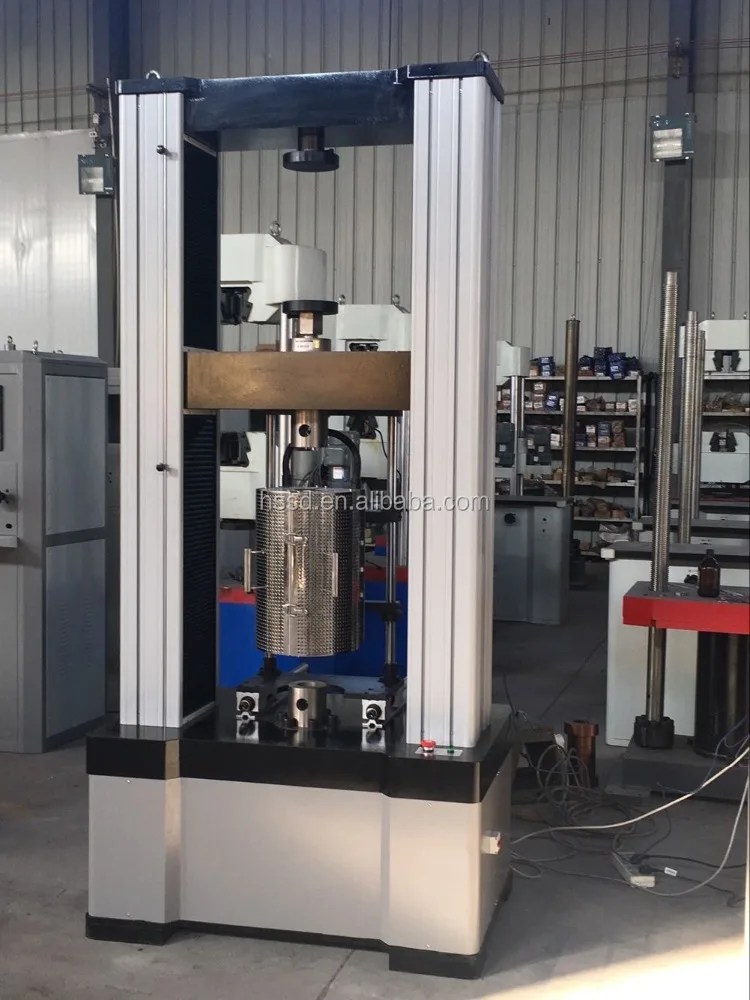

WDW-100 100KN Computer Control utm, 100kn Universal Testing Machine ppt


WDW-10-20_01WDW-10-20_02WDW-10-20_03



Product Description







1. Overview:


WDW computer control Material electronic universal tensile tester  is manufactured according to the GB/T2611-2007 General requirements for testing machines and GB/T16491-2008 Electronic universal testing machines . The computer automatically control the testing machine to rise, fall, test, stop, etc. With good appearance, convenient operation, stable and reliable performance.






Contact


Contact: Alice   Skype: hssdtest    What's APP / TEL: +86-15098778967    Ali: cn1001290168




2. Application:


This series mainly used for tensile, compression, peal, shear, tear, and bending mechanical property test for metal, non metal material. Widely used in aerospace, petrochemical industry, machinery manufacturing, plastic, rubber, ceramic building materials, metal materials, construction and other industries, and institutions of higher learning, scientific research institutions, technical supervision, Quality Inspection Station and so on.





3.Technical parameters:








































































































Model



WDW-10


WDW-10E



WDW-20


WDW-20E



WDW-30


WDW-30E



WDW-50


WDW-50E



Max. load



10kN



20kN



30kN



50kN



Structure



Four-column floor type, (upper is compression and lower is tensile)



Control method



Computer control



Load accuracy



1 class/0.5 class optional



Load range



2%~100%F·S/0.4%-100% optional



Resolution



1/300000



Measuring range of deformation



2%-100%



Accuracy Indication of deformation



≤±1%



Disp. indicating relative error



≤±1%



Displacement Resolution



0.04um



Adjusting range of control rate of load



0.005~5%FS/S



Adjustment scope of deformation rate



0.005-5%FN/S



Adjusting range of displacement rate



0.05-500mm/min(can be customized



Scope of the consistent load


deformation and displacement control



0.5%~100%FS



Tensile space



700mm(can be customized)



Compression space



700mm(can be customized)



Test width



400mm(can be customized)



Load Cell Configuration



One(max load), more load cells can be added according to customer requirement



Extend configuration

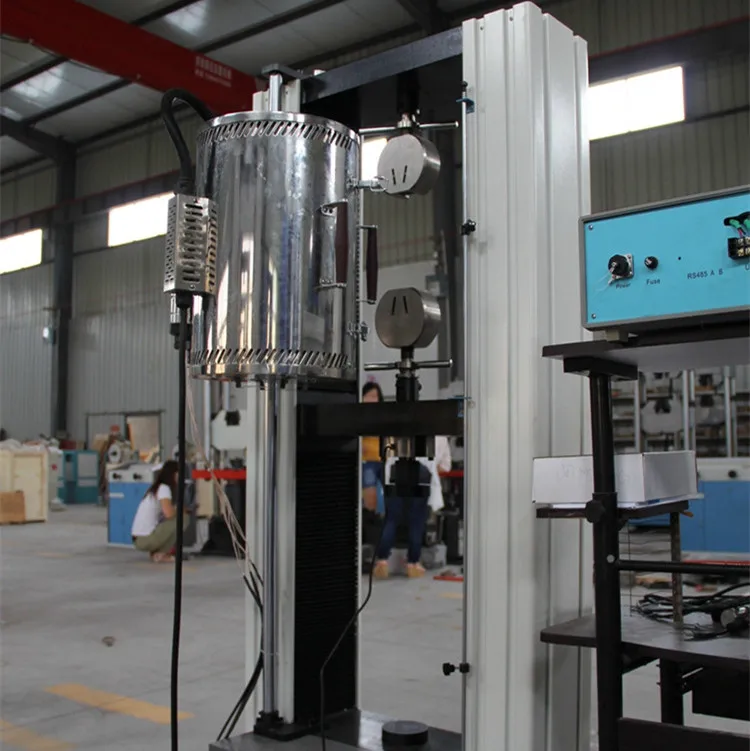

Large deformation extensometer, high or low


temperature teste chamber, high temperature oven



Power supply



AC220/380V±10%,50Hz (can be customized)



Grips



Manual/Hydraulic automatic



Dimension



700*450*1775mm







More Information




WDW_11WDW_12WDW_13WDW_14
