Wall paint making machines paint mixer and dispenser for shops

Product Overview

Description

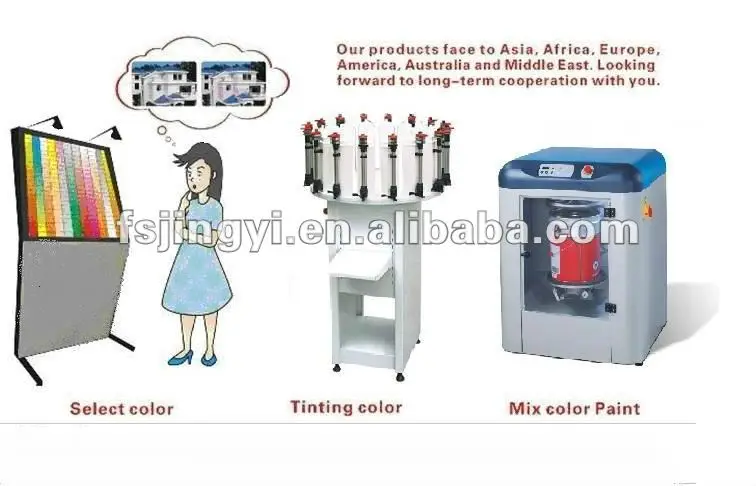

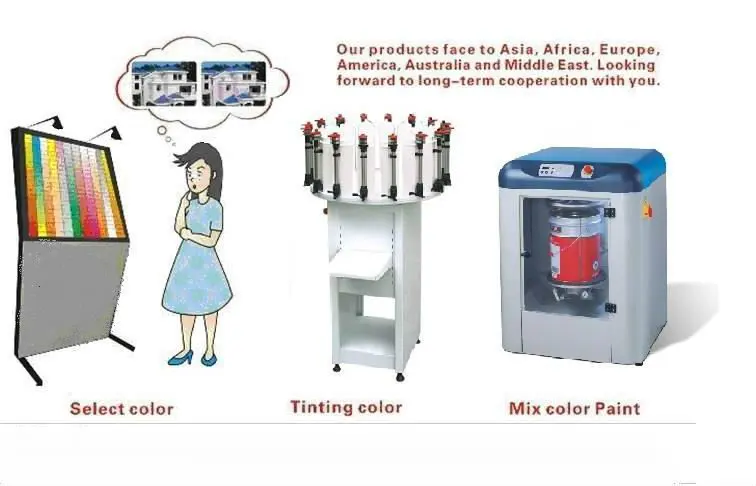

To make the paint for wall paint in shop, you will need one dispenser and one mixing machine.

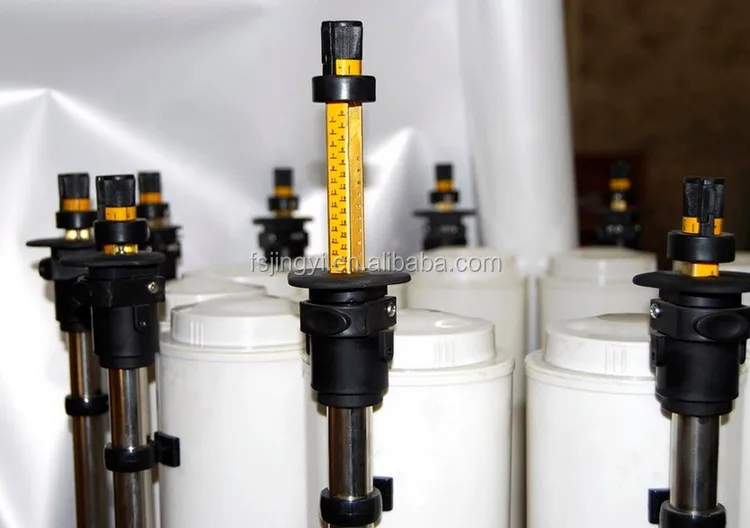

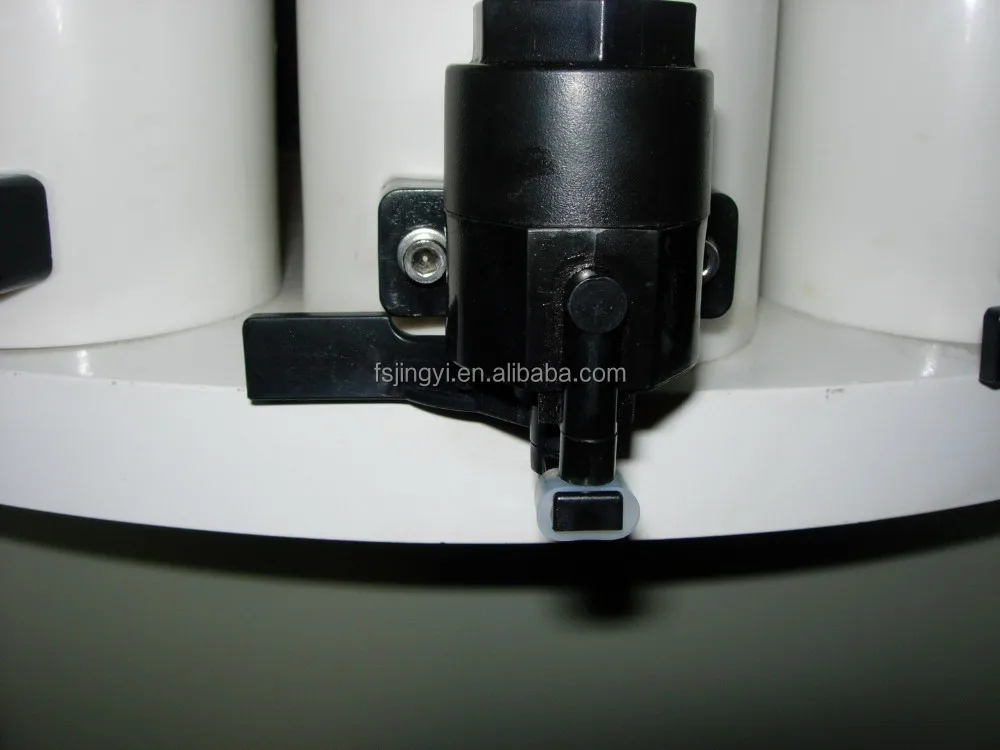

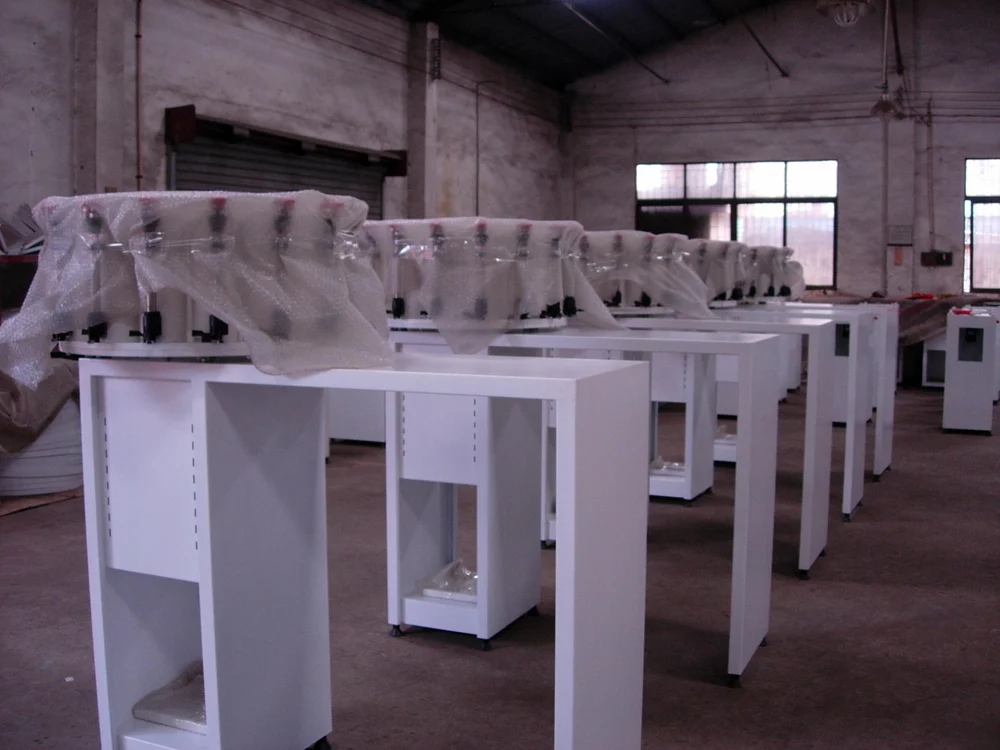

JY-20B manual paint dispenser



Technical data:
1) Application: Water or oil colorant (1 to 24 types)
2) Canister: 1.75L or 2.3L OPP plastic canister
3) Max discharge per time:2 fluid ounce
4) Accuracy: 1/192Y or 1/384Y or milliliters or others
5) Working power: 220V; Frequency: 50/60 HZ; Power supply: 40W
6) Net weight: 80KG; Gross weight: 120KG
7) Machine size: 1350 (H) X 860 (W) X 860 (D) mm
8) Packing size: 1170(H) X 500 (W) X 570 (D) mm
                 470(H) X 990 (W) X 990 (D) mm

Features:

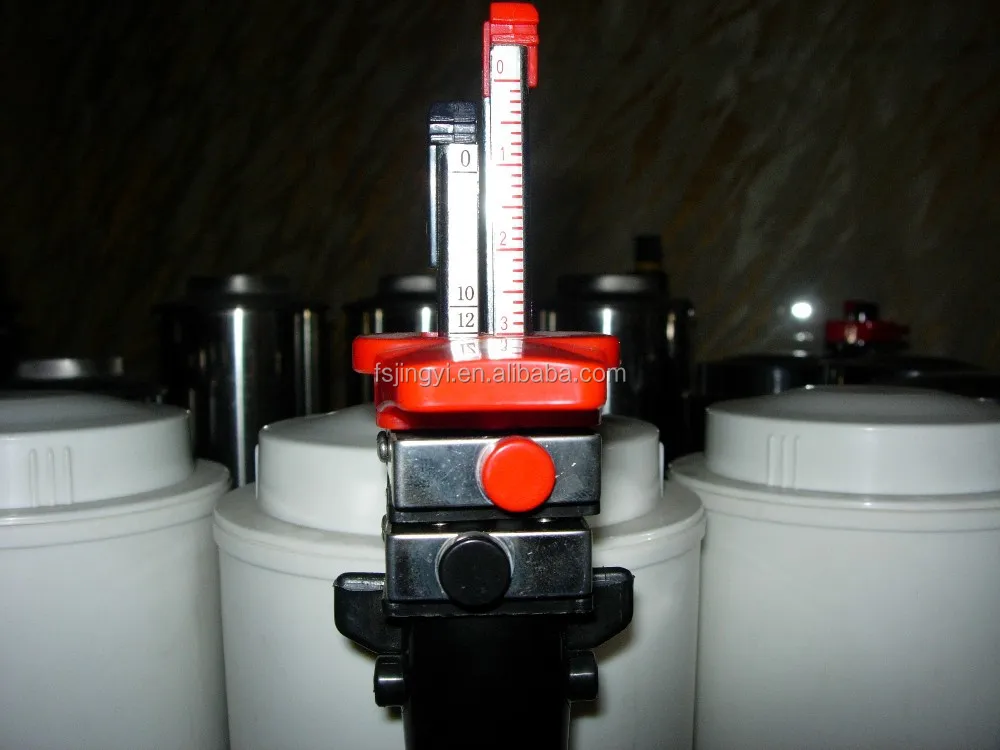

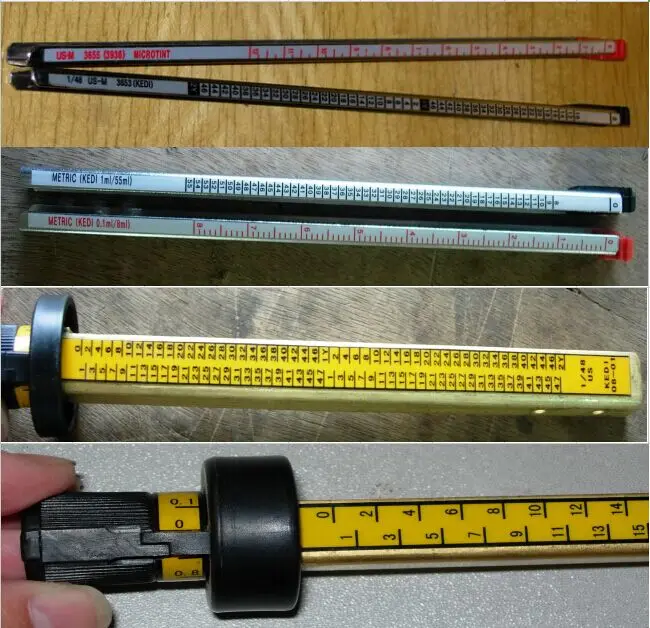

1) Double-pump and double-gauge ensures stability of accuracy and repeatability.
2) Automatic blending of rotating blades ensures equal distribution of colorant
   and has no deposition.
3) Colorant tray that can automatically rotate fix brings more convenience for
   operation.
4) Manual control interior case support may be moved up and down easily, which
   provides enough space for paint dispensing.

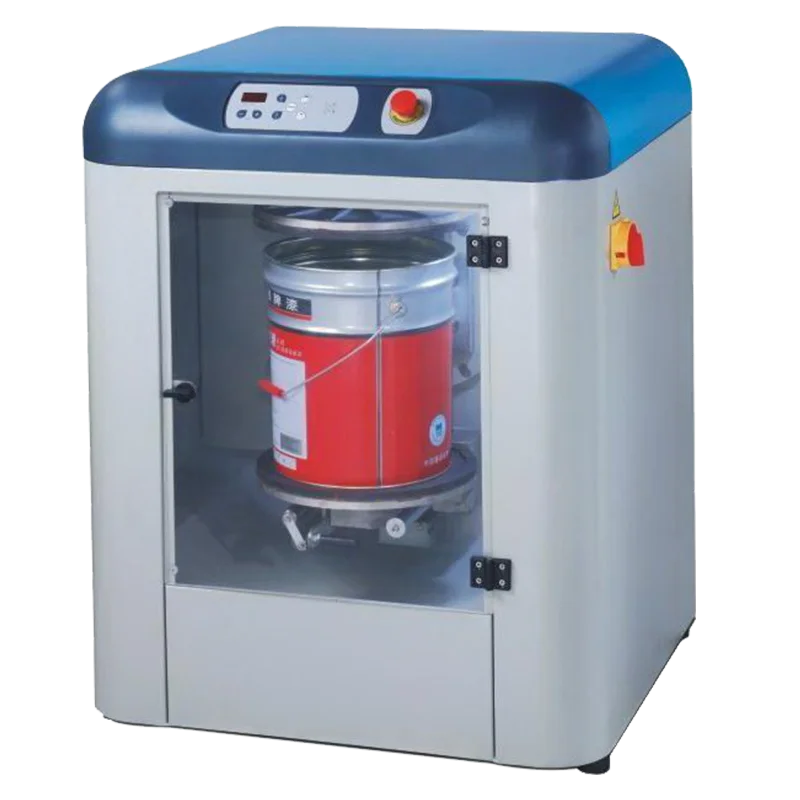

JY-30A Automatic gyros mixer



(20feet container can load 28sets)
1. Technical data:
1) Applicable range: 0.5-20 L ( paint in drum );
2) Height in the drum: 7 till 38cm, diameter of the drum: 7 till 30cm;
3) Revolution speed: 60 till 200r/min;
4) Working power: 220V 50/60HZ, power supply: 0.75KW;
5) Net weight: 185kg, gross weight: 230kg;
6) Case size: 950 (H) x 820 (W) x 750 (D) mm;
7) Packing size: 1170 (H) x 900 (W) x 810 (D) mm;

2. Features:
1) Start self-checking program automatically before operation. In case of
   any abnormality, the controller will activate alarm through digital
   display and buzzer will sound.

2) Digital display will show the actual time set and time used, so that the
   operation may have exact mixing time idea for better result.

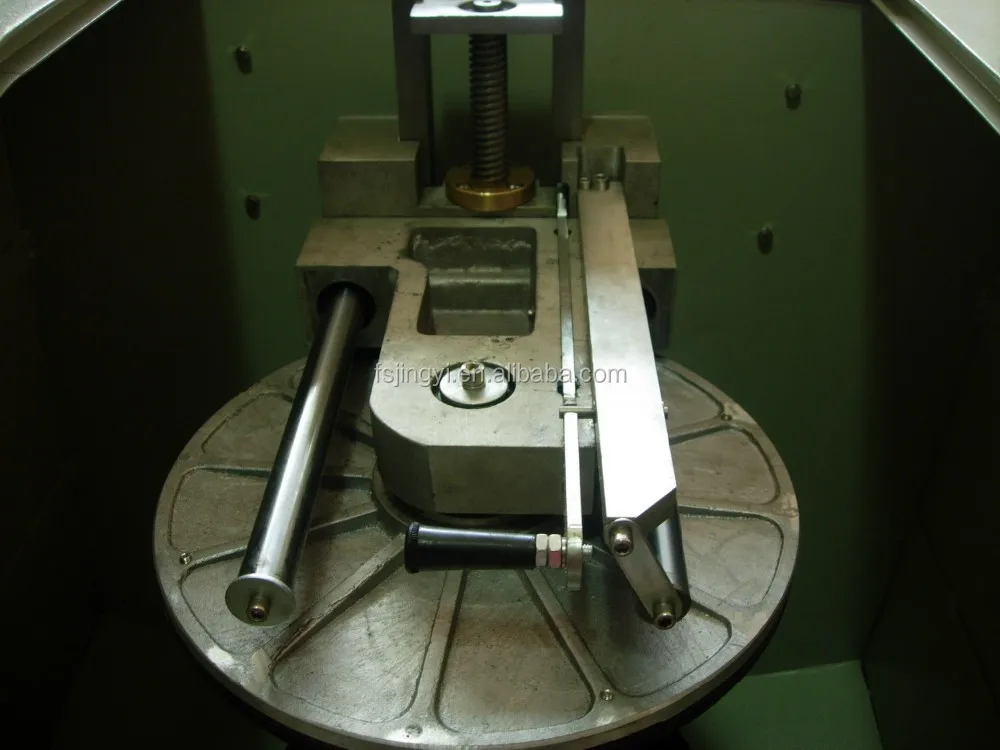

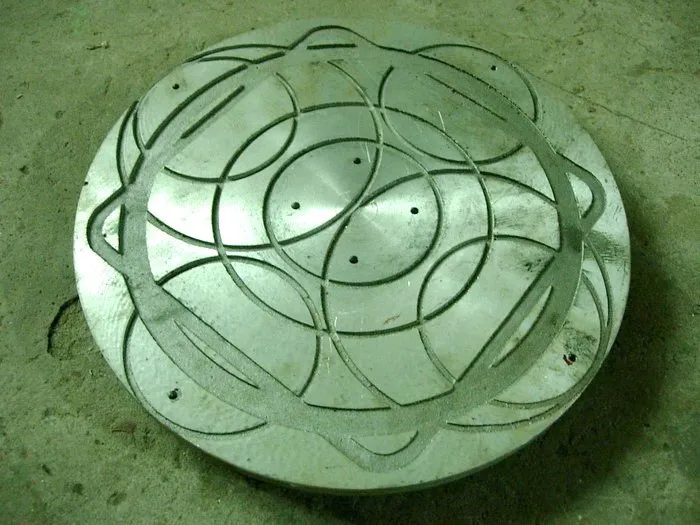

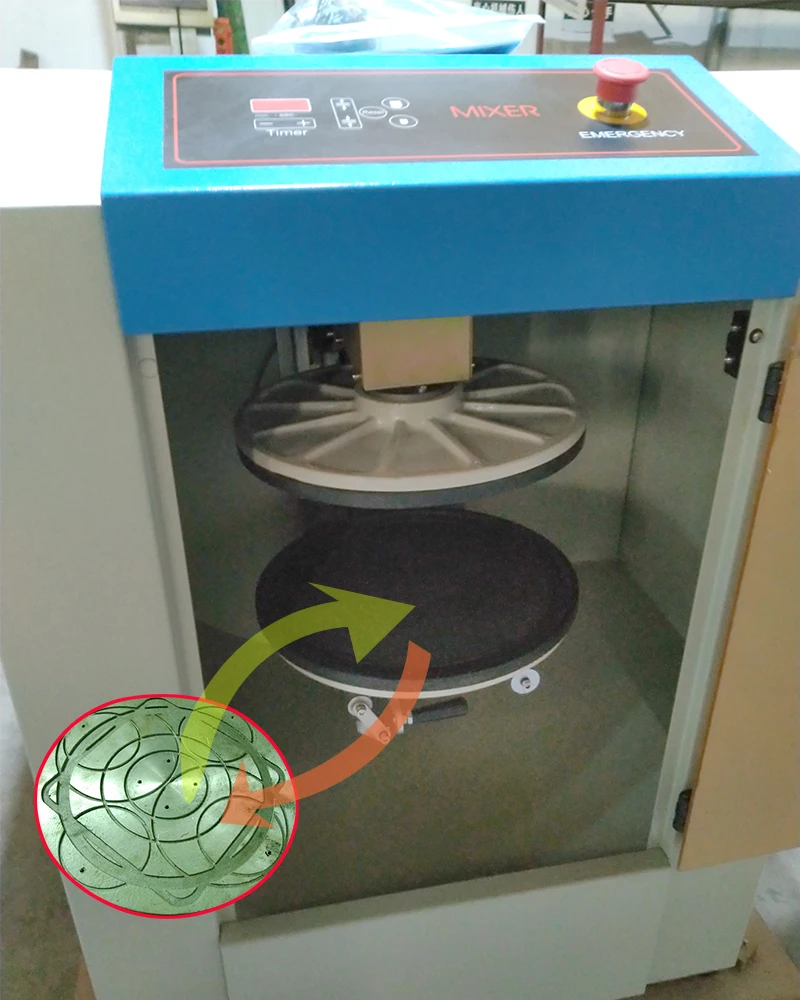

3) Easy moving or fixing of interior case support.
4) Automatic identifying size of the drum to offer adequate clamping power
   and rotating speed.

5) Automatic clamping and open setting, revolution and rotation may start
   synchronously during paint mixing.

6) Multi-grade intelligent timing inverter, adequate speed control ensures
   stable operation; Stopping automatically when the door is opened due to
   excellent safety and features.
