Zinc hot chamber pressure die casting machine

Product Overview

Description

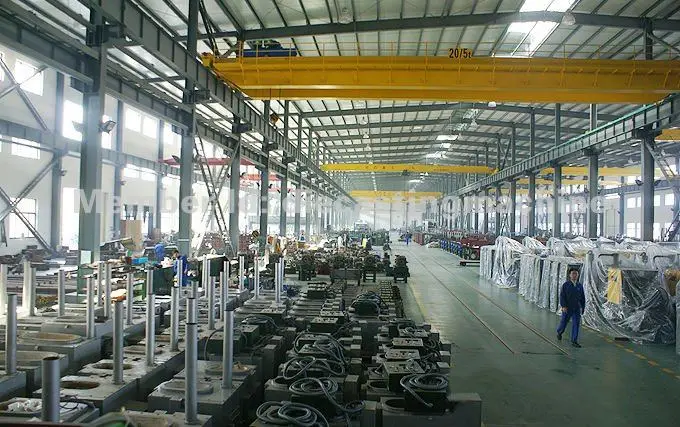

Our factory

In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service.  We are devoted ourselves to higher and better die cast technology in die casting are in China.



* With a history of over  37  years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center            * Main Machines: 100sets



 Hot chamber die cast machine

 We can supply hot chamber die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

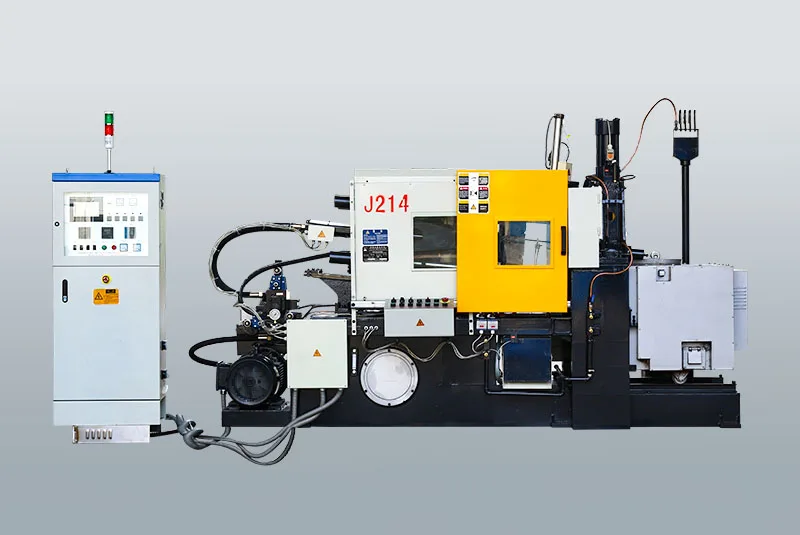

Features and applications for J214 die cast machine

 50Ton Hot Die-casting Machine

 Suitable for zinc and lead alloy

3 working methods

 Long-distance communication.

Specifications and Parameters



	Technical Figures	Unit	Figures
Spotting	Spotting force	kN(ton)	500(50)
	Platen dimension(H×V)	mm	460×498
	Inner space between pull rod (H×V)	mm	290×290
	Diameter of pull rod	mm	50
	Stroke of spotting	mm	210
	Max. thickness of die	mm	320
	Min thickness of die	mm	120
Injection	Injection force	kN	50
	Stroke of Injection	mm	110
	Diameter of standard injection room	mm	50/45(Special)
	Dosage of metal per shot(Zinc)	Kg	1.1/0.9(Special)
Ejection	Ejection Force	kN	50
	Stroke of Ejection	mm	50
Time per Cycle	Total time of die open&close, ejection& ejection return, injection&injection back.	s	7
Core	Moving core(1group)
	Connection dimension	mm	M18X1.5
Cooling water	Machine cooling water let-in rubber hose diameter	Rc	3/4
	Machine cooling water let-in rubber hose diameter	Rc	1 1/2
	Mold cooling water let-in rubber hose diameter	mm	10
	Mold cooling water let-out rubber hose diameter	mm	10
	Quantity of cooling water valve	PC	4
Air compression	Pressure	MPa	0.6





FAQ

Q:Are you a manufacturer of a trade company?

A:We are a manufacturer.And we have our own Export rights.



Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.



Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.



Q:How about your packing ?

A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.



Q:What is your annual production capacity?

A:About 500 sets per year.
