88Ton 880KN Hot Chamber Die Casting Machine for Zinc Injection

Product Overview

Description

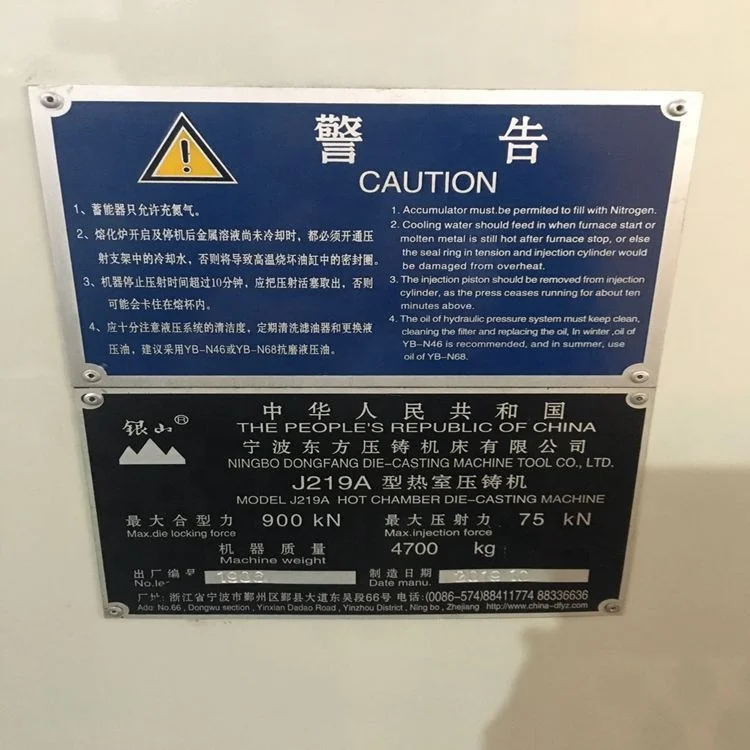

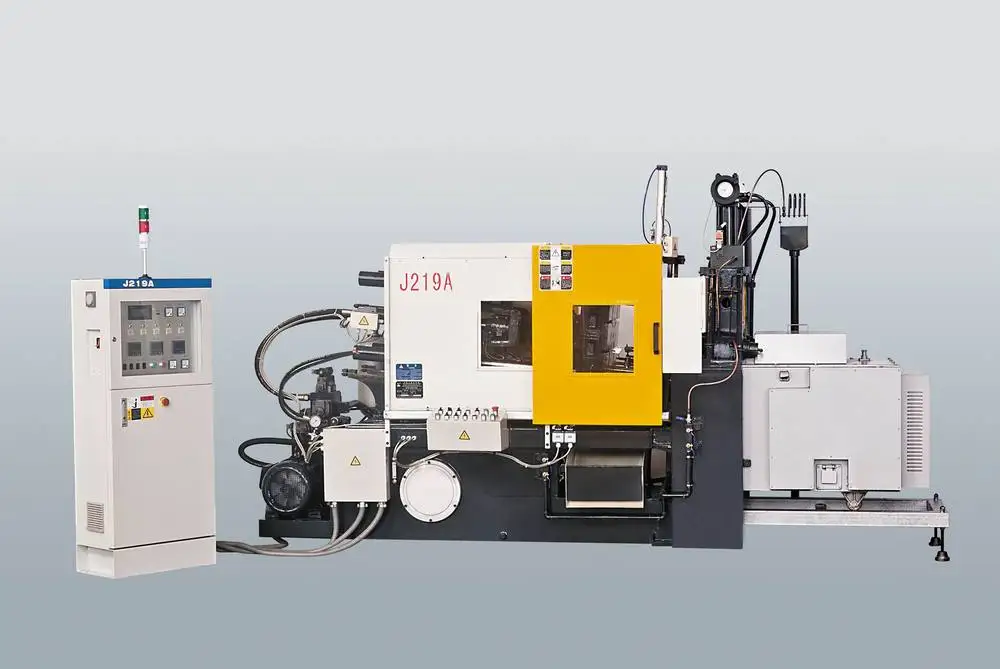

J219A 88ton hot chamber die casting Machine features

1. 880kN/88T Hot Chamber Die Casting Machine

2. Sutiable for zinc and lead alloy

3. PLC and person-machine interface

4. 3-moment locking module to protect module and die

5. 3-pot automatic lift structure to keep more balance and convenient

6. Constant and effective hydraulic boosting to make injection rate over 6m/s





The hot chamber die casting machine could process low melting point metal of colored alloy of zinc and lead, which is widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.

Hydraulic pressure is controlled by flow and pressure proportion value. Its speed and pressure can be regulated. Hydraulic boosting is constant and effective, injection rate over 6m/s. Three-pot automatic lift structure makes module lift more balanced and convenient.

The die casting machine adopts 3-moment locking module, low pressure effectually protects module and die.

The zinc hot chamber die casting machine is equipped with electronics and hydraulic pressed parts of import. The machine is controlled by program to be stable and reliable.



The project	unit	J219A
Die locking force	kN	900
Stroke of moving platen	mm	270
Inner space between the bars (HxV)	mm	360x360
Thickness of die block (HxV)	mm	120x360
Injection force	kN	75
Injection stroke	mm	130
Ejection force	kN	60
Ejection stroke	mm	60
Diameter of shot sleeve	mm	50
Max projecting area of casting	cm2	236
Working pressure of vane pump	MPa	12
Motor power	kW	11
Dosage of fluid metal per shot (zinc)	kG	1.6
Effective volume of crucible (zinc)	kG	350
Oil consumption of burner	kg/h	1.5-6.0
Volume of oil tank	kG	250
Machine weight	kG	4700
Overall dimensions (L*W*H)	mm	4300x1800x2250

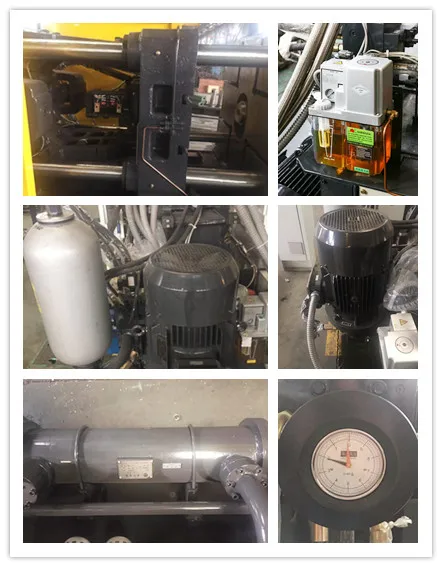

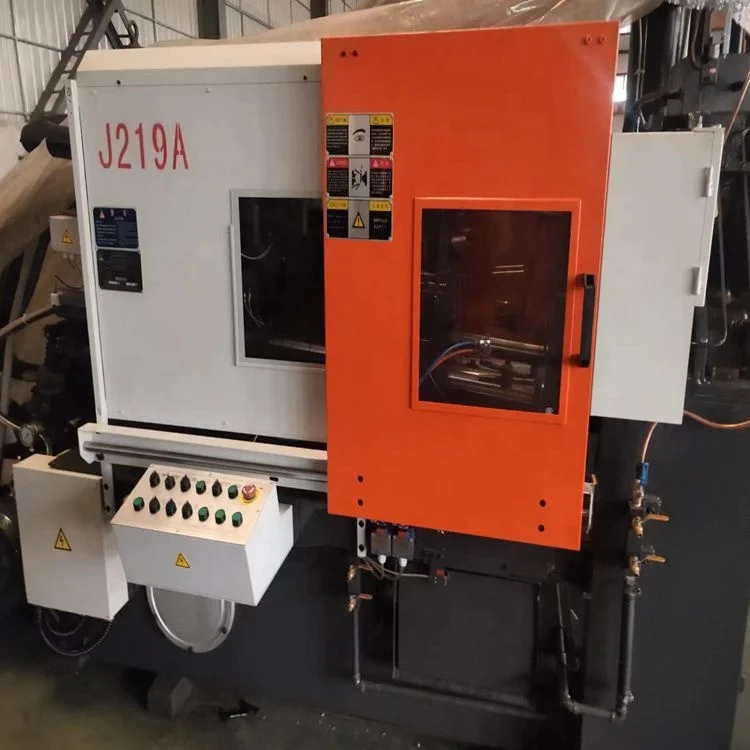

Details of 88Ton hot chamber zamark die casting machine

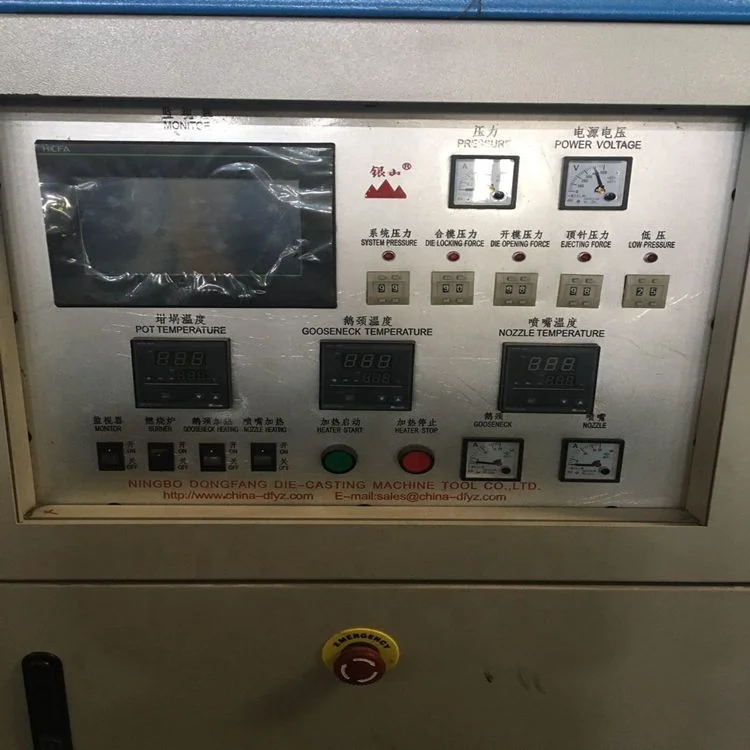

Electrical operation system

The die casting machine is equipped with an electrical control cabinet, which is connected to the main switch of power supply. The voltage range of fluctuation (allowable) must be limited within 10%, or else a voltage regulator must be installed.

There is a set of microcomputer control unit in electrical control cabinet, which is used to control transistor amplifying plate and then control action of electromagnet and contactor.

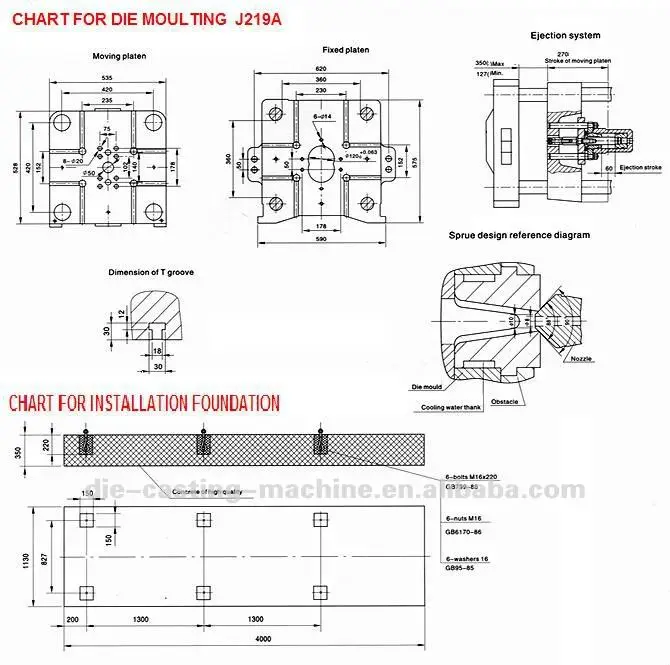

Die-closing unit
The die-closing unit consists of platens, oil cylinders, four tie bar and other parts. The action of
moving platen is performed by the piston rod which can drive the toggle unit. As the process of die-closing is carried out from high speed to lower, it is impossible to induce impact case. The
expanding-force of toggle unit and ultimate die-closing stability, ensure a prompt die-opening and die-closing action.



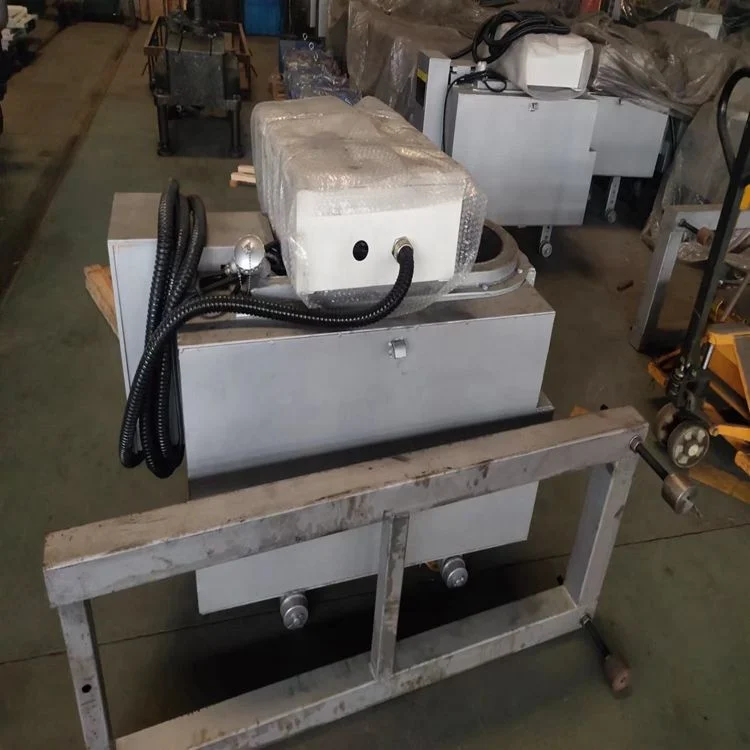

Injection unit
The injection unit has following characteristics: The die-casing chamber and the piston are immersed into molten metal. The gooseneck kettle is equipped with a layer of steel jacket. A jet pipe is mounted on the mouth of gooseneck kettle. Nozzle is connected closely with the fixed platen. Molten Metal is injected from gooseneck kettle into die-casting mould by vertically-moving piston. When injection piston returns, molten metal will return into gooseneck kettle automatically.



Hydraulic pipeline system
The working pressure of the hydraulic system is 12Mpa. In pressure system, configure multi-stage pressure system and multi-flow control system. The pipeline system consists of three hydraulic combination plates, pressure die-closing control hydraulic plate, injection system hydraulic plate, ejection hydraulic plate. All the hydraulic elements are installed on each of three hydraulic plates.
