Same as Fujifilm 0.175mm Phototool Satisfine Plotter Sensitive Film for PCB LCD VFD BGA Printing

Same as Fujifilm 0.175mm Phototool Satisfine Plotter Sensitive Film for PCB LCD VFD BGA Printing

 Sensitive film / Silver duplicate film

           (Negative film making)

The electronic circuit drawing in light printing imagesetters

from 632.8nm to 670nm.
Characteristics: Hard contrast, high resolution,

excellent line performance, moderate sensitivity,

wide exposure and developing latitude,

suitable for rapid access at high temperature.

610mm*508mm*50sheets/box

660mm*508mm*50sheets/box

406mm*508mm*50sheets/box

Other sizes also available as required.

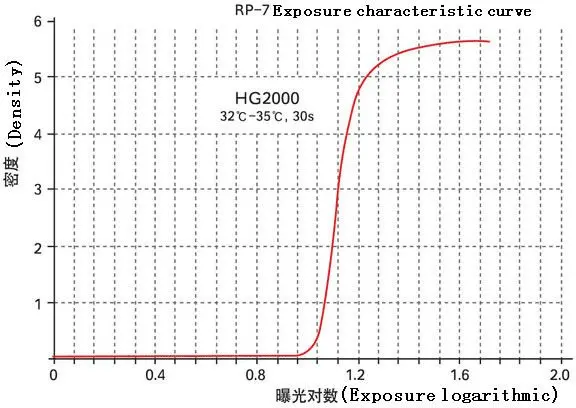

HG-2000 and HG-963 are recommended.

Aibixi, Taihang and Keyi chemicals are also applicable.

Developing TEMP: 30-35°C

Developing time: 60-25 seconds

The film should be unpacked in complete darkness

or under the dark green light with a wavelength of 500-520nm.

The unused films after unpacking

should be repacked with the original materials.

Store the films in a cool and dry place.

Storage temperature is not higher than 20° C

and RH not higher than 65%.

Being too warm and humid will shorten the film's shelf life.

Avoid radiation or corrosion of other substances and sunshine.
