block pave machine / concrete interlocking making machine QTY8 15 machine to make concrete blocks

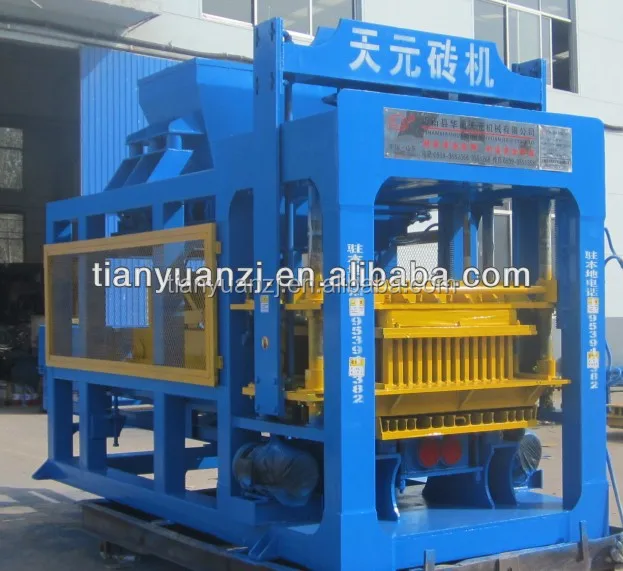

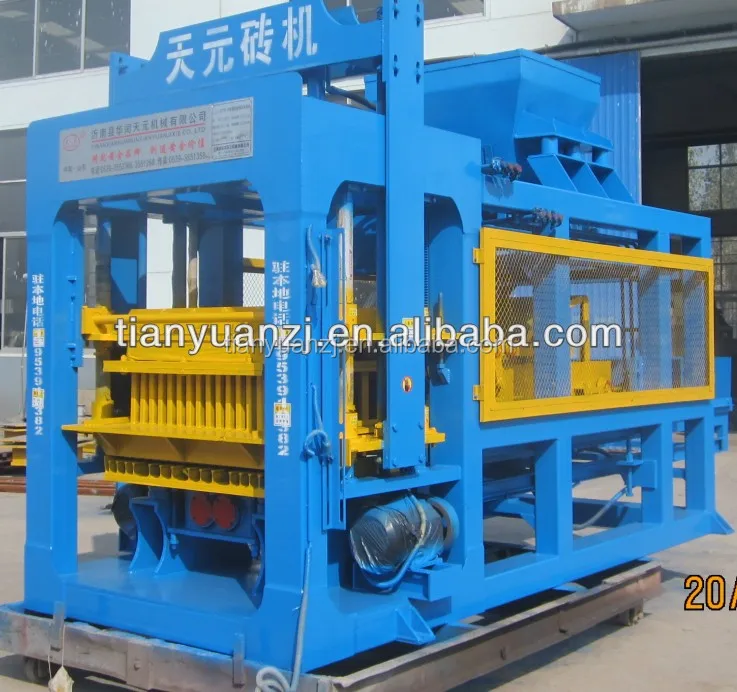

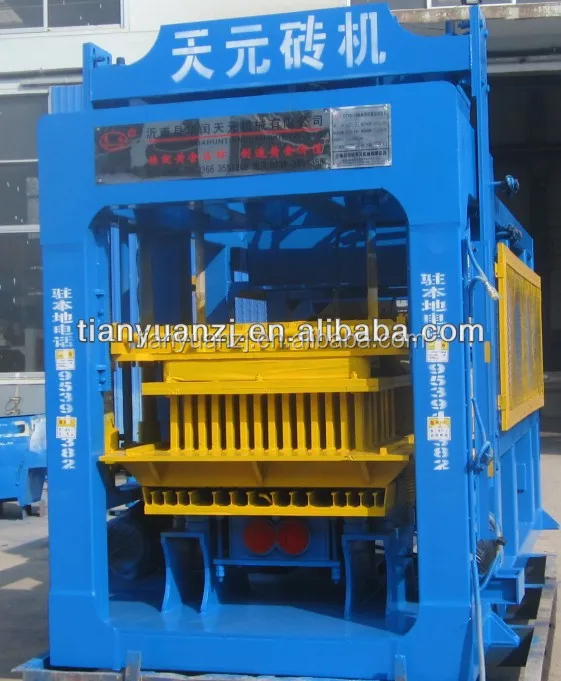

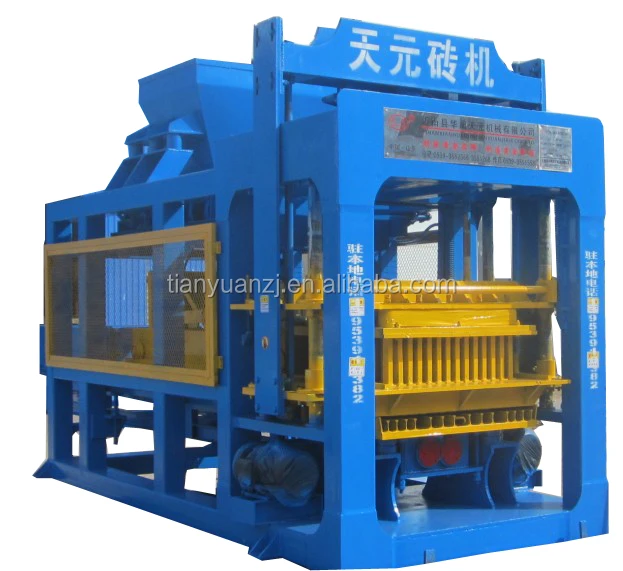

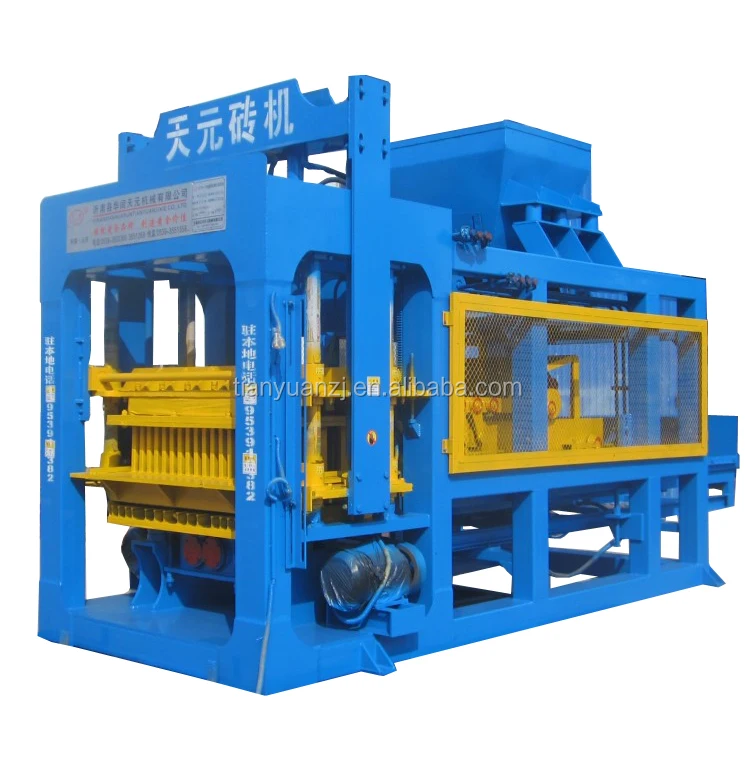

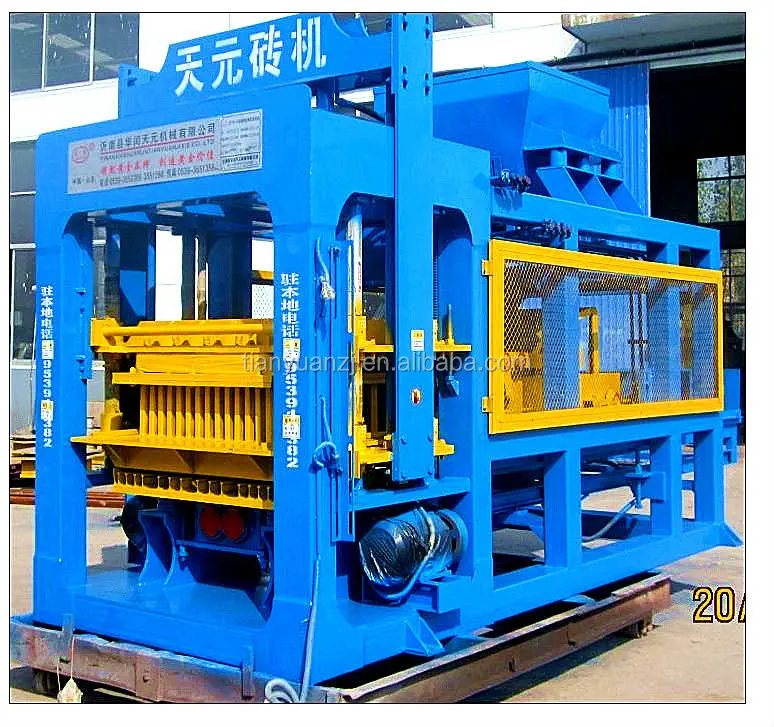

1- Molding machine picture,

 2-The advantage of Molding Machine,

1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters,  use less labor.

2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted

3- Adopting the advanced forced material-feeding & distributing device, More durable.

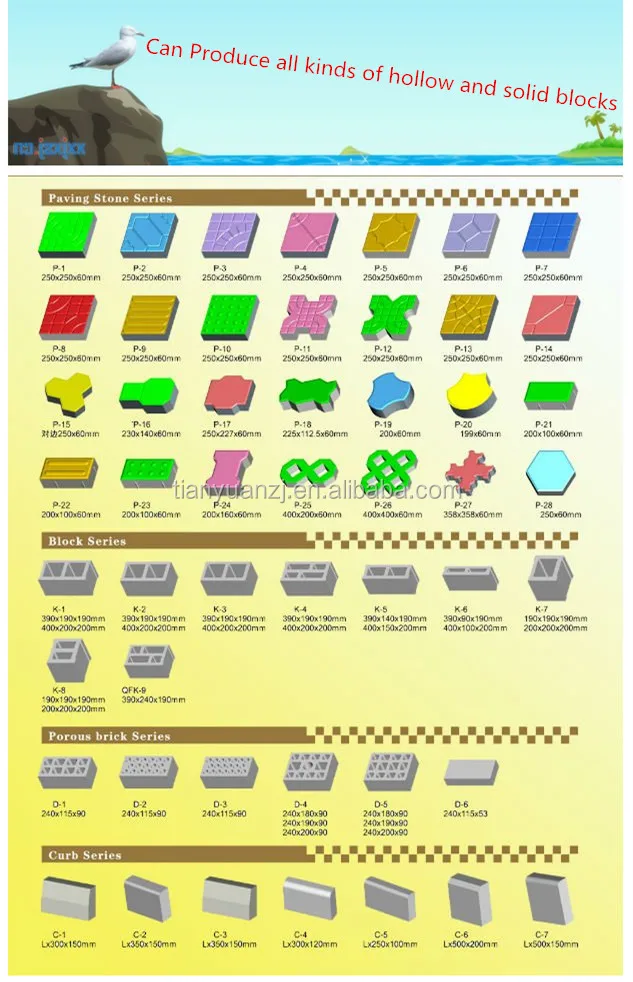

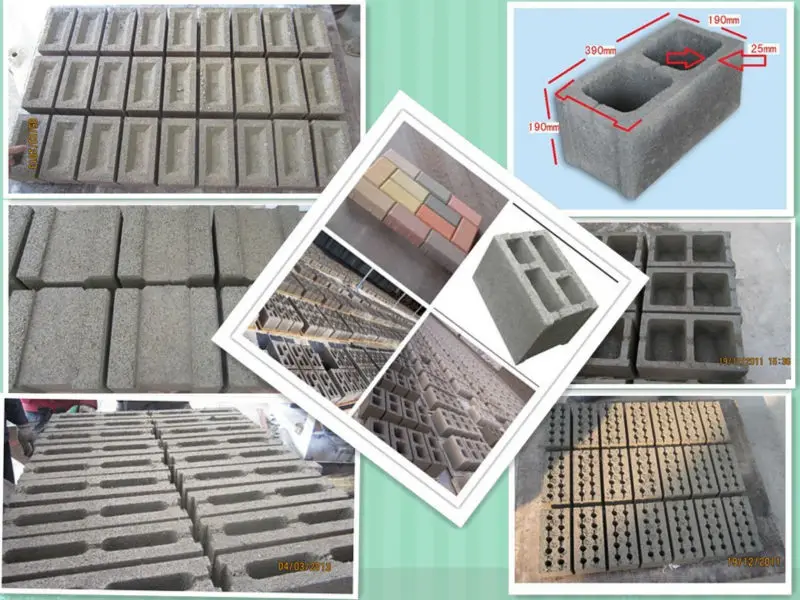

4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.

5- Quality Insurance:

PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.

    Switch from Siemens or CHTN.

Molds are made of Manganese steel, long lifetime.

6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.

7- Molding machine frame are made of 8mm thickness square steel, more durable.

3-Machine Productivity ,

4- Machine Technical Parameter,

1-Main machine Dimmension: 4800x2000x3000mm.

2-Rated Pressure: 25Mpa.

3-Vibration Form: Platform Vibration and Upper Vibration.

4-Vibration Frequency: 5000-5500r/min.

5-Pallet Size: 1020x900mm.

6-Molding Cycle: 12-20s.

7-Electric Power: 38.7Kw.

 8-Main Machine Weight: 13.5Ton.

 9-Material Consumption: 200-260Ton/day.

 10-Electric Consumption: 86Kw.h/day.

 11-Water Consumption: 10ton/day.

 12-Worker: (4-8person).

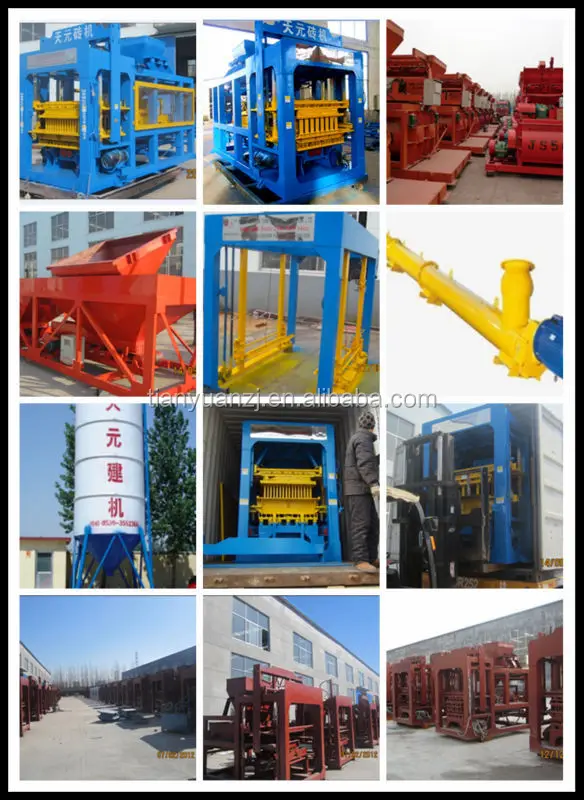

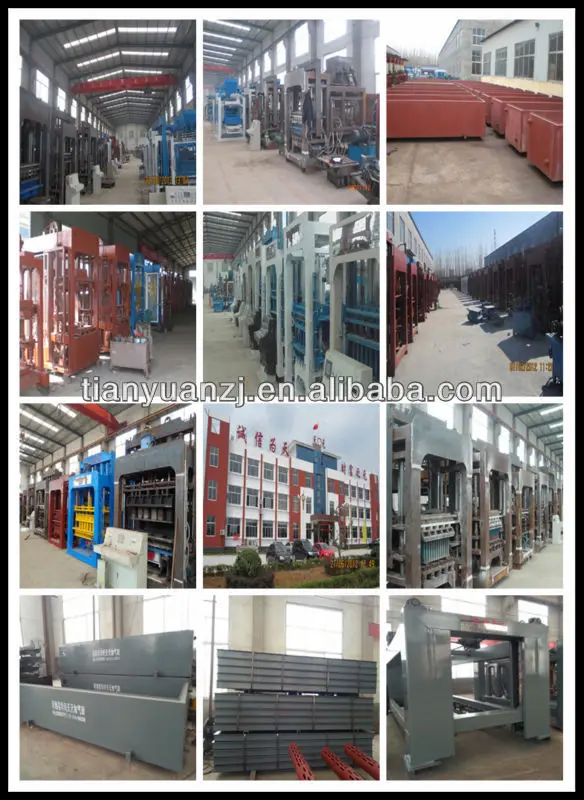

5- Loading and workshop

6-Molds pictures

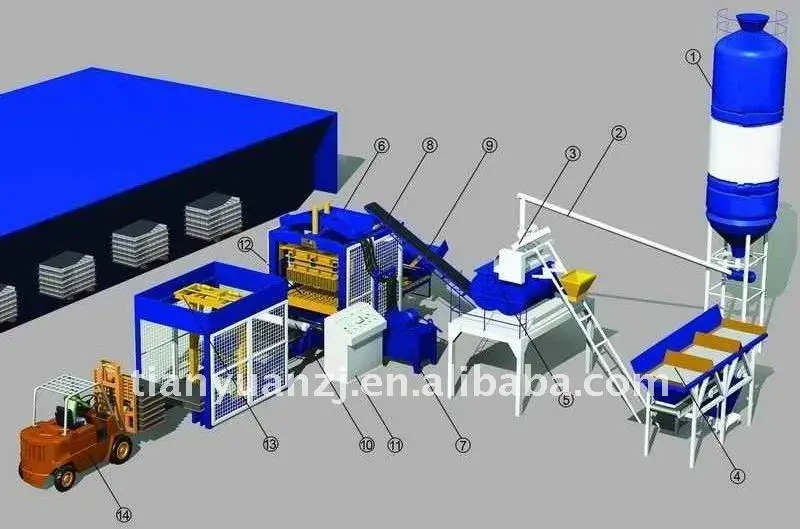

7- Production line

1> Certification of ISO 9001. CE(MD+LVD)

2> We have inspections every year by National Quality Technical Supervise Department.

3> Our Quality Inspection Department make test of each machine before loading.

*Huarun Tianyuan Factory

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

Packing:

Nude in container. Or in plastic bag as per clients needs.

Shipping:

Big machines

(QT12-15, QT10-15, QT8-15, QT6-15A/B/C, QT4-15A/B/C, QT4-20C)

1: From mixer to stacker need one 40ft high container.

2: If need silo and batching machine too, it will need  total 3x40ft high containers.

Small machines( QT3-15/20, QTJ4-25)

1: From mixer to Block receriver, need one 20ft container.

2: If with stacker, it will need one 40Gp.

Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).

Loading size is from 8cbm to 17cbm, in LCL or 20Gp.

Service.

@:Free designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time. Service line 0086-539-3551999

    Email : yntianyuan at aliyun.com.

1: Delivery period and payment terms?

   25days after advanced payment or Irrevocable LC at sight.

   30% advanced, balance paid before loading.

2: Packing method ?

  Nude packing, or in plastic clothes, or in plywood box.

3: What's motor and electric brand we choose for our machine?

  Siemens/Schneider brand, or Chinese famous brand.

4: What kind of steel my machine and molds use ?

   Q235B for machine, Mn steel for molds. More durable.

5: Will you send engineer to install for user?

   Yes, we have oversea service team. They will supply service as per needs.

6: Are there any spare parts together with the machine ?

  Yes, we will send spare parts together with machine, the user could use more than two years.

7: Do you supply free technical service during later production ?

   Yes, we have online technical service in 24hours.
