Product Overview

Description




 Our factory



In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service.  We are devoted ourselves to higher and better die cast technology in die casting are in China.

 factory

* With a history of over  37  years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center            * Main Machines: 100sets

   factory -4.jpg



 Hot chamber die cast machine

 We can supply hot chamber die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.









Features and applications of 25Ton hot chamber die casting machine

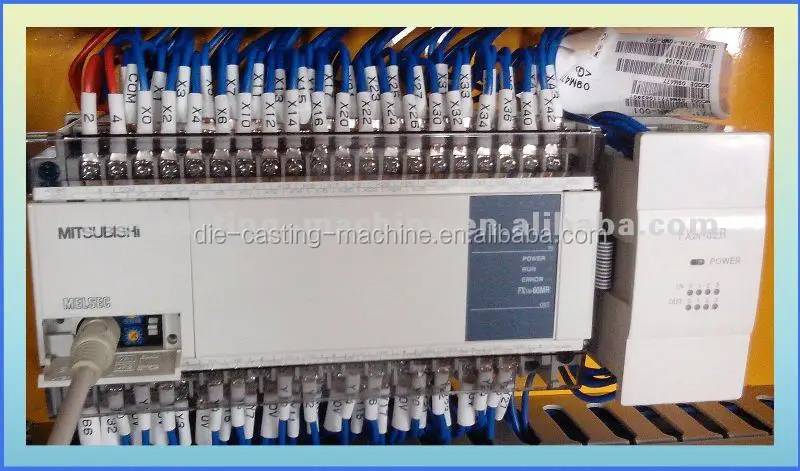

1.PLC imported from Japan for more stable and reliable

2.Three kinds driving modes

3.High effective with 3 seconds per cycle

4.25Ton hot chamber die casting machine



The machine is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and its alloy. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.

There are three kinds of driving modes as manual, single circulation and automatic circulating. The operator could manage several machines simultaneously under automatic mode.



The machine is in high effective with period of 3 seconds, which could send up 600g zinc alloy per cycle.

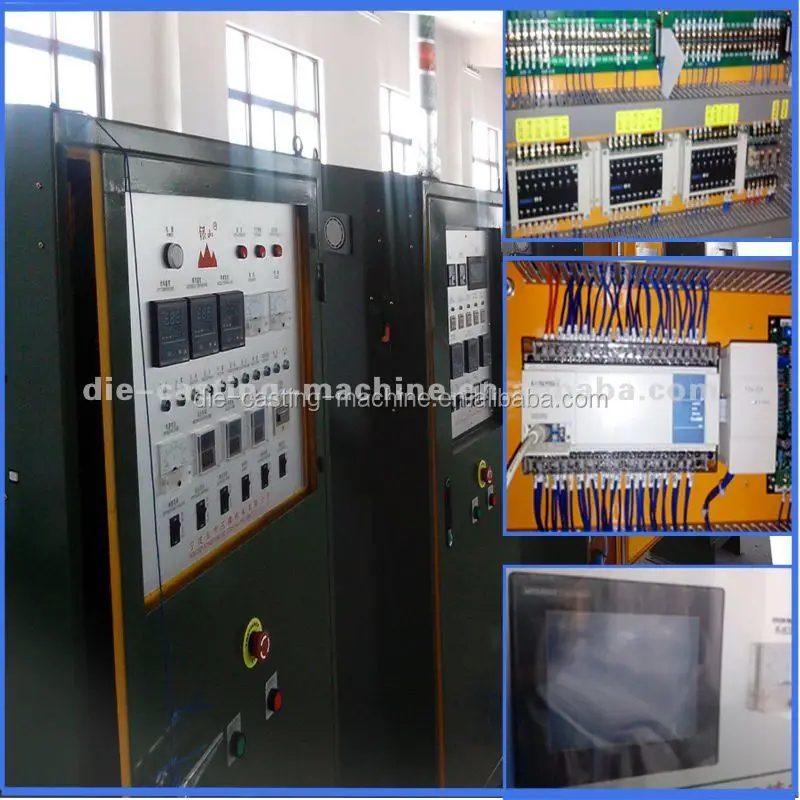

The machine is equipped with electronics and hydraulic processed parts of high grade and controlled by program which is stable and reliable.

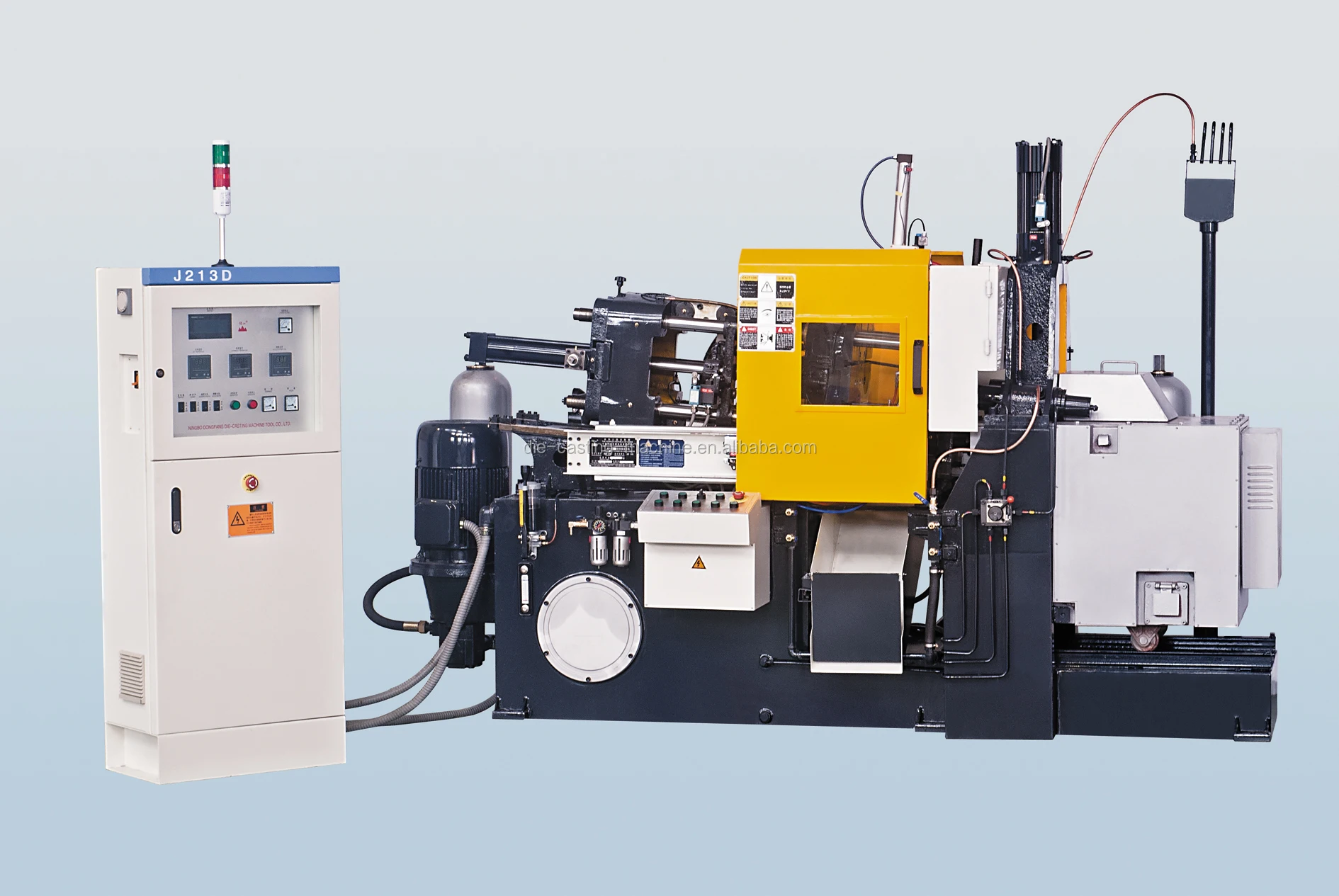

 The specification of 25T zinc die casitng machine



The projectThe unitJ213D
Die locking forcekN300
Stroke of moving platen  mm200
Inner space between the bars (H x V)mm240x240
Thickness of die block (Min./Max) mm120/320
Injection forcekN30
Injection strokemm110
Ejection forcekN35
Ejection strokemm50
Diameter of shot sleevemm45
Dosage of fluid metal per shot (zinc)kG0.6
Projecting area of castingcm2132
Pipeline pressureMPa7
Motor powerkW7.5
Machine weightkG2900
Overall dimensions (L x W x H)mm2900x1320x1880




Afer-sales Services

We have one year warranty and our engineers could overseas to your factory to install and debug the machine .Also provide the free training until you have got the skill .

Packing & shipping

Generally ,the machines are in nude package and the accessories are in wooden cases.

If you want to know more details pls contact :
