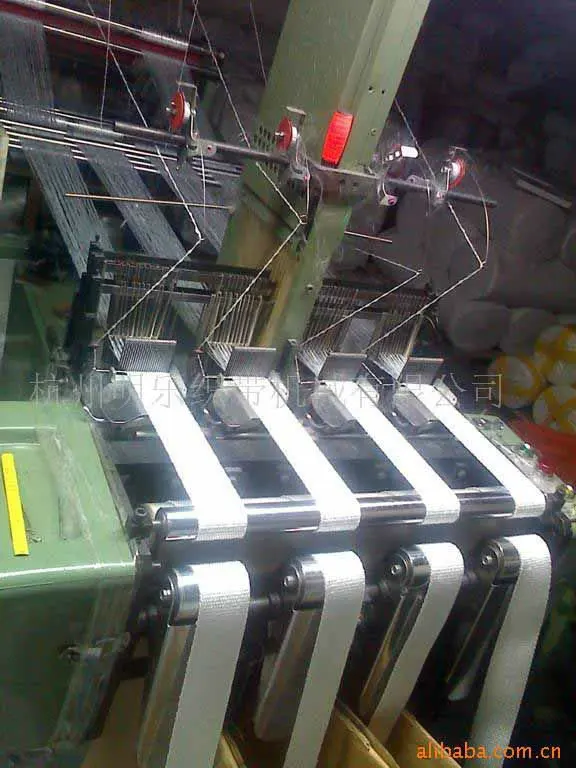

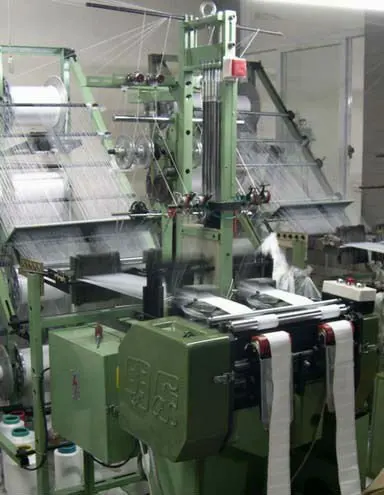

length meter for ribbon loom / fabric loom

Product Overview

Description

It calculate and display length based on input pulse signal, output a single via relay when length is up to preset value. Current length and totalize length can be cleared. Save all the data when power off.



1. programmable.
2. output a signal when length up to preset value.
3. count input pulse signal, can choose bothway count.
4. current length and totalize can be cleared by manual operation.
5. save all data when power off .



1. rating voltage: AC 220V
2. display: 5 7-segments LEDs
3. minimum length count unit: 0.1mm
4. maximum count speed of input signal is 2 KHz (oneway count), maximum count speed of input signal is 1 KHz (twoway count)
5. input signal: PNP, encoder is advised, counter supply DC 24V for sensor
6. box size (mm): 72 (width) x 72 (height) x 105 (depth).
7. install hole size (mm): 67(width) x67(height)
