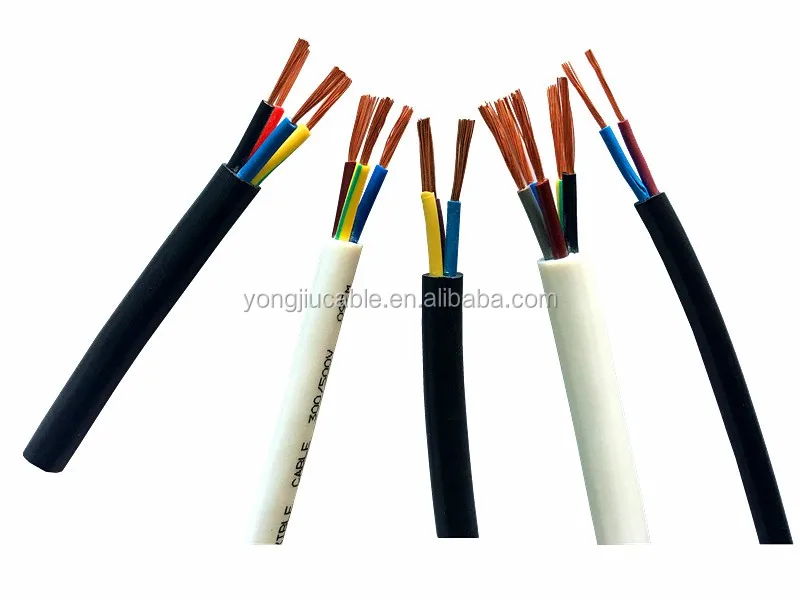

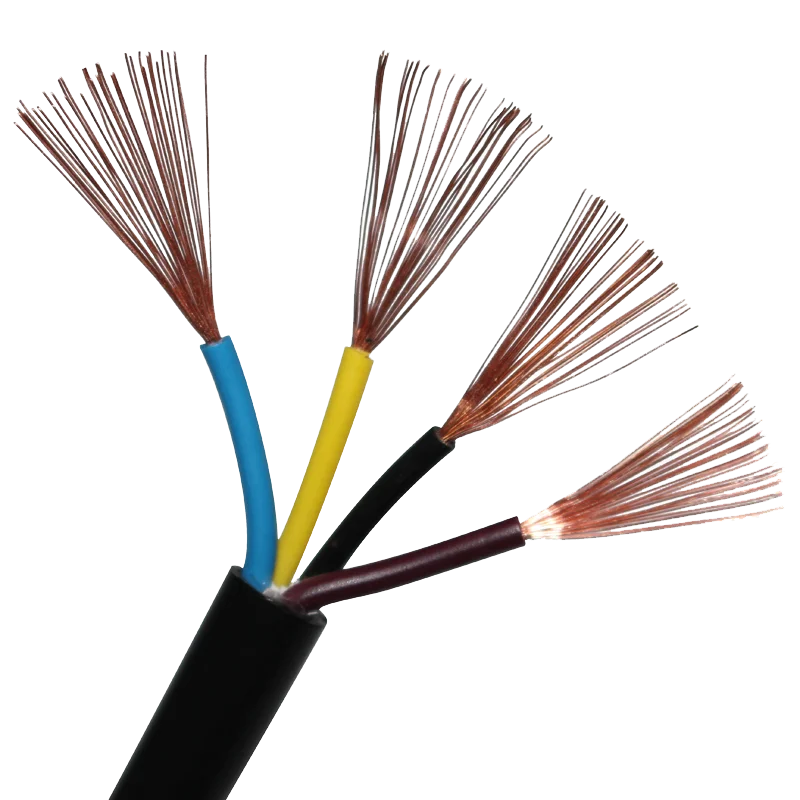

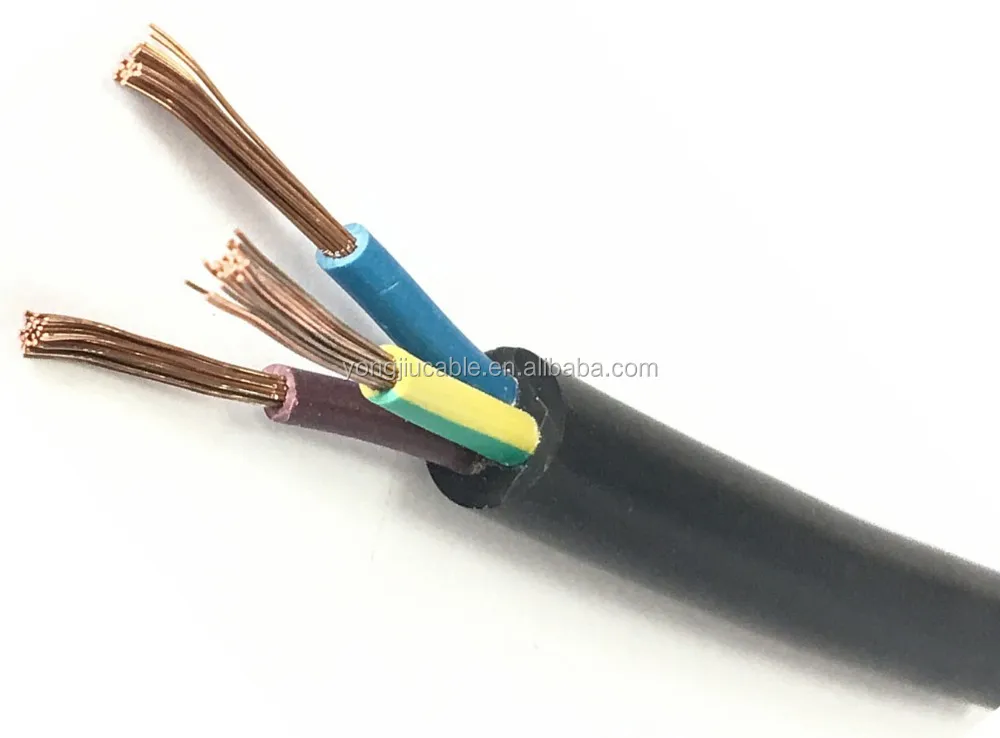

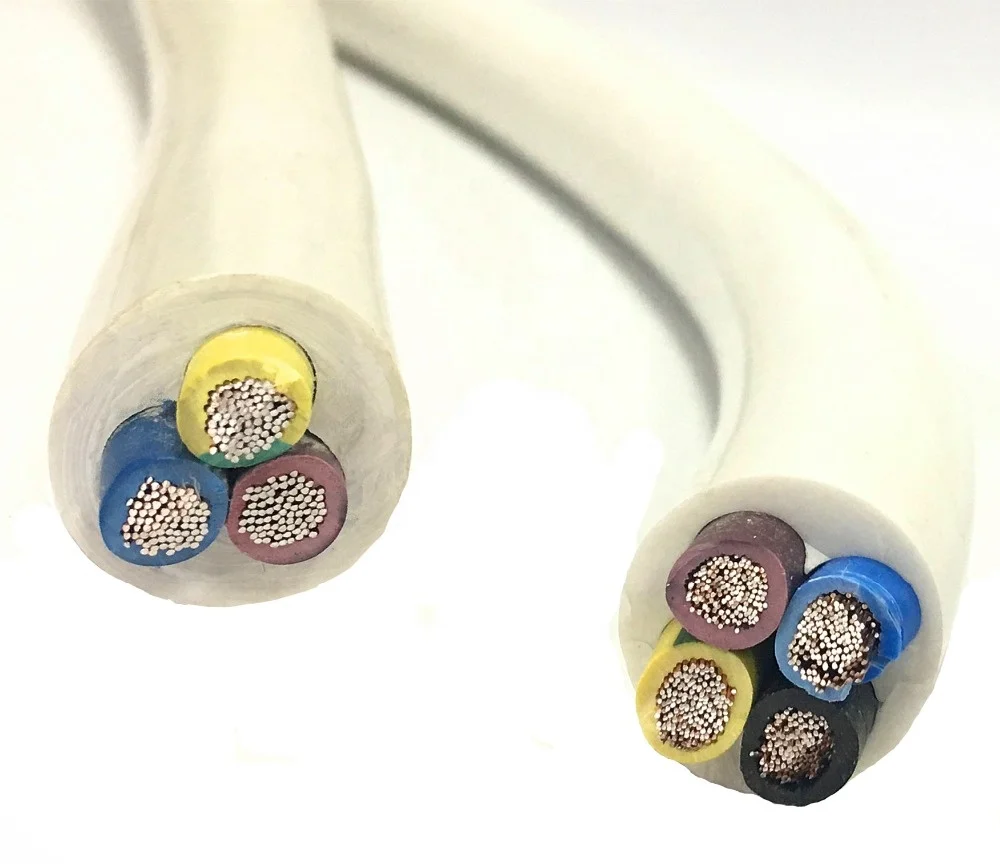

2x2.5 blue,brown Wire Colours stranded copper electrical rvv cable

Product Overview

Description



1. Product Description:

    1). Rated voltage U0/U: 300/500V and 450/750V.



    2). The long-time permissible temperature of cable: below 70°C.

    3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

    4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.





    5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the

external diameter of cable. And the other is above 6 times of the external diameter of cable.



    6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

    7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

    8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.

    9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.

2. Application:



    This product is applied for fixedly laid with alternating current rated voltage 450/750V and below in power route. It is used as wire for household appliance, mechanic equipment installation and dynameic light, etc.

     It is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.

3.Specification Size and Technical Data:

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-105	Copper Core Heat-resistak Losc PVC Flexible Wire



Cable Wire

Code Name	No. of core and Nominal conductor area	Number of wires	Nominal diameter of wire	Nominal thickness of insulation	Nominal thickness of outer sheath	Approx.   Overall diameter	Max. Conductor DC resistance at 20oC
	No. x mm2	No.	mm	mm	mm	mm	Ω/km
H03VV-F	2 x 0.5	16	0.2	0.5	0.6	5	39
	2 x 0.75	24	0.2	0.5	0.6	5.5	26
	3 x 0.5	16	0.2	0.5	0.6	5.3	39
	3 x 0.75	24	0.2	0.5	0.6	5.8	26
	4 x 0.5	16	0.2	0.5	0.6	5.8	39
	4 x 0.75	24	0.2	0.5	0.6	6.3	26
H05VV-F	2 x 0.75	24	0.2	0.6	0.8	6.3	26
	2 x 1.0	32	0.2	0.6	0.8	6.6	19.5
	2 x 1.5	30	0.25	0.7	0.8	7.5	13.3
	2 x 2.5	50	0.25	0.8	1	9.3	7.98
	2 x 4	81	0.25	0.8	1.1	10.6	4.95
	3 x 0.75	24	0.2	0.6	0.8	6.6	26
	3 x 1.0	32	0.2	0.6	0.8	7	19.5
	3 x 1.5	30	0.25	0.7	0.9	8.2	13.3
	3 x 2.5	50	0.25	0.8	1.1	10	7.98
	3 x 4	81	0.25	0.8	1.2	11.4	4.95
	4 x 0.75	24	0.2	0.6	0.8	7.2	26
	4 x 1.0	32	0.2	0.6	0.9	7.8	19.5
	4 x 1.5	30	0.25	0.7	1	9.2	13.3
	4 x 2.5	50	0.25	0.8	1.1	11	7.98
	4 x 4	81	0.25	0.8	1.2	12.5	4.95
	5 x 0.75	24	0.2	0.6	0.9	8.1	26
	5 x 1.0	32	0.2	0.6	0.9	8.6	19.5
	5 x 1.5	30	0.25	0.7	1.1	10.2	13.3
	5 x 2.5	50	0.25	0.8	1.2	12.2	7.98
	5 x 4	81	0.25	0.8	1.4	14.1	4.95

Cable Wire



4.Product Picures:

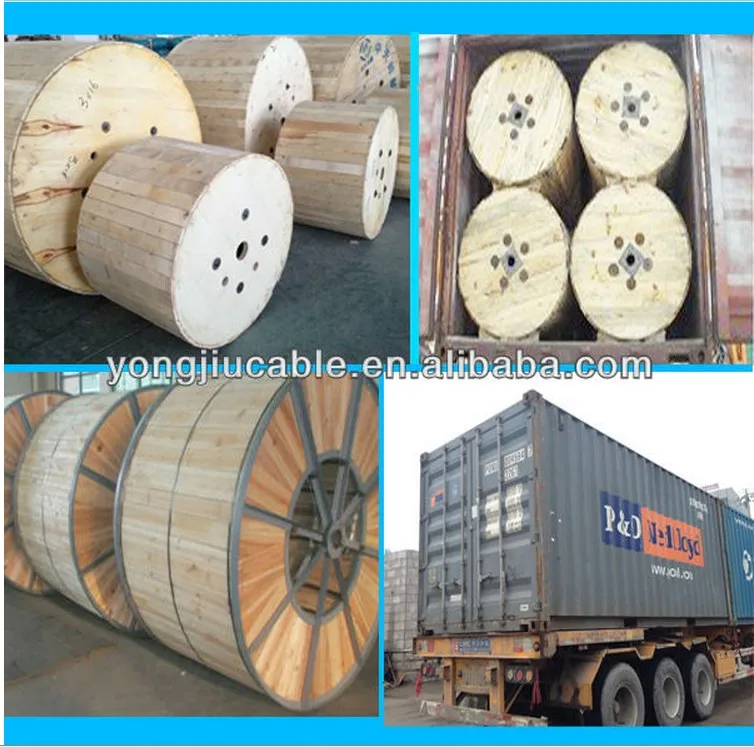

(1).Wrapped PE coil package; (2).Shrined PE coil package; (3).Carton box package; (4).Carton reel package; (5).Plastic reel package; (6).To be specified.

single strand copper wire











QC Team :



A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.



Material:  Strictly control of material using, meet international requested standards.



Semi-finished products inspection: Product inspection before 100% finished.



Production line test:  With work team or data engineer who will inspect machines and lines at fixed period.



Finished Product Inspection: Quality and property test before products are packed and loaded.

Good relationship with customers:

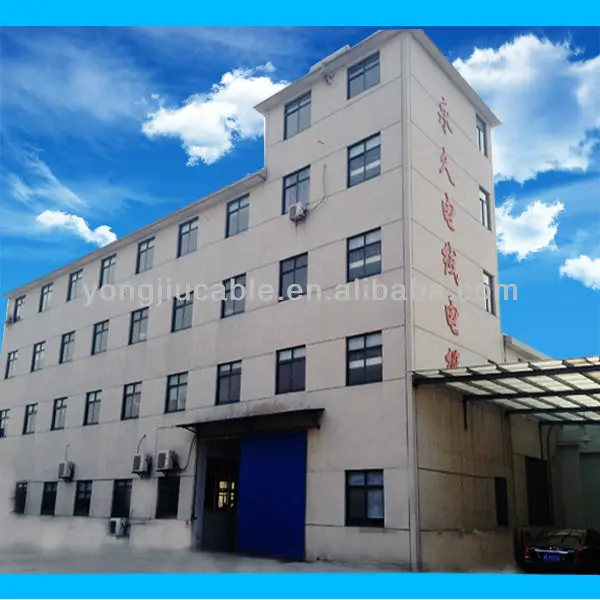

Our Factory was established in 2004,located in Huzhou city,Zhejiang province, closed to nignbo,shanghai port.As a leading manufacturer we produce various wire and cable,obtain good  reputation from domestic and foreign market.

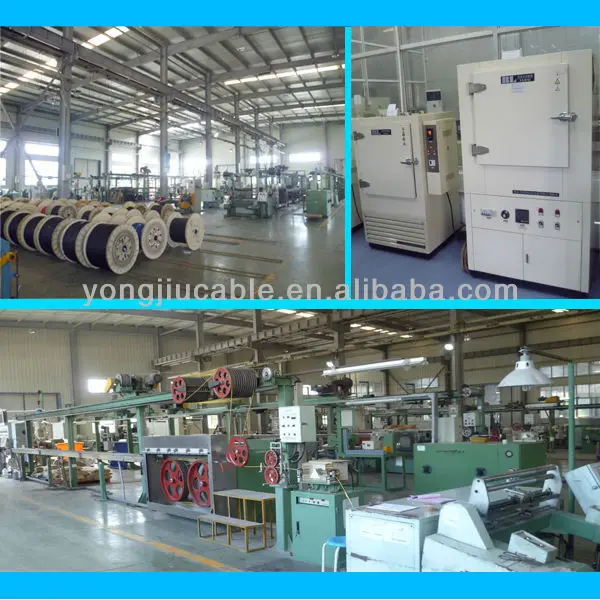

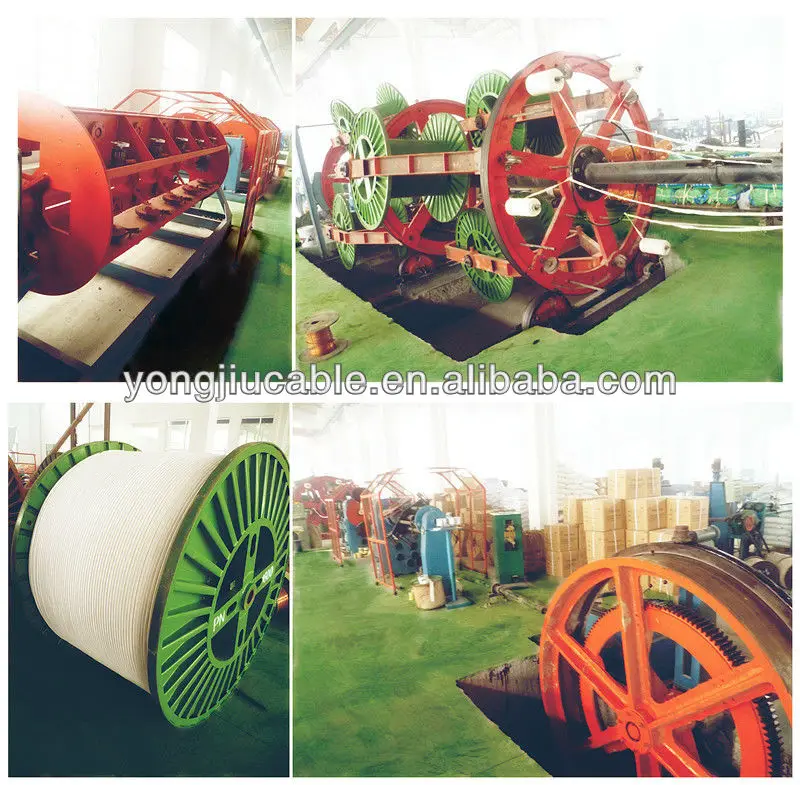

Production,testing machine and transportation















1,Regarding quotation:

We can send professionall priice and suggestion to you according your information or sample at first time, with our 20 years professional experience and enginner.



2,About shipment:

It is our normal work to export the whole world,we can sumbit the full set of shipping documents comply with your requirements.

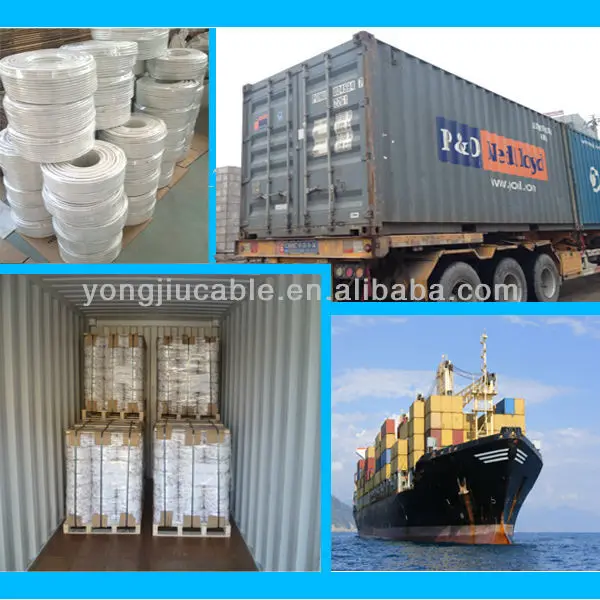

The shipment schedule,package



3,Service:



We have the specified deparment  and person to serve the foreign market in 24 hours,you can contact us as the following way:
