EASCO PG Metal Cable Gland CE

Product Overview

Description

With Vibration Lock and Strain Relief Protection Class IP 68



FEATURES:

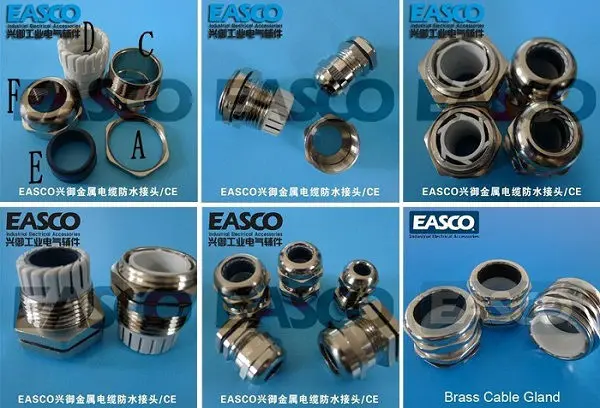

1)Material: A.C.F are Made from zince metal plated with nickel. D is made from Nylon.



2)IP68 degree of protection.



3)PG THREAD(DIN STANDARD).



4)UV resistant in outdoor applications



5)Indoor and outdoor applications



6)Operating temperature: -40°C ~ 110°C



7)Waterproof.



8)Resistant to salt water, weak acids & alkalis, alcohol, esters,gasoline,mineral/animal/vegetable oil.



EASCO Brass Cable Glands are suitable for connections provides with flexible cables in:

• Weather Proof Enclosures

•Control Panels

•Limit Switches

•Multi Pin Connectors

•Controlling & Liquid Measuring Instrument

•Machineries

•Medical Equipments

•Electric Motors

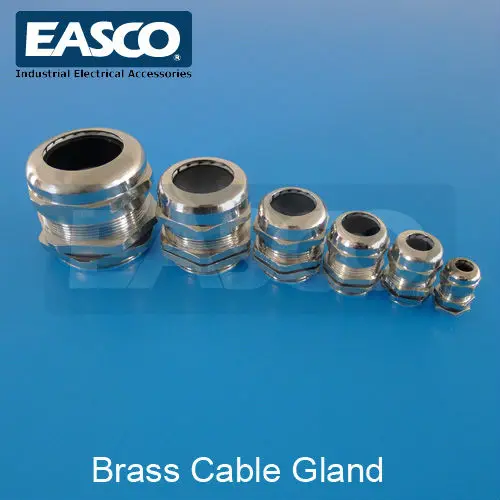

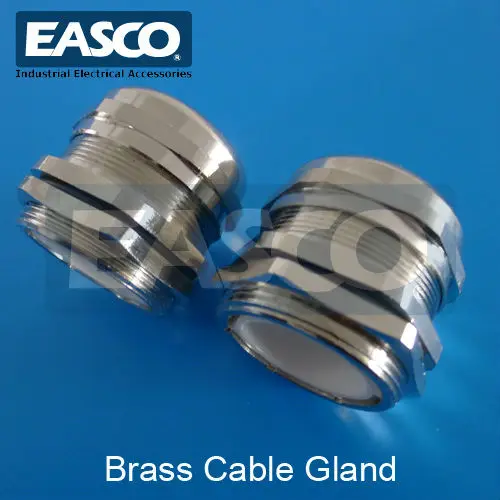

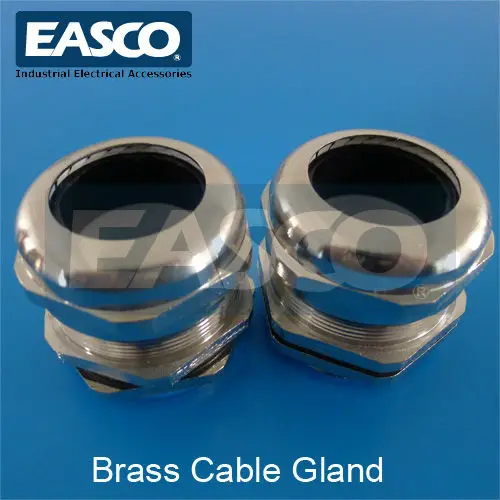

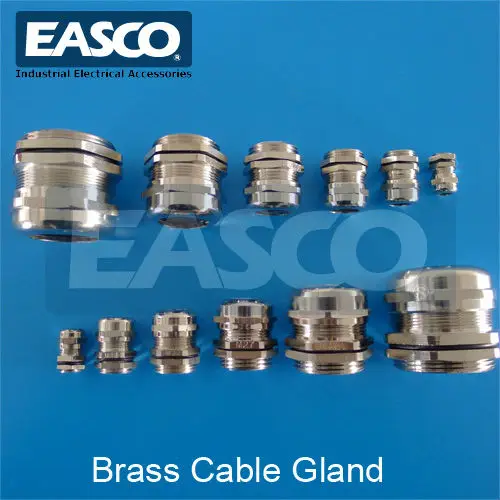

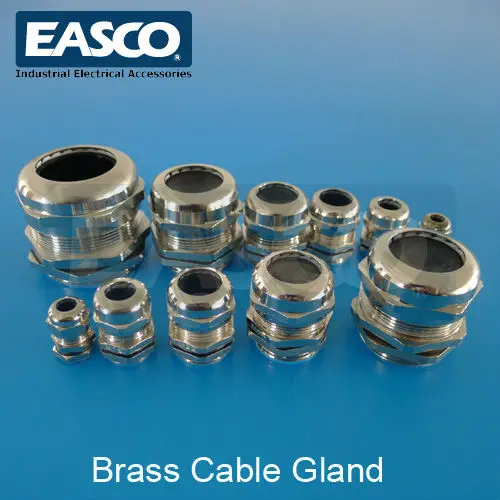

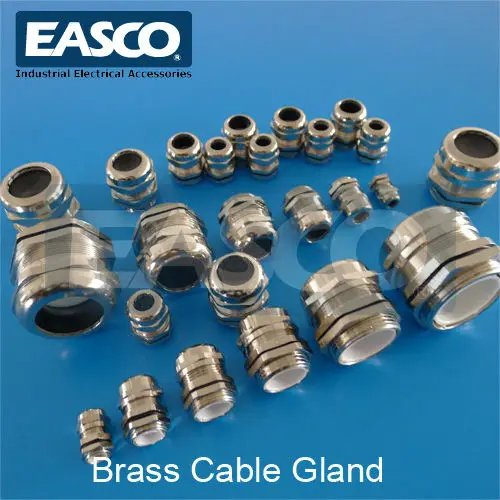

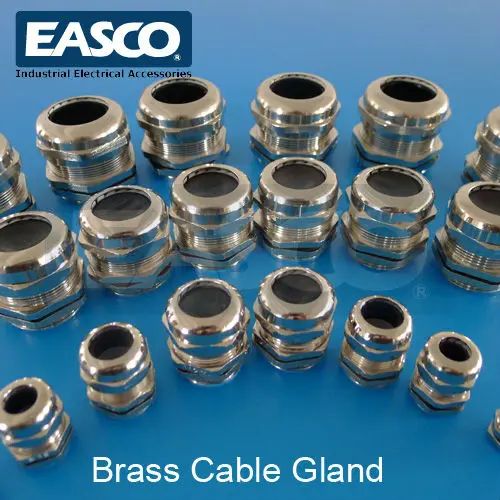

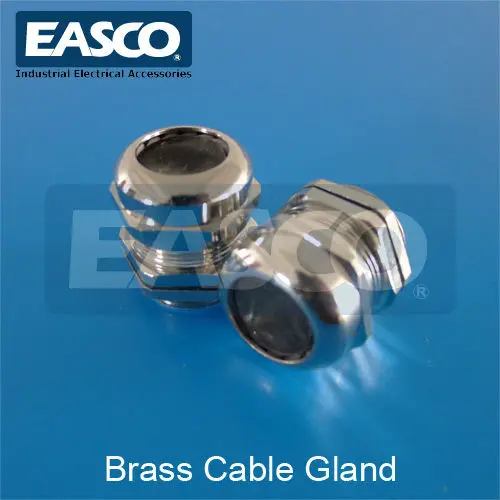

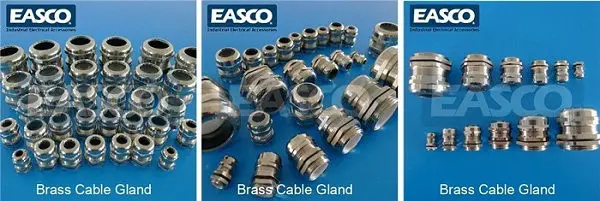

PICTURES:

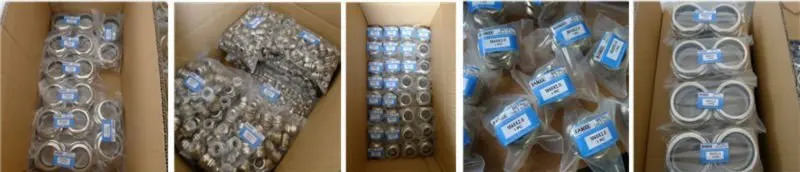

PACKING:



DRAWINGS:







SPECIFICATIONS:



Item No.	Thread	Cable Range	GL	AG
		(mm)	(mm)	(mm)
BPG7	PG7	3-6	6	12.5
BPG9	PG9	4-8	7	15.2
BPG11	PG11	6-10	8	18.6
BPG13.5	PG13.5	8-12	8	20.4
BPG16	PG16	10-14	9	22.5
BPG21	PG21	13-18	11	28.3
BPG29	PG29	18-25	11	37.0
BPG36	PG36	25-32	13	47.0
BPG42	PG42	32-33	14	54.0
BPG48	PG48	37-44	14	59.3

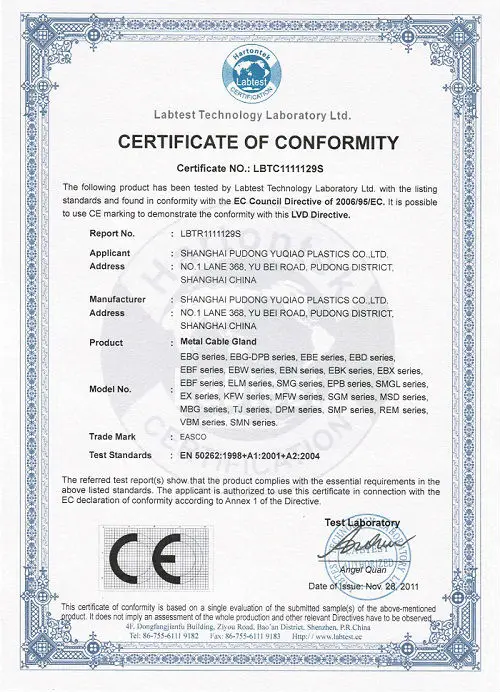

CERTIFICATIONS:

CE FOR METAL CABLE GLAND.

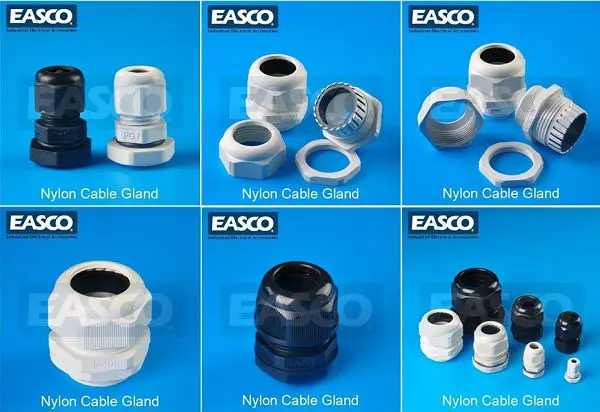

EASCO also manufacturing fine quality Nylon Cable Gland.



Pictures of EASCO Wiring Accessories Plant:

EASCO, founded in 1993, is a manufacturer with core competencies in the fields of wire & cable management in China.



EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, ourproduct categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
