96ZY/120JX Series 460N.m, 650N.m IP54 High Torque Low Speed Tubular Pool Cover DC Planetary Gear Motor
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (651918890):
Product Overview
Description
Product Description
Pool Cover Motor Series
Underwater Use or Above Water Use
IP68 Underwater Gear Motors
Torque: 100N.m, 120N.m, 200N.m, 250N.m, 450N.m )
IP54 Above Water Gear Motors
Torque: 80N.m, 120N.m, 180N.m, 300N.m, 450N.m, 650N.m, 850N.m, 1000N.m
Components: magnetic encoder, approach switch, power-on/power-off brake
Torque: 100N.m, 120N.m, 200N.m, 250N.m, 450N.m )
IP54 Above Water Gear Motors
Torque: 80N.m, 120N.m, 180N.m, 300N.m, 450N.m, 650N.m, 850N.m, 1000N.m
Components: magnetic encoder, approach switch, power-on/power-off brake
460N.m motor techncial specs.:
Only motor:
Voltage 24V DC
Rated speed 1500rpm
Rated torque 1.5N.m
Gear motor:
Ratio 426:1
Rated speed 3.5rpm
Rated torque 460N.m
Shaft material SS316
With 24V, 1.5N.m power-off brake
With 2-channel 4PPr magnetic encoder

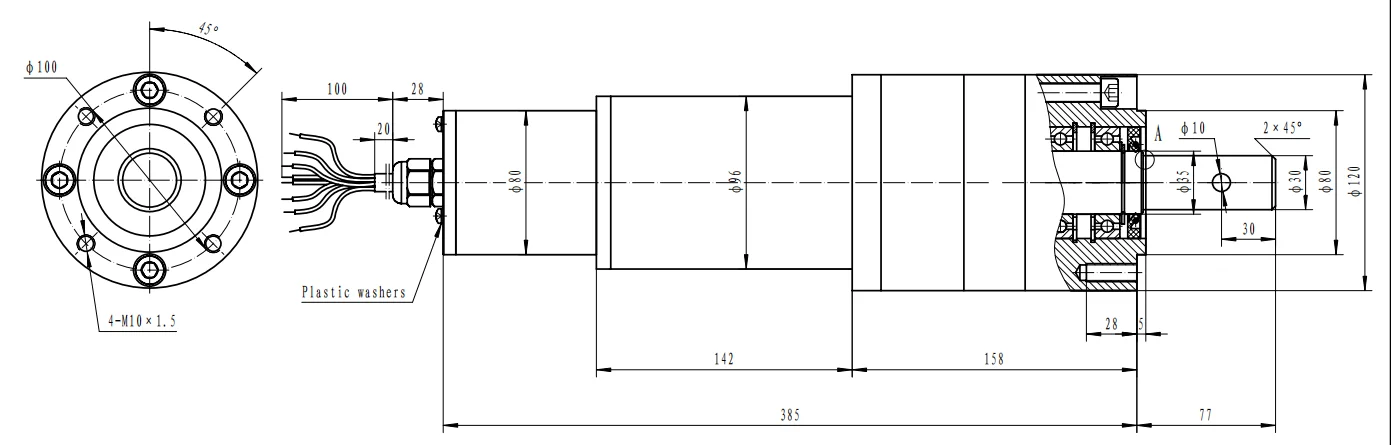

Dimensional drawing:
650N.m motor techncial specs.:
Only motor:
Voltage 24V DC
Rated speed 1500rpm
Rated torque 1.5N.m
Gear motor:
Ratio 677:1
Rated speed 2rpm
Rated torque 650N.m
Shaft material SS316
With 24V, 1.5N.m power-off brake
With 2-channel 4PPr magnetic encoder
Only motor:
Voltage 24V DC
Rated speed 1500rpm
Rated torque 1.5N.m
Gear motor:
Ratio 677:1
Rated speed 2rpm
Rated torque 650N.m
Shaft material SS316
With 24V, 1.5N.m power-off brake
With 2-channel 4PPr magnetic encoder
Dimensional drawing:
Other Customized Gear Motors for Typical Applications | ||||||||
Tarp Gear Motors | Slow Juicer Motors | |||||||
Curtain & Window Motors | Robot Pool Cleaner Motors | |||||||
Door & Gate Motors | Robot Lawn Mower Motors | |||||||
Automatic Pool Cover Motors | Solar Tracking System Motors | |||||||
