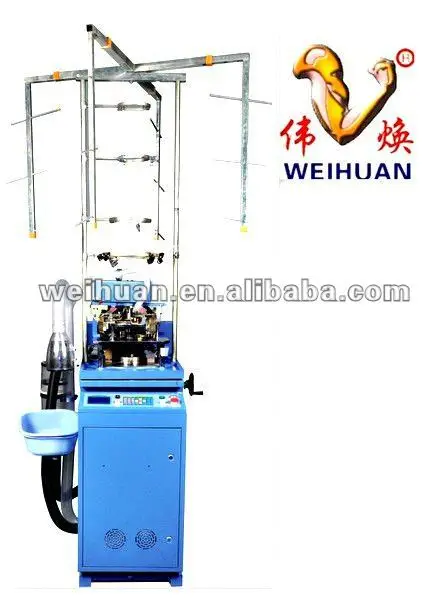

5 inch full automatic hosiery machine for making plain and jacquard pantyhose (WH 4L)

Product Overview

Description

Modle	Needle Cylinder	Pin number	Needle Number and Needle Selector	Specifications	Brief Introduction to Function
WH-4L	5inch	280-520N	nylon,polyester and other materials making socks or other industrial and daily life product	the running Speed:250-300RPM.	Different selected float covering yarns,plain weave,1×1.3×1 fixed grid mesh,T class 1×1 middle reinforce.all kinds of covering yarns
Comolete Machine Consumption:1.5kw Average Output:350 pieces of panty-hose every 24 hours. Drive System:Direct Drive Servo Motor Synchronous Belt Drive Autostop:Autostop for broken yarn by infrared Oil Feeding System:Full-Automatic Oil Feeding Apparatus



weihuan”brand WH-4L type stockings machine iS controlled by a computer system with a single cylinder four-woven PIain weave Silk stockings machire.It adopts an independent exhaUst fan or central exhaust system fabric stretch. the machine is
equipped with torsion device.Needle rotation servo motor direct drive to reduce the transmission chain and transmission error,needle lift by the stepper motor control can have a different density.pressure lubricant for lubrication of needles,life and death and the eIection needle Pieces Computer.controlled production of socks,the whole process,style and quality. The machine can use synthetic fibers.synthetic fibers and bare spandex covered yarn and other raw materials to produce stockings and products,Including Pantyhose ,long Stocking,short socks,Istockings and other nine points stockingsproduct.
