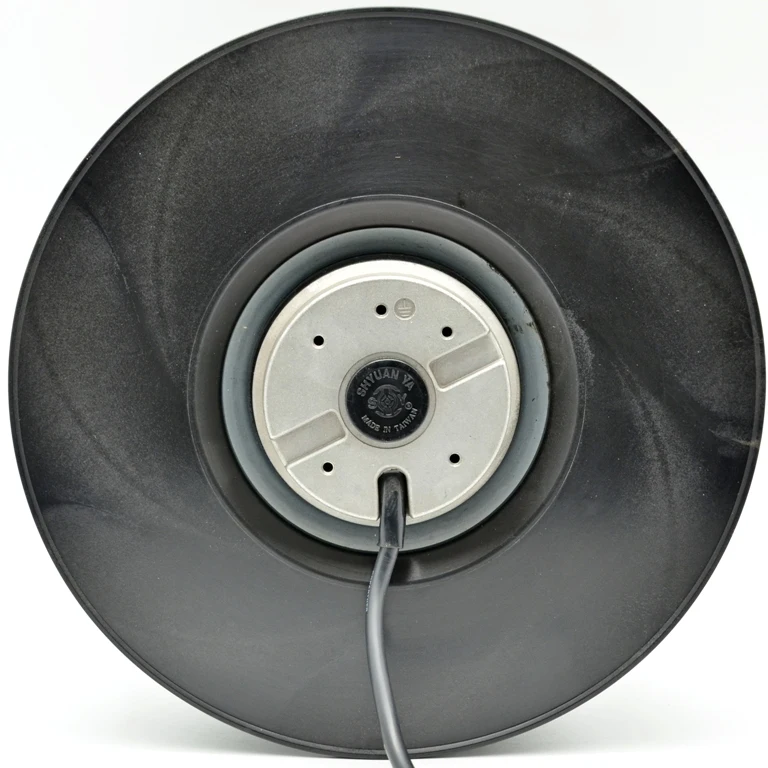

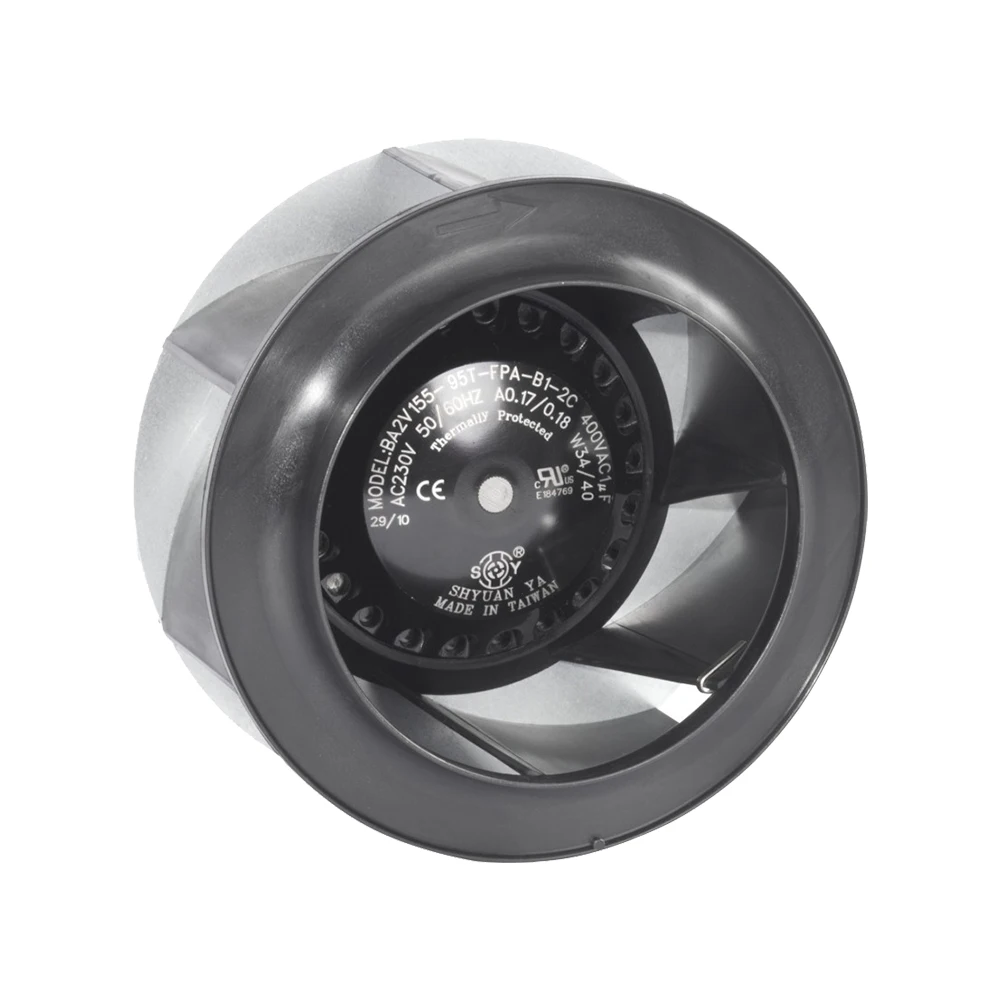

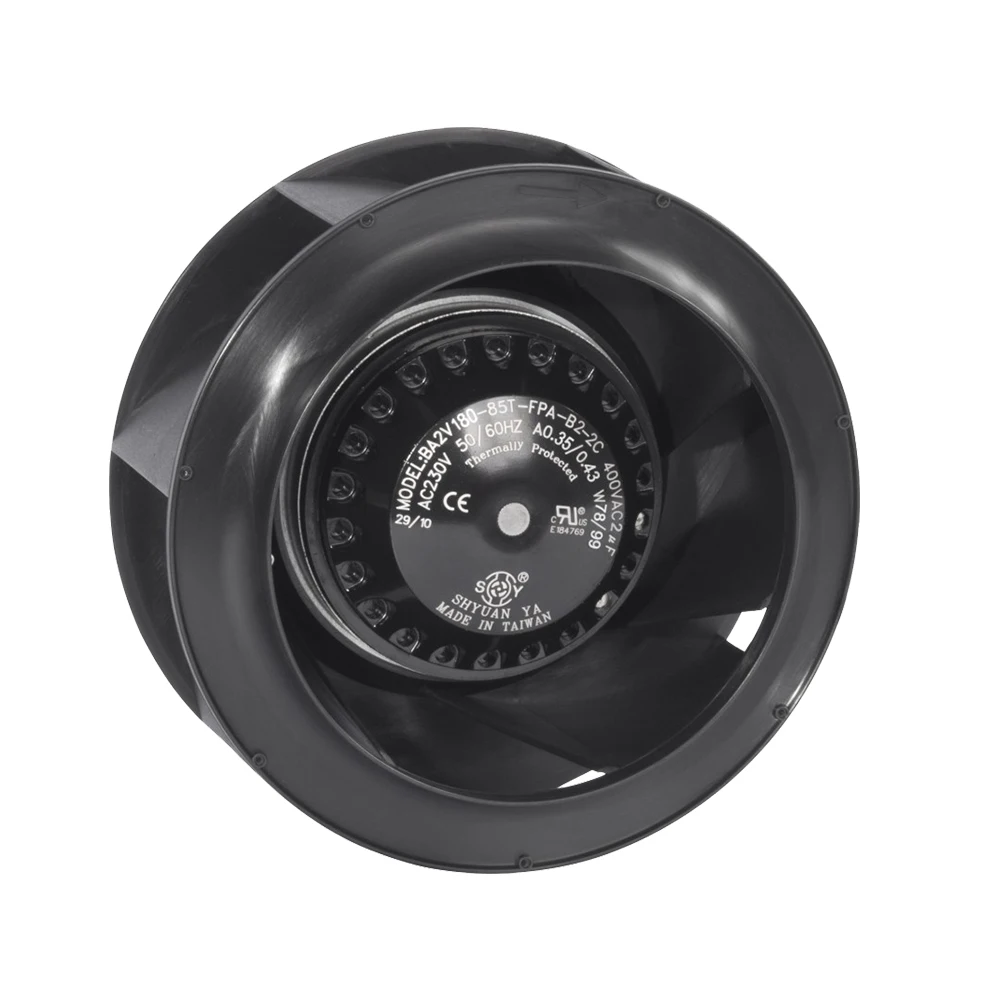

Electric 175x69mm Plastic Impeller Cooling Ventilation Fan Wall Mounted for Household and Garage Use US Plug Type
- Category: >>>
- Supplier: LIANG HERNG ELEC MACH CO. LTD.LIANG LTD.
Share on (652794815):
Product Overview
Description
Specification | ||
Air Flow | 287 ~ 331 CFM | |
Impeller | Plastic PA | |

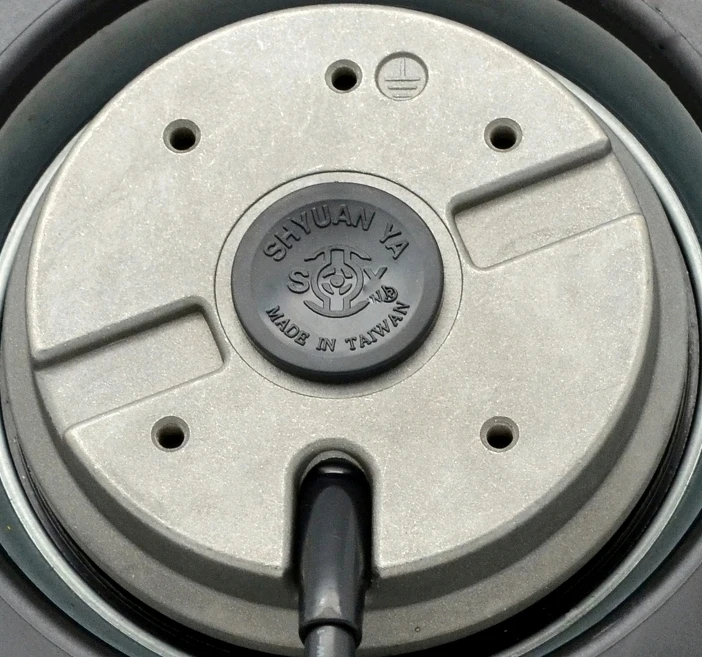

Motor | External Rotor Motor | |
Rotor | Black Paint | |
Bearing | Dual Ball Bearing | |
Lead Wire | 450mm AWG# 20 | |
Insulation | Class “B” or “F” | |
Safety | Thermally Protected (Auto Restart) | |
Operating Temperature | -20°C to + 70°C | |
Certification | ce, RoHS, CUL, UL | |

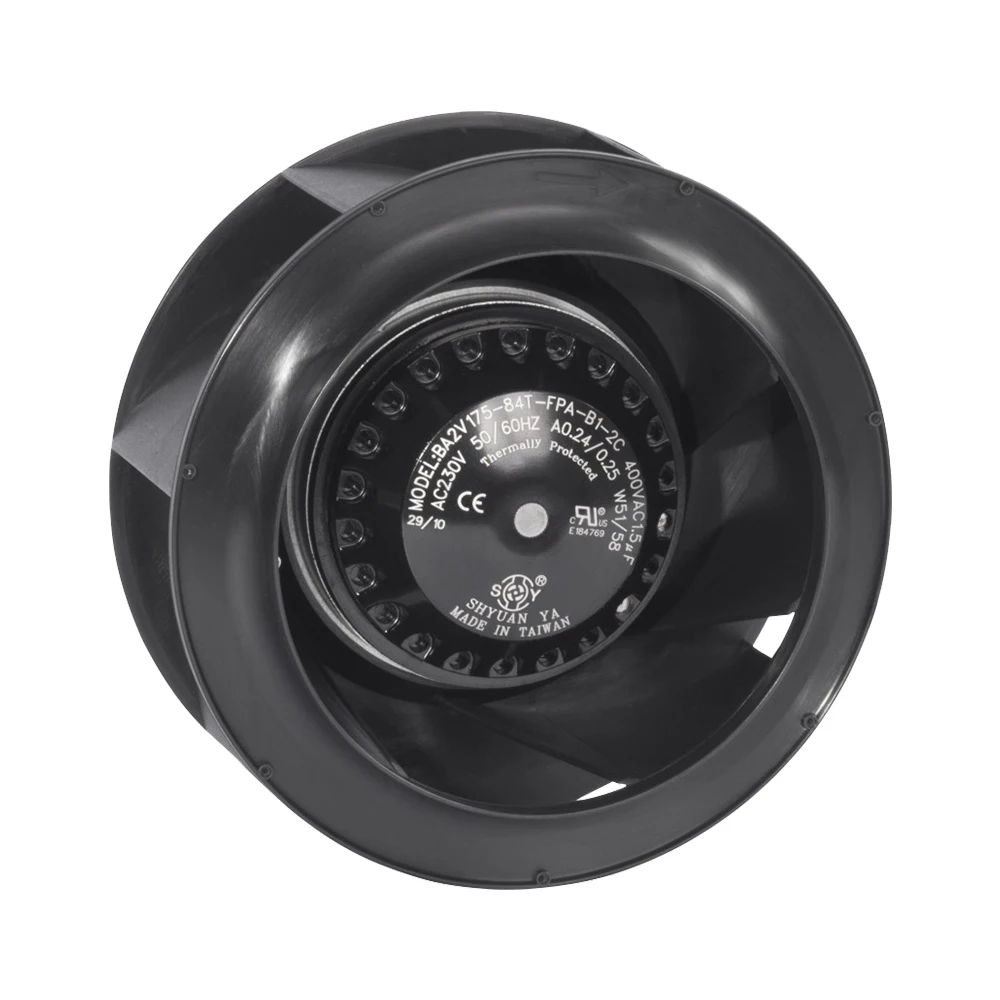

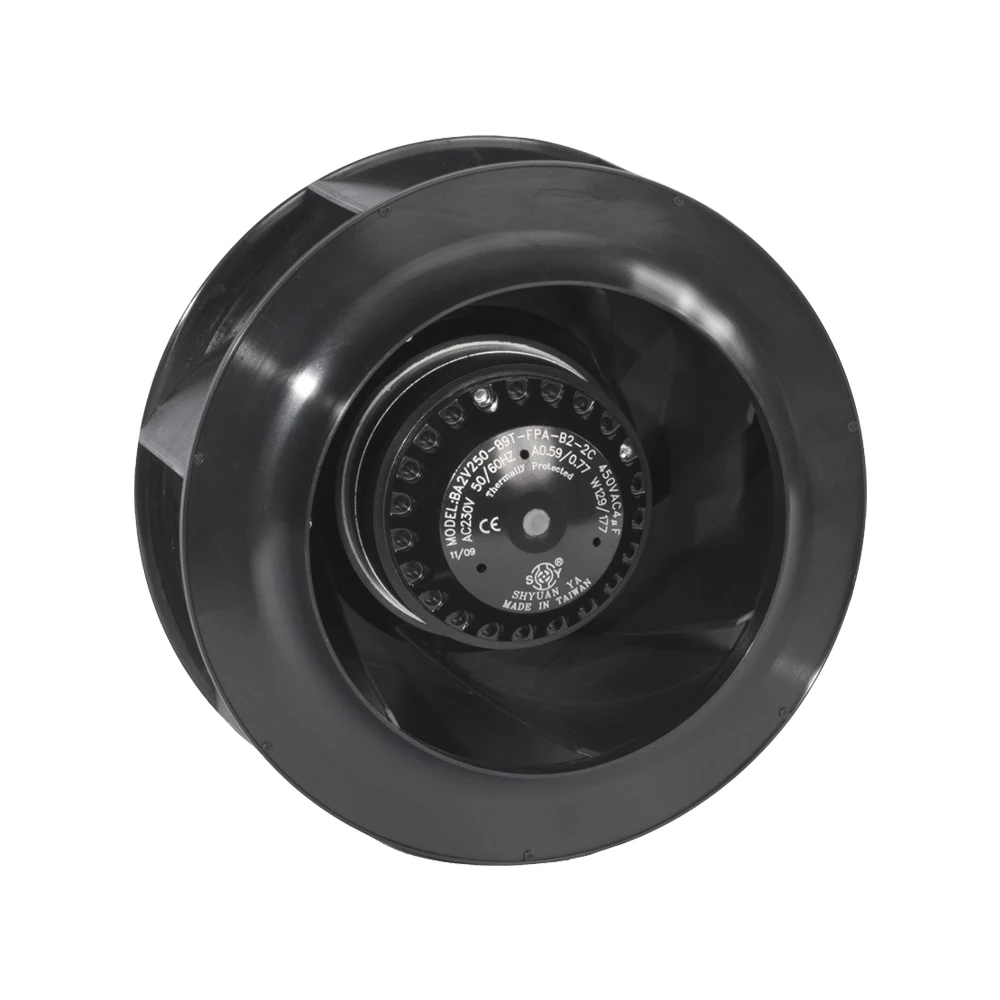

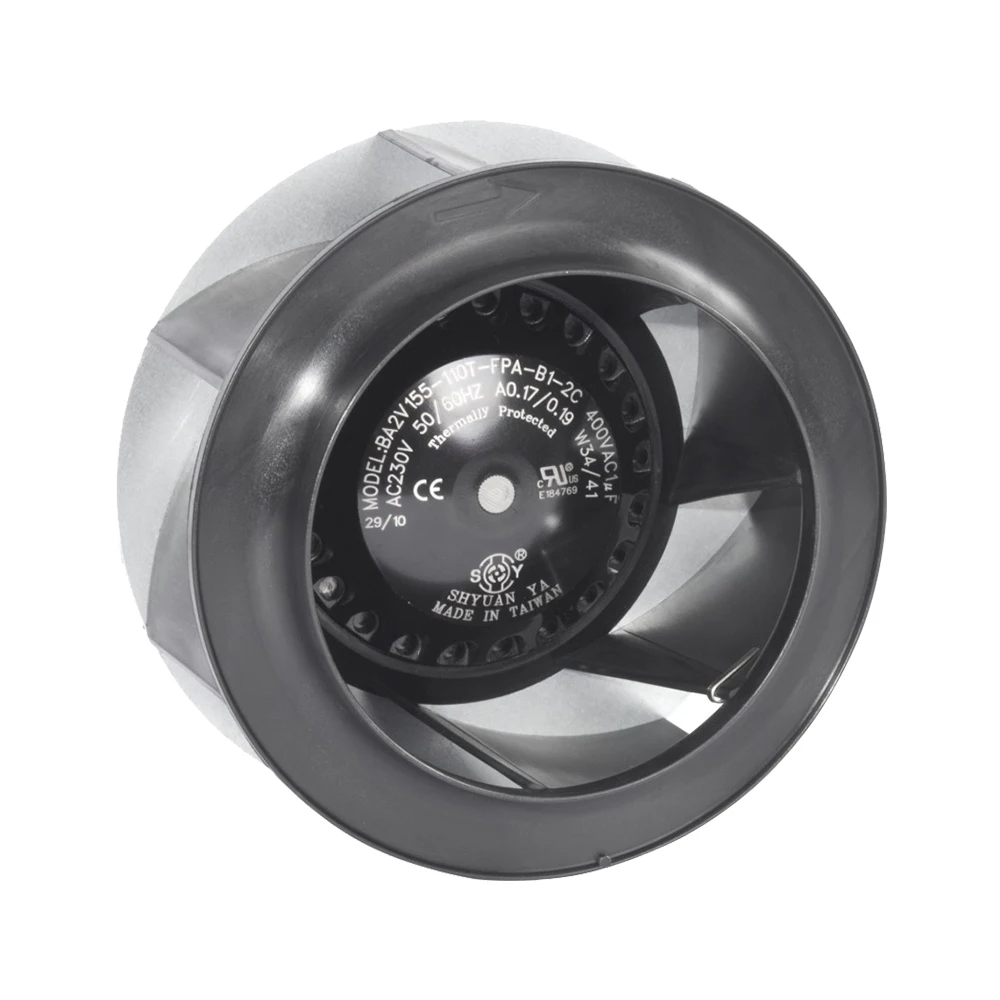

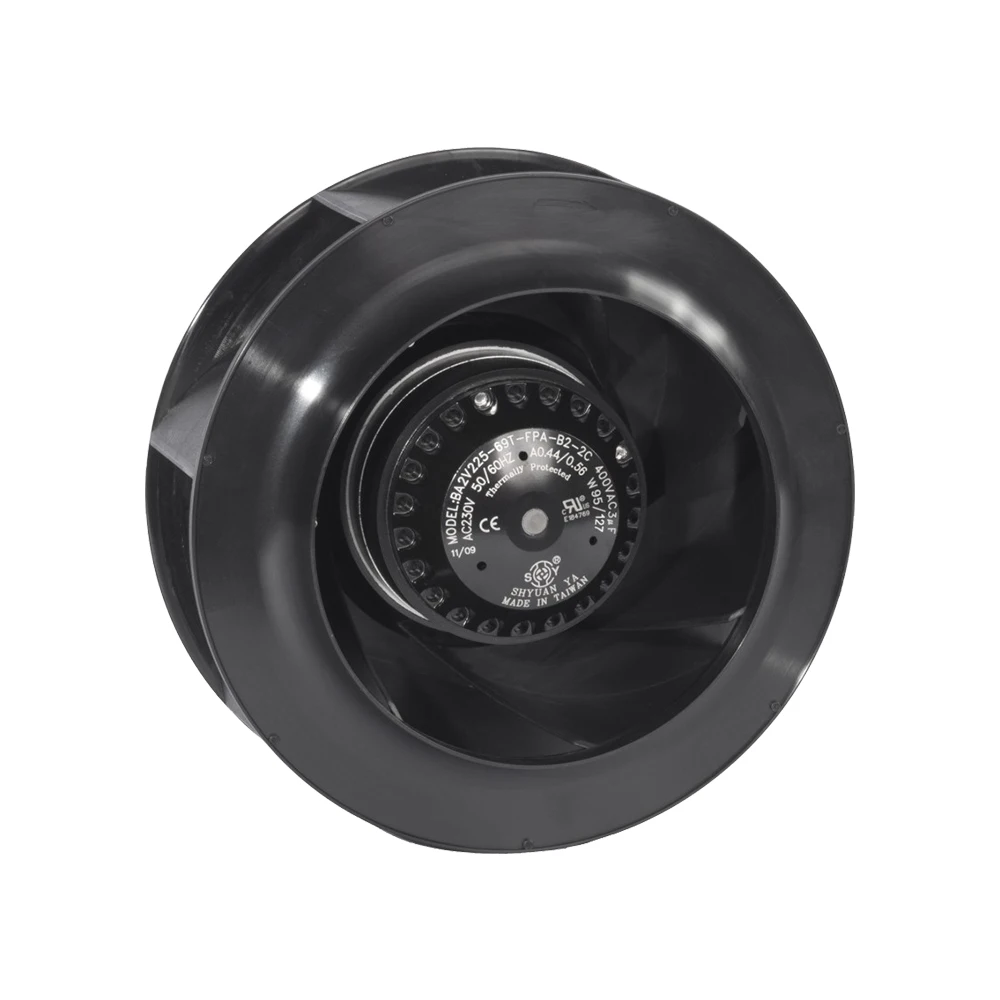

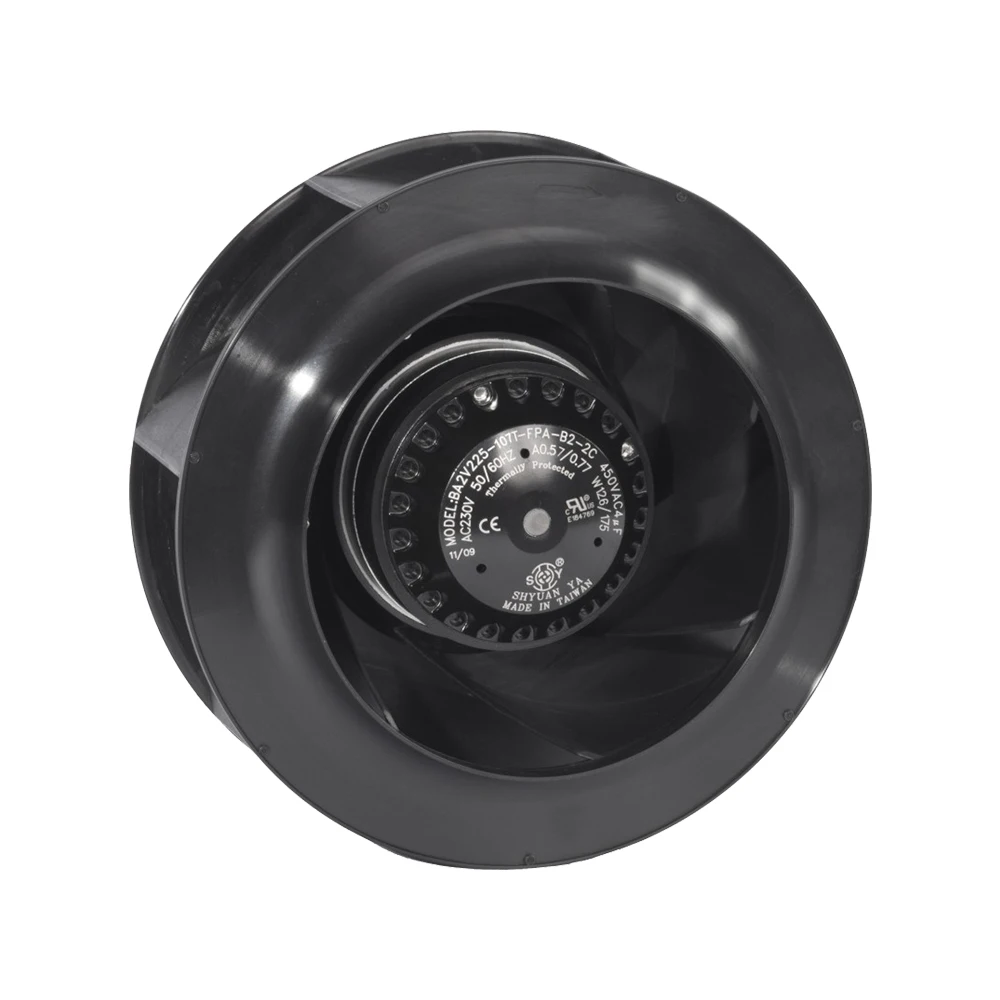

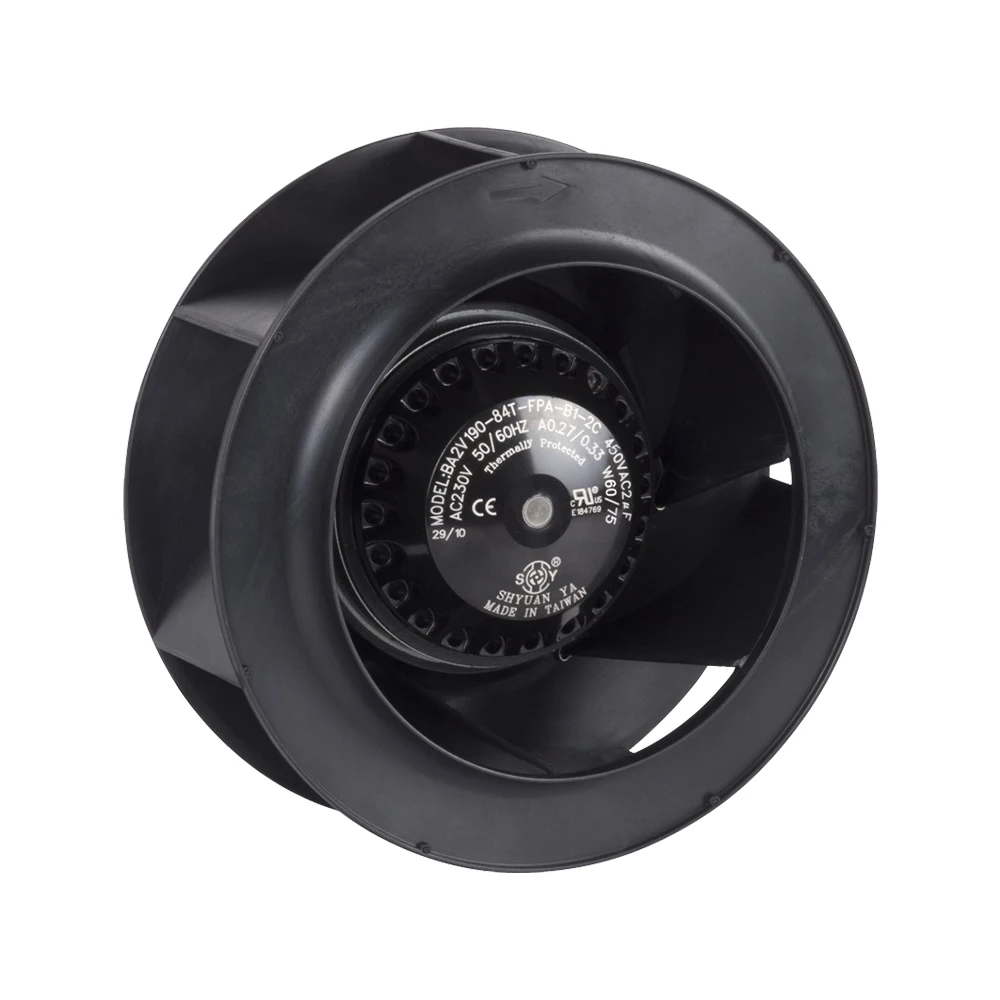

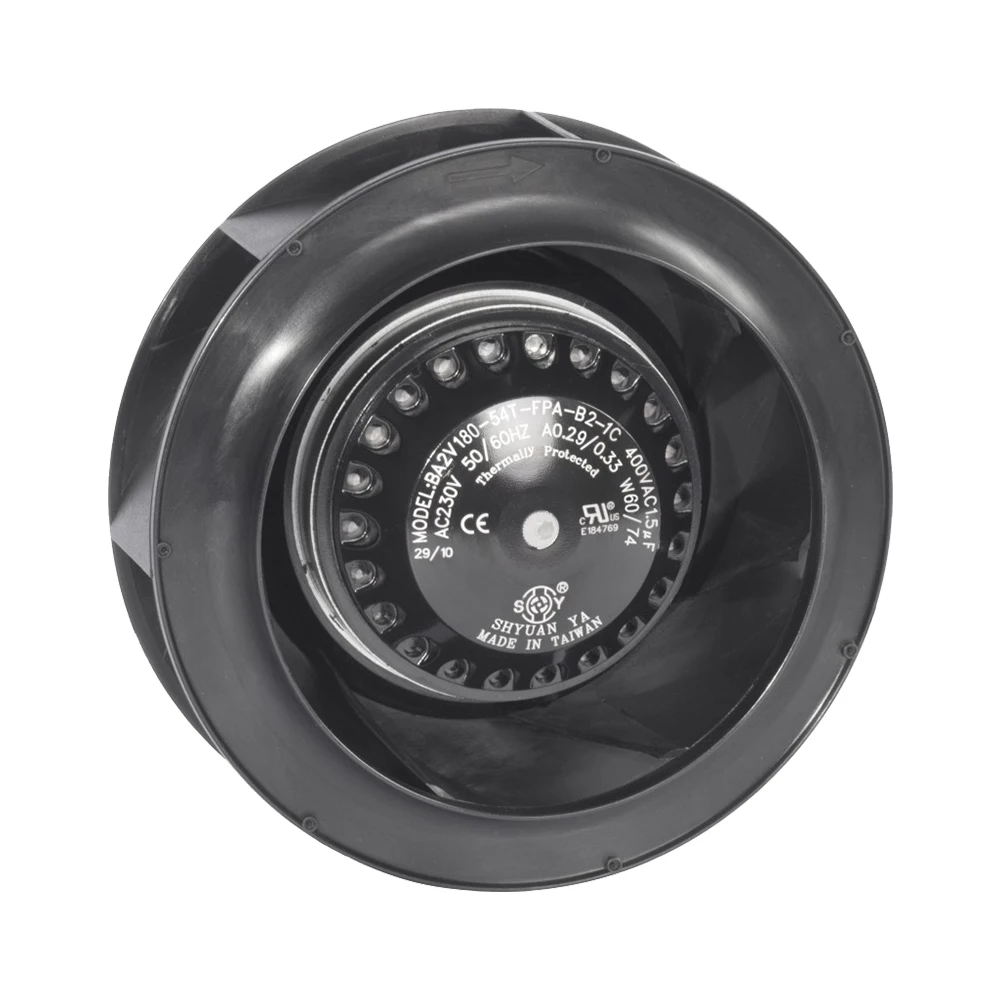

Related Products

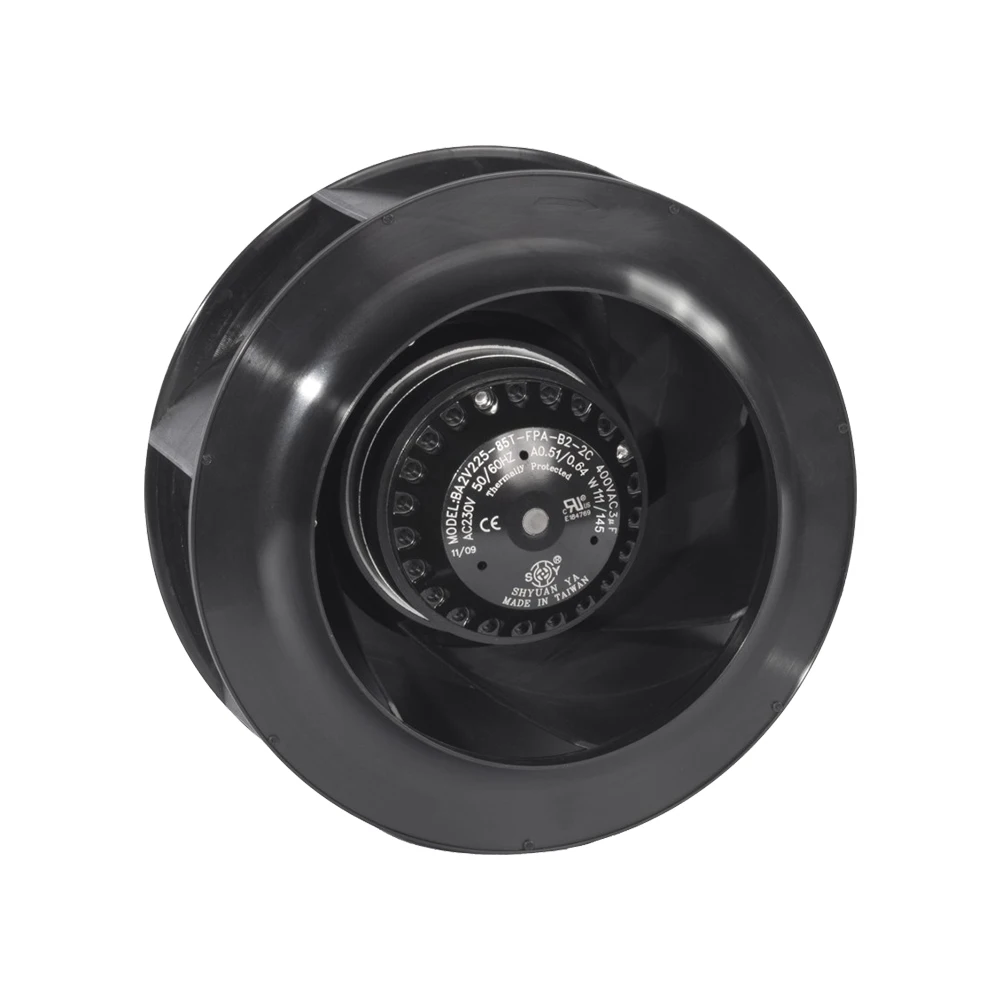

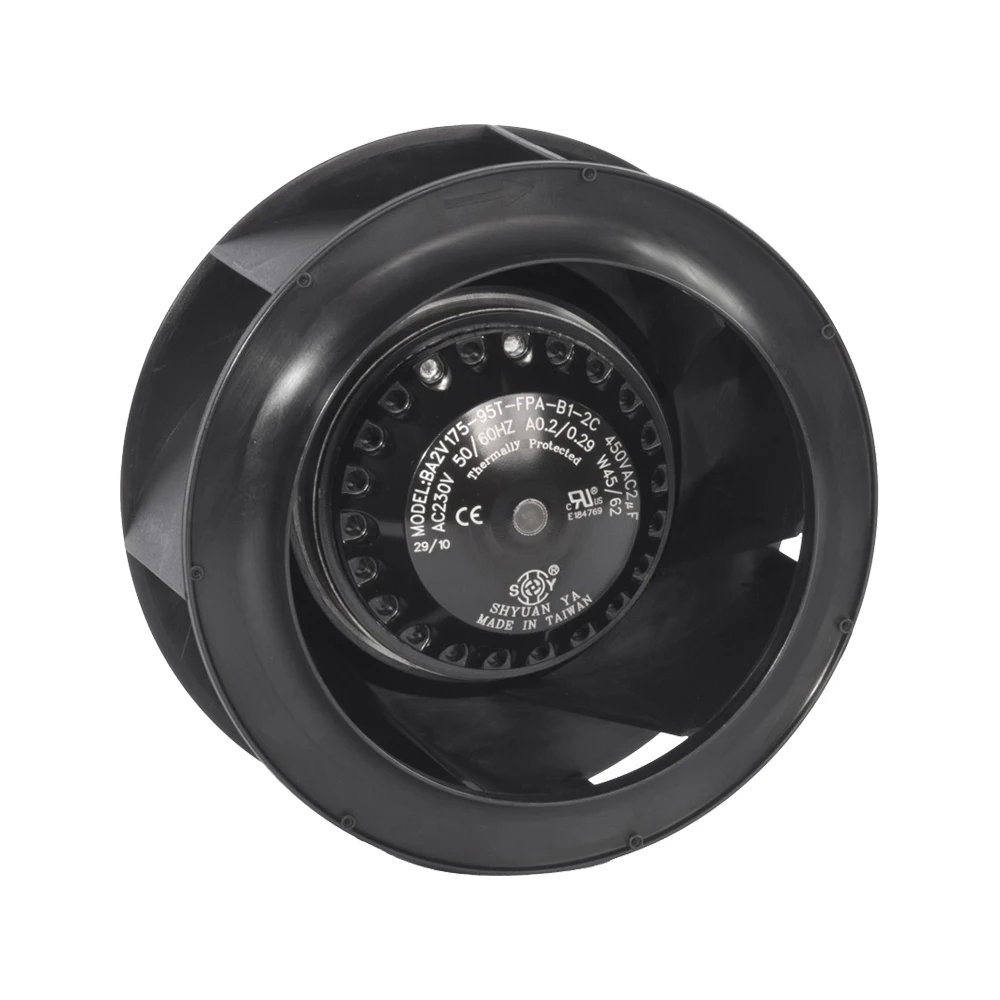

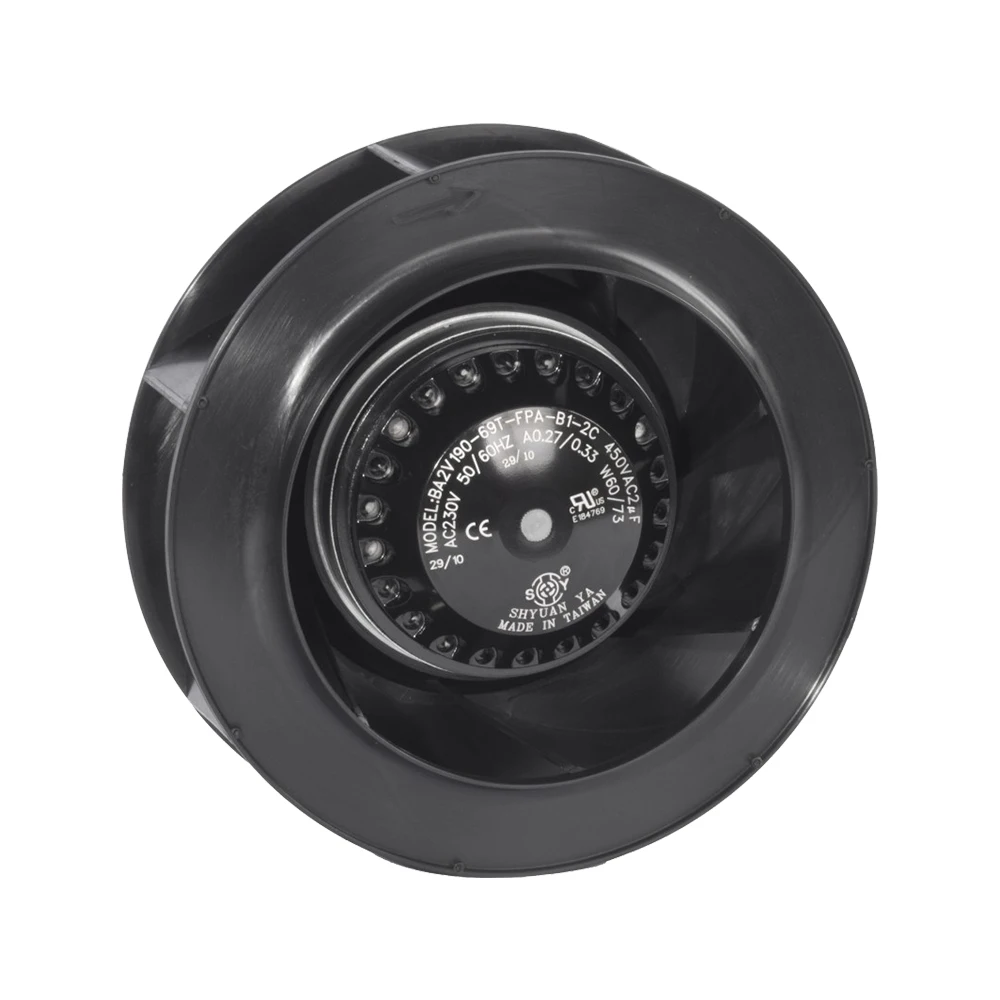

Product Name | |||||
Air Flow | 234 ~ 273 CFM | 280~315CFM | 287 ~ 331 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||

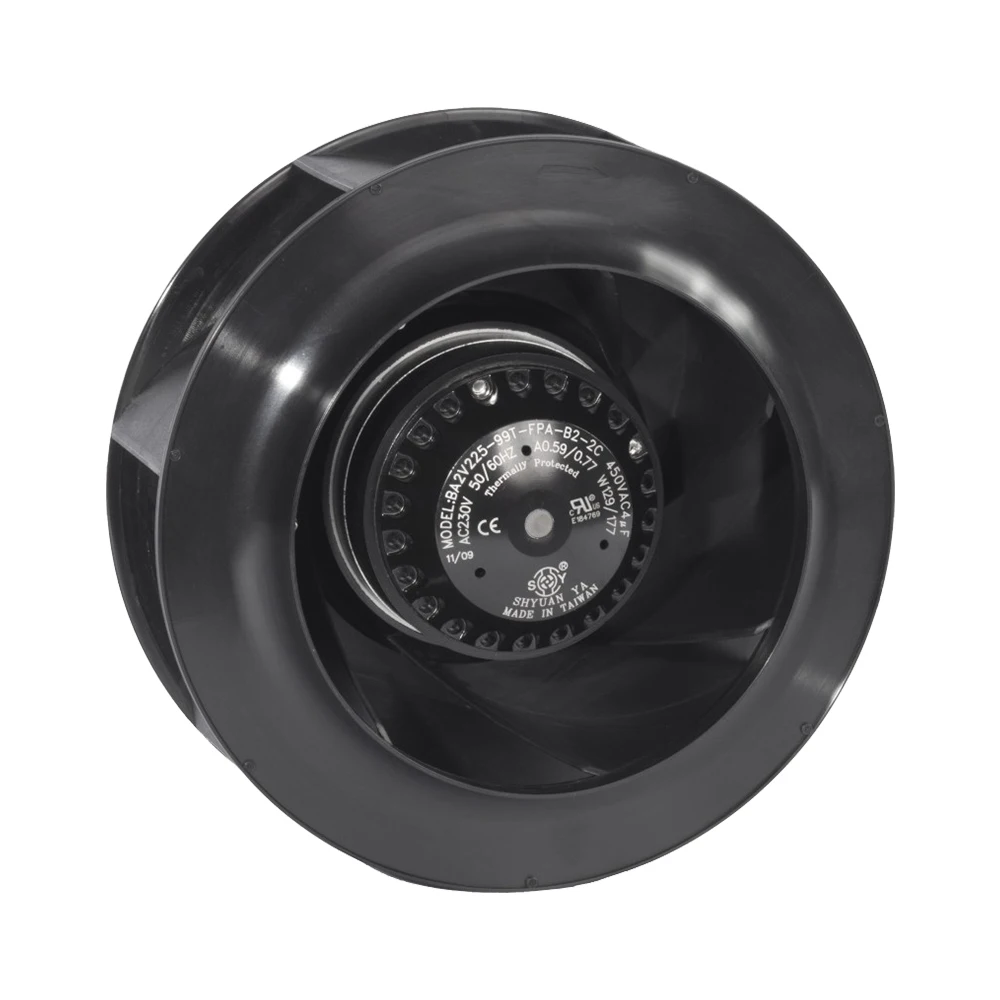

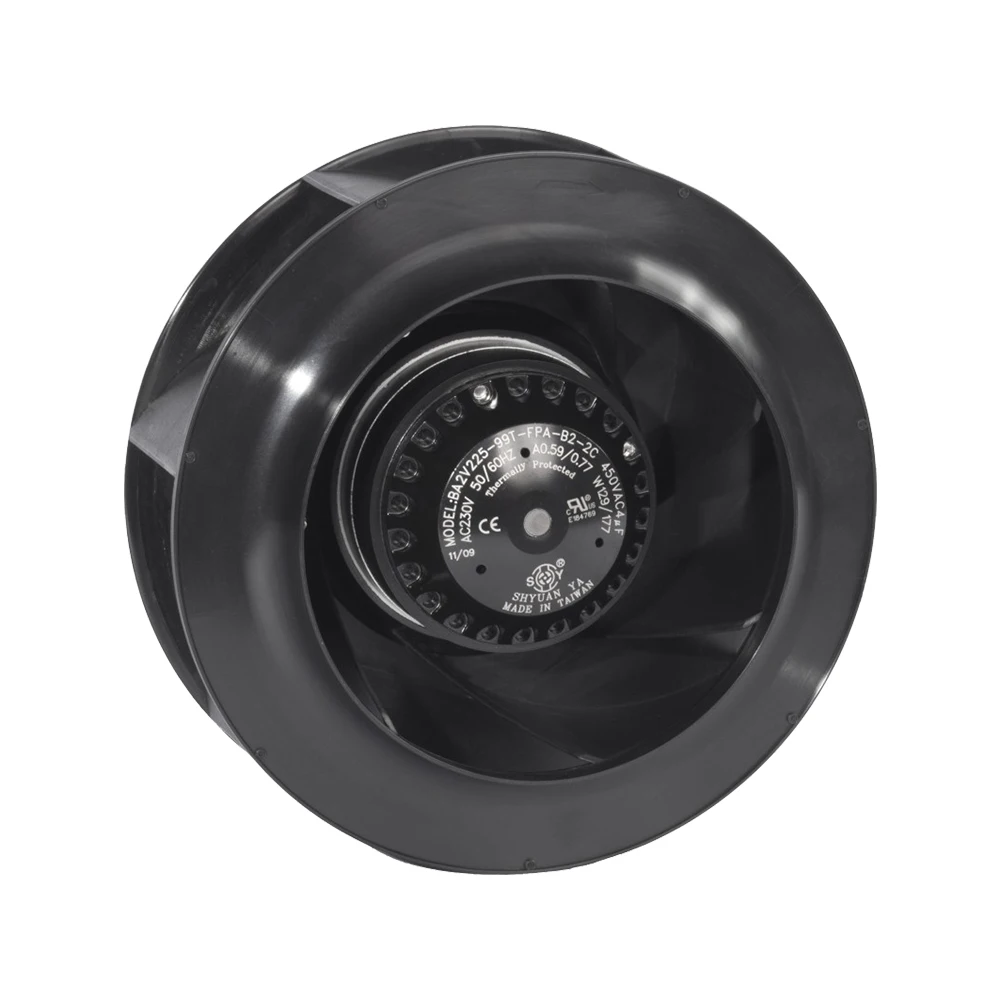

Product Name | |||||
Air Flow | 348 ~ 389 CFM | 371 ~ 421 CFM | 229 ~267CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||

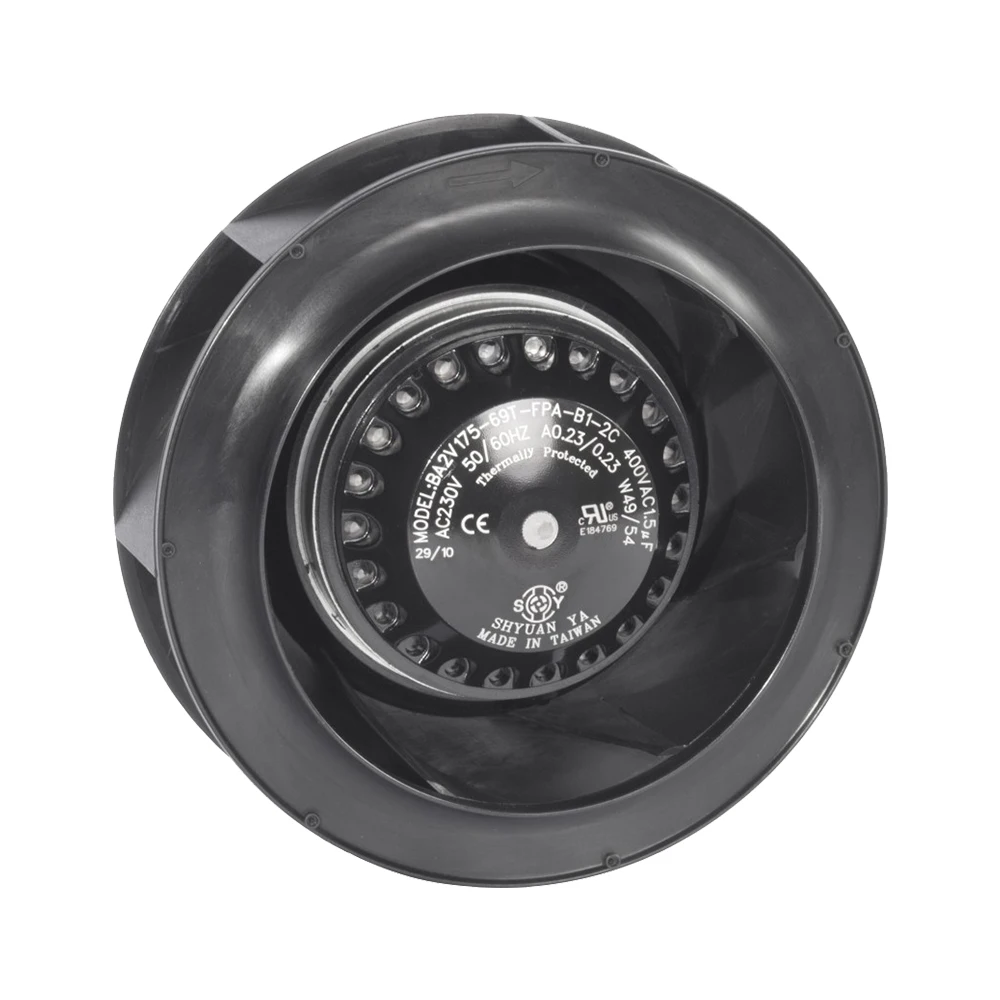

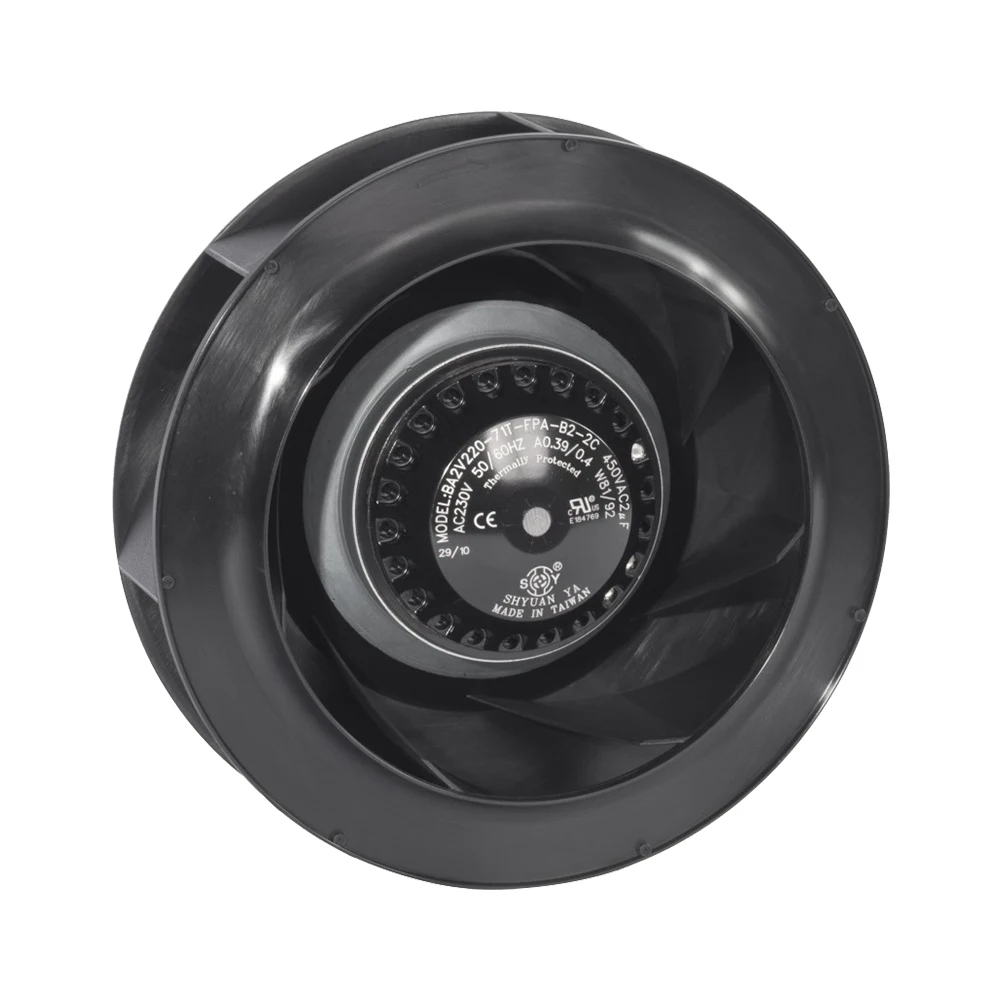

Product Name | |||||
Air Flow | 387 ~ 426 CFM | 339 ~ 378 CFM | 229 ~267CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | ||||
Product Name | |||||
Air Flow | 410 ~ 451 CFM | 482 ~ 590 CFM | 460 ~ 527 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +70°C | -20°C to +60°C | |||
Product Name | |||||
Air Flow | 586 ~ 669 CFM | 682 ~ 772 CFM | 711 ~ 807 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | -20°C to +60°C | |||
Product Name | |||||
Air Flow | 700 ~ 774 CFM | 824 ~ 909 CFM | 945 ~ 1024 CFM | ||
Impeller | Plastic PA (Polyamide Glass-fiber Reinforced) | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | -20°C to +60°C | |||
Questions & Answers
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
