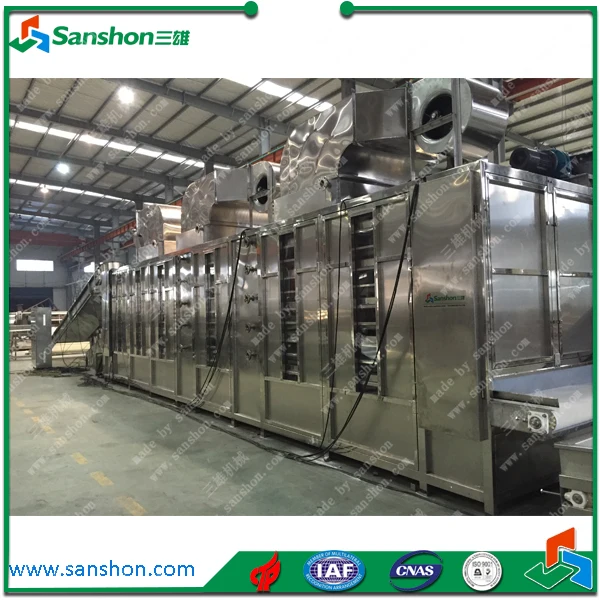

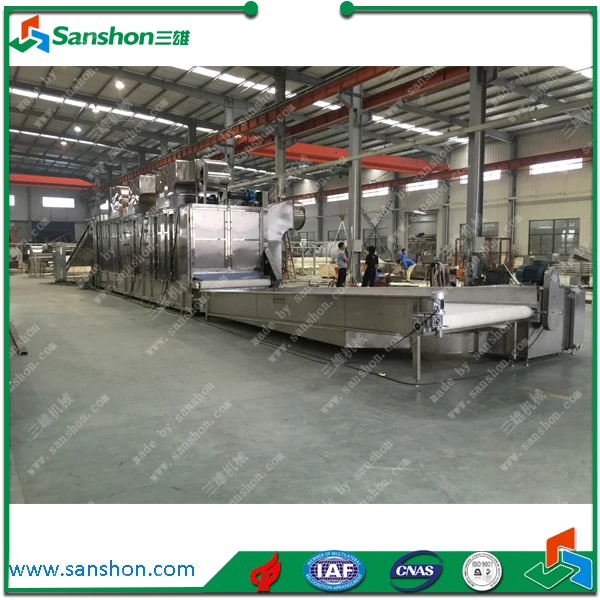

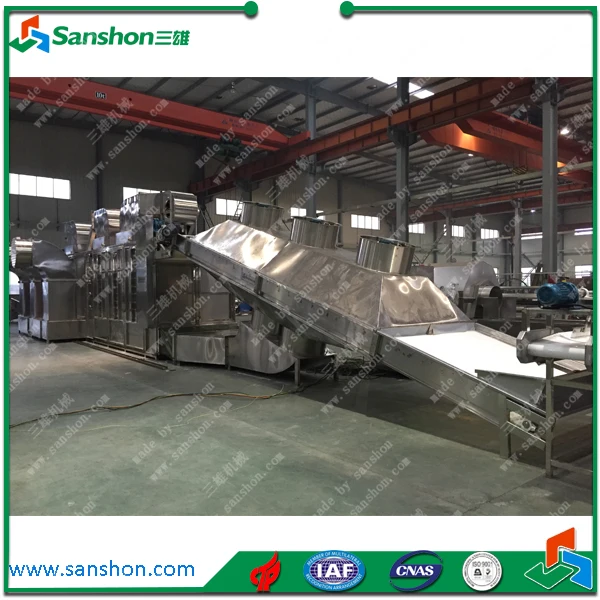

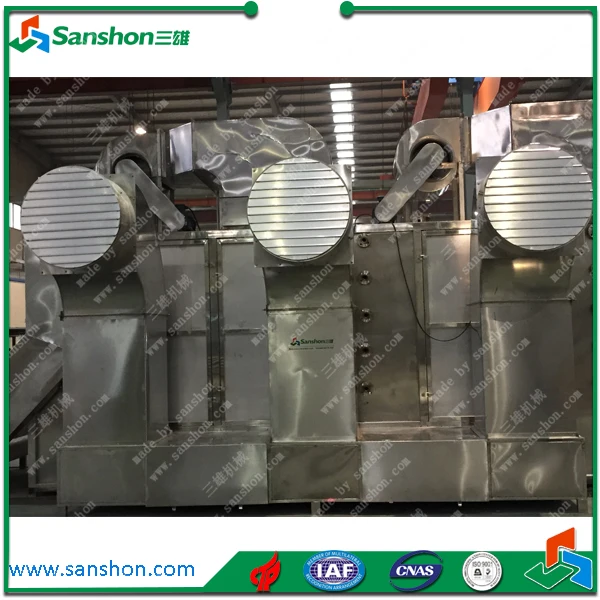

HGD Series Steam Continuous Banana Drying Machine


Summary:
The HGD series belt dryer has a box type structure. The box is provided with single layer or multilayer of conveying belt. The belt type dryer includes: HGD single layer dryer with the common-used drying area specificaton of 24m², 32m², and 16m²; HGD multilayer dryer with the common-used drying area specification of 60m², it's three layers. The temperature can be controlled in different sections and can be automatically adjusted according to the settings. The conveying belt can be screen mesh or turning plate. The conveying speed and fan volume of the SBJ series dryers adopt frequency conversion speed stepless speed adjustment to meet drying requirements of different materials.
Application:
The HGD-2S-24 singlelayer belt dryer and HGD-2M-60 multilayer belt dryer are suitable for drying garlic, carrot, potato, asparagus lettuce and other granular, shred, slice rootstock products.
The HGD-2-32 singlelayer belt dryer and HGD-2-16 singlelayer belt dryer are suitable for drying wheat, evergreen, spinach, cabbage, asparags lettuce and other strip, slice leaf vegetables.
Technical parameter:
Model | Overall dimension (mm) | Power (kw) | Capacity (t/h) | Steam consumption (t/h, peak value≥0.4mpa) | Valid width of belt (m) | Valid length of belt (m) |
HGD-2S-24 | 13700*3140*2990 | 53.22 | 1 (calculated as potato dice) | 1.8 | 2.0 | 12.0 |
HGD-2M-60 | 14900*2940*3900 | 21.0 | 1 (calculated as potato dice) | 0.8 | 2.0 | 10.0 |
HGD-2-32 | 18400*5500*3500 | 59.22 | 1.5 (calculated as wheat) | 4.0 | 2.0 | 16.0 |
HGD-2-16 | 11900*5500*3500 | 34.50 | 0.5 (calculated as wheat) | 1.8 | 2.0 | 8.0 |





We also have other types dryers for your different demands, welcome to our web for a view, and you will find what you want! Have a nice trip!

HGD-2S single layer belt dryer
