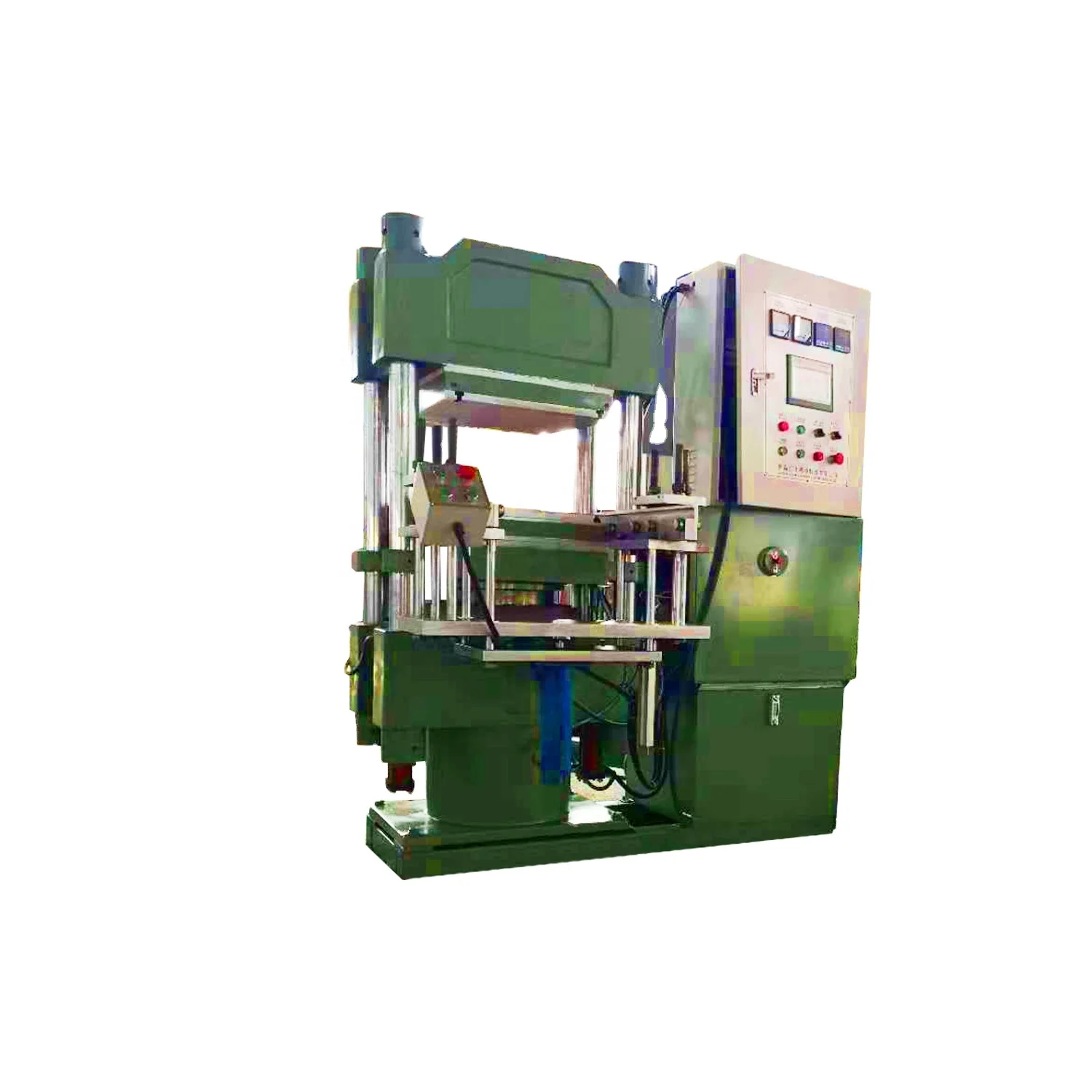

Rubber Hydraulic Hose Making Machine // High quality

Product Overview

Description



  Hydraulic Hose making Machine   has the following advantages:



(1) the center distance in certain, allowed to install large diameter of hydraulic cylinder, which can reduce the hydraulic cylinder the amount, and the simple structure, maintenance is less;



(2) the beam in the section of force is reasonable, the modulus needed than live in small, can reduce weight;

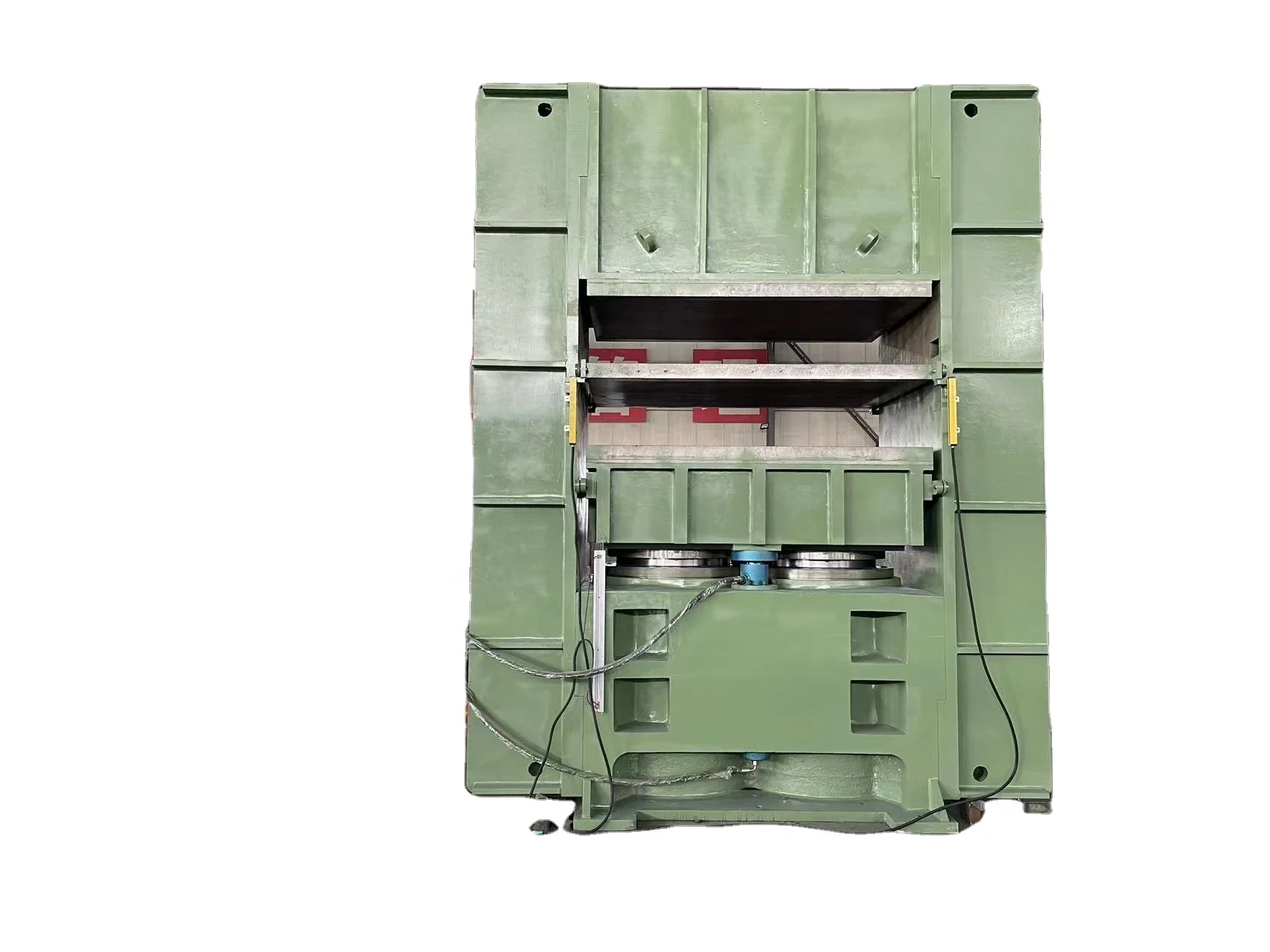

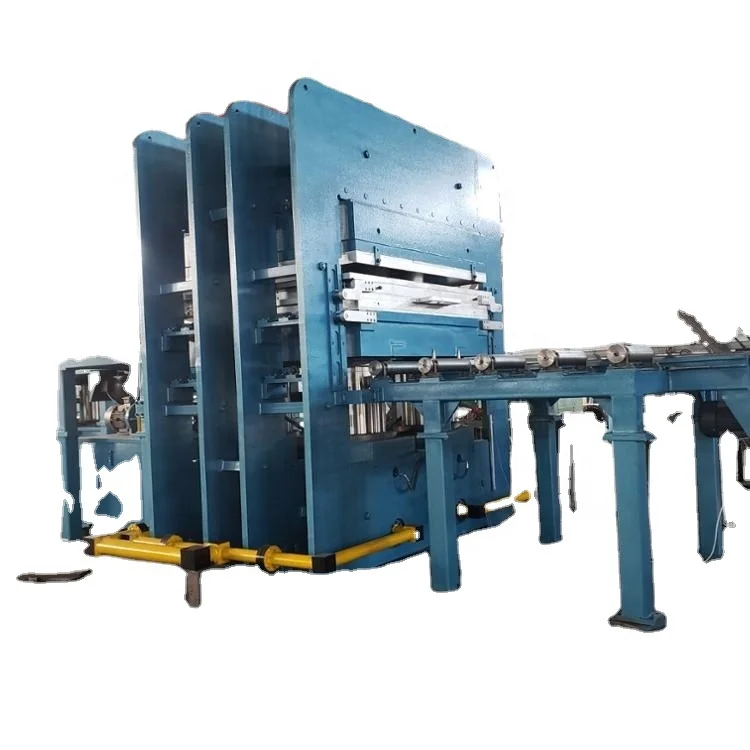

(3) manufacturing installation is simple, pipe configuration, whole hidden appearance tidy and beautiful. Box type flat-band plate vulcanizing machine single box board the lateral stiffness ratio of the poor, but because the mast frame type flat-band plate vulcanizing machine frame by frame board are a combination of multiple, so the machine has enough lateral stiffness.

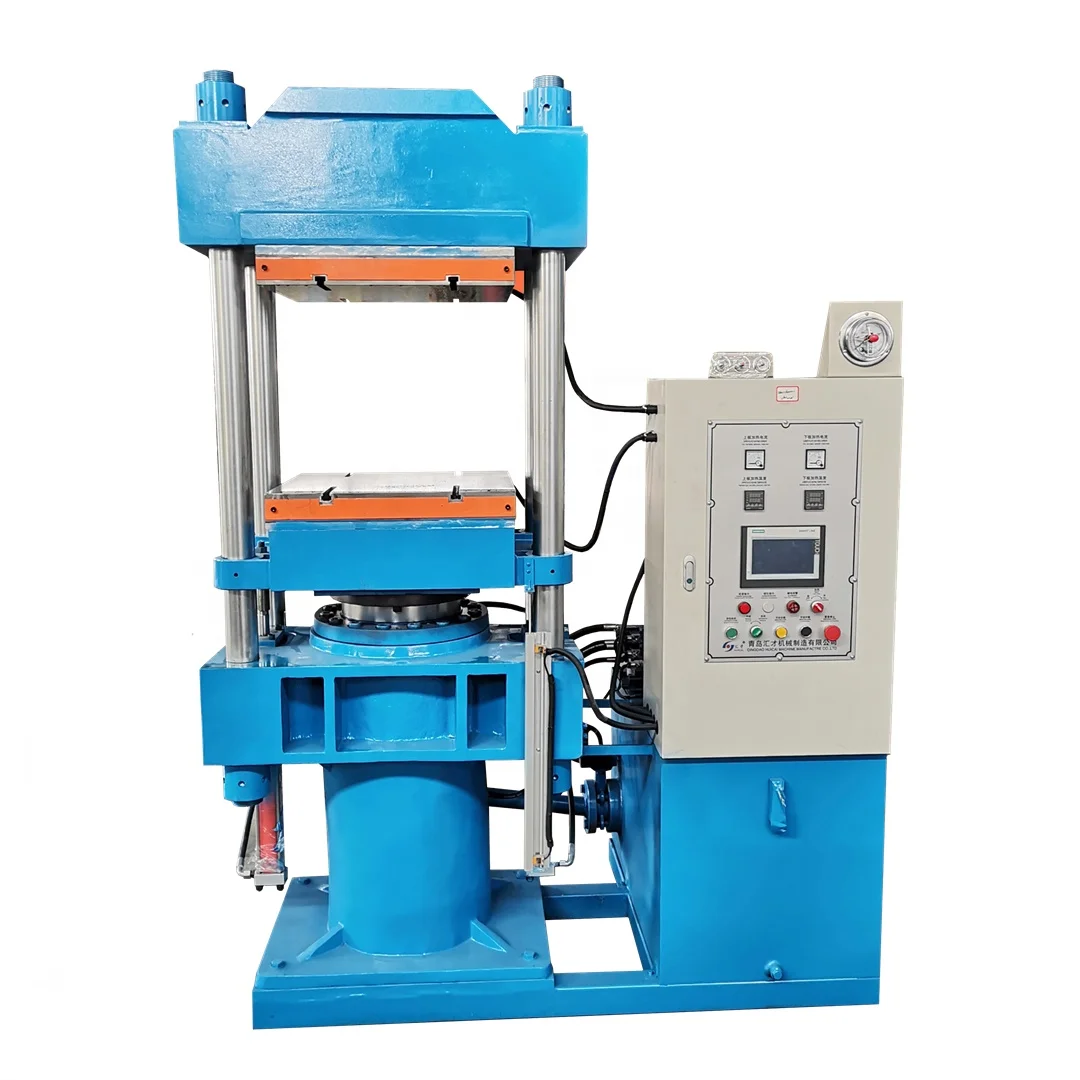

Rubber plate vulcanizing machine is mainly used for sulfide type tape, it has flat hot plate unit area of pressure equipment reliability in operation and maintenance quantity is little, etc. Plate vulcanizing machine's main function is to provide the pressure and temperature vulcanization required by hydraulic system. Pressure produced by hydraulic cylinder, provided by heating medium temperature. Flat-band plate vulcanizing press press frame structure form mainly divided into pillar type flat-band plate vulcanizing machine and box type flat-band plate vulcanizing machine two classes; According to work layer can have single and double according to the points: hydraulic system working medium pressure and hydraulic pressure may have the points. In flat vulcanizing press rubber industry, pillar type flat-band plate vulcanizing machine is used earlier models, our country the past use of conveyor belt plate vulcanizing machine is also more for pillar type structure, but now it has used more box type structure. Box type flat-band plate vulcanizing machine and pillar type flat-band plate vulcanizing machine, has the following advantages: compared to the center of the 4) in a certain distance, allowed to install large diameter of hydraulic cylinder, which can reduce the hydraulic cylinder the amount, and the simple structure, less maintenance.









Technical requirement	XLB240 ×240×2	XLB350 ×350×2	XLB400 ×400×2	XLB500 ×500×2	XLB600 ×600×2/4	XLB700 ×700×2	XLB750 ×850×2/4	XLB900×900 ×2Q
Total pressure(MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate distance(mm)	125	125	125	125	125	125	200	300
Working layer number	2	2	2	2	2-4	2	2-4	2
Unit area pressure of hot plateMpa	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger stroke(mm)	250	250	250	250	250/400	250	400	400
Heating mode	electricity	electricity	Electricity /steam	Electricity/ steam	Electricity /steam	Staam	Electricity /steam	Steam
Main motor power(KW)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size: L×W×H(mm)	1200×350 ×1300	1400×480 ×1380	1600×500 ×1480	1750×600 ×1540	1880×720 ×1680	2000×850 ×1750	2250×1200 ×2200	1400×900 ×2400 mainframe
Frame form	Post	Post	Post	Post	Post	Post	Frame	Frame
