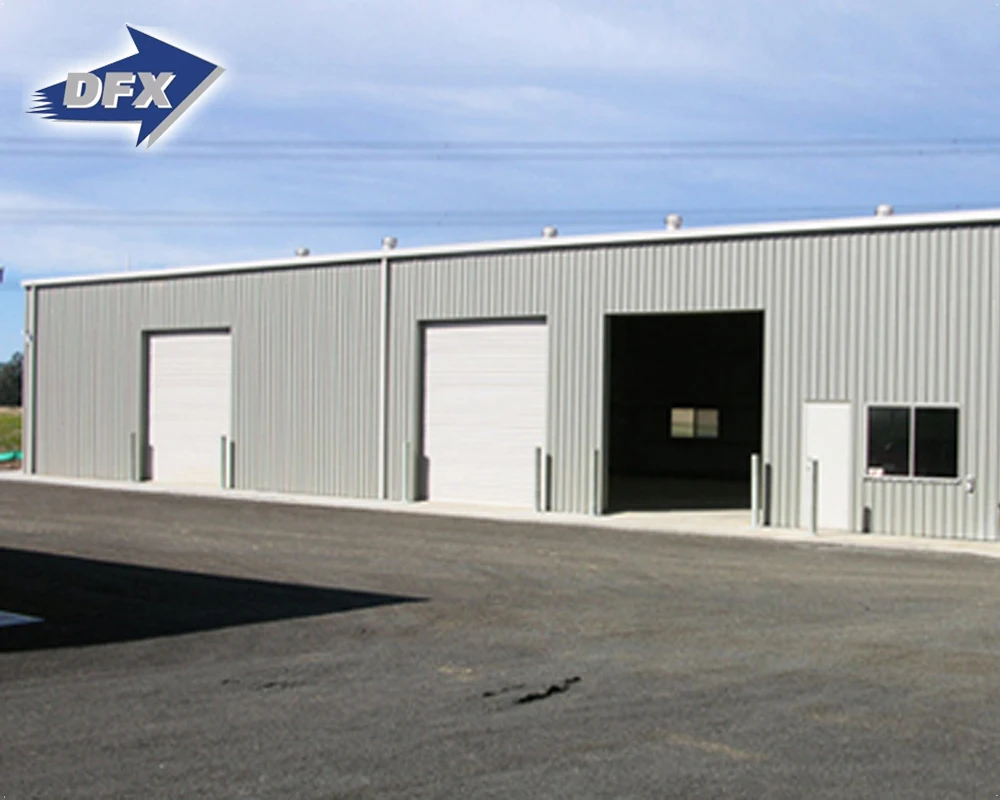

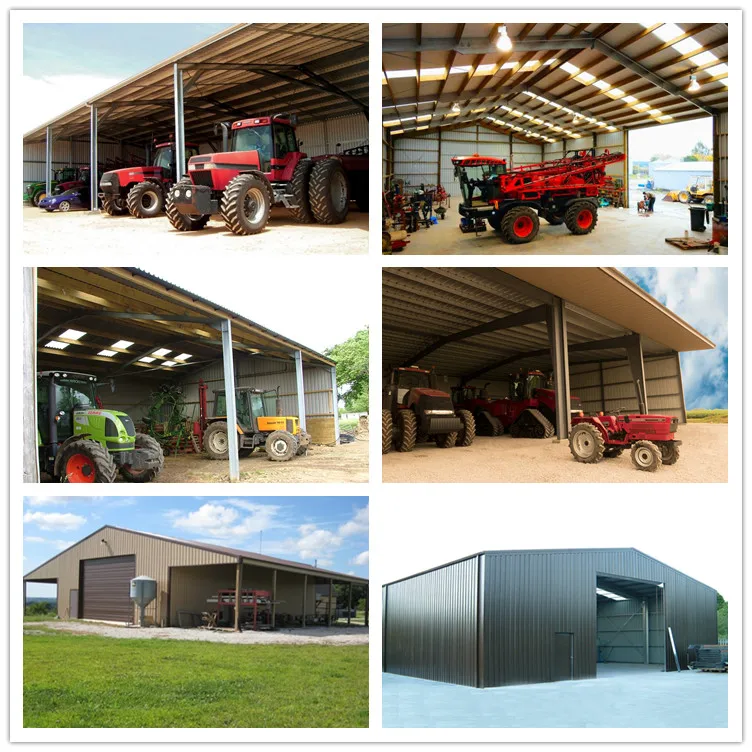

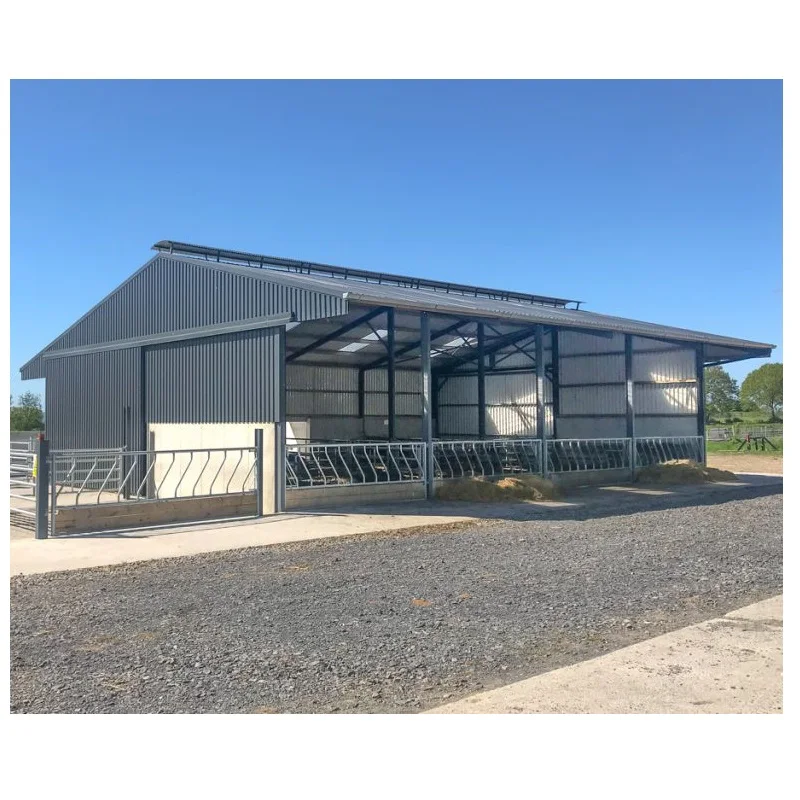

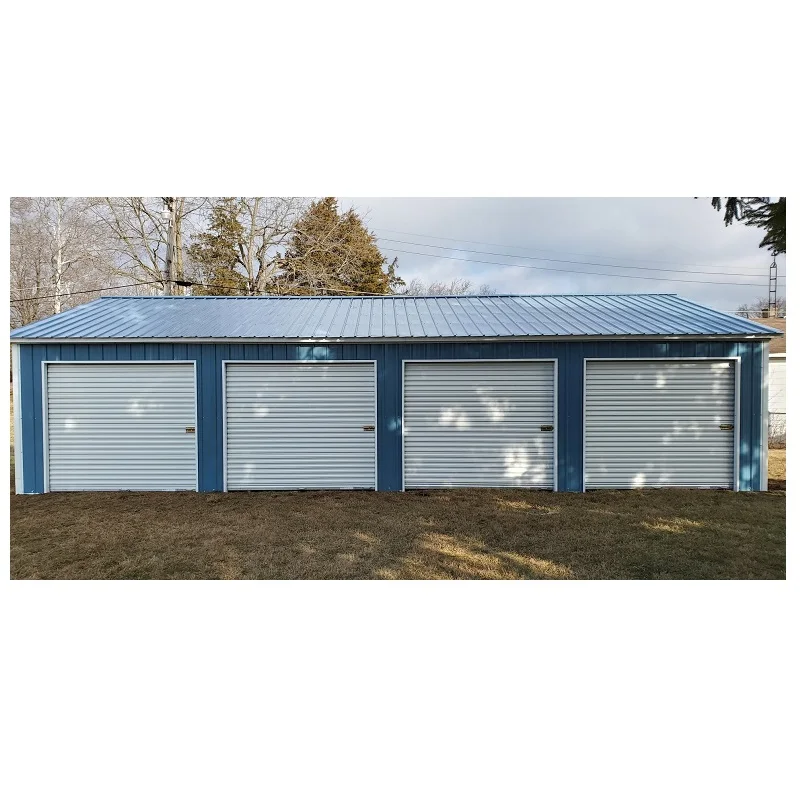

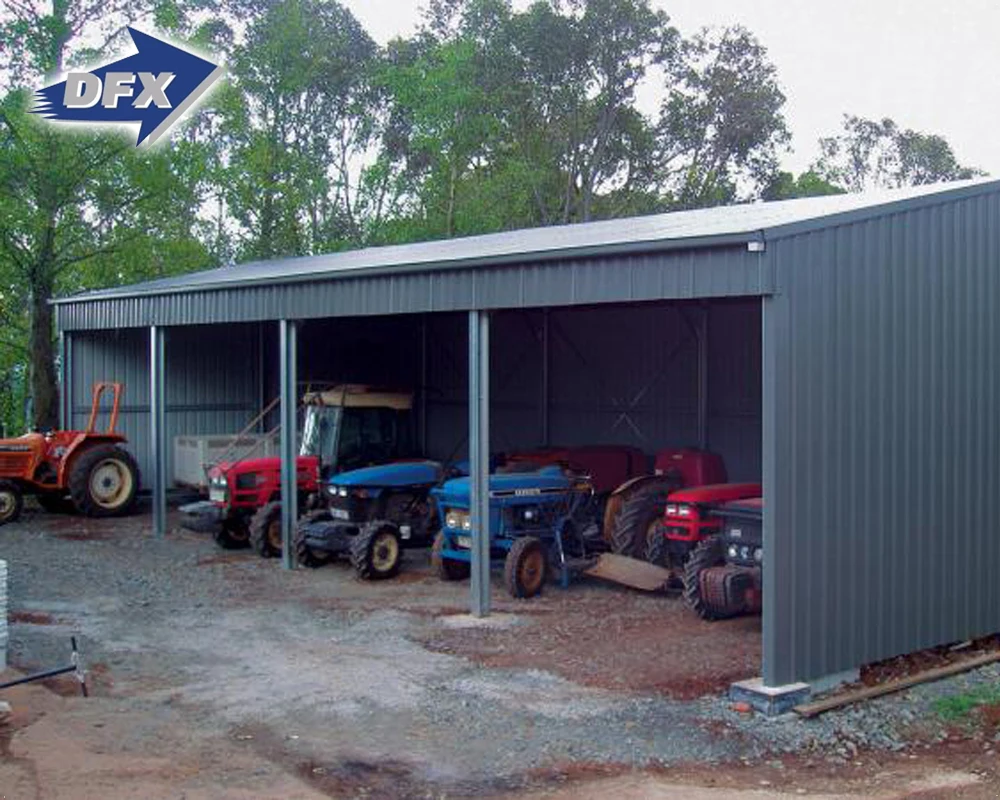

China Cheap Light Steel Frame Prefabricated Industrial Farm Metal Shed Kit
- Category: >>>
- Supplier: Qingdao Director Steel Structure Co. Ltd.
Share on (656714709):
Product Overview
Description
China Cheap Light Steel Frame Prefabricated Industrial Farm Metal Shed Kit

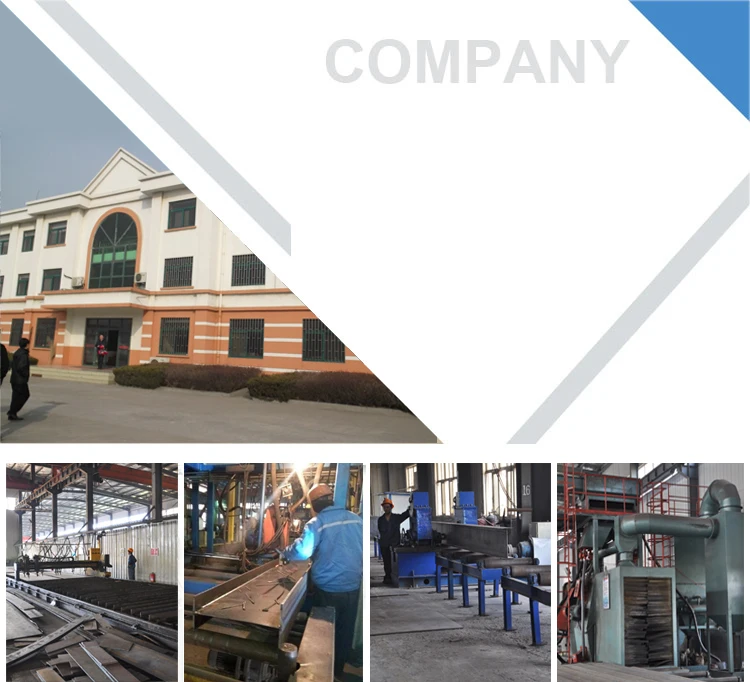

Company Information
Company Information
We have been in this line more 10years. With well professional trained workers,professional architects and engineers,better quality control and experienced internationaltrade service team,more than 40 countries have our products.
Our factory is very near to Qingdao airport about 25-30 minutes by car.
1.Description:

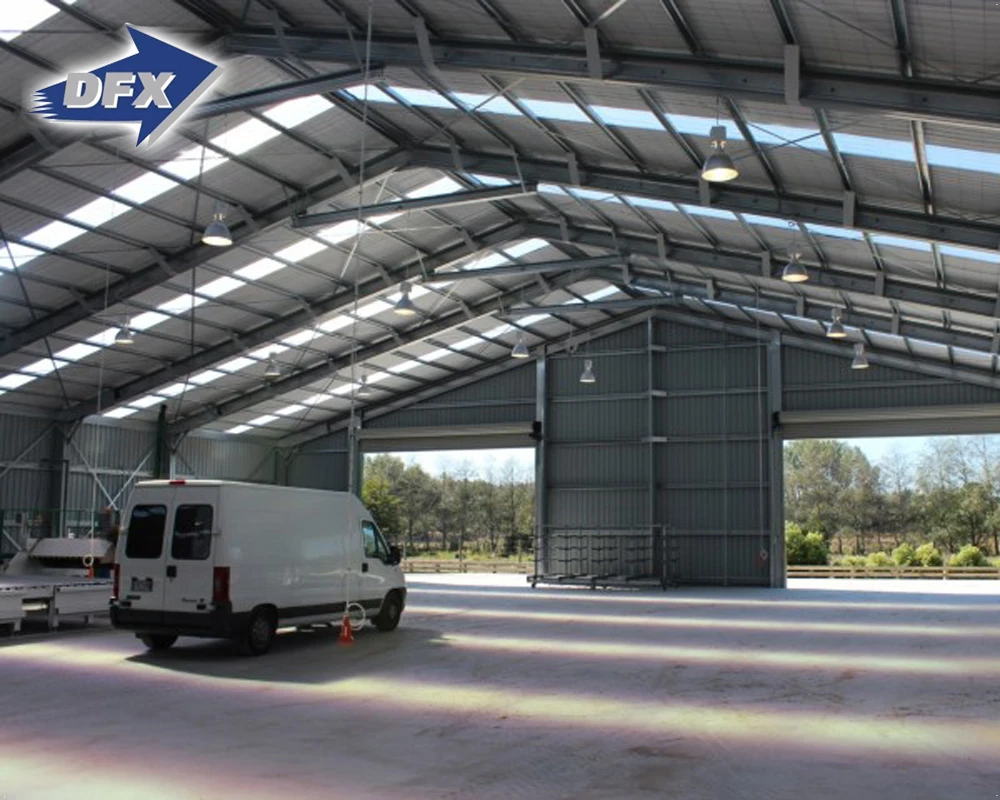

steel structure building is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section and U section steel components,roof an walls using a variety of panels and other components such as windows, doors,cranes,etc.
steel structure building is widely used in warehouses,workshops,large factories, etc.
2 Characteristics:
1.Wide span: single span or multiple spans,the max span clear distance is 36m, without middle columns.
2.Low cost: unit price range from USD20 to USD80/square meter FOB according to customer's request.
3.Fast construction and easy in installation
4.Long term service life:more than 50 years.
5.Other characteristics:environmental protection, stable structure,earthquake resistance,water proofing,and energy saving.
3 Main parts of the steel structure building:

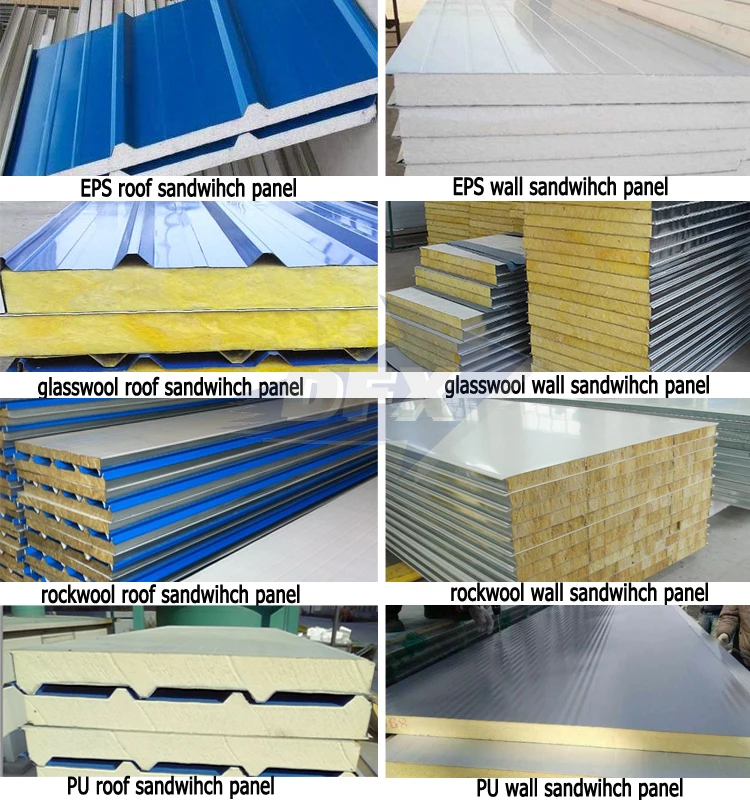

4 Specifications for wall and roof panel
EPS Sandwich panel | |
| EPS sandwich panel(50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| Specific gravities | 8-16Kg/ |
| Resistances of heat-transfer process | 0.035-0.05w/m.k |
| Sound deadening | |
| Limits of fire resistance | None |
| Rock wool sandwich panel | |
| Rockwool sandwich panel(50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| Specific gravities | 10.2-17.7Kg/ |
| Resistances of heat-transfer process | ≤0.044w/m.k |
| Sound deadening | 21.5db |
| Limits of fire resistance | Grade A incombustible |
| PU sandwich panel | |
| PU sandwich panel (50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| density | ≥30Kg/m3 |
| Water absorption for 24 hours | ≤1 |
| thermal conductivity | ≤0.023w/m·k |
| compressive strength | ≥200kpa |
| fire proof rate | B1 |

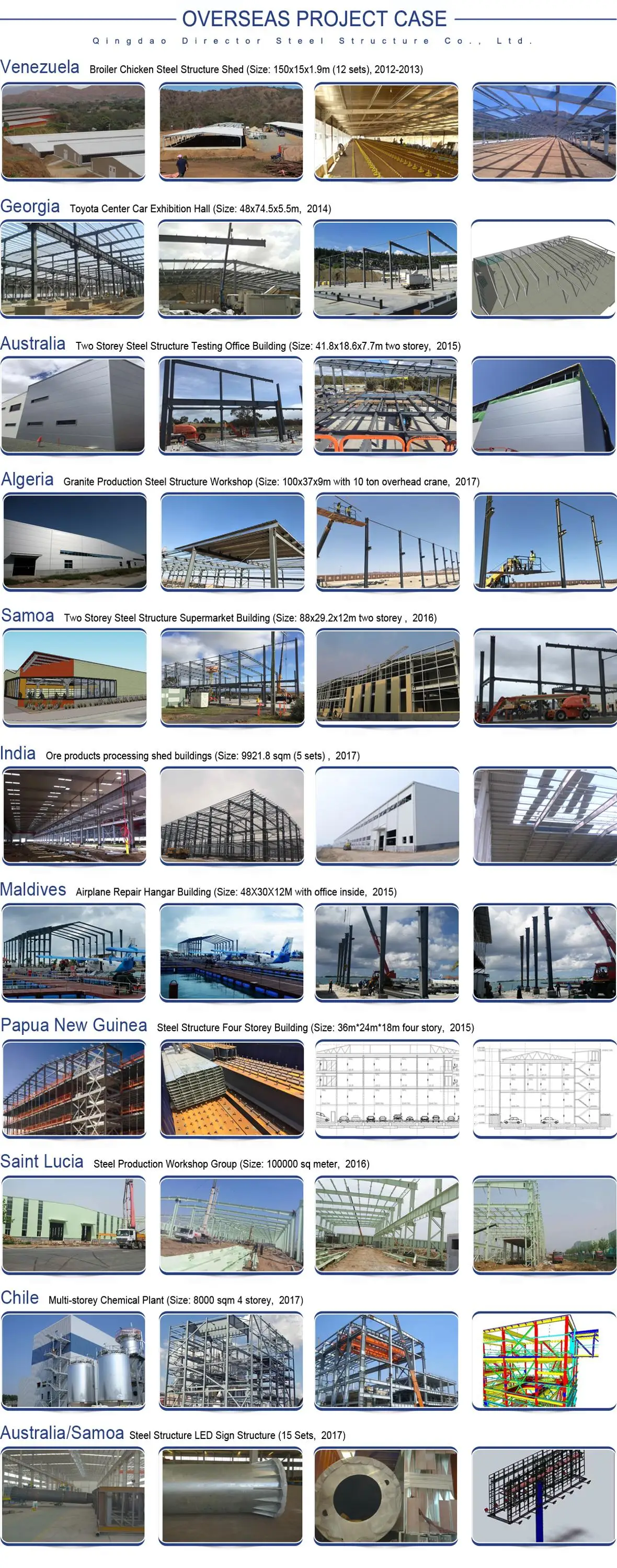

(5)DFX company finished steel structure projects :
Some main oversea projects we undertook in the last couple years:
Industrial Warehouse(13000M2) Argentina
Warehouse(14000M2)----Republic of Uzbekistan
Workshop(12000M2)----Canada
Warehouse(3600M2)---Romonia
Vegetable Market(2500M2)----Mauritius
Pigshed(3500M2)---USA
Chicken shed(2800M2) Austrilia
Aircraft Hangar(1300M2)------Austrilia
Warehouse(900M2)----Mongolia
Prefabricated house(70M2)----800sets---Angola
Container house(20')-----60 sets SouthAfrica
We can provide the quotation , if you confirm the information as bellow:
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Workshop View and production line :
Quality Control
Goods Packing photos:
China cheap light steel frame prefabricated metal shed kit , please contact me by clicking below button "SEND"
After Sale Service
After-sale service:
1. After production, we will supply steel structure installation drawing.
2. Can send techinican to guide installation on site if customer request.
3. After years, building cladding need to be moved away. We will offer materials that need re-new.
4. If you have a building, not made by us, we can help check the strength of the building.
Additional service:
1. if you have something need to be sent together. We can arrange the loading if there is enough space in container.
2. if need us help to buy some other products, we can help source and buy for you.
3. if need us check the other factory real or not, or need us inspect the container loading , we can help free.
4. You are planning to come to China for short travel, you need our help in the language, hotel book, or some other matters. we would like help.
