Product Description
Overview

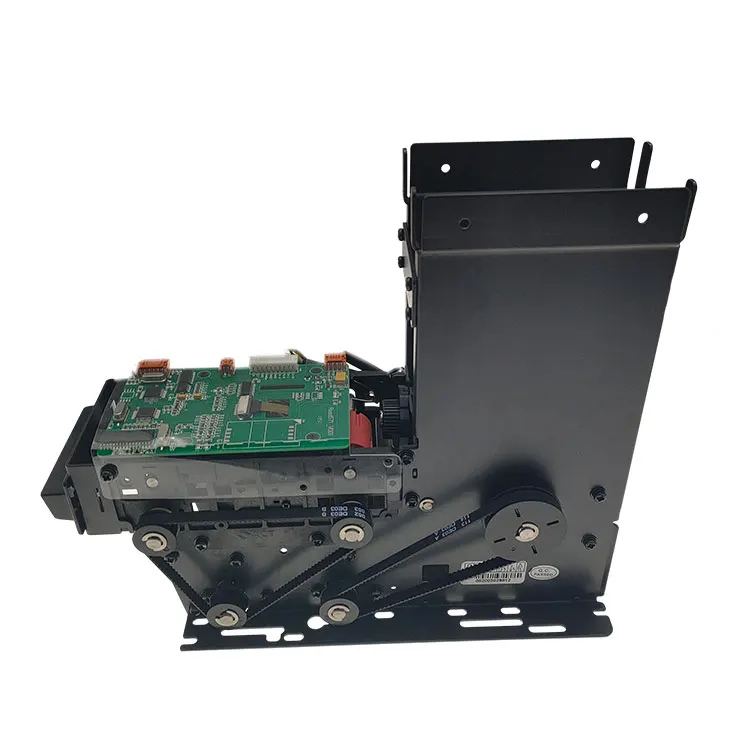

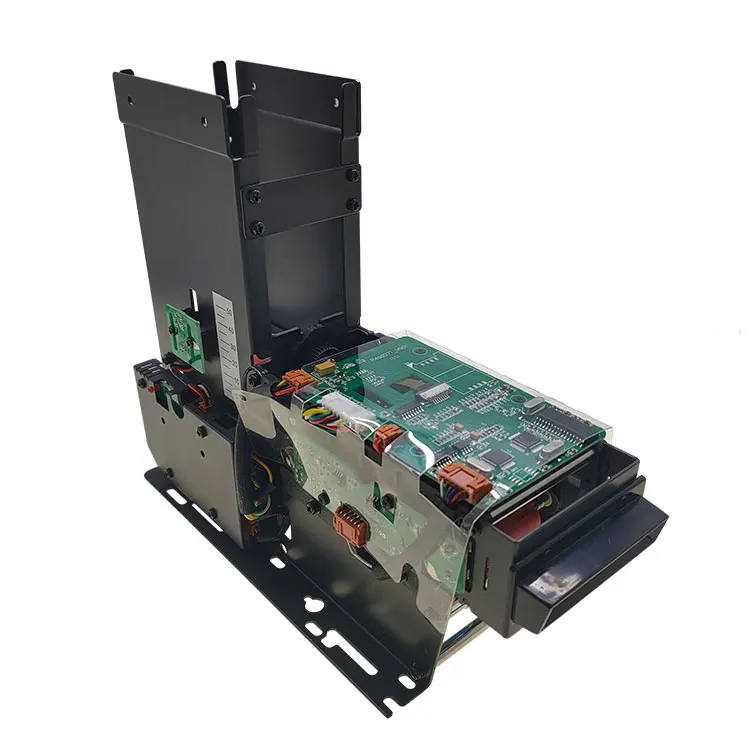

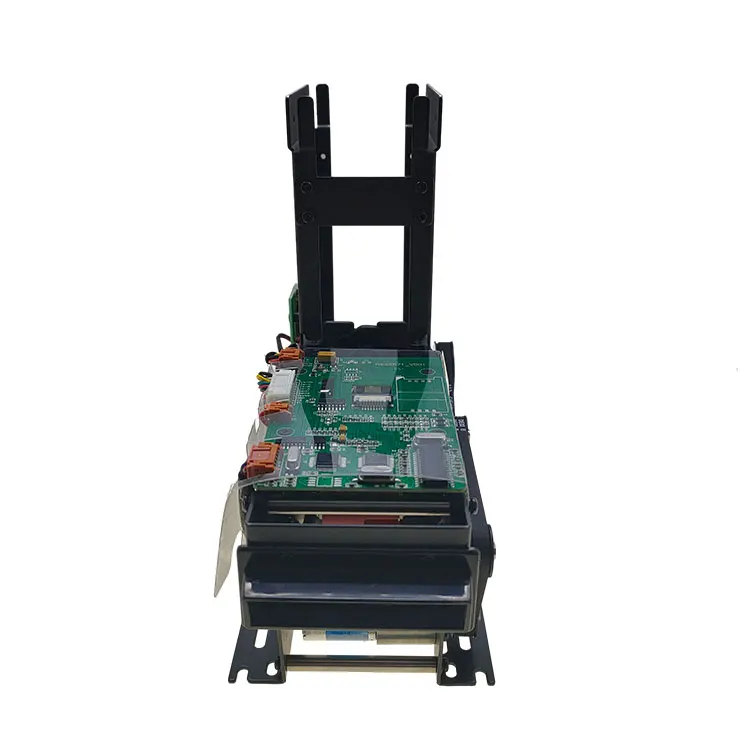

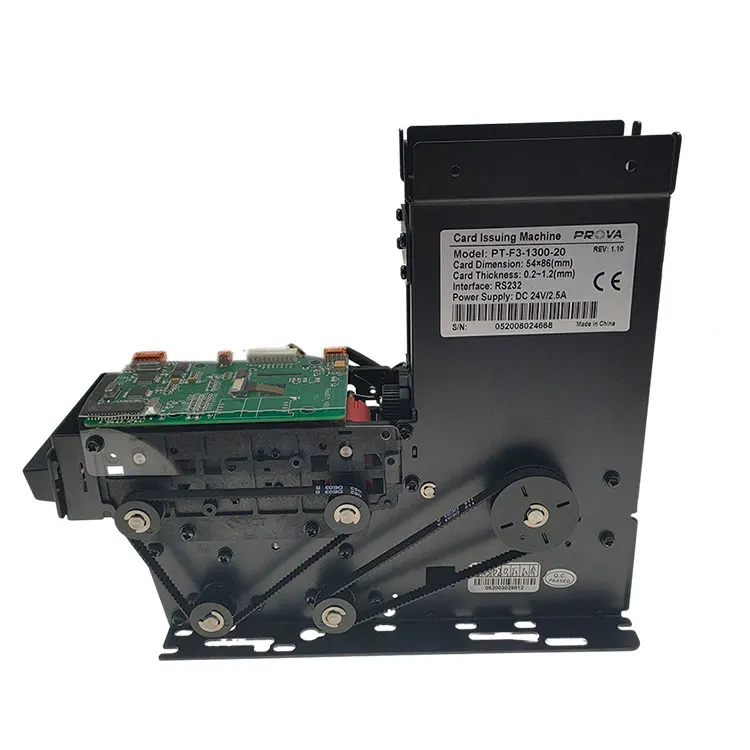

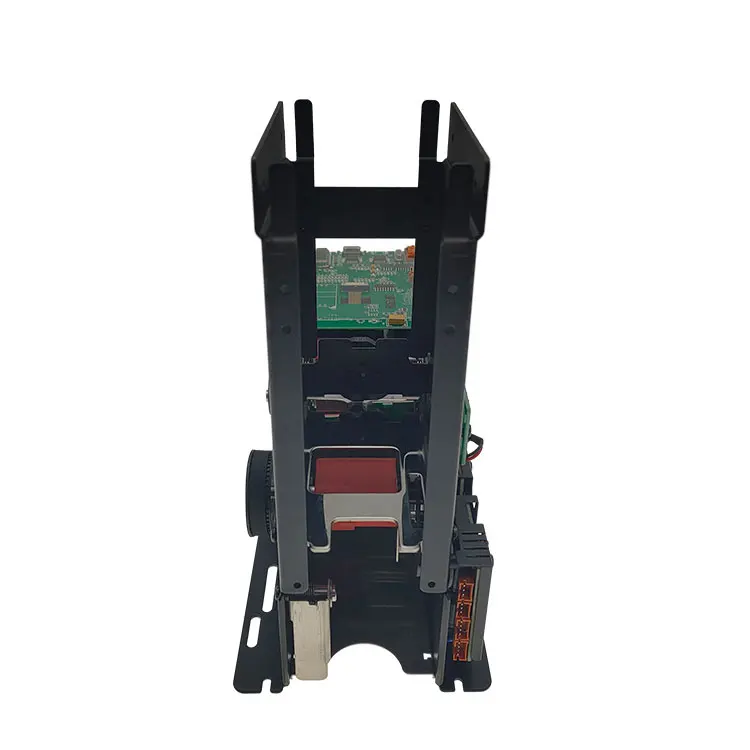

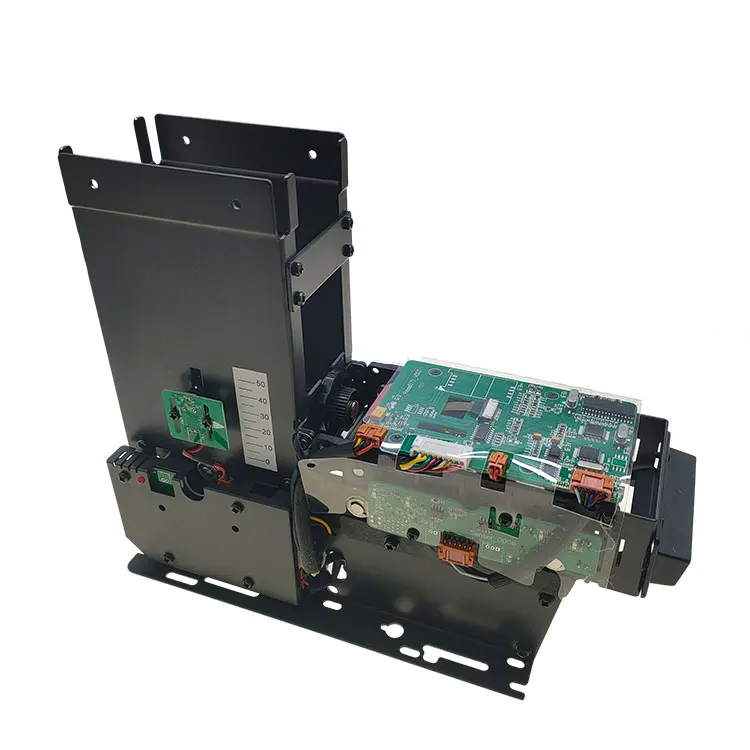

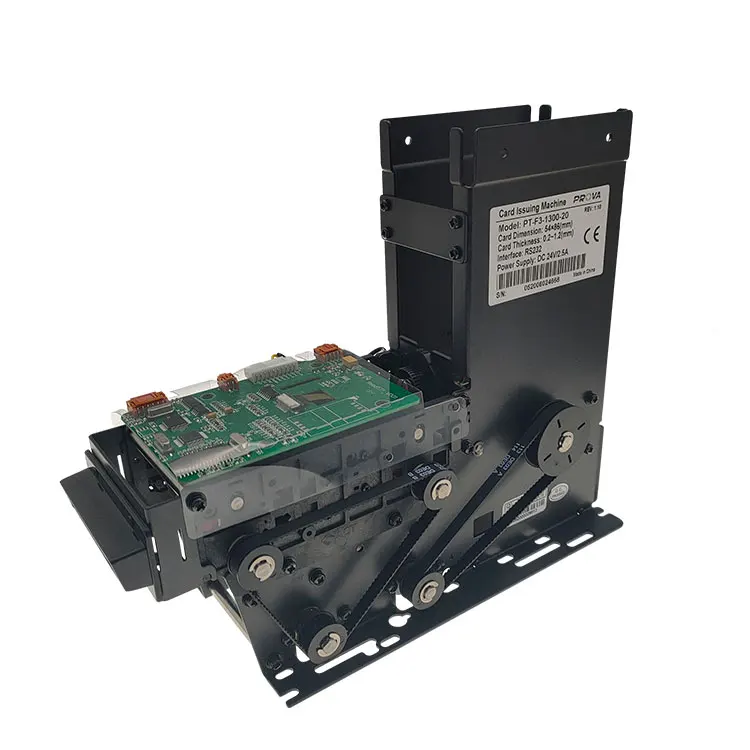

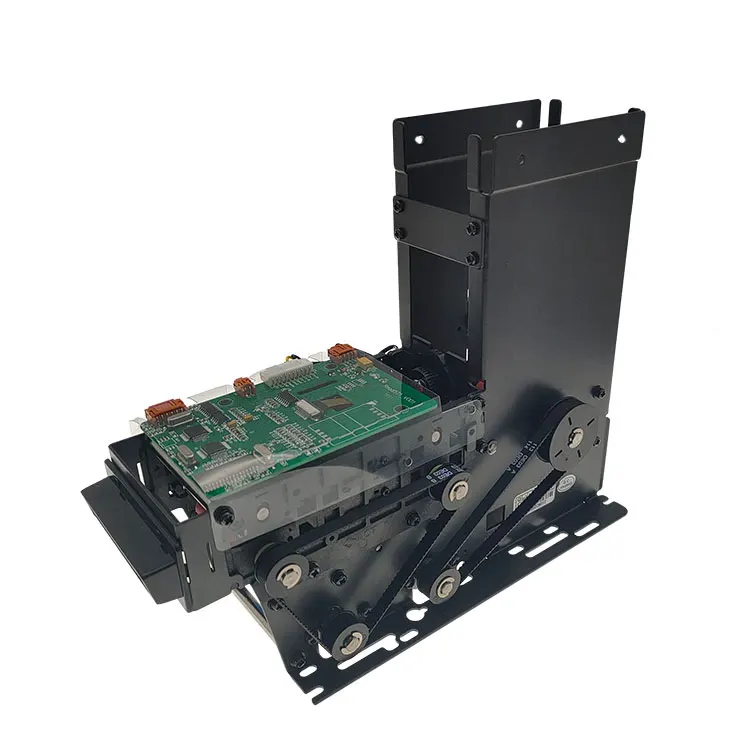

PT-F3 card issuing machine can work as a card dispenser & collector. It can operate both chip card and 13.56Mhz RF card.
PT-F3 card issuing machine can be used to send/sell card ticket automatically, and it is mainly used in systems such as parking, motor-way, automatic toll collection, auto card selling, bank card management, etc.
PT-F3 card issuing machine can be used to send/sell card ticket automatically, and it is mainly used in systems such as parking, motor-way, automatic toll collection, auto card selling, bank card management, etc.
Technical Specification:
Items | Specification |
Card supported | Dimension：55mm~86mm, |
Thickness：0.2~1.2 (standard) | |
Communication | RS-232 (to be added) |
Working currency | DC24V±5% 2.5A |
Standard capacity Of card cassette | 0.8mm-175PCS，embossing-130PCS |
0.4mm-350PCS | |
Capacity of card collector | Standard card:25PCS （unlimited card collection design for option） |
Dispensing lifetime | 1,000,000 passes |
Chip contact lifetime | 500,000 passes |
Working environment | temperature/humidity -10℃--60℃/0-90%（No condensing） |
Storage environment | temperature/humidity -30℃--70℃/0-90%（No condensing） |
Net weight | About 1600g |
Packaging dimension | Unit package dimension(mm)：495×275×290 |
Product dimension | See attached product dimension picture |
Details Images
Embedded error card bin with torsion door , easy to take out cards.
Special design on the roller, Easy to dispense & collect embossed card.

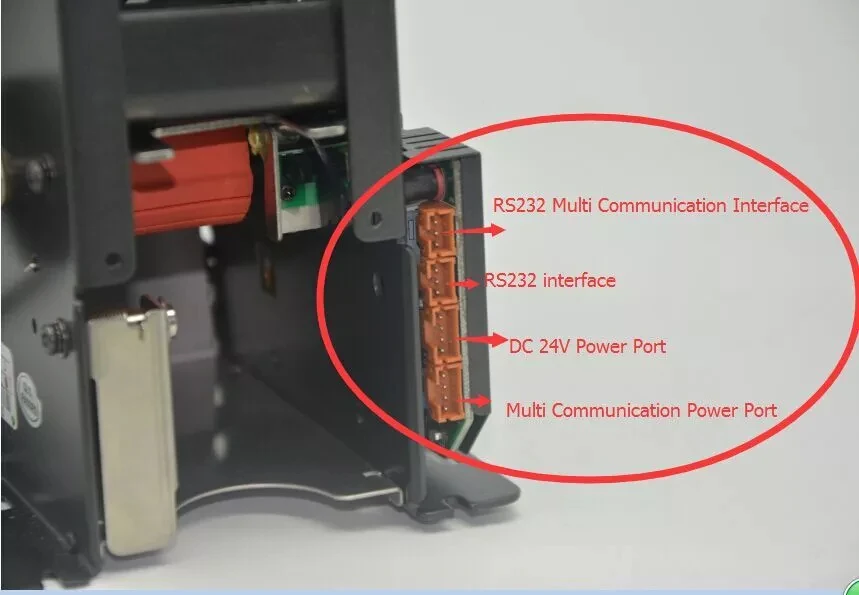

With multiple connection interface & multiple connection power port.
