transparent speaker cable 10awg/12awg/14awg/16awg/18awg/20awg/22awg/24awg
- Category: Cables >>>
- Supplier: Zhejiang Permanent Cable Co. Ltd.
Share on (658235958):
Product Overview
Description
Products Description

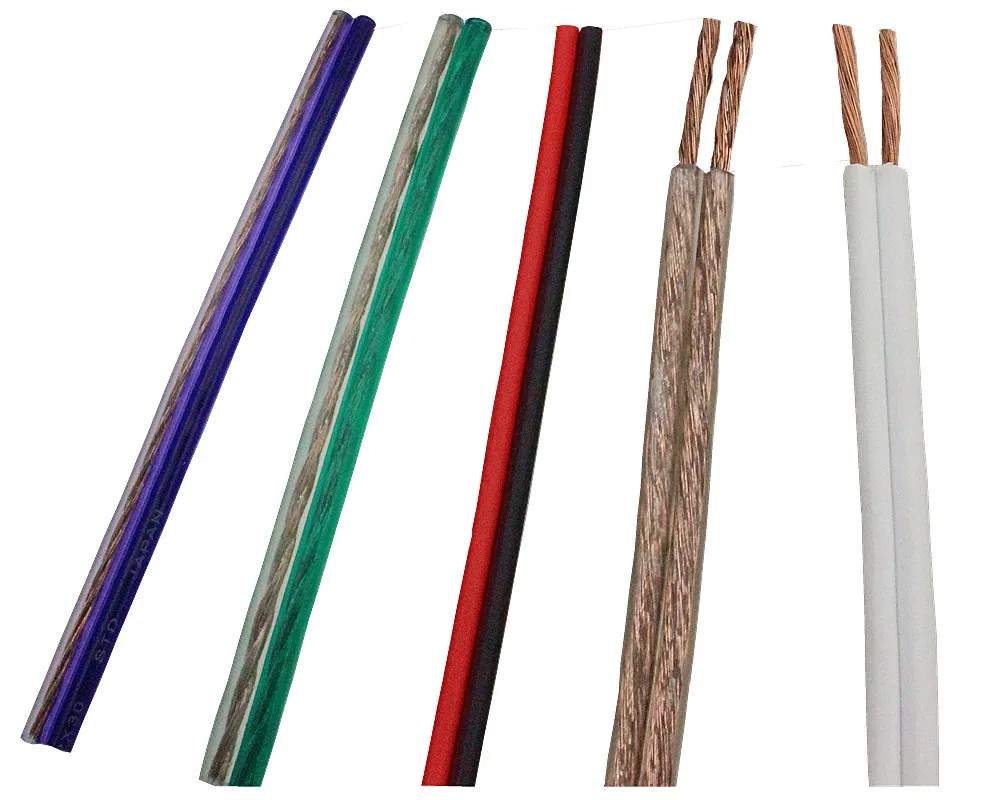

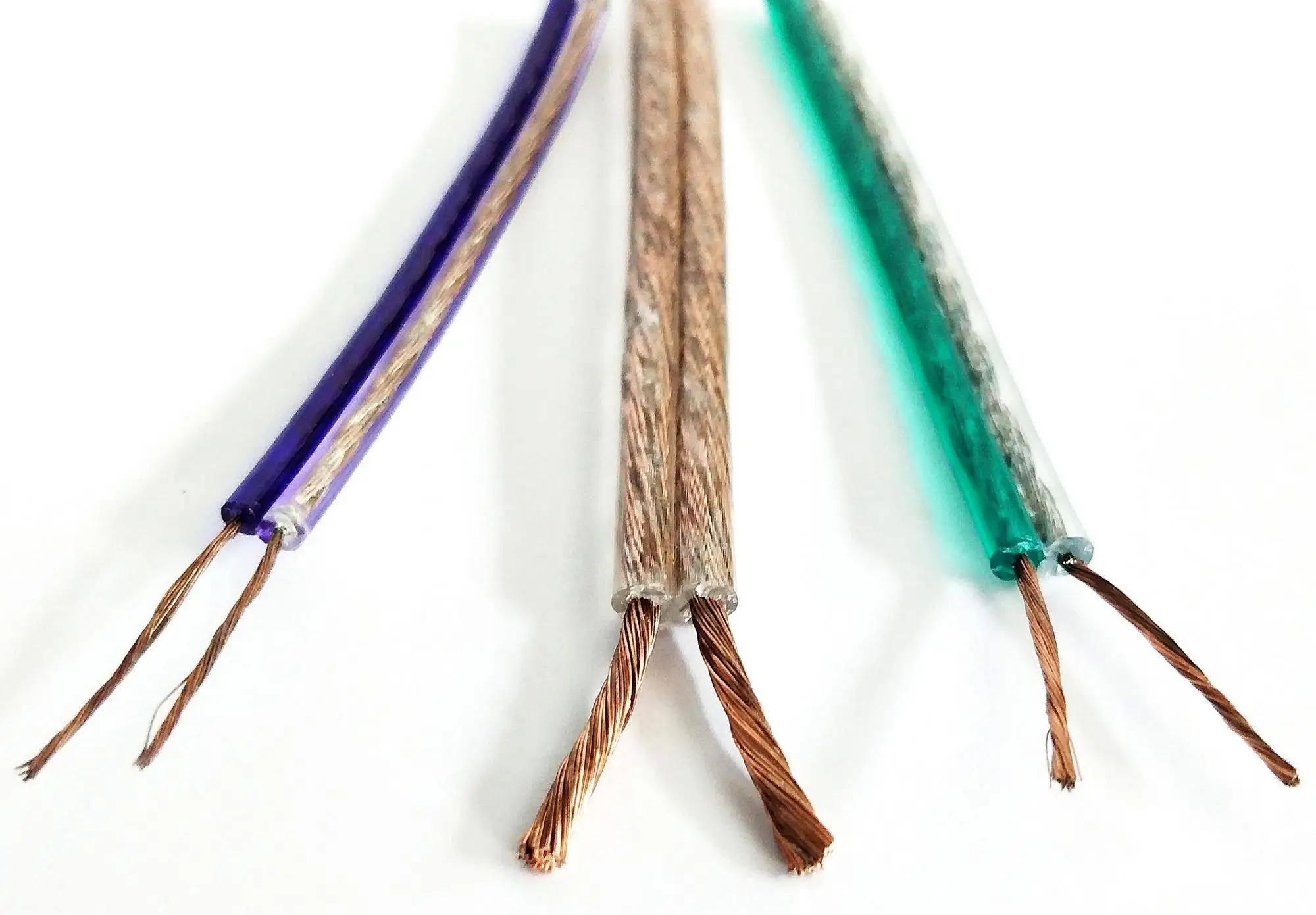

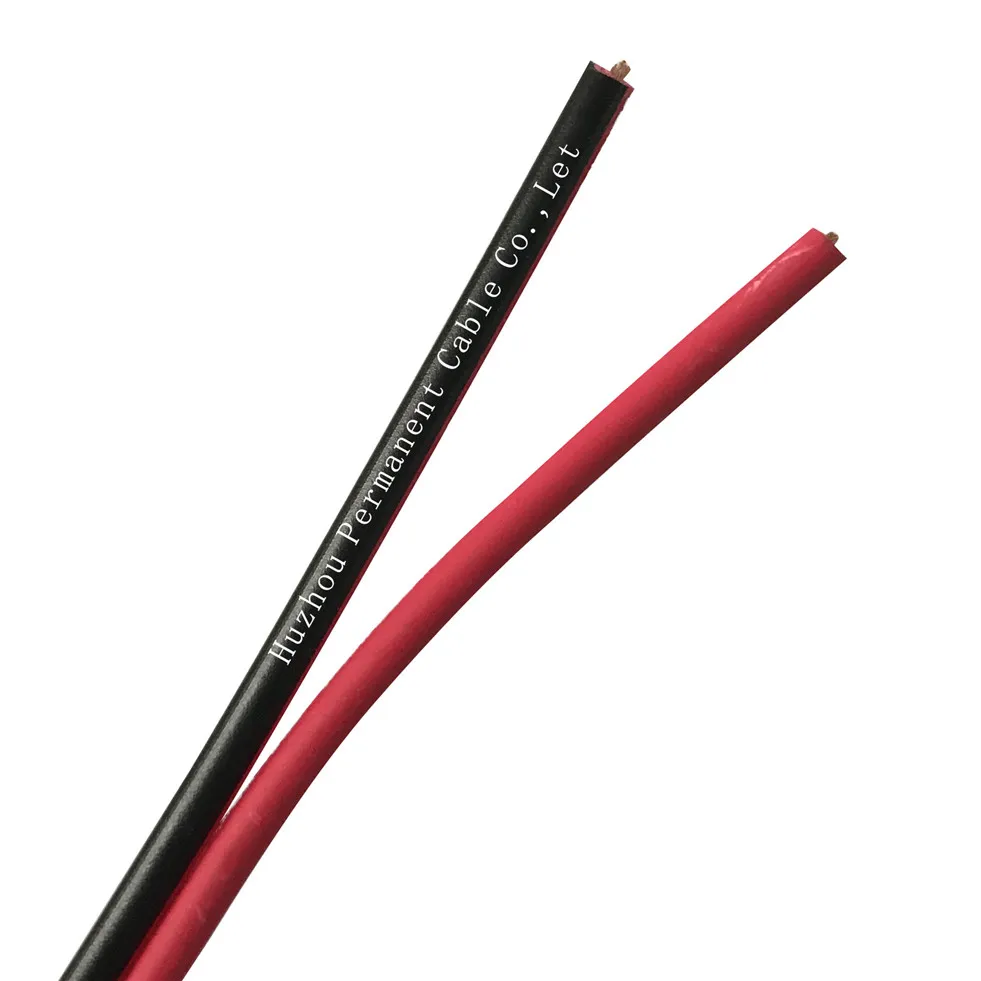

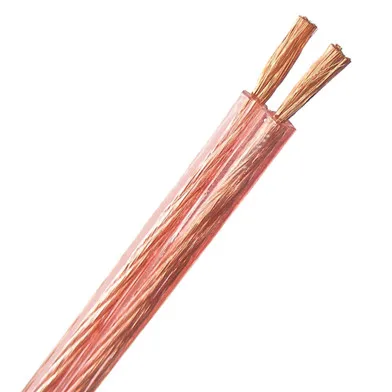

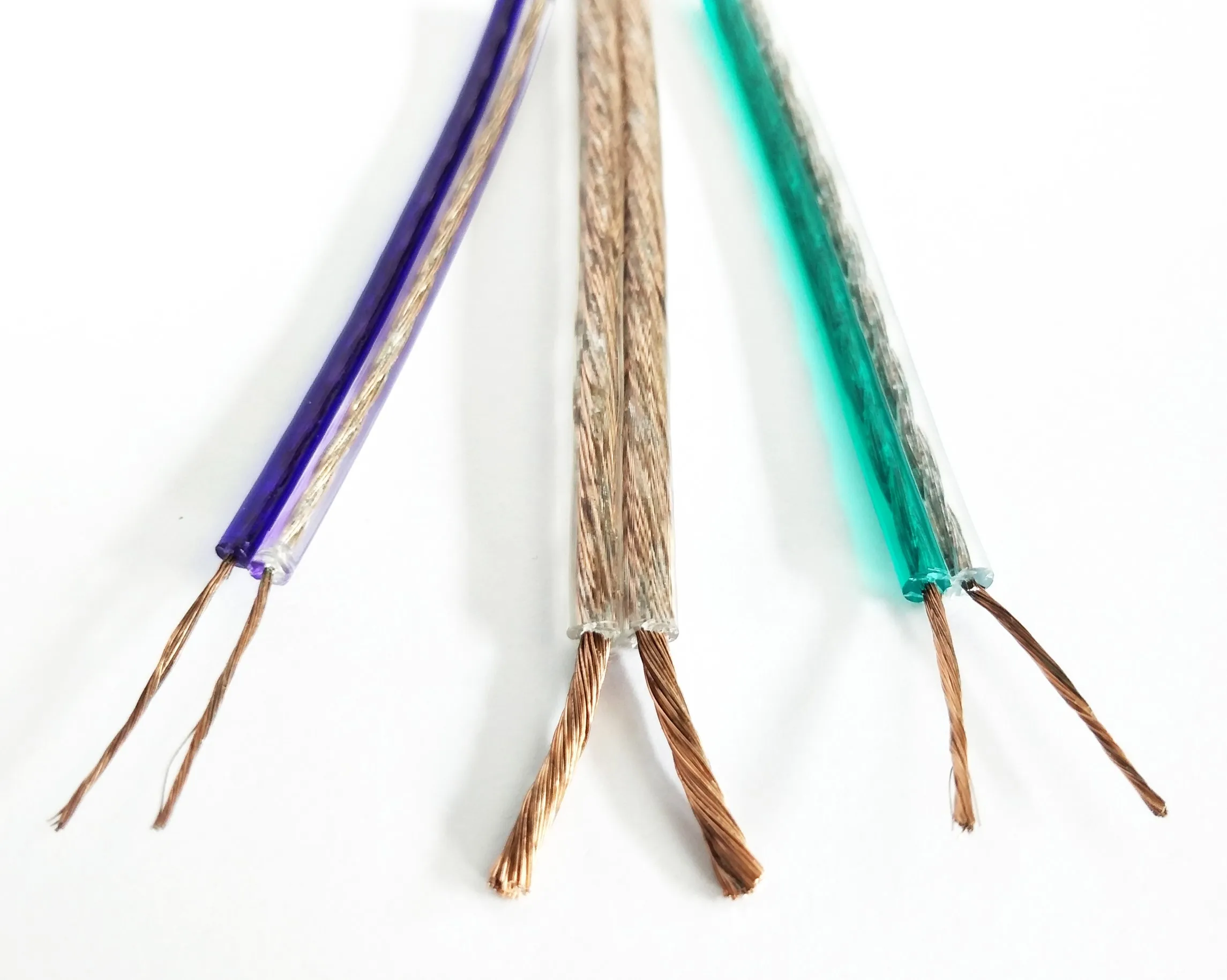

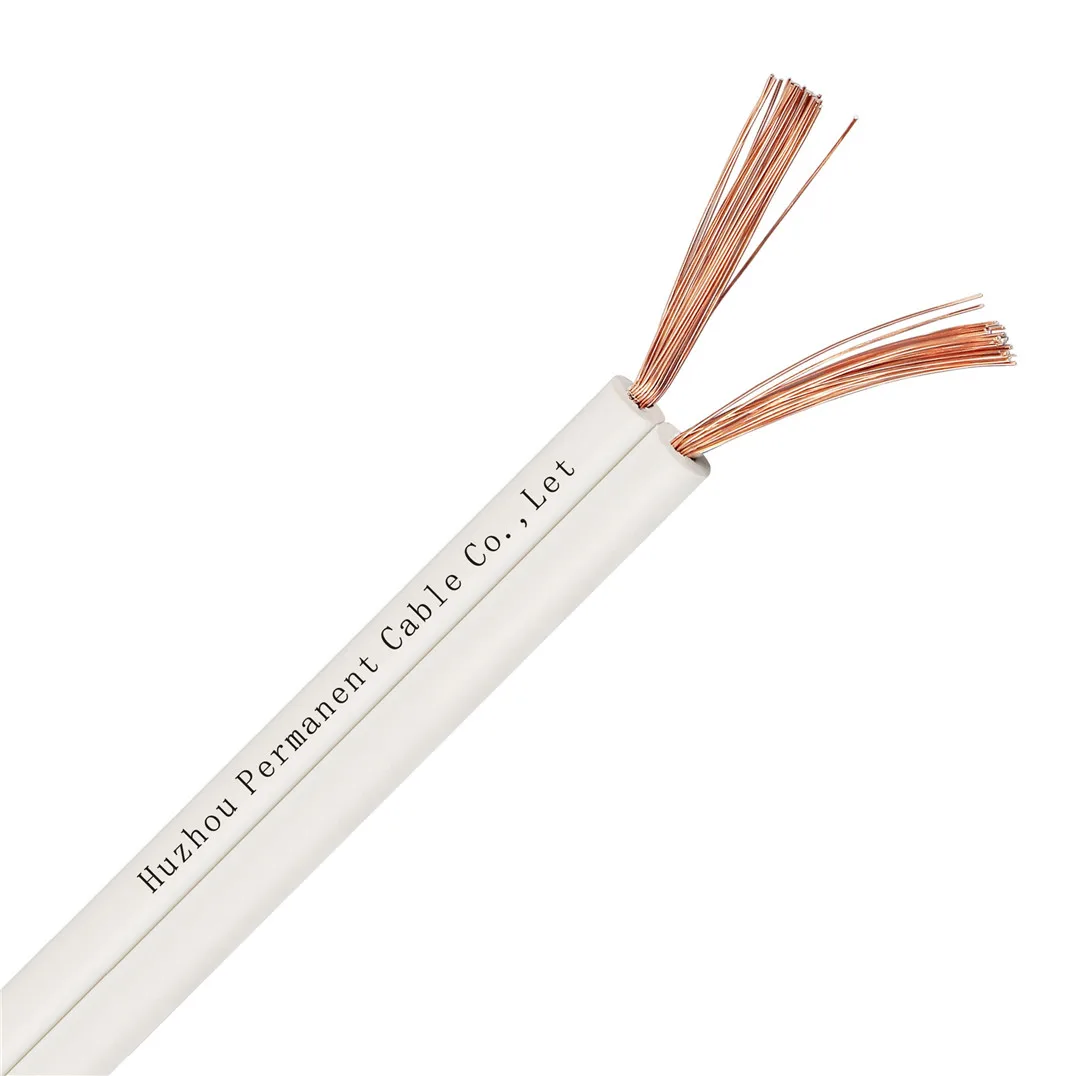

Clear Twin Flat Wire
Item: CLEAR TWIN FLAT WIRE
Standard: BS6500/ IEC60227
Voltage: 300/ 500 V
Conductor: Cu/ TCCA/ CCA
Material：PVC
Section: 2*0.5 mm²—2*2.5 mm² Application: Used in connecting for audio, small electric tools & instruments
Nominal corss section mm2 | NO./Diameter of conductor mm | Insulation thickness mm | Max.outer Diameter mm | Ref.weight kg/km | ||||
2x0.5 | 2*16/0.2 | 0.6 | 2.6x5.2 | 16 | ||||
2x0.75 | 2*24/0.2 | 0.6 | 2.8x5.6 | 22 | ||||
2x1 | 2*32/0.2 | 0.6 | 3.0x6.0 | 26 | ||||
2x1.5 | 2*30/0.25 | 0.7 | 3.5x7.0 | 38 | ||||
2x2.5 | 2*50/0.25 | 0.8 | 4.2x8.4 | 60 | ||||
2x4 | 2*56/0.30 | 0.8 | 4.8x9.6 | 92 | ||||
2x6 | 2*84/0.30 | 0.8 | 6.3x12.6 | 134 | ||||
2x10 | 2*80/0.4 | 1 | 7.6x15.2 | 242 | ||||
24AWG | 2*18/0.12 | 0.6 | 1.8x3.6 | 10.5 | ||||
22AWG | 2*18/0.15 | 0.6 | 2.0x4.0 | 13.8 | ||||
20AWG | 2*29/0.15 | 0.6 | 2.2x4.4 | 18.7 | ||||
18AWG | 2*46/0.15 | 0.7 | 2.5x5.0 | 26.3 | ||||
16AWG | 2*74/0.15 | 0.8 | 3.0x6.0 | 40 | ||||
14AWG | 2*118/0.15 | 0.9 | 3.5x7.0 | 59 | ||||
12AWG | 2*187/0.15 | 1 | 4.5x9.0 | 95.3 | ||||
10AWG | 2*297/0.15 | 1 | 5.5x11.0 | 147.1 | ||||
Product Pictures
Recommend Products
Company Profile
Huzhou Permanent Cable Co., LTd
1. Huzhou Permanent Cable Co., Ltd was established in 1995.
2. The factory locates in a famous economic zone which is named Zhejiang province. It is nearby with the
Shanghai and Ningbo Port.
3. Factory covers an area of more than 80000m². And it has more than 30 advanced production lines and plenty
of experienced cable technicians.
4. Factory's annual value has reached almost 25,000,000USD.
5. Certification: ISO9001, CE, TUV, CB, SGS, CCC, ROHS, REACH Standard: BS6004, IEC60227, UL, BS,
EIA/TIA, AS/NZS...
6. Main Export Country: Africa, the Middle East, South America, Europe
7. Main Products: Solid or Stranded Building Electric wire, Solar Cables, Power Cables, Muiti-core flexible
cables, Aluminum Cables, Speaker Wire, and so on
2. The factory locates in a famous economic zone which is named Zhejiang province. It is nearby with the
Shanghai and Ningbo Port.
3. Factory covers an area of more than 80000m². And it has more than 30 advanced production lines and plenty
of experienced cable technicians.
4. Factory's annual value has reached almost 25,000,000USD.
5. Certification: ISO9001, CE, TUV, CB, SGS, CCC, ROHS, REACH Standard: BS6004, IEC60227, UL, BS,
EIA/TIA, AS/NZS...
6. Main Export Country: Africa, the Middle East, South America, Europe
7. Main Products: Solid or Stranded Building Electric wire, Solar Cables, Power Cables, Muiti-core flexible
cables, Aluminum Cables, Speaker Wire, and so on
Certifications

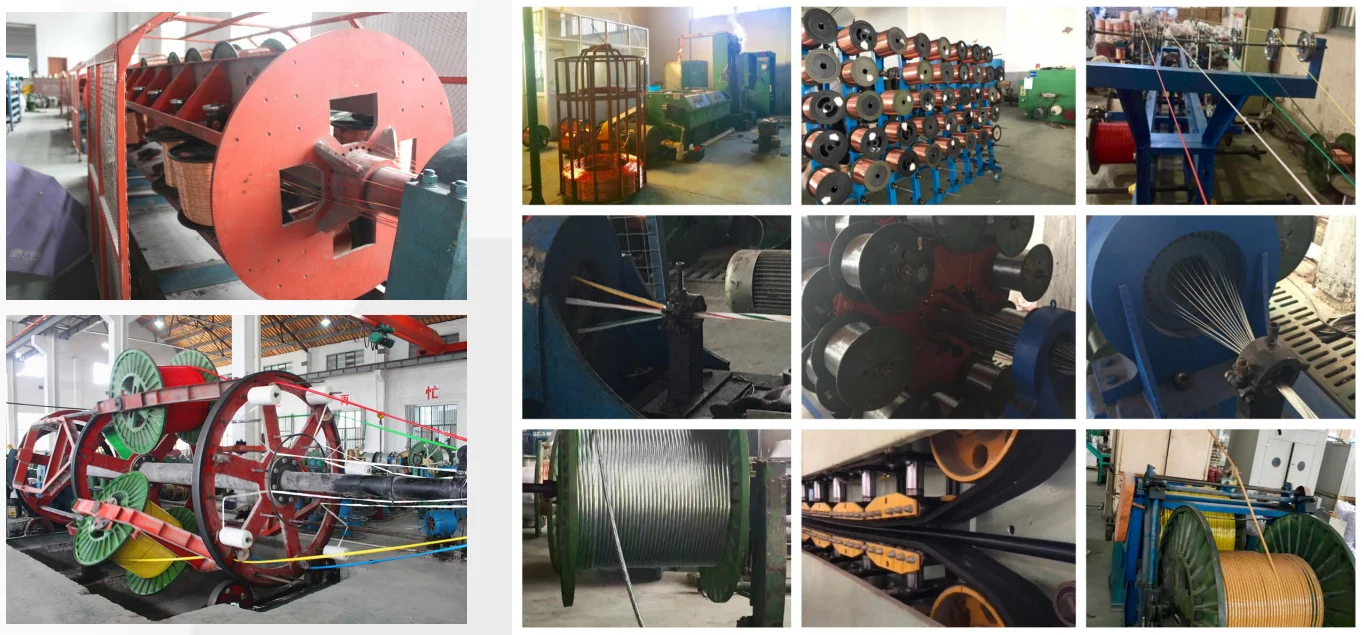

Test Machine & Workshop
Produce Process

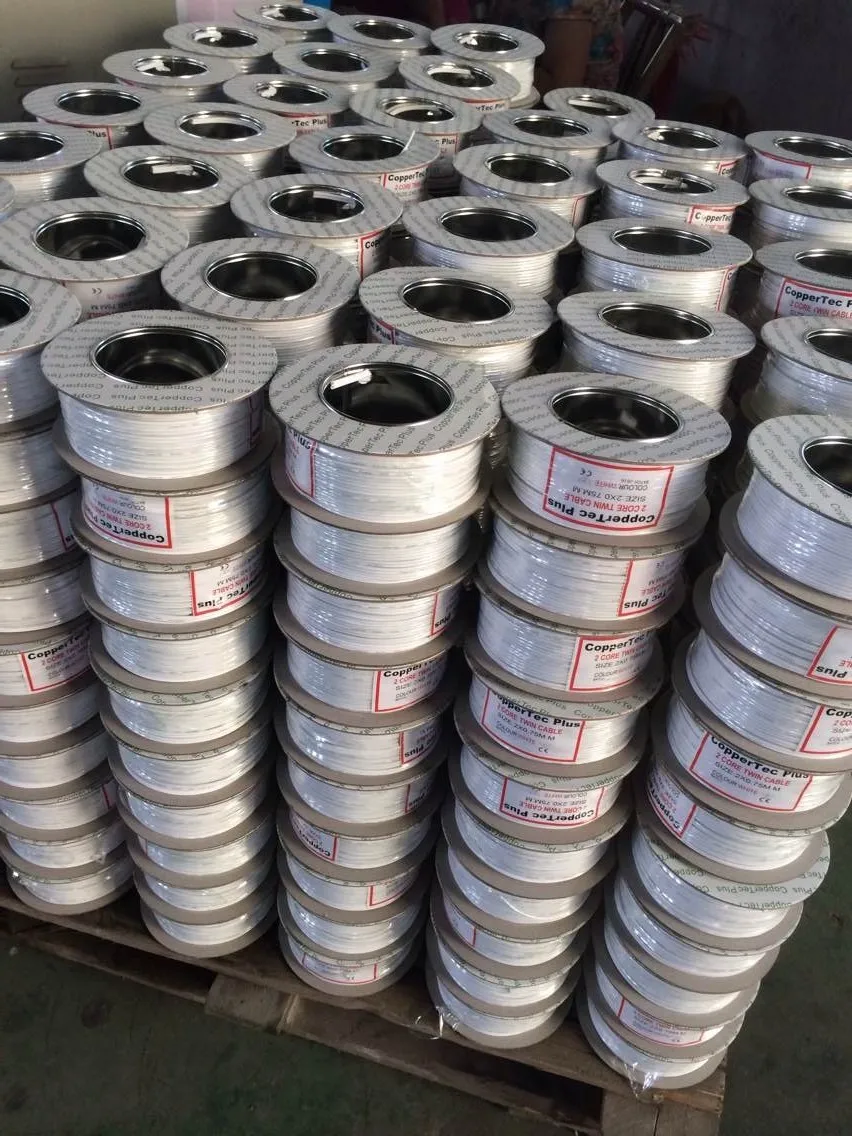

Warehouse
&
Shipping
FAQ
(1).When can I get the price?
Quotation will send you in6 hours after receive your inquiry. Please call us or send our email directly if it's urgent for you.
(2).How can I get a sample to check your quality?
Free samples will send to you when we confirm the price.
(3).What about the lead time for mass production?
Generally 35days for the first order, and 25 days for the reorder.
(4).Does your company accept OEM production?
Yes, could printing your brand name.
(5).Is it convient to visit your factory?
2 hours from Shanghai airport or Hangzhou airport by car. We will pick up to you.
