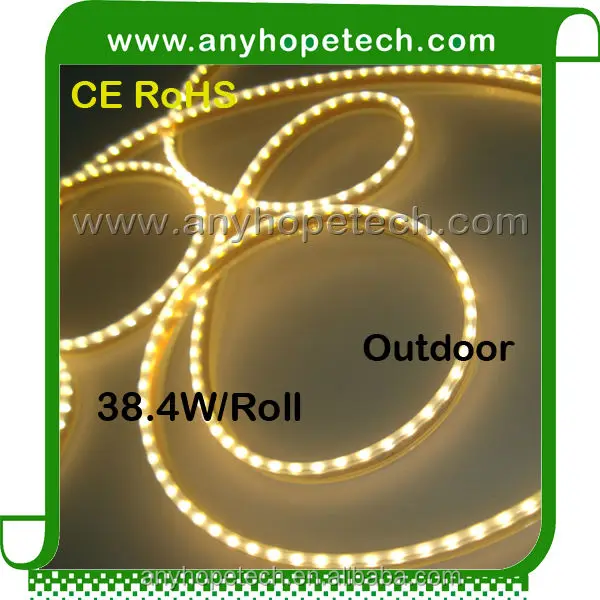

12V 3000K SMD335 96 led per meter Waterproof Side Emitting LED Light Strips
- Category: >>>
- Supplier: Shenzhen Anyhope Technology Limited
Share on (659017511):
Product Overview
Description
Product Description

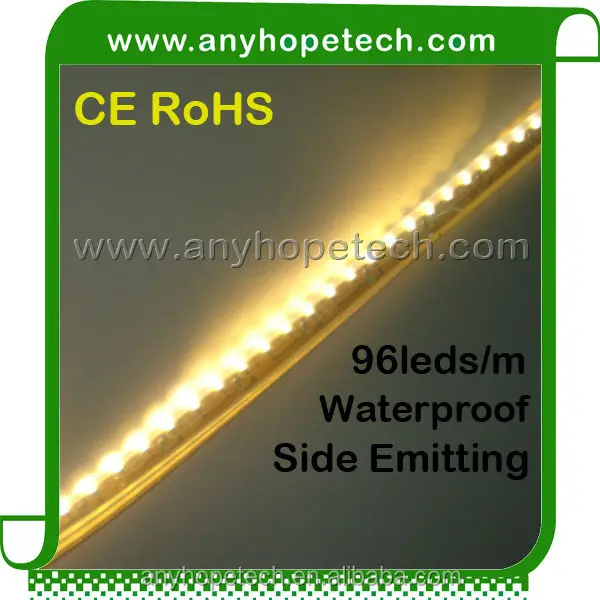

12V 3000K SMD335 96 led per meter Waterproof Side Emitting LED Light Strips
Model: AH-NW335WW-12-96
- Applicable for automobile and bicycle decoration, border or contour lighting
- Widely used for home decoration use, hotels, clubs, shopping malls
- Architectural decorative lighting, boutique atmosphere lighting

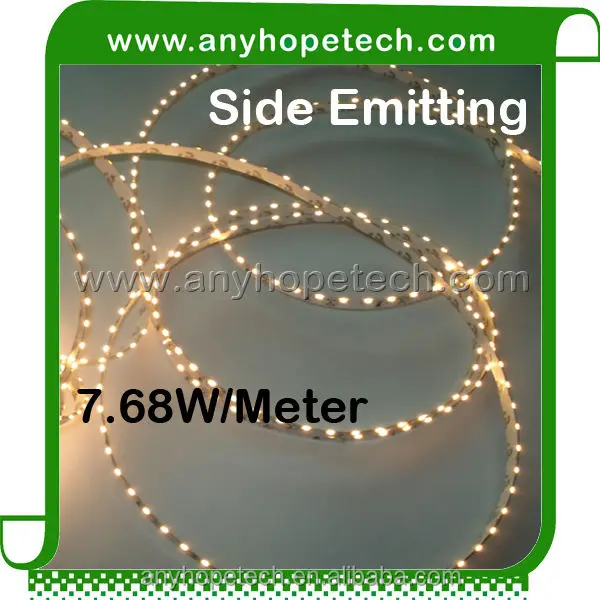

Dimmable Flexible LED Light Stripe - 335SMD 96LEDs Side-Emitting

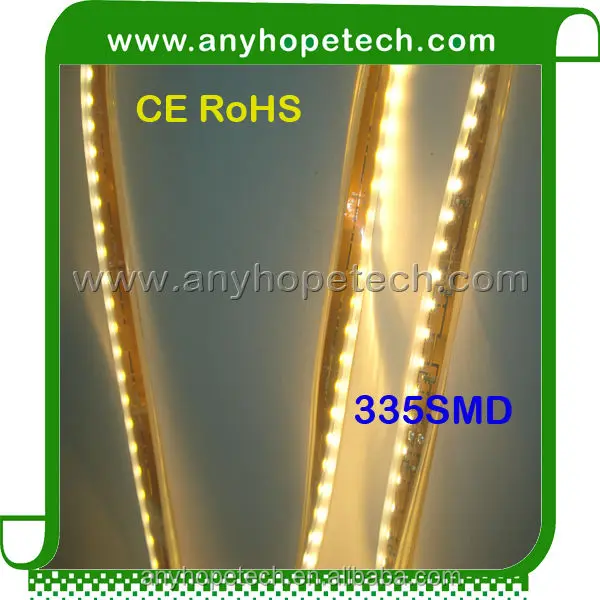

LED Type: 335SMD, Taiwan Chip(Epistar)

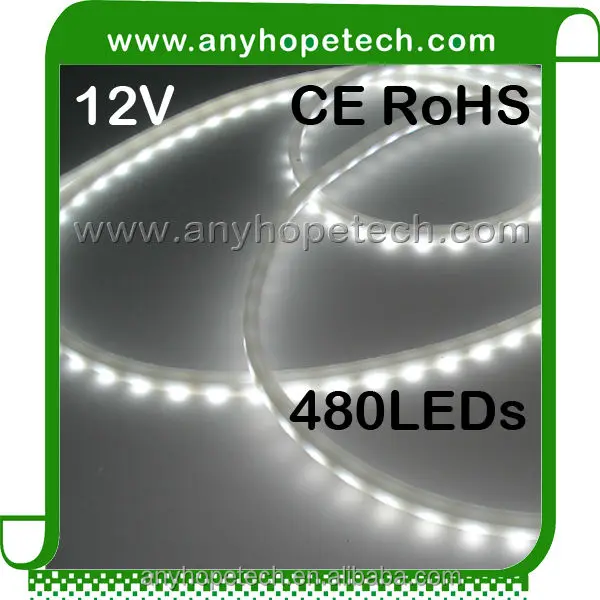

LED QTY: 96LEDs/Meter, 5Meters/Roll, 480LEDs/Roll, 480LEDs/16.40Ft
Max Lumens per LED: 2lm(Red),2lm(Yellow),4lm(Green),4.5lm(Blue),4.5lm(White),4lm(Warm White)
Color Temperature: 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K+

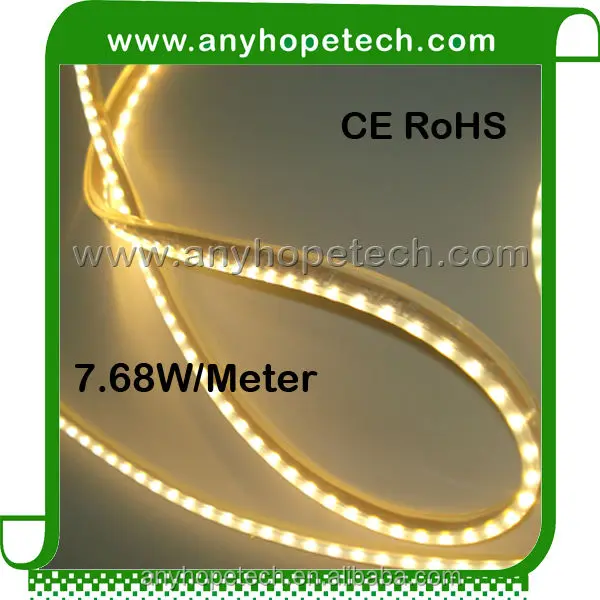

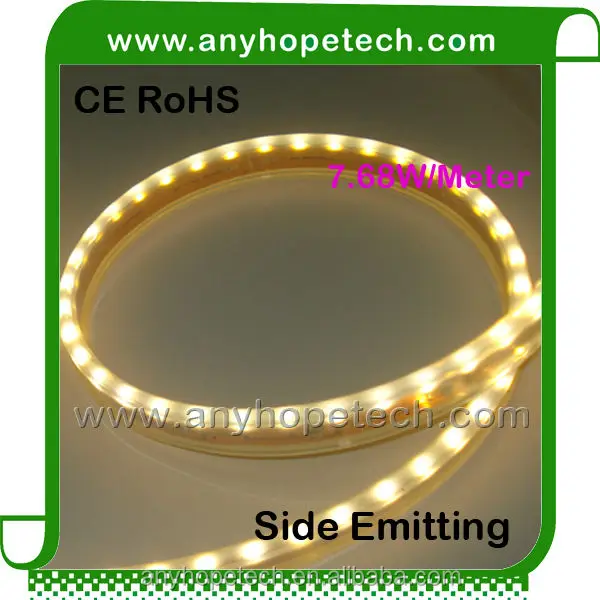

7.68W/Meter, 0.64A/M(12VDC), 38.4W/Roll
DC12V (Every 3 LEDs cut at 31.3mm / 1.23")
Pitch: 10.4mm / 0.41"
PCB Color: Brown, White, Black (Optional)
Model Number | Color | Typ.Flux | LED QTY | Voltage | Power |
AH-335R-12-96 | Red | 192 | 96 | 12V | 7.68 |
AH-335Y-12-96 | Yellow | 192 | |||
AH-335B-12-96 | Blue | 240 | |||
AH-335G-12-96 | Green | 384 | |||
AH-335W-12-96 | White | 384~576 | |||
AH-335WW-12-96 | Warm White | 336~528 |
Note: Amber, Orange, Pink, Purple color are optional.
Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.
LED Flex Strip Type | IP Protection | Size | Reference |
Non waterproof | IP20 | 8 x 1.2mm | AH-N335W-12-96 |

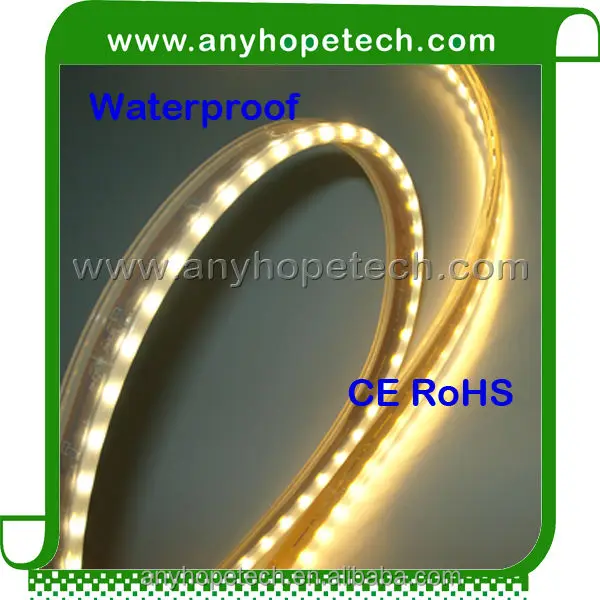

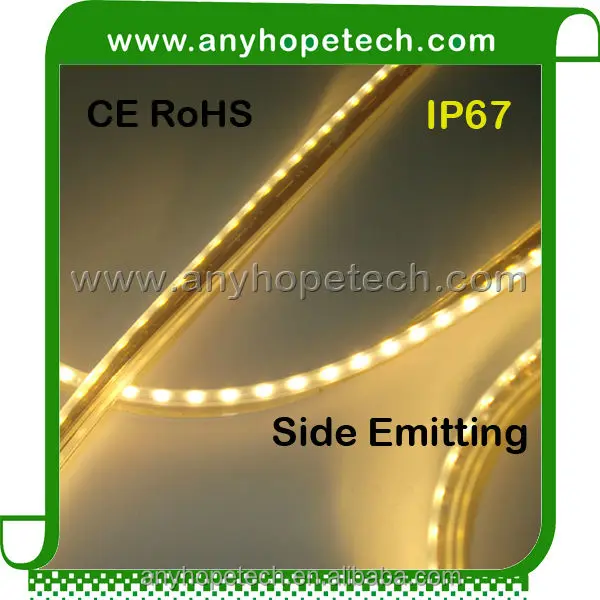

Silicone tube series | IP67 | 10 x 6mm | AH-NW335W-12-96 |
Cable length: 35cm / 13.78"
Free end cap: 1 Piece / Meter (Opitional)
Free mounting clip: 2 Pieces / Meter (Opitional)
View angle: 120 degree
CRI: >80
CRI: >90 are available
Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs
Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)
Operating temperature: -20°C~50°C / (-4ºF ~ 122ºF)
Warranty: 3 years
Certification: CE RoHS UL

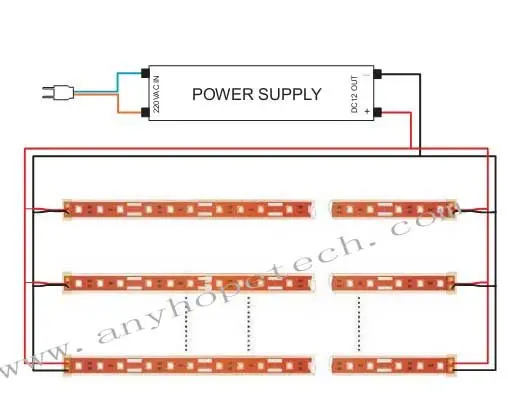

The flexible single color strip connect to power supply:
Operating driver: LED Transformer with DC12V output
Compatible with Dimmer
Note:
- Please notice that,the LED strips should not be used in sealed or hot place,to make sure the heat emitting is good for the LEDs.
- Each flexible strip with a total length of the series can not be more than 5 meters.
- Flexible strip with all of the total power can not exceed 90% of the power switching power supply
Company Information
Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
Our Services
Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.
Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.
Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)
Step (4): Production Process
Step (5): Package and Shipping
Step (6): Air Way Bill Number
FAQ
Why you should use LED lighting?
Some basic advantages of LEDs:
1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.
You and our environment will be able to benefit in many ways with this type of lighting.
Packaging & Shipping
5Meters/Roll, 1 Roll into anti-static bag
