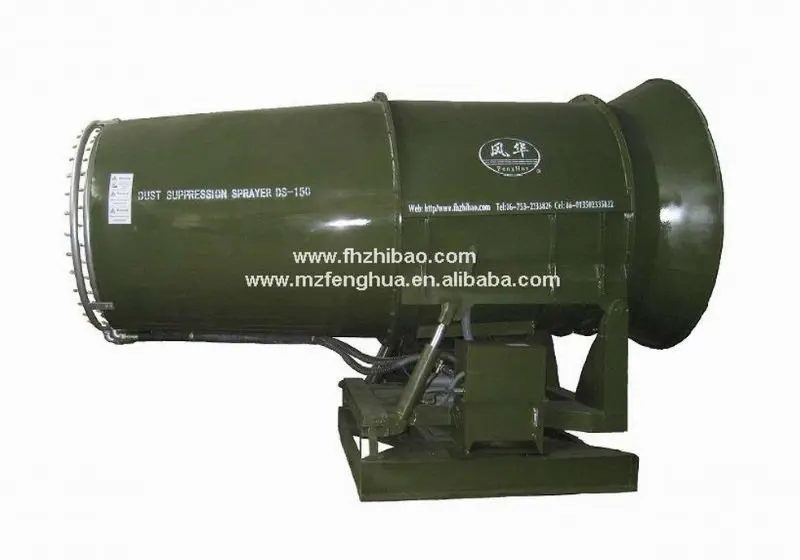

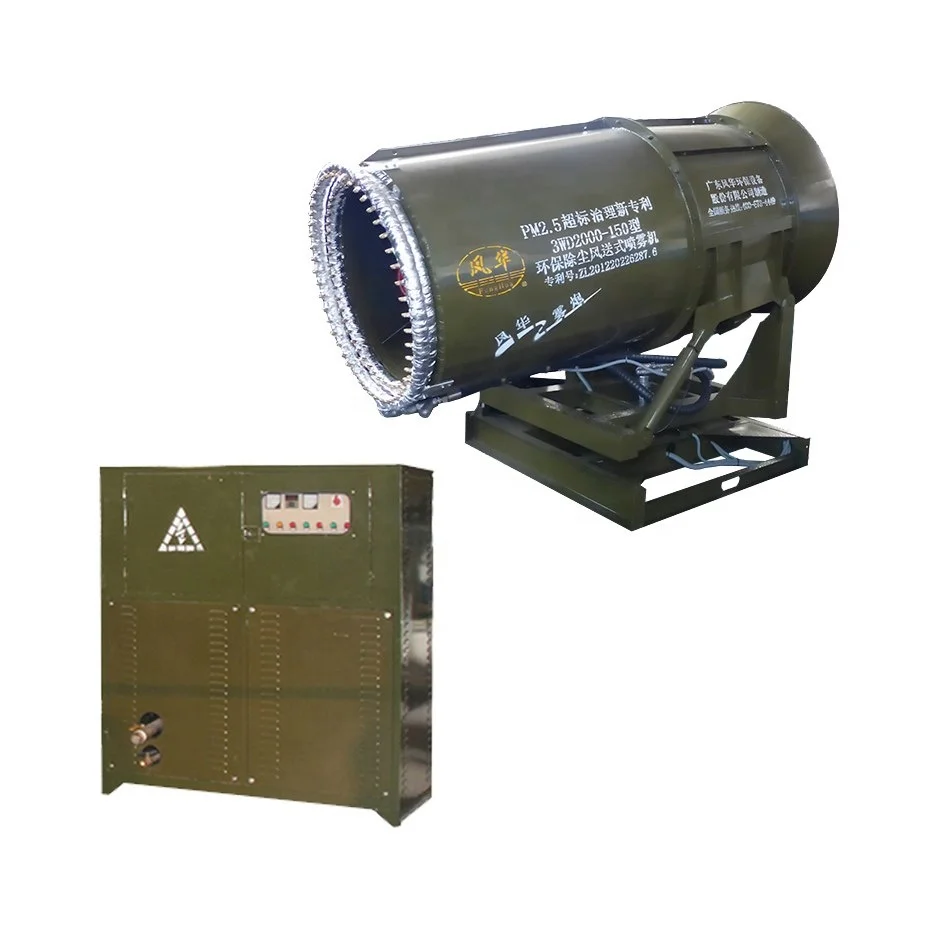

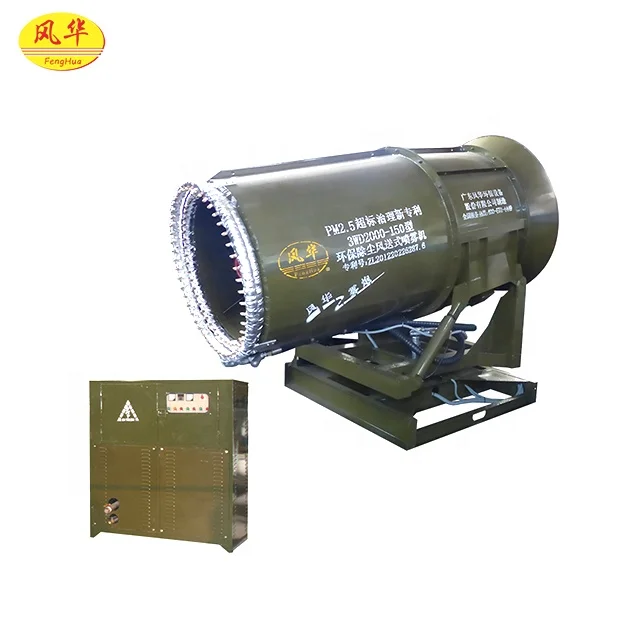

DS-150 dust destroyer Dust abatement Sprayer dust suppression equipment dust boss dust control machine
Main features of our power sprayer
1.Strong power, long range, wide coverage, high efficiency.
2.Ejected fine mist particles when spray the dust in the yard. As touching the float dust, it can form a wet mist quickly and drop down.
3.Flexible matched power, supporting both three-phase 380-volt and electrical generator power.

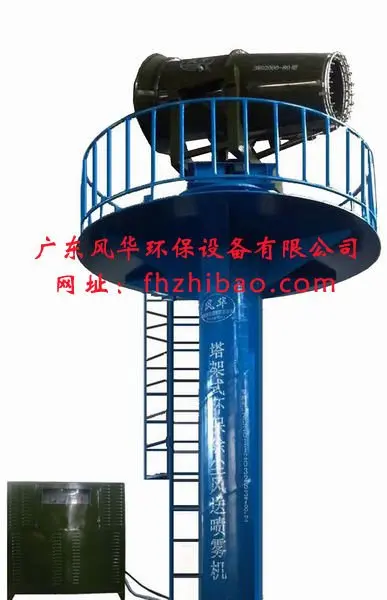

4.Flexible installation, not only can be permanently installed on elevated platforms, but also can be equipped with generator power installed in the transport vehicle.
5.Flexible operation, safety and reliability, combine remote control and manual control operations, can adjust the horizontal rotary spray angle freely.
6.Less water consumption compared to other dust suppression spraying equipment such as spray gun and watering cart, and water mist covering dust is much larger than the other dust suppression spraying equipment.
Application

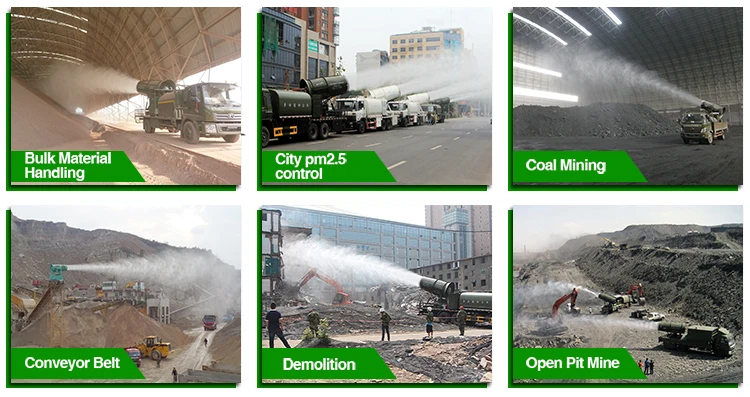

The sprayer can used for agriculture, orchard, garden areas and also can be used on environmental protection industry, mining, coal yard, docks, steelworks and other dust relatively large construction site.
Technical Parameters
Throw distance: 150m
Angle of rotation: 320 degrees
Elevation angle range: -10 to 45 degrees
Electric motors: 112kW, 380A, 3 phase
Water consumption: 150 to 200 l/min
Droplet size: 50 - 300µm
Coverage area:42390m2
Net weight: 1,350kg
Warranty: 1 years
Description
Operation
1. Normal water that through a High pressure pump and nozzles (from 5-60 pcs) according to the design) that turn into continuously equalized fog.
2. Cannon throwing a continuously equalized fog flow to a long distance.
Throw
From 35 to 200 meters from the outlet with a maximum elevation of 85° if required above the horizontal.
Traverse
Approximately 270°
Movement
Elevation, arc, traverse, pump pressure on-site and/or by remote control.
Drop size
From 0 to 300 microns curve shifted towards 150 microns.
Power
From a total of 7 kW to 112 kW depending on the throw required and, thus, the model.
Current
380V/50 Hz and others upon request.
Water Consumption
From 10 to 250 liters/min of clean water.
Safety Devices
Those required by the local standard and laws.
Certificates

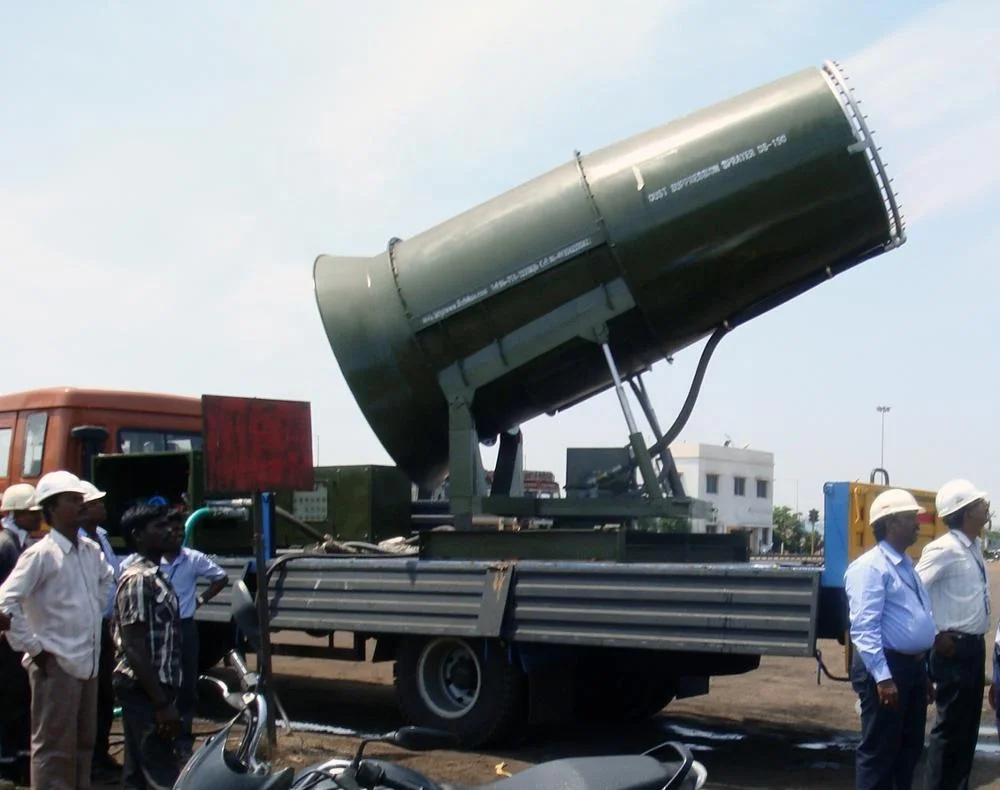

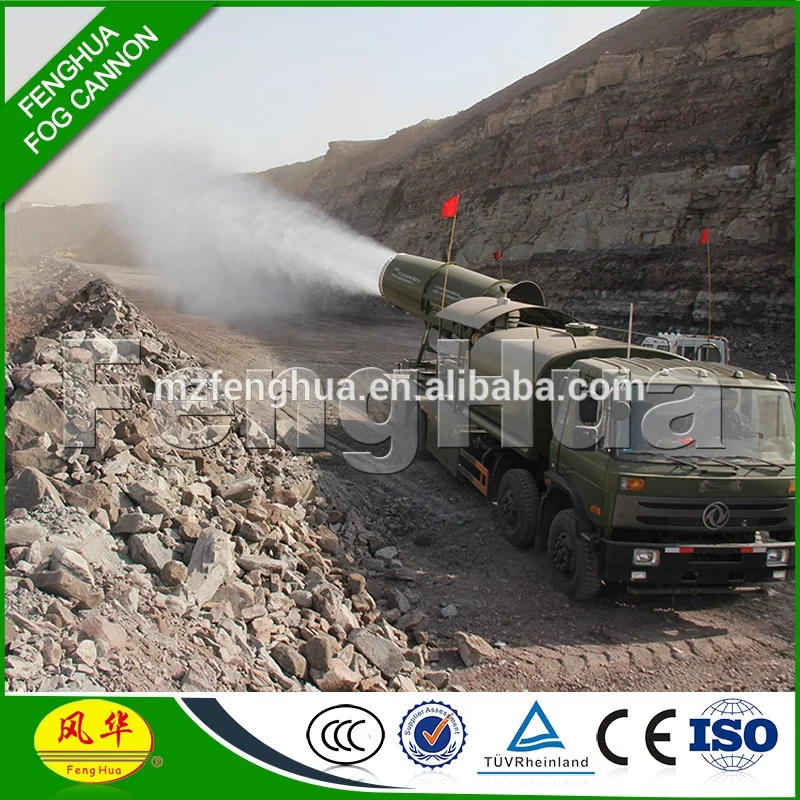

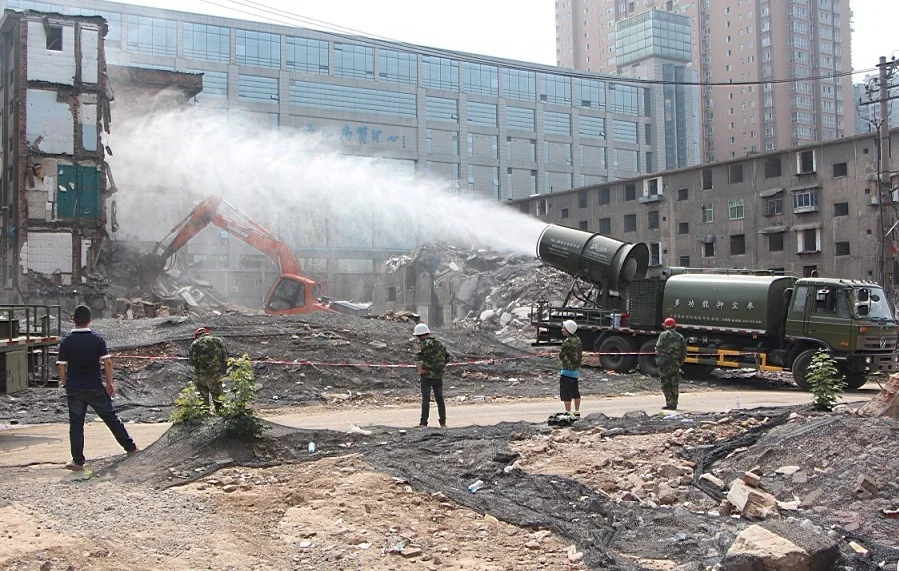

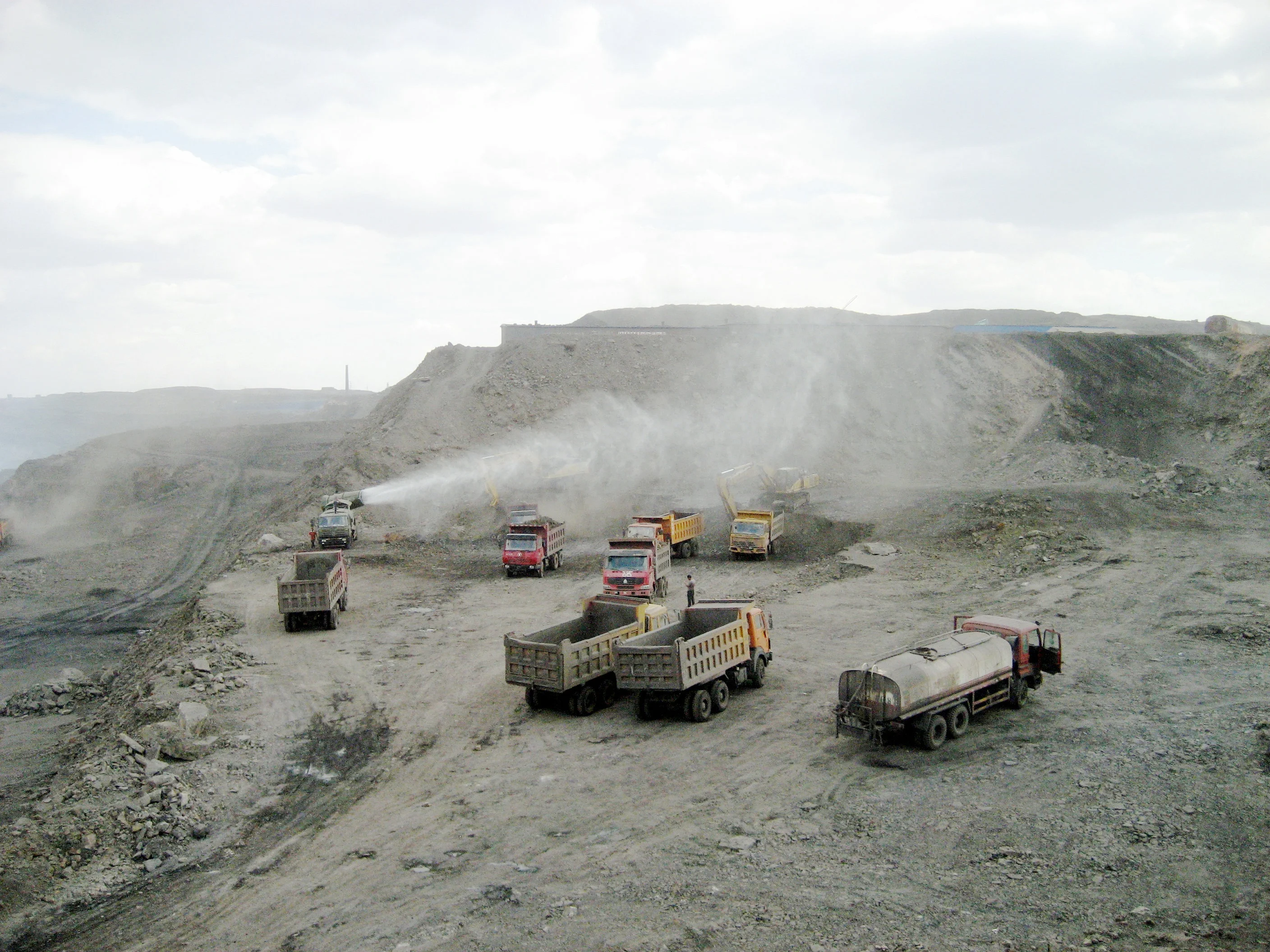

Worksite View Photos:
Company Information
Guangdong Fenghua Environment Protection Machinery CO.,Ltd was established in 1996, as well as the only fog cannon manufacturer who goes public in China. Dedicating to R&D,manufacturing and sales of fog cannon, with over 60 national patents registered,TUV,CE and CCC Certified,we will never stop pursuing innovation. In addition to our standard Fenghua models with patent,we can tailor any of our solutions to your specific needs.

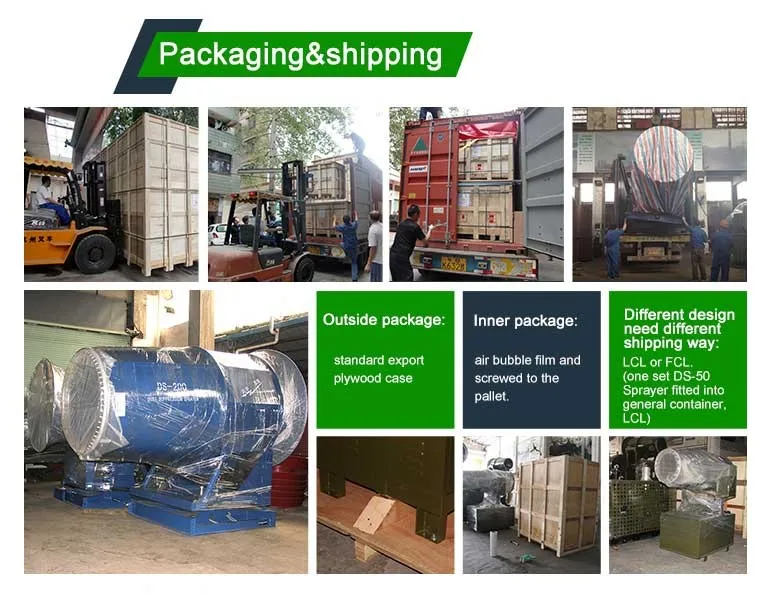

Packaging
Outside package:standard export plywood case.
Inner package:air bubble & stretch film and screwed to the pallet.
Different design need different shipping way: LCL OR FCL.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory since 1996.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Meizhou City, Guangdong Province, China, near to the Guangzhou
City, Shenzhen City and Jieyang City.
You can fly to Meixian airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products? A: The material is Steel A3. We can also choose material as customers’ requirements.
4. Q: What is the warranty time of your products? A: The warranty time is 12months from the date of the commissioning, or 18months from the
factory delivery, the first shall prevail. All quickwear spare parts will be provided for free within
the warranty period. After the warranty, we also can ensure that you can buy any necessary
spare parts with favorable price within FIVE years.
5.Q:How does your factory do regarding quality control? A:Quality is priority. We always attach great importance to quality controlling from the very
beginning to the very end. Our factory has gained ISO9001:2008 authentication.
Our service
Pre-sales Service
For any special requests, please go to ask us for the details, we can customize the products for you if your order quantity is considerable! (Such as spare parts, water tank, material, output, pump.)
After-sales Service
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail. 2.Special Operation and maintenance vedio guide for the Customers. 3.Technical person work-site commission service support. We can send engineers to support you to install large sprayer machine. 4.Help you do worker training 5.On-line support every day. 1. Outside package: standard export plywood case 2. Inner package: air bubble film and screwed to the pallet. 3. Different design need different shipping way:LCL or FCL.(one set DS-60 Sprayer fitted into general container, LCL)
Customization
For any special requests, please go to ask us for the details, we can customize the products for
you. If your orderquantity is considerable! (Such as spare parts, water tank, material,output,
pump.)
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.We can send engineers to support you to install large sprayer machine
4.Help you do worker training.
5.On-line support every day.
The placing order process
Please confirm below details before you place the order: 1) Application area,special requests 2) Quantity 3) Payment terms(Port and type of shipping) 4) Kindly provide your detail contacts(name, duty, company name& address, telephone number and post code etc,the more detailed, the better!) 5) The import licenses and other certifications for custom clearance
The payment terms
1) L/C at sight ( high cost, not very advise) 2) T/T 30% deposit in advance, T/T 70% before shipment. 3) We accept TT, L/C etc. according to which one is convenient for you.
Contact information
Why choose us?
1.We are manufacturer with own factories and R&D Dept. We have more than 20 years of experience on exporting dust suppression sprayer system and pest control sprayer. Good technology support will be very helpfull in our cooperation.
2.The material we choose is always the environmentally friendly ones and products always come out with good quality.
3.We also provide many kinds dust suppression system solutions for customer choose.
4.A trial order or sample orders are accepted.
5.We have a stable and professional service team with more than 10 years of experience,export to Europe,North America,Middle east and so on.
6.We support you with good service,payment terms,lead time and logistics control.
7.Warranty: Our company always provide after-sales-service for 12 months,if goods arrival with faulty or damage,we would like to provide spare parts for free.
8. We are seeking global distributors. Please come to us to get more information.
