SA40 Portable wall thickness gauge with distributor price

Product Overview

Description

Digital wall thickness Gauge distributor price SA40

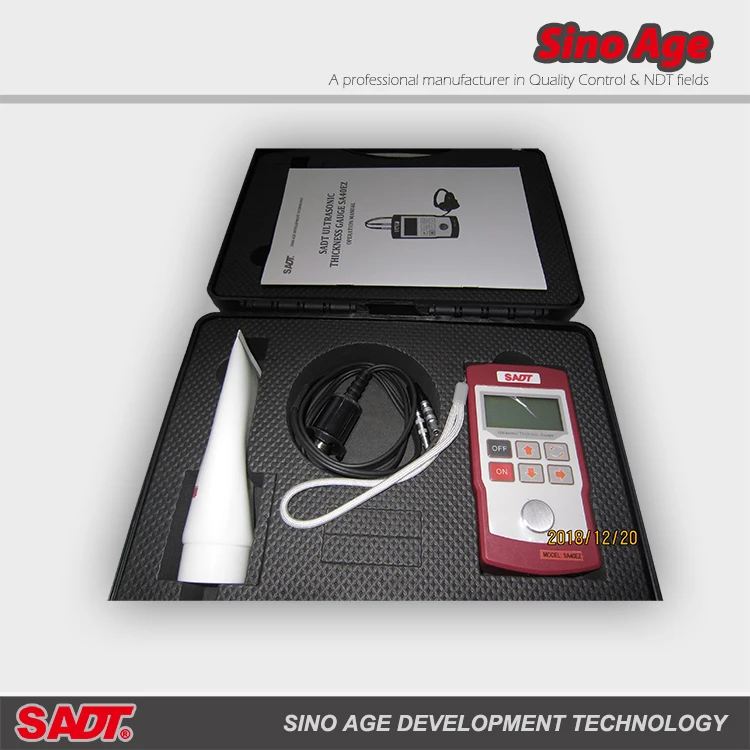

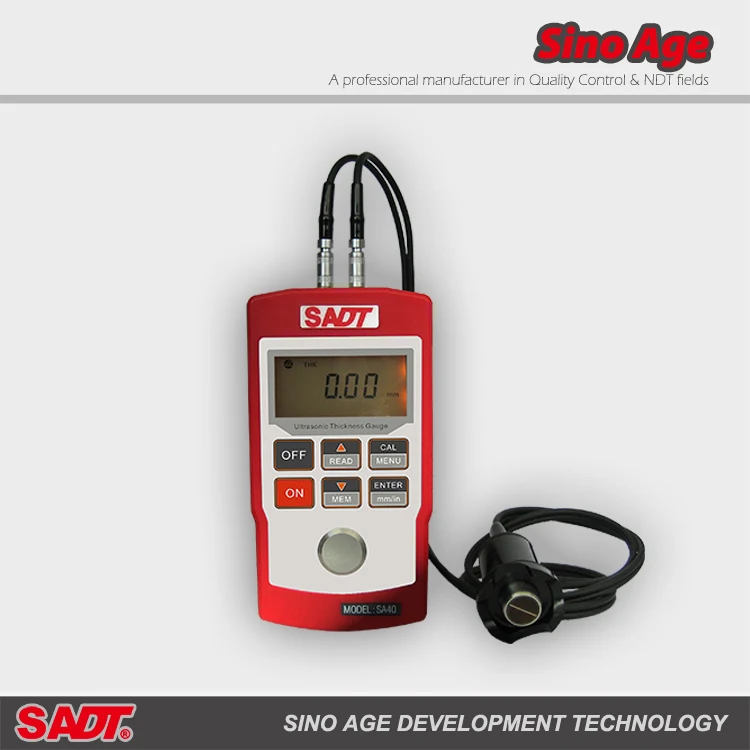

Portable Digital ultrasonic thickness Gauge SA40

high accuracy SA40 Portable Digital ultrasonic thickness Gauge



1.INTRODUCTION:

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



2.Specifications:

• Technique: pulse echo with dual probe

• Display: 4 digits LCD with backlight

• Measuring range: 0.70 to 300.0mm

• Resolution : 0.01mm 0.70-99.99mm, 0.1mm 100.0-300.0mm

• Velocity range: 500-9999m/sec.

• Display circle: 1 sec.

• Coupling indication

• Memory: 400 data can be stored and re-readable

• Units: mm or inch

• Low battery indicator on LCD

• Auto shut-off: after 5 min. of non-use

• Power: 2 ea. 1.5V AA alkaline cells

• Operating temperature: 0-40°C

• Operating humidity: 20-90%RH

• Size: 124x67x30mm

• Weight: 240g
