SM500 monocular portable Metallurgical Microscope wholesales price

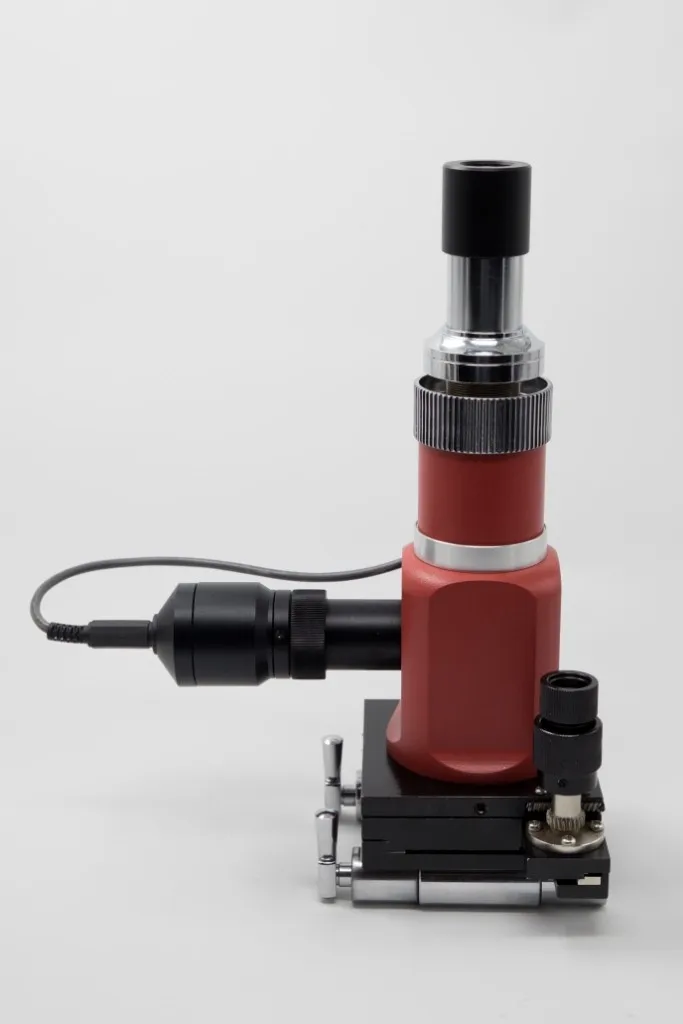

SM 500 is a self-contained portable metallurgical microscope ideally used for inspecting metallography of metals in laboratory or in-situ. With fully handheld design and unique magnetic stand, SM 500 can be attracted directly against the surface of ferrous metal at any angles for non-destructive examination on flatness, curvature as well as other complicated surface. SM 500 also can be used with digital camera or CCD image process system to download metallurgical image on to PC for data transfer, analysis, storage and printout.




Details:












Features:
 Handheld design makes inspecting metallograph easy in-situ.
 Magnetic stand can be attracted against ferrous metals at any angles.
 X,Y slideway move makes inspection friendly
 More convenient for photography
 Non destructively examination
Specimen:
 Microscope main: 100-500x (extendable 1500x)
 Eyepiece (largeview): 10x,12.5x (extendable15x)
 Objective: 10x, 40x (extendable 100x)
 Photo Eyepiece: 15x
 Slideway: X-direction 15mm, Y-direction12mm
 Camera: 35mm
 Digital Camera
 Illuminator (halide): 6V 15W
 Power supply: 230Vac 50/60Hz
 Stand: On-off magnetic stand
 Size: 210x160x 95mm
 Weight: 2.5kg

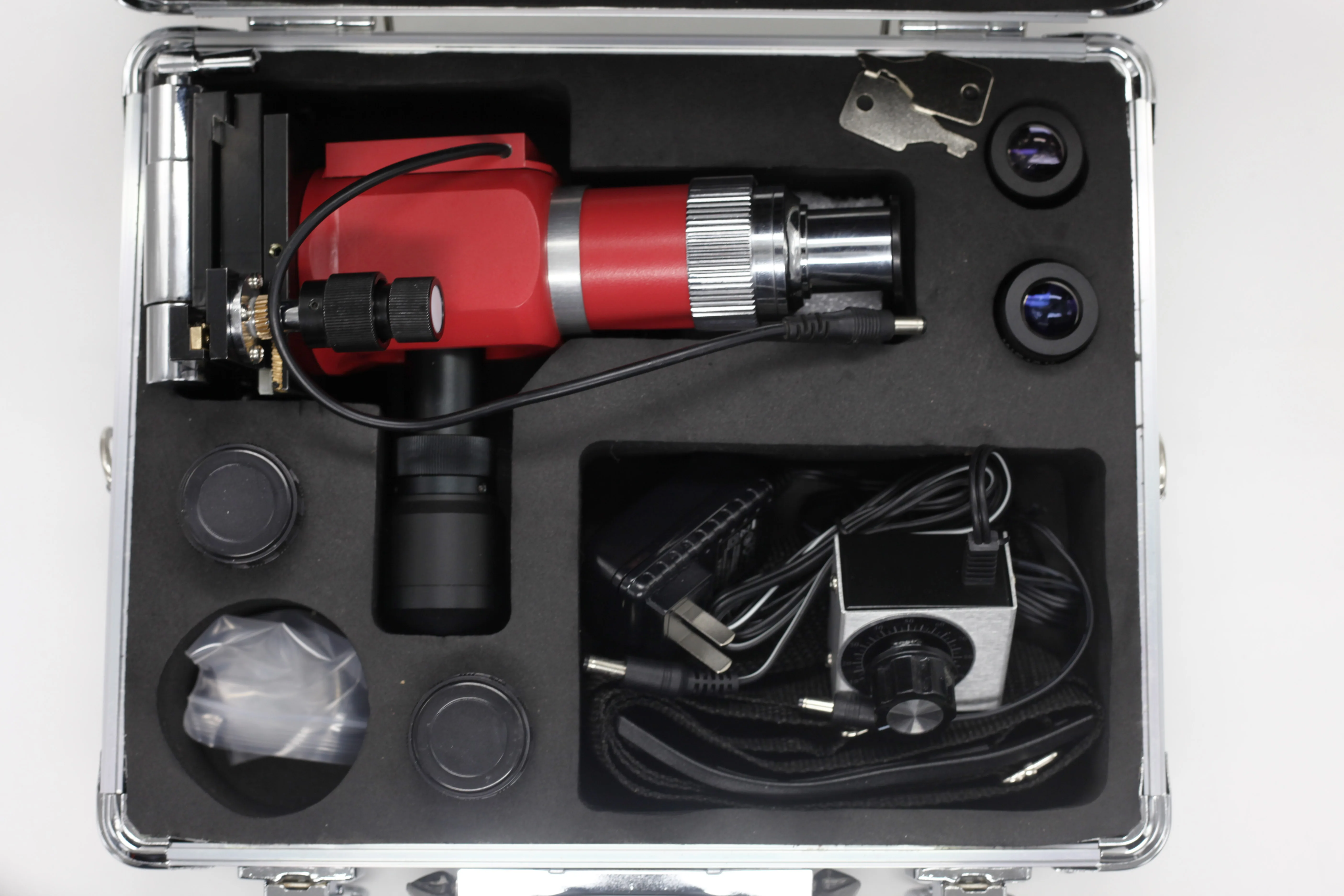

Stand package



Part NO.



Item



10x,12.5x



Main body



10x,40x



Eyepiece



---



Objective



---



Illuminator



---



Power supply



---



Carry case
