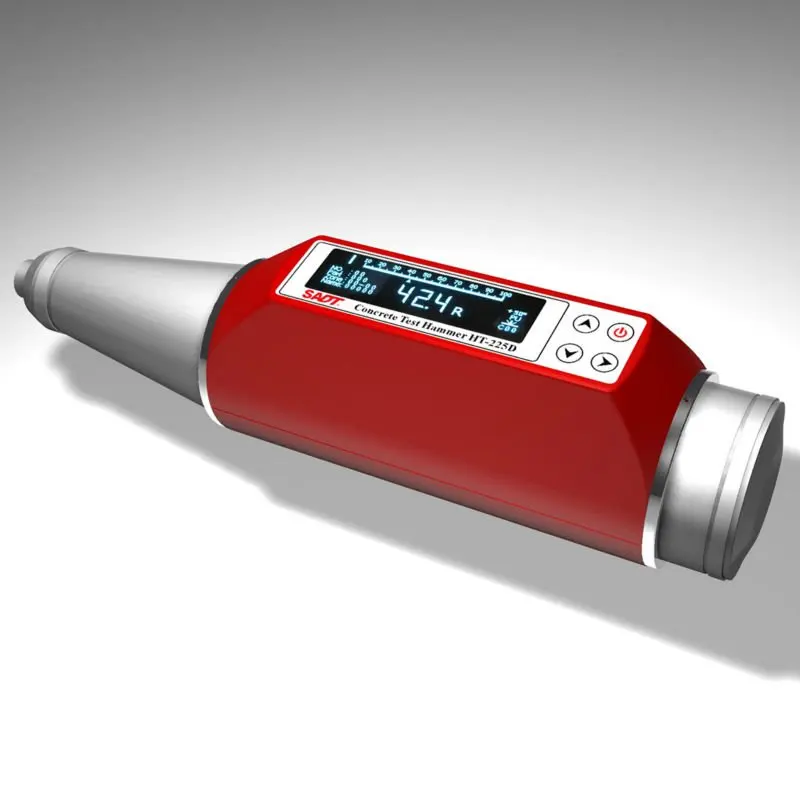

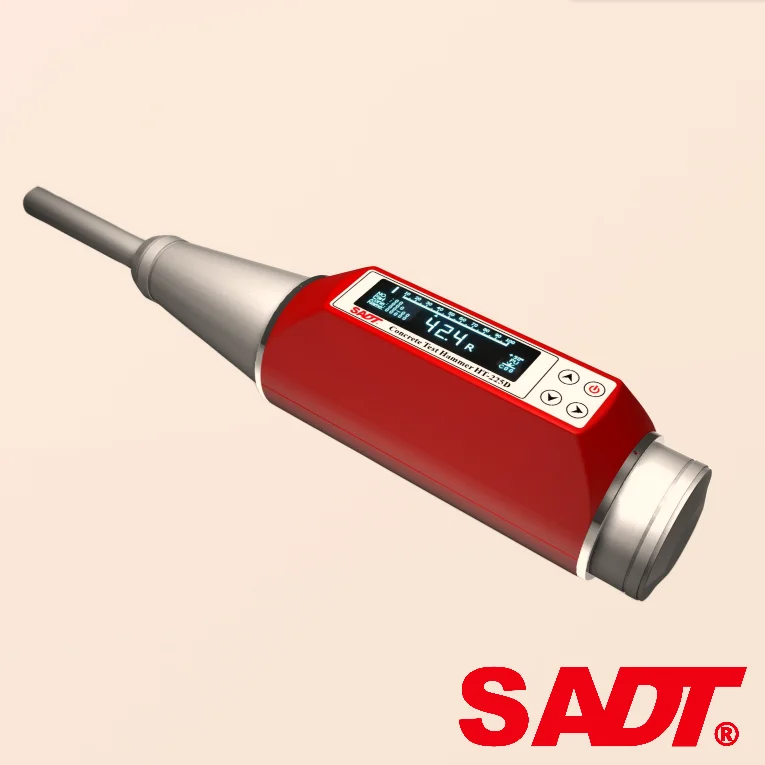

SADT Concrete Hammer test HT225D Digital sclerometer

Product Overview

Description

Concrete Test Hammer HT225D Digital sclerometer/concrete hammer test





Introduction



HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.



Key features



          High contrast OLED display

          All setup can be made on site

          Automatic calculating compressive strength

          Automatic correction of impact direction

          All data will be stored in memory

          All data can be transferred to PC by USB cable or blue tooth(optional)

          Dual display for analogue ruler and digital value



Specifications



Model	HT-225D	HT-75D	HT-20D
Display	OLED digital
Measuring range	10-100N/mm2		1-25N/mm2
Accuracy	±0.1R
Impact energy	0.225kgm (2.207Nm)for testing ordinary building and bridge construction	0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick	0.020kgm (0.196Nm)for testing mortal or clay of products
Communication	USB2.0 or Bluetooth(optional)
Storage	data for 4000 concrete structures
Operating temperature	-40º-60ºC
Power supply	3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm)	280x75x60
Net weight	1.1kg



pecifications

Model	HT-225D
Type	Digital Only
Display	OLED Digital
Measuring Range	10-100N/Mm2
Accuracy	±0.1R
Impact Energy	0.225kgm (2.207Nm) For Testing Ordinary Building And Bridge Construction
Communication	USB2.0
Printing	Micro Printer (Optional)
Storage	1000 Parts, 256 Data For Each Part
Operating Temperature	-40º-60ºC
Power Supply	3.7V Li-Ion Rechargeable Battery Charged Via USB Port
Dimension (Mm)	280x75x60
Net Weight	1.1kg

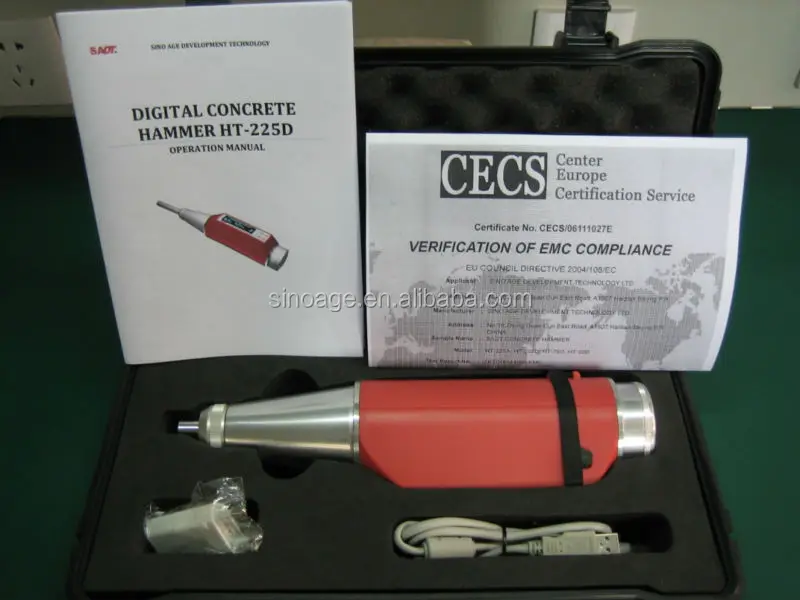

Standard package



HT-225D main unit 1
Grinding wheel 1
USB cable 1
USB charger 1
Software CD 1
Operation manual 1
Carrying case 1
