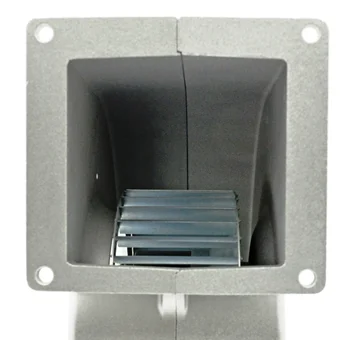

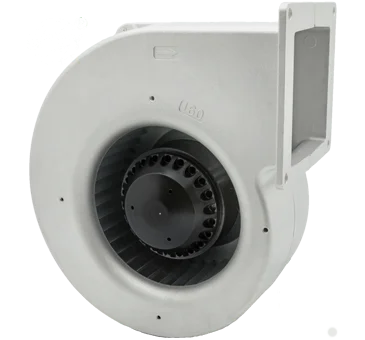

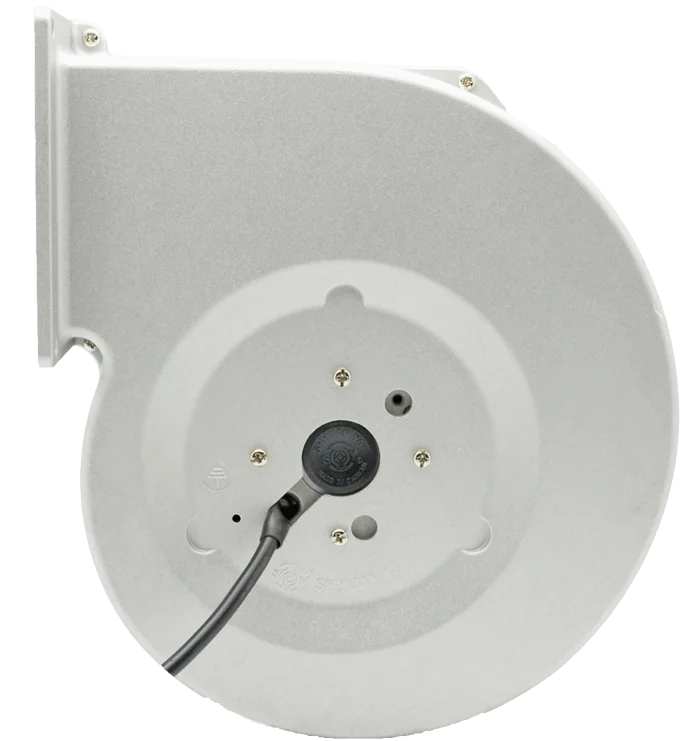

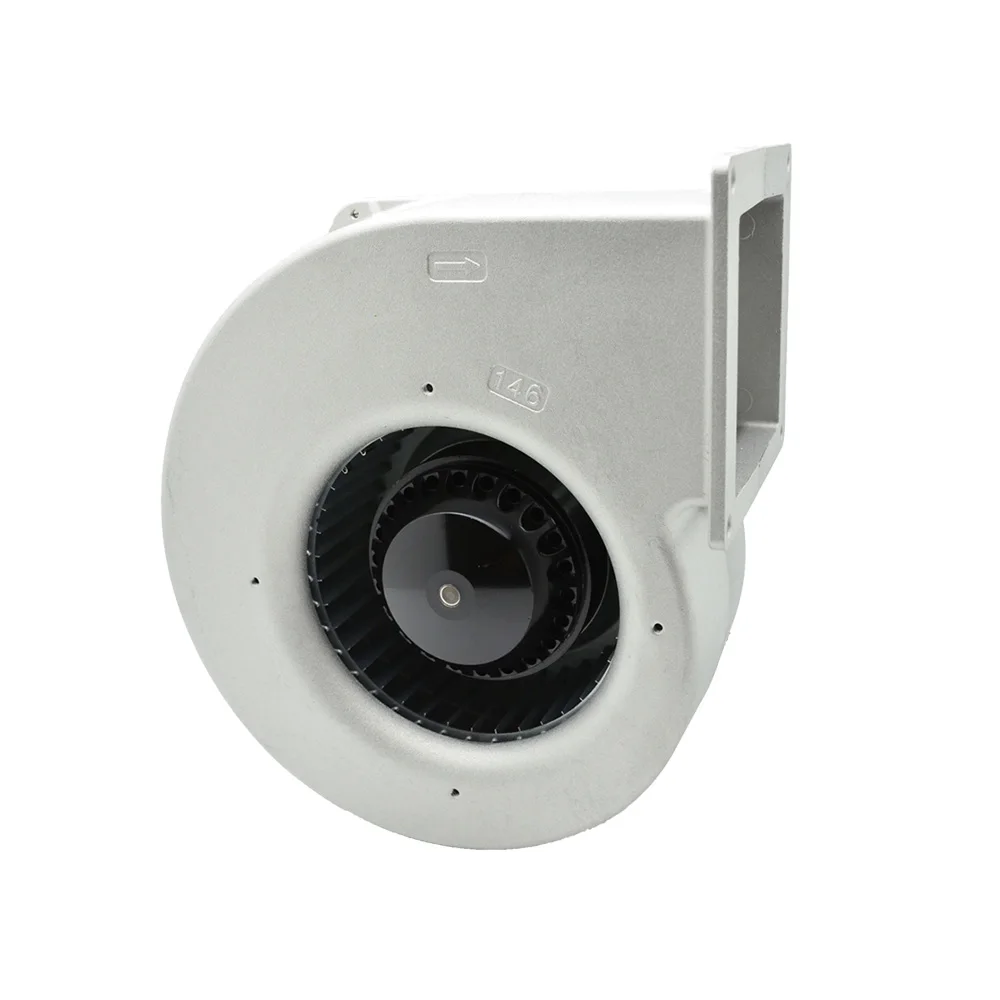

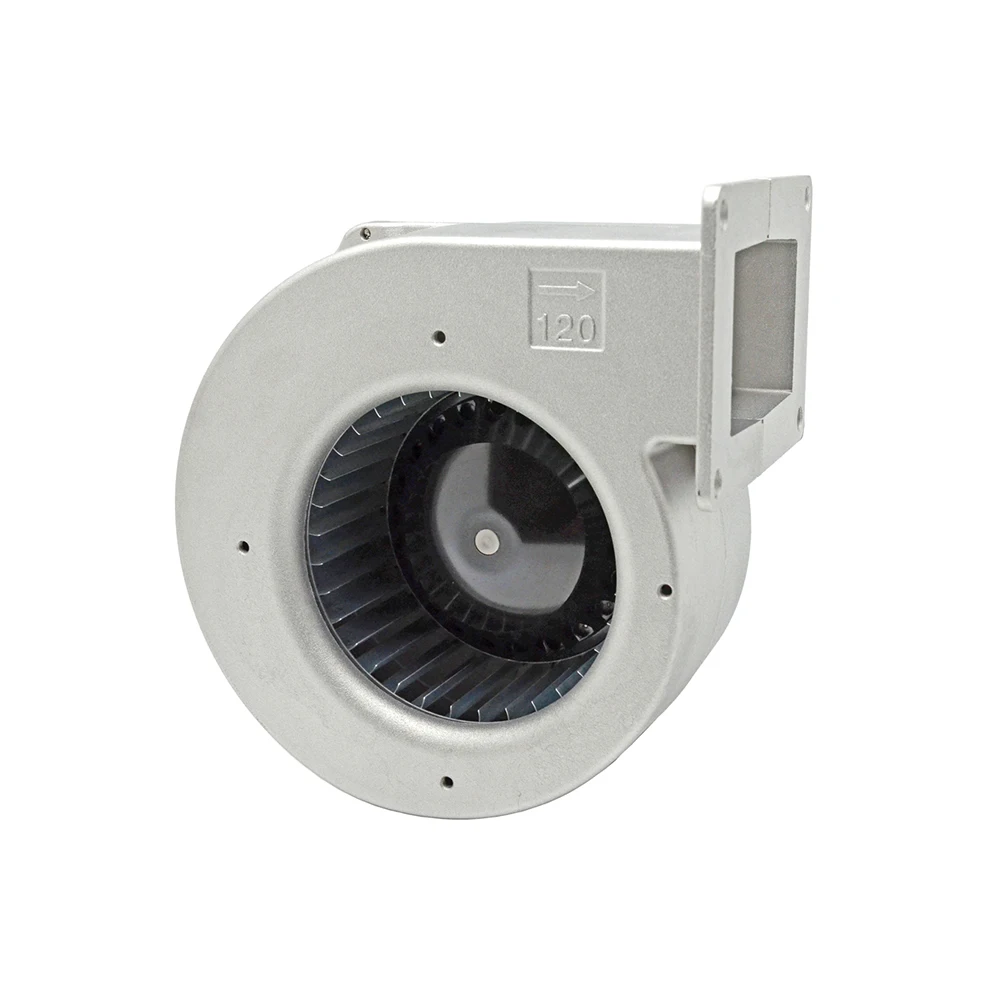

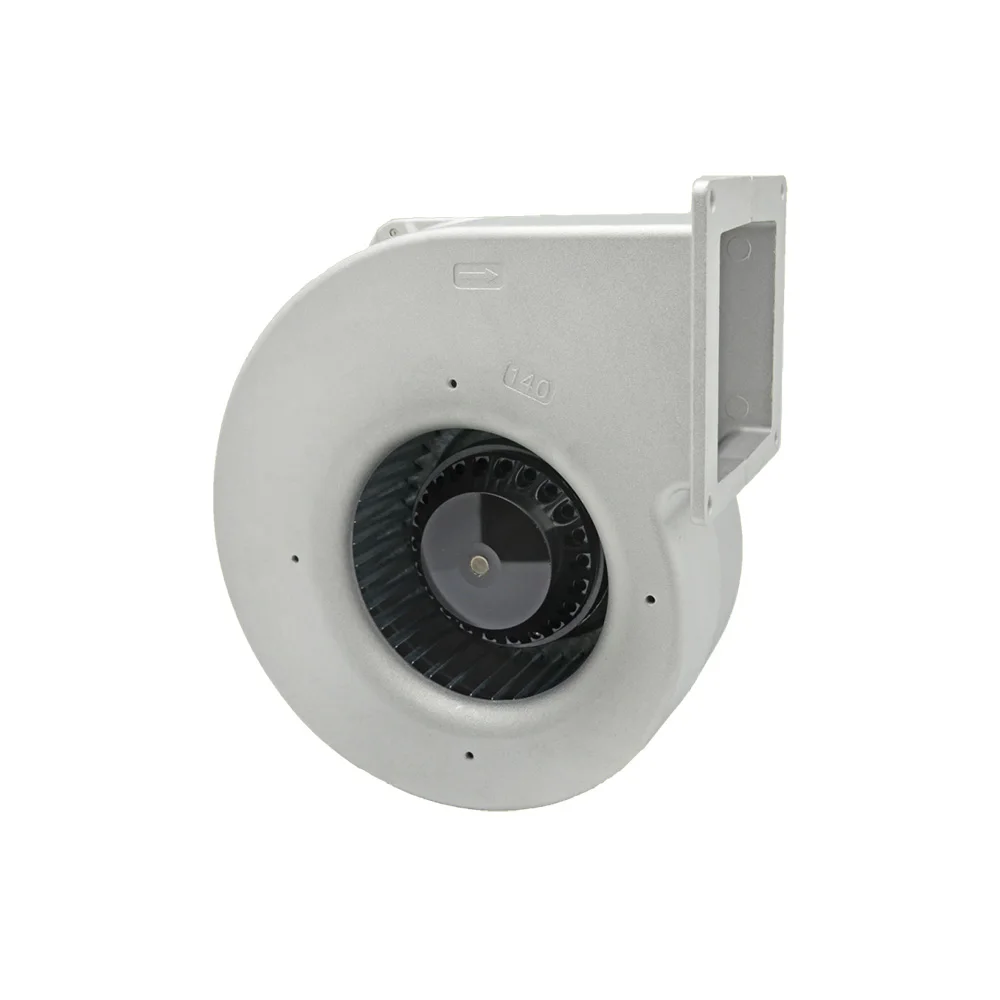

Galvanized Steel Impeller 160x100mm Fan Blower
- Category: >>>
- Supplier: LIANG HERNG ELEC MACH CO. LTD.
Share on (660471320):
Product Overview
Description
Specification | ||
Air Flow | 337 ~ 406 CFM | |
Impeller | Galvanized Sheet Steel Impeller | |
Motor | External Rotor Motor | |
Rotor | Black Paint | |
Bearing | Dual Ball Bearing | |

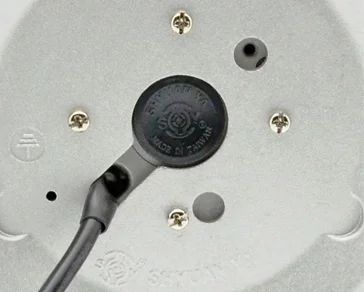

Lead Wire | 450mm AWG# 20 | |
Insulation | Class “B” or “F” | |
Safety | Thermally Protected (Auto Restart) | |
Operating Temperature | -20°C to +50°C | |
Certification | ce, RoHS | |
Product Name | |||||
Air Flow | 100 ~ 164 CFM | 286 ~ 297 CFM | 217 ~ 250 CFM | ||
Impeller | Die-cast Aluminum Housing Galvanized Sheet Stell Impeller | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | 1V→ -20°C to +60°C 2V→ -20°C to +40°C | 2C→ -20°C to +60°C 3C → -20°C to +70°C | ||
Product Name | |||
Air Flow | 255 ~ 325 CFM | 286 ~ 297 CFM | |
Impeller | Die-cast Aluminum Housing Galvanized Sheet Stell Impeller | ||
Motor | Capacitor-Run Induction and External Rotor Motor | ||
Insulation | Class “B” or “F” | ||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||
Operating Temperature | -20°C to +60°C | 1V→ -20°C to +60°C 2V→ -20°C to +40°C | |
Questions & Answers
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
