Concrete vibrator, vibrator machine

Product Overview

Description

Air bubbles in wet concrete are detrimental to the strength of concrete. It is necessary to remove

them from the concrete before the mixture hardens. Our vibratory poker is designed to effectively

performed to expel the entrapped voids and compact the concrete.

Based on pendulum motion, the high rotation of drive unit transmits as high as 9, 000 vibrations per

minute into the poker head through the flexible shaft, ensures maximum compaction for the best

possible finish.

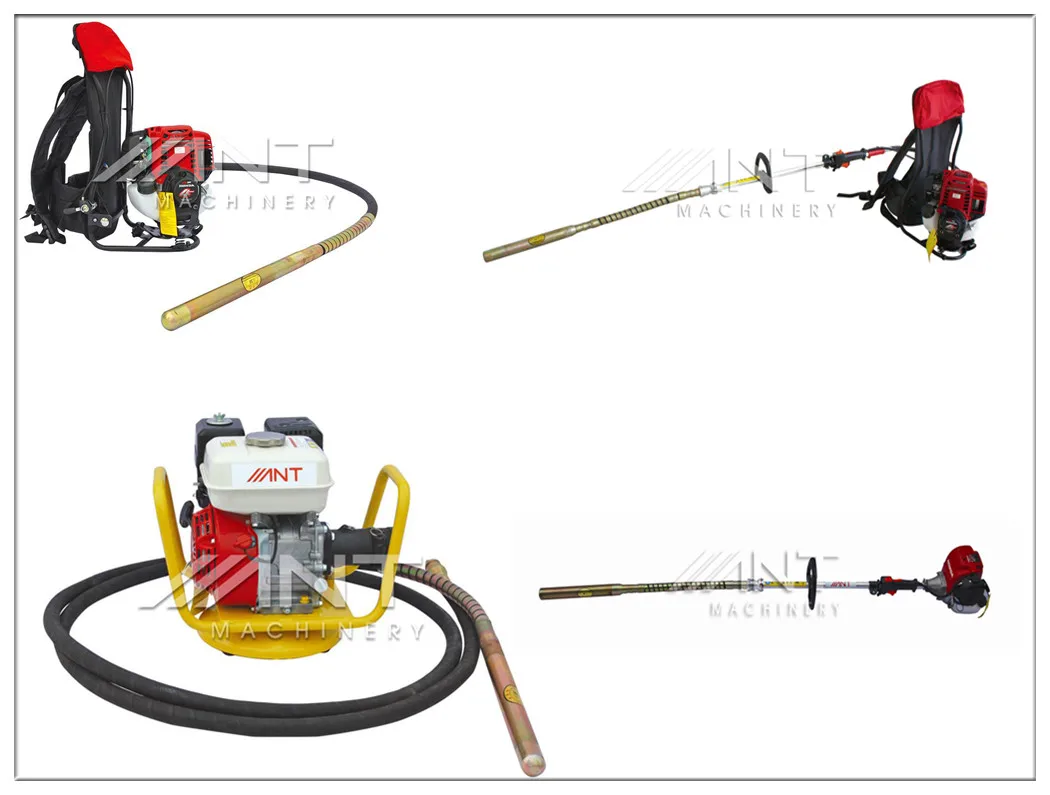

Concrete Vibrator ZDB35-CL (put on back)

Engine: Honda GX35

Vibration Rod Dia: 38mm

Engine speed: 6500rpm

Vibration frequency: 9000vib/min

Rope length: 2.0m

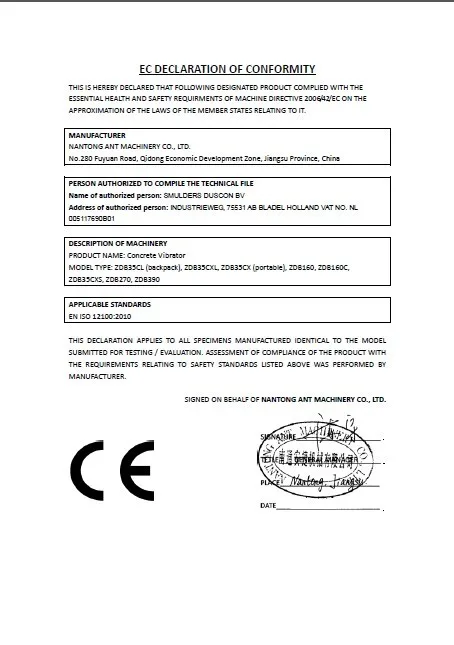

Certificate:

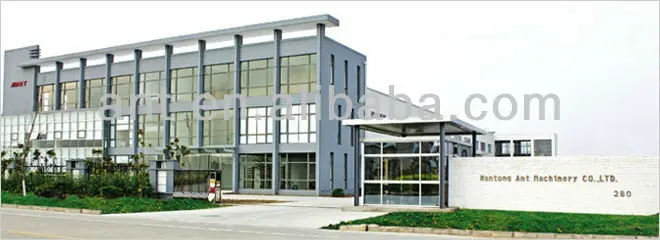

ANT MACHINERY Concrete Vibrator  "ZDB" series :





















Our company is a professional manufacturer, and we have strong technological advantage, complete producer`s equipment and perfect testing technology.
