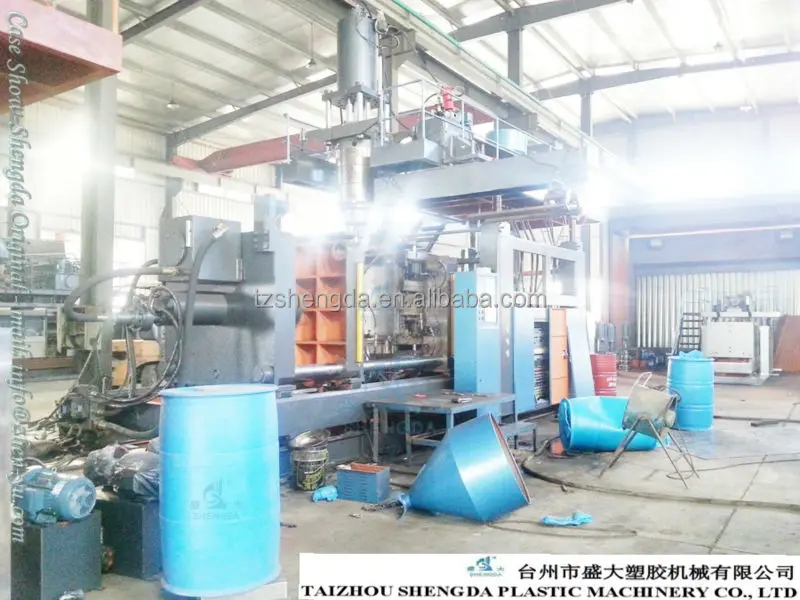

50L~220L HDPE barrels making machine

Product Overview

Description

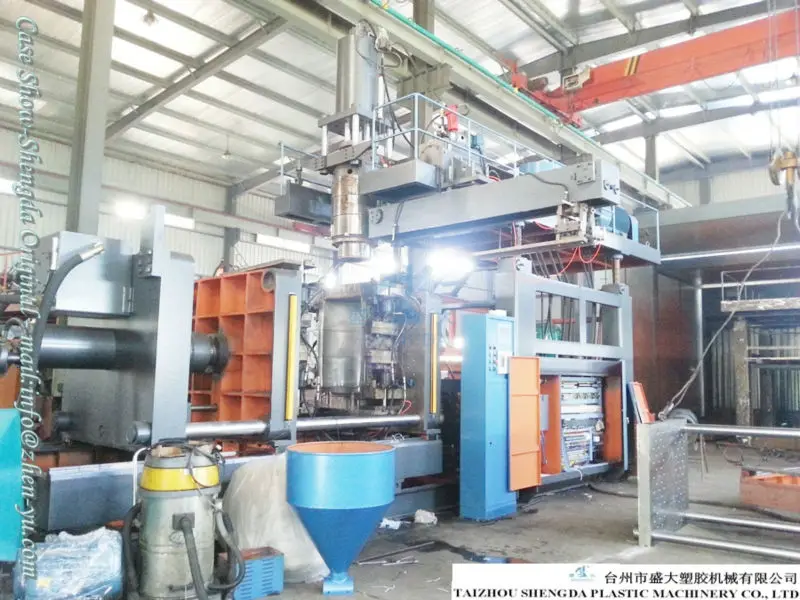

50L~220L HDPE barrels making machine

PE PP EVA PS extrusion blow moulding machine

 Hollow plastics blow moulding machine can produce all kinds of PE Container, PP Container, ABS Container, PC Container. likes oil buckets, toolbox, chairs, desks and so on.

More information contact us !

Main Features

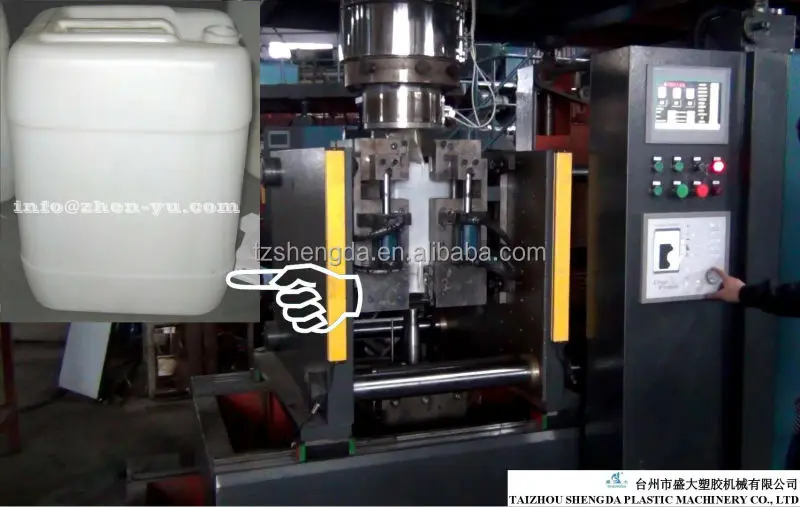

   The series include ZK120B.They can be used to produce various hollow plastic products,volume up to 220ltr such as jerry cans, gas tank, child safety chair, bus chair, drum, barrel, automotive parts ,tool box and so on.

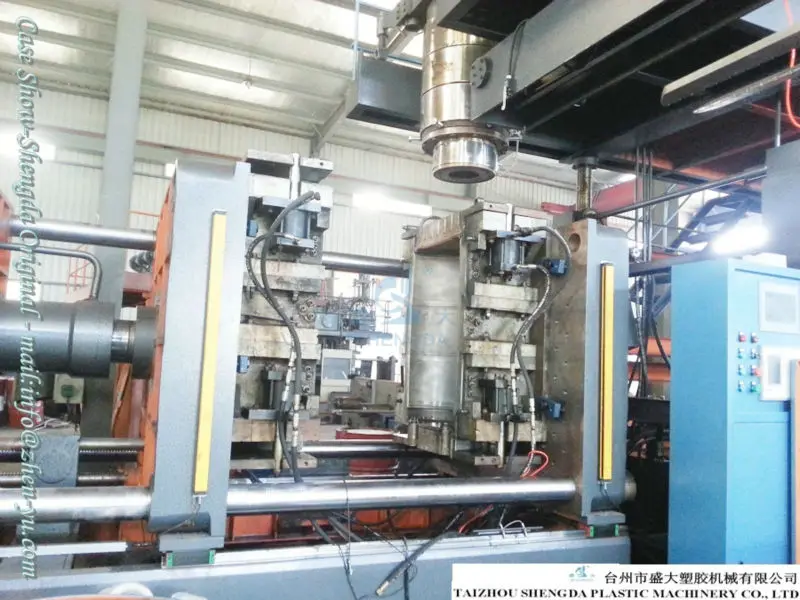

1) Clamping device: three bars construction, good rigidity, the space for mold is generous and mold changing is easy.
2) Die head: Adopt the principle "first in, first out" to keep even thickness of parison and high surface quality.
3) Operation is easy; servicing is convenient, with a high degree of automation.
   The ZK series is composed of clamping device, die head, extrusion system, hydraulic system, framework, cooling system, electric control system and so on.There are robot, multifunctional bottom blowing device, parison controller, mechanical ejection,and hydraulic ejection that can be selected by customers.



specification	unit	zk-120B
max container capacity	L	220
machine dimension(L*W*H)	M	10*3.0*5.3
total weight	ton	22
clamping unit
clamping force	KN	1200
platen opening stroke	mm	600-1600
max mould size(W*H)	mm	1200*1600
mould thickness	mm	610-850
power
max drive	KW	22
total power	KW	175
fan power for screw	KW	0.72
air pressure	Mpa	0.7
air consumption	m3/min	0.9
average energy consumption	KW	55
extruder unit
screw diameter	mm	120
screw L/D ratio	L/D	28:1
plasticizing capacity	kg/hr	280
number of heating zone	zone	6
extruder heating power	KW	35
extruder driving power	KW	75
accumulator head
number of heating zone	zone	6
power of die heating	KW	50
max die-pin diameter	mm	600
accumulator volume	L	30
