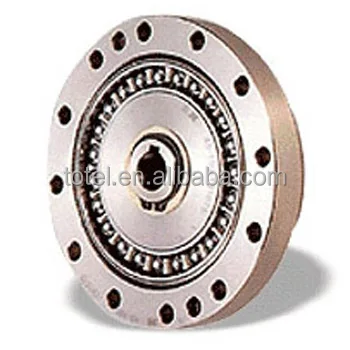

Harmonic Drive Component Set

Product Overview

Description

Harmonic Drive Gear component set , Harmonic Drive Gearbox reducer, Harmonic Drive Gear



Overview



Feature:

• High torque capacity
• High rigidity
• Backlash-free
• High positional accuracy and high rotational accuracy
• High efficiency
• Smoothness of operation
• Coaxial input and output.

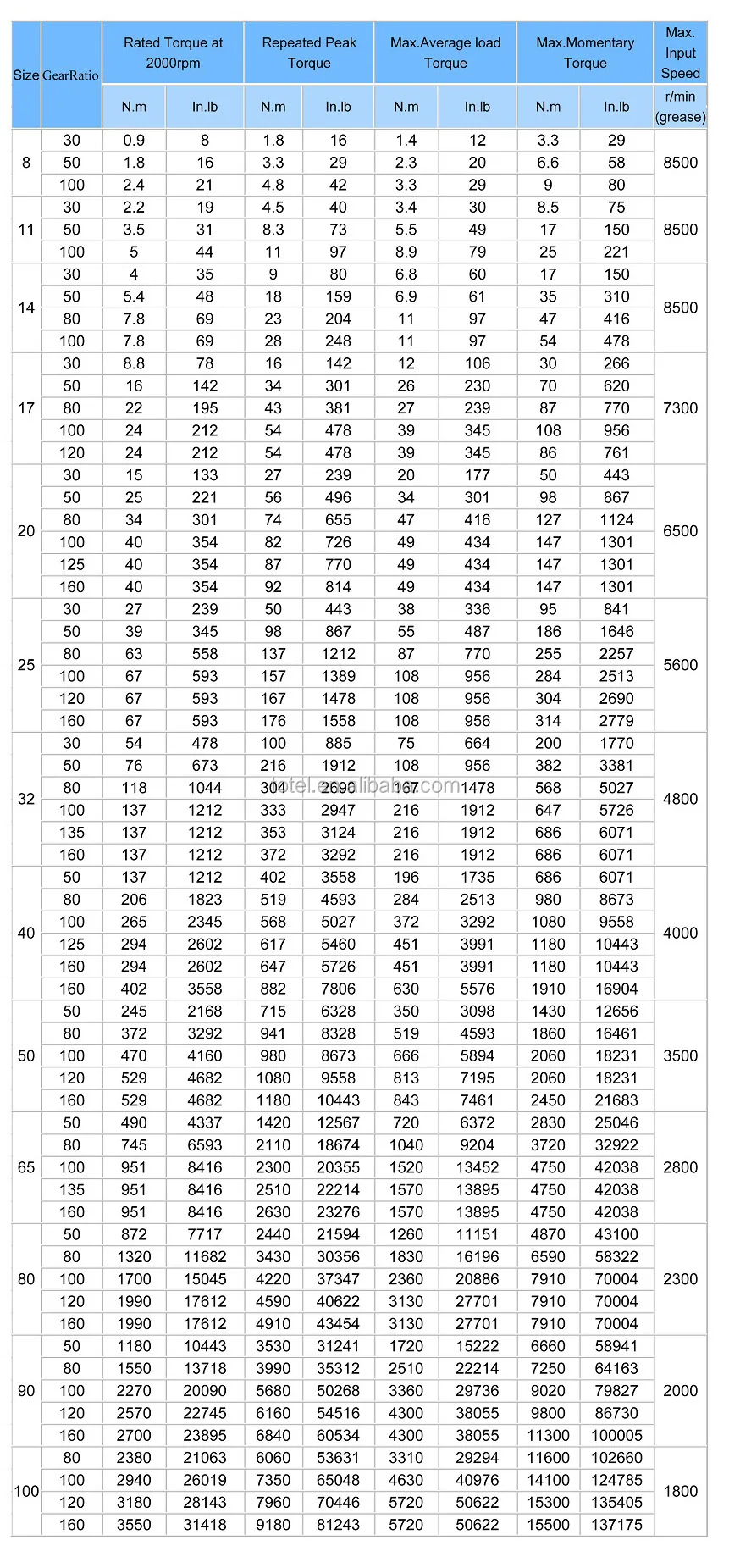

List of Ratings

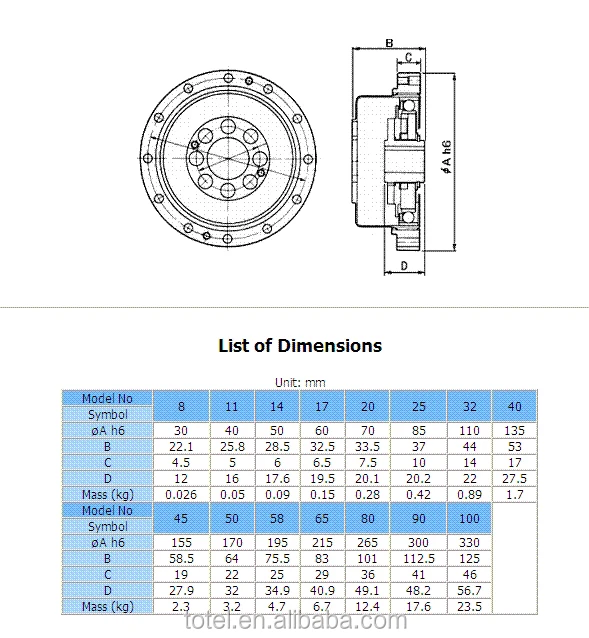

Product Drawing





Positional Accuracy (Reference)

x 10^-4rad (arc/min)

Gear Ratio		8	11	14	17	20	25	32	40-100
30	Standard	5.8 (2)	5.8 (2)	5.8 (2)	4.4 (1.5)	4.4 (1.5)	4.4 (1.5)	4.4 (1.5)	-
	Special	-	-	-	-	2.9 ( 1 )	2.9 ( 1 )	2.9 ( 1 )	-
50 and	Standard	5.8 (2)	4.4 (1.5)	4.4 (1.5)	4.4 (1.5)	2.9 ( 1 )	2.9 (1 )	2.9 ( 1 )	2.9 ( 1 )
larger	Special	--	-	2.9 ( 1 )	2.9 ( 1 )	1.5 (0.5)	1.5 (0.5)	1.5 (0.5)	1.5 (0.5)
