Fiber Optic Splice Closure Splitter Type (GJS03G 96C)

Product Overview

Description



General description:
The A8 closure provides a compact solution for the emerging Fiber-to-the-Home(FTTH) market. The eight round ports base provides an excellent platform for single or multi-fiber drops while maintaining the proven reliability of FOSC splice closures.



Fiber Optic Splice Closure FOSC 400 A8 is designed for use with any cable construction(loose buffer tube, central core tube, loose fiber, and ribbon),in any environment(aerial,pedestal,buried,handhole,and manhole),and for numerous splice applications(express,tap-off,branch,and repair).

Per closure can accommodate up to 33 pieces of trays and one adapter bracket, which is available to install 24 pcs of adapters.

   Max. Fiber Capacity(single fiber):24X 4=96 fibers





Dimension:



Height:42cm

Base diameter:16cm

closet ring dia. 18cm



8 small holes +1 oval hole



The diameter of the small holes is 1.0cm.The major axis of the oval hole(inside wall) is 6.cm,and the shorter axis of the oval hole is 4.cm.



Materials: closure body: PP   splice tray: ABS



Cable seal kit: 1.Aluminum cable protection tape  2.Heat shrinkable sleeve  3.Abrasive strip  Other accessories: 1.Desiccant   2.Shield continuity wires  3.Connector   4.Smouvs (splicing protection tubing)     5.transparent tubes  Tie wraps    Oval outlet cable seal kit: 1.Heat shrinkable sleeve   2.Aluminum cable protection tapes         3.Abrasive strip           4.Branch off clip

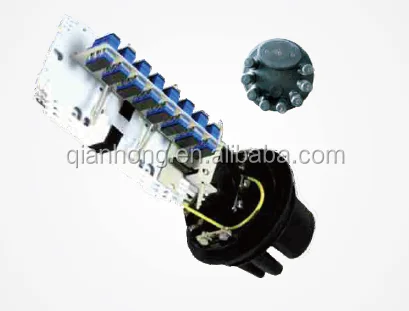

Content of fiber optic splice closure

1. Clamp

2. Dome

3. Velcro strip with one X flake

4. Base

5. Splice tray

6. Tray lid

7. Shield continuity wires

8. Valve

9Shield continuity connector

10. Sealing ring

11. Inner fixing part

12. Strength member

13. Support ring on the base
