Product Overview
Description

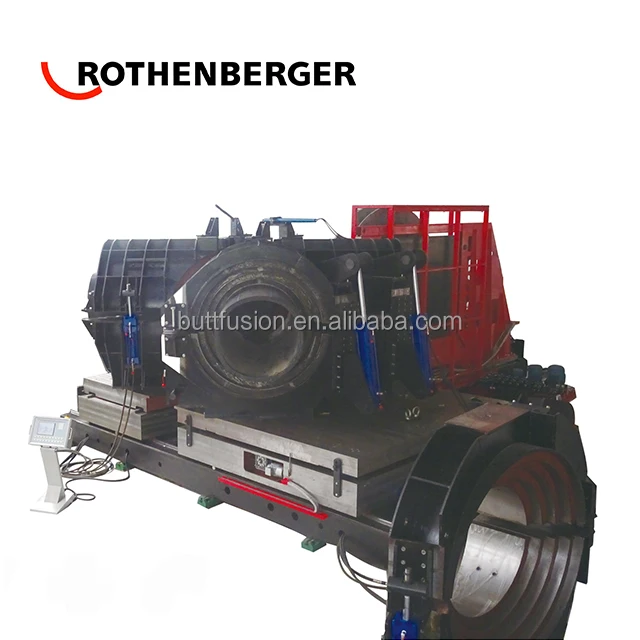

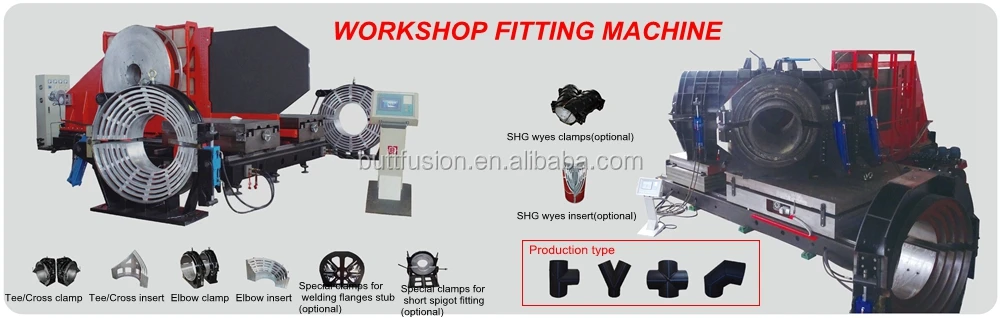

SHG1200/630 Workshop fitting welding machine to fabricate thermoplastic pipes as elbow, tee/cross, Y shape fittings
Application adn Features:
1. Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45 and 60 degrees) fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
2. Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
3. Removable PTFE coated heating plate with separate temperature controlling system
4. Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position.
5. Low starting pressure and high reliable seal structure
6. Separate two-channel timer records times in soaking and cooling phases
7. Touch screen operation panel with printer
8. Automatic welding process
9. Linear guide ways are equipped with heating plate, planing tool and dragging plate
Technical parameters for hdpe fittings machine:
| Model | SHG1200/630 |
| Pipe sizes (mm) | 630,710,800,900,1000,1100,1200 |
| Application | 0~90 degrees Elbow,tee, cross, optional 45 and 60 Y shape |
| Heating plate max. temp | 270 centigrade degrees |
| Temp.deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~16 Mpa |
| Working voltage | 380V 50HZ |
| Heating plate power | 61.4KW |
| Hydraulic unit power | 7.5KW |
| Planing tool power | 7.5KW |
| Total power | 76.4KW |
| Weight | 18000KGS |
| Packing | 11 Plywood cases |
Optional parts:
1. Special clamps for welding flange stub
2. Special clamps for short spigot fitting
3. Special clamps for welding Y shape (45 and 60 degrees) fittings
Certificate
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
