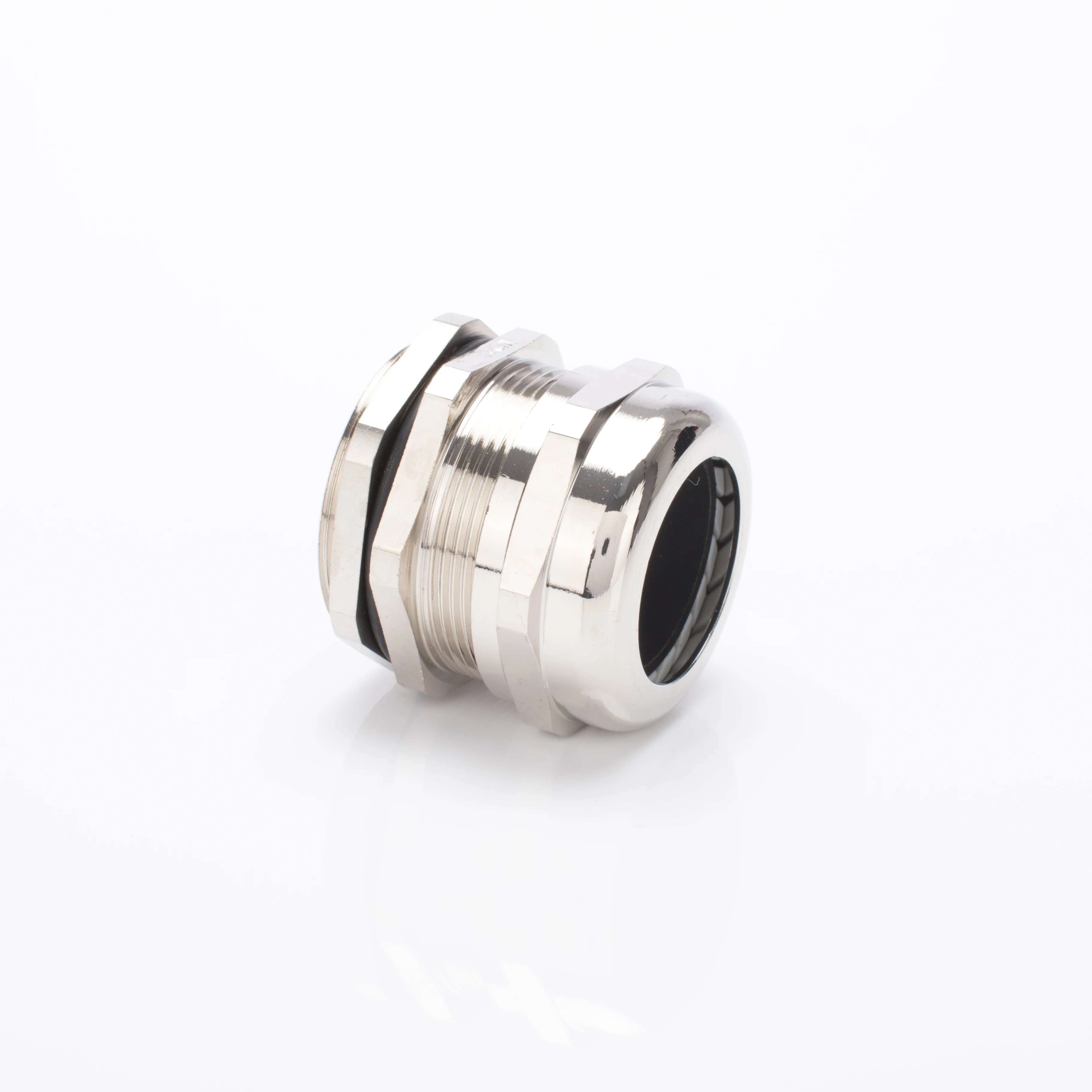

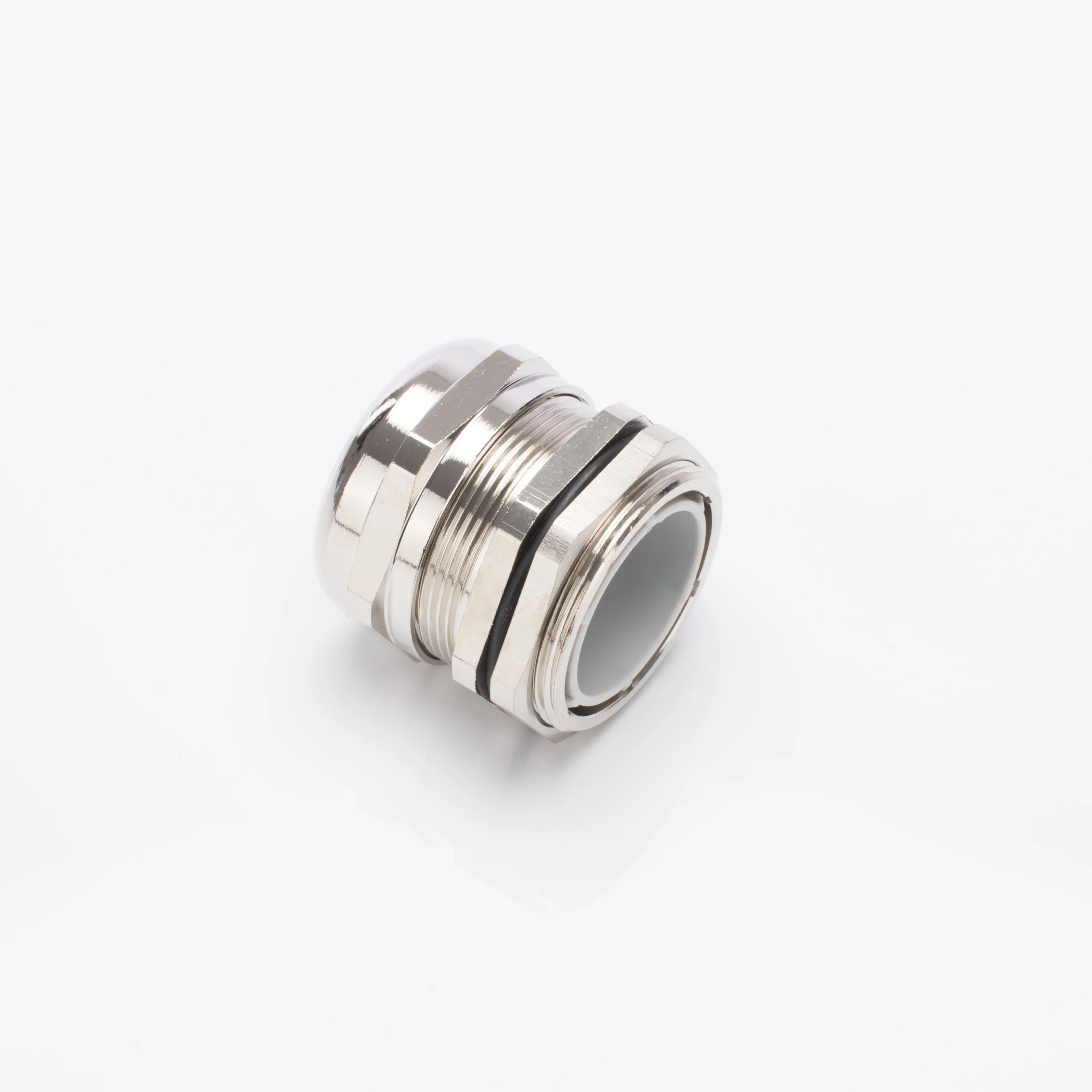

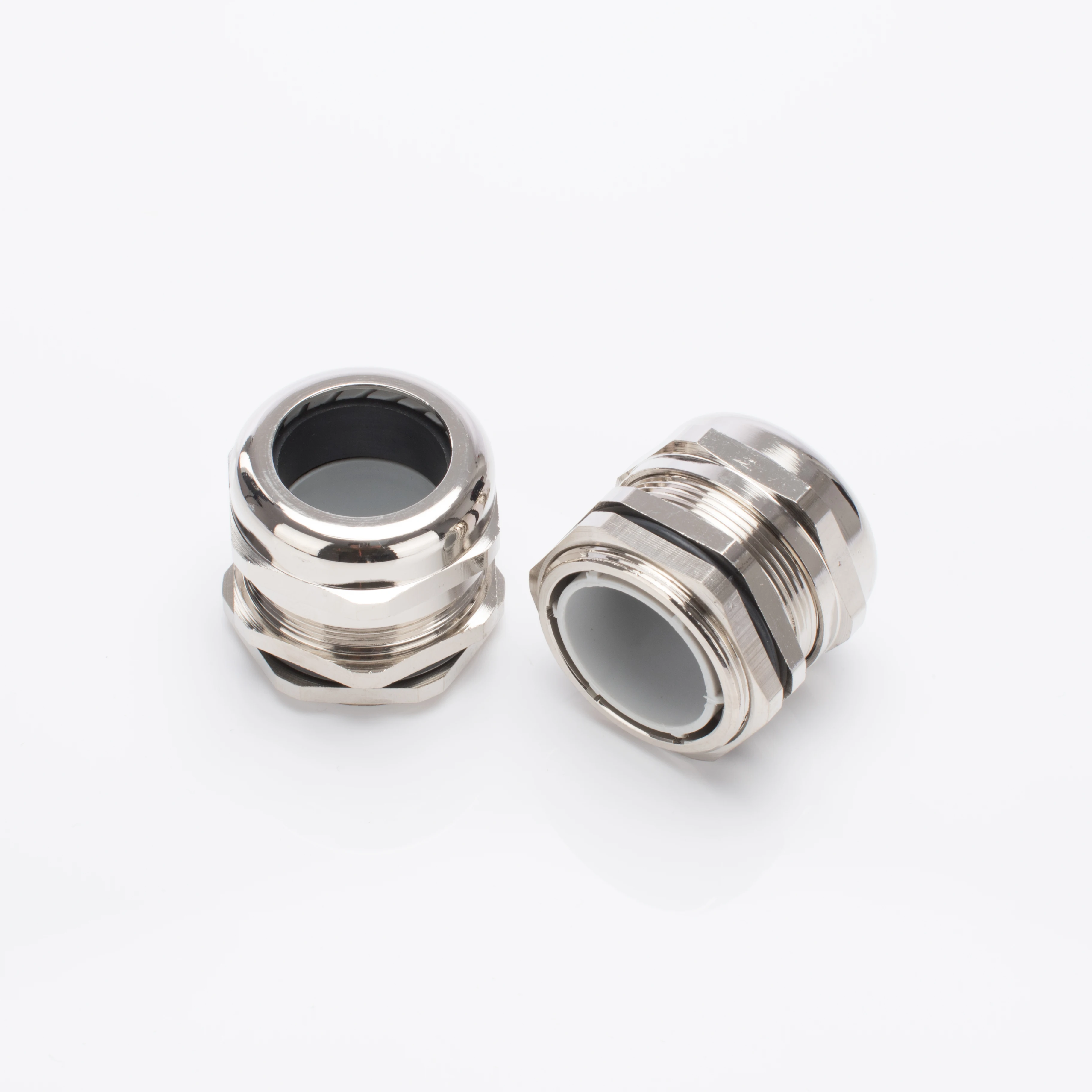

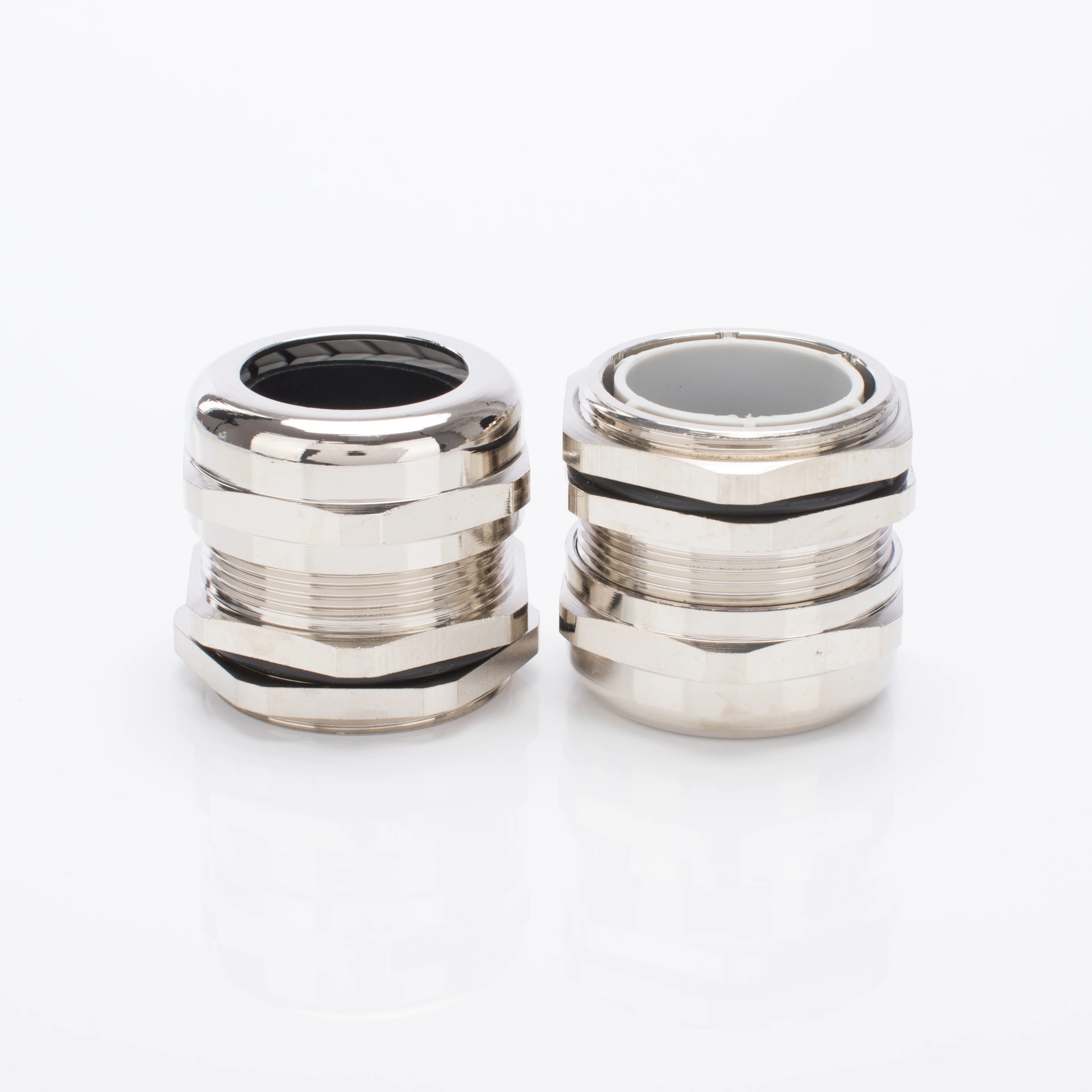

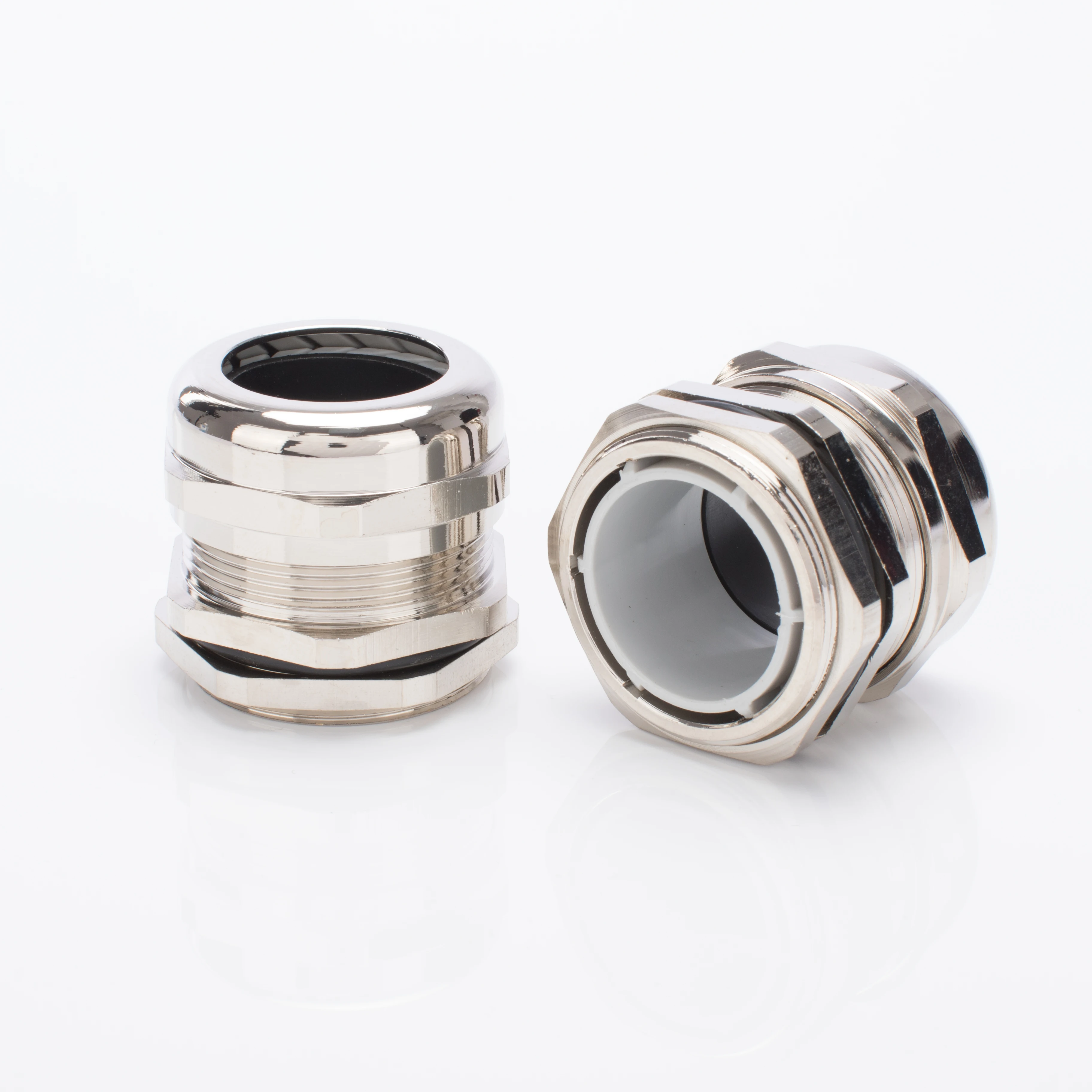

EASCO Cable Glands Supplier

Product Overview

Description



With Vibration Lock and Strain Relief Protection Class IP 68

FEATURES:

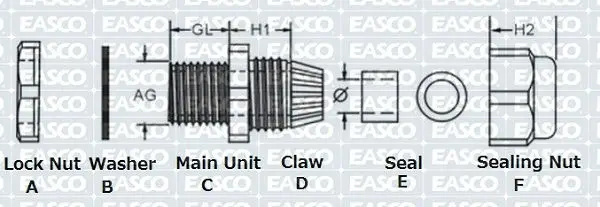

1)Material: A.C.F are Made from zince metal plated with nickel. D is made from Nylon.



2)IP68 degree of protection.



3)PG THREAD(DIN STANDARD).



4)UV resistant in outdoor applications



5)Indoor and outdoor applications



6)Operating temperature: -40°C ~ 110°C



7)Waterproof.



8)Resistant to salt water, weak acids & alkalis, alcohol, esters,gasoline,mineral/animal/vegetable oil.

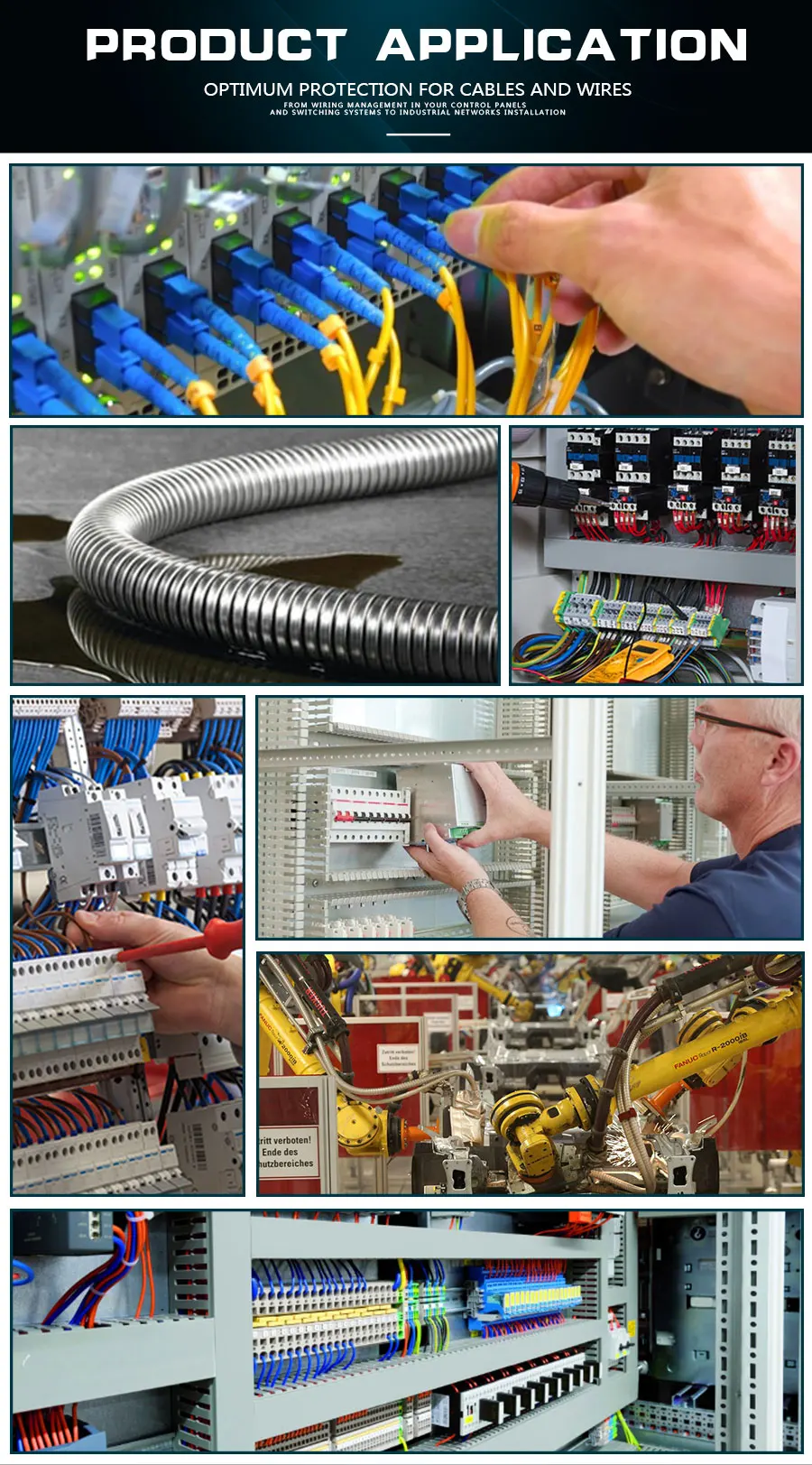

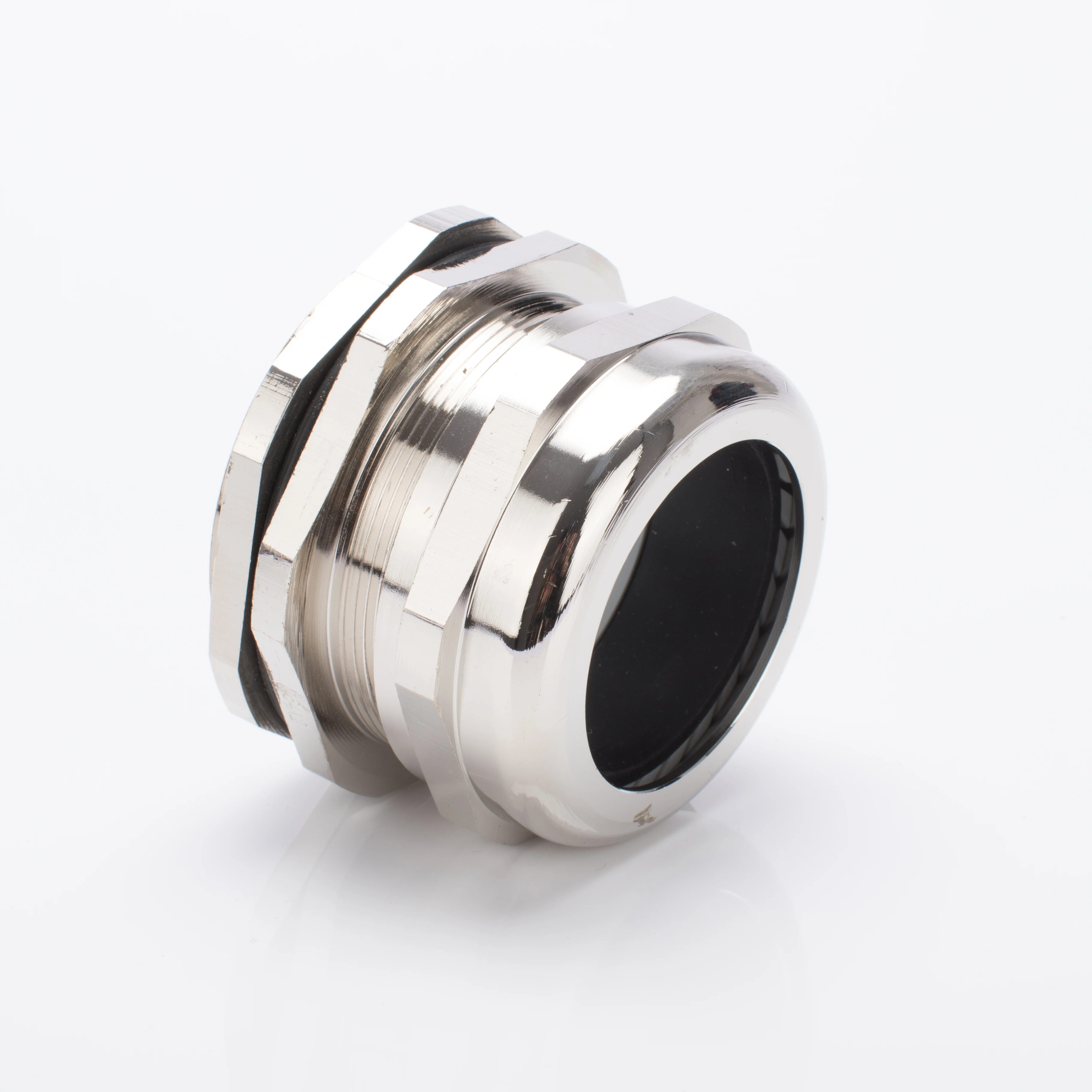

EASCO Brass Cable Glands are suitable for connections provides with flexible cables in:

• Weather Proof Enclosures

•Control Panels

•Limit Switches

•Multi Pin Connectors

•Controlling & Liquid Measuring Instrument

•Machineries

•Medical Equipments

•Electric Motors





Article-No	Item No.	Metric thread	Cable Range	AG (mm)	GL (mm)
1202-00001	M-EX-M12	M12*1.5	3-6	12	6
1202-00002	M-EX-M14	M14*1.5	3-6	14	6
1202-00003	M-EX-M16	M16*1.5	4-8	16	7
1202-00004	M-EX-M18	M18*1.5	6-10	18	8
1202-00005	M-EX-M20	M20*1.5	8-12	20	8
1202-00006	M-EX-M22	M22*1.5	10-14	22	9
1202-00007	M-EX-M24	M24*1.5	10-14	24	10
1202-00008	M-EX-M27	M27*2.0	13-18	27	11
1202-00009	M-EX-M30	M30*2.0	15-22	30	11
1202-00010	M-EX-M33	M33*2.0	22-28	33	11
1202-00011	M-EX-M36	M36*2.0	25-32	36	11
1202-00012	M-EX-M42	M42*2.0	32-33	42	12
1202-00013	M-EX-M48	M48*2.0	37-44	48	13
1202-00014	M-EX-M54	M54*2.0	32-38	54	14
1202-00015	M-EX-M56	M56*2.0	32-38	56	14
1202-00016	M-EX-M60	M60*2.0	37-44	60	14
1202-00017	M-EX-M64	M64*2.0	37-44	64	14
1202-00018	M-EX-M72	M72*2.0	42-52	72	15
1202-00019	M-EX-M80	M80*2.0	50-60	80	18
1202-00020	M-EX-M85	M85*3.0	59-72	85	20
1202-00021	M-EX-M100	M100*3.0	71-82	100	22



Article-No	Item No.	PG thread	Cable Range	AG (mm)	GL (mm)
1202-00022	K-EX-PG7W	PG7	3-6.5	12.5	6
1202-00023	K-EX-PG9W	PG9	4-8	15.2	7
1202-00024	K-EX-PG11W	PG11	5-10	18.6	8
1202-00025	K-EX-PG13.5W	PG13.5	6-12	20.4	8
1202-00026	K-EX-PG16W	PG16	10-14	22.5	9
1202-00027	K-EX-PG21W	PG21	13-18	28.3	11
1202-00028	K-EX-PG29W	PG29	18-25	37	11
1202-00029	K-EX-PG36W	PG36	22-32	47	13
1202-00030	K-EX-PG42W	PG42	32-38	54	13
1202-00031	K-EX-PG48W	PG48	37-44	59.3	14



Article-No	Item No.	G thread	Cable Range	AG (mm)	GL (mm)
1202-00032	M-EX-G1/4	G1/4	3-6.5	13.2	6
1202-00033	M-EX-G3/8	G3/8	4-8	16.6	7
1202-00034	M-EX-G1/2	G1/2	5-10	20.4	8
1202-00035	M-EX-G3/4	G3/4	13-18	28.3	11
1202-00036	M-EX-G1	G1	18-25	33	11
1202-00037	M-EX-G1/4	G1-1/4	22-32	41.5	12
1202-00038	M-EX-G1/2	G1-1/2	32-38	47	13
1202-00039	M-EX-G2	G2	37-44	60	14



Article-No	Item No.	Metric thread	Cable Range	AG (mm)	GL (mm)
1202-00040	M-EX-M25	M25X1.5	10-14	25	10
1202-00041	M-EX-M32	M32X1.5	15-22	32	11
1202-00042	M-EX-M40	M40X1.5	18-25	40	12
1202-00043	M-EX-M50	M50X1.5	25-32	50	13
1202-00044	M-EX-M63	M63X1.5	37-44	63	14

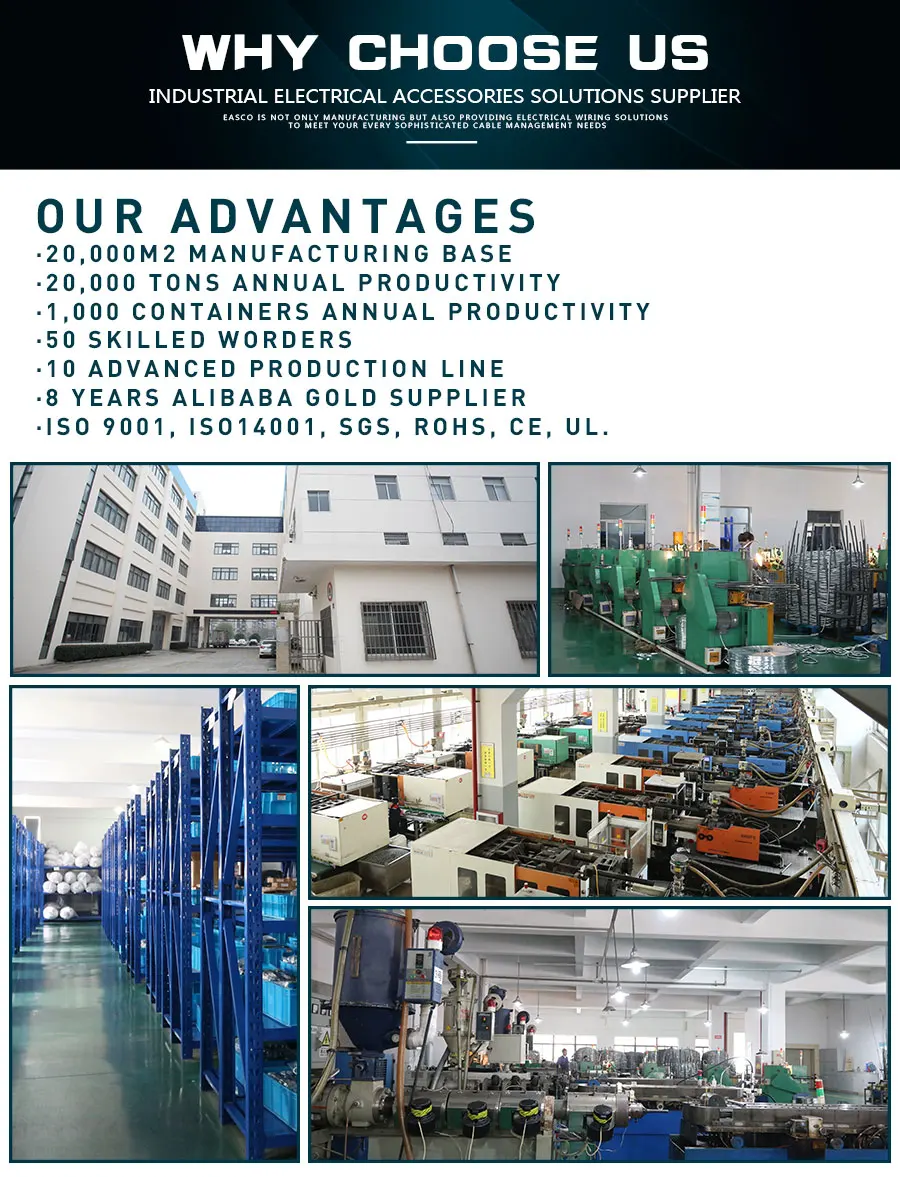

EASCO, founded in 1993, is a manufacturer with core competencies in the fields of wire & cable management in China.



EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, ourproduct categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
