Drying size: 45x60CM, (L24inch W 18inch)Package 85x49x36cm (34*20*14)
Features:
1. it adopts the new designed intelligent instrument so when the temp reaches to the requirement. The machine will off automatically according to the set and keep the temp. This instrument can save 30%-60% electricity and owned by us, which is being applied patent.
2. The temp can be controlled, so it is suit for every kind of ink, especially for plastic ink. The temp can reach 270°C (518F) at the place 2cm below the heating tubes when the indoor time is 20°C (68F).
3. ‘U” shaped foundation is consistent with heating box stable, saving-space and overcoming the flaw caused by traditional”+”that easily gets knock and stuck.
4. The drying area is 45*65cm (24x18”) that make the heat efficiency higher and more practical for drying large area.

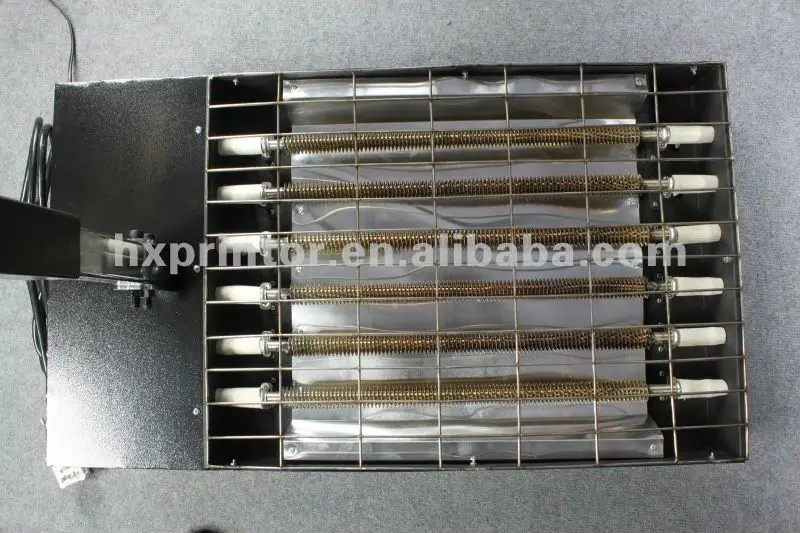

5. With six 500W far-infrared heating tubes, temperature increases quickly.
6. Behind the tubes is light-reflecting aluminum sheet that make the heat efficiency higher. And save more energy resource.
7. The height can be adjusted within 62-100cm (25-39”).
8. There are four universal wheels, two of which are brake wheels. Move at times; turn the brakes wheels after fixing the right position.
9. Sturdy design with powder coated housing to prevent rust.
10. For convenient installation, with the machine are all tools and instruction video that make customers install and operate easy.

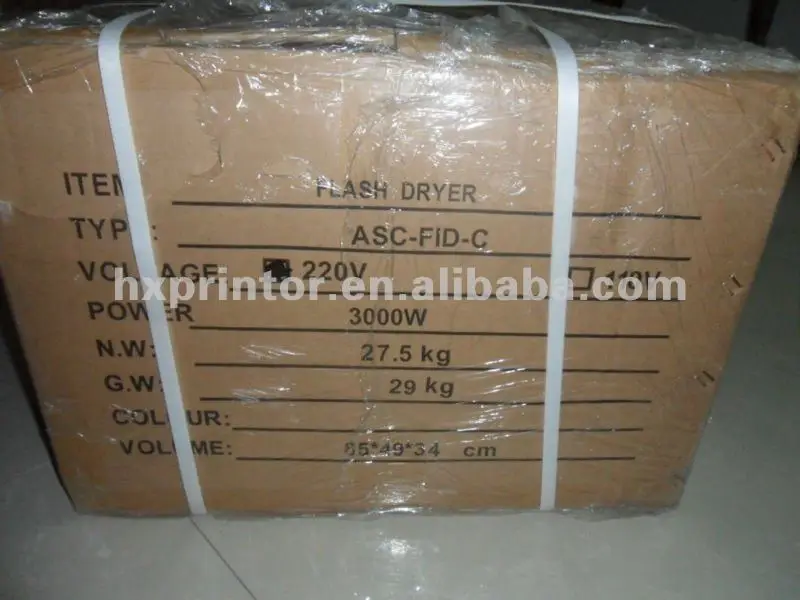

11. Inside the carton, all the parts are separated packaged by high-strength cystosepiment and with splint on the top and bottom; outer carton, it adopts five – lay corrugated carton and stretchable film, which will furthest reduce damage during transportation.
According to our test , At room temperature 24oC, Flash dryer without circulation wind around, the temperature of the outside edge 3 cm , (note: 6 minutes after Setting instrument )
1).Instrument position in "10" , the temperature 3 cm under heating pipe: 31oC
2).Instrument position in "15" , the temperature 3 cm under heating pipe: 46 oC
3).Instrument position in "20" , the temperature 3 cm under heating pipe: 64oC
4).Instrument position in "25" , the temperature 3 cm under heating pipe: 82oC
5).Instrument position in "30" , the temperature 3 cm under heating pipe: 112oC
6).Instrument position in "35" , the temperature 3 cm under heating pipe: 138oC
7).Instrument position in "40" , the temperature 3 cm under heating pipe: 158oC
8).Instrument position in "45" , the temperature 3 cm under heating pipe: 175oC
9).Instrument position in "50" , the temperature 3 cm under heating pipe: 190oC
10).Instrument position in "55" , the temperature 3 cm under heating pipe: 215oC
11).Instrument position in "60" , the temperature 3 cm under heating pipe: 245oC
