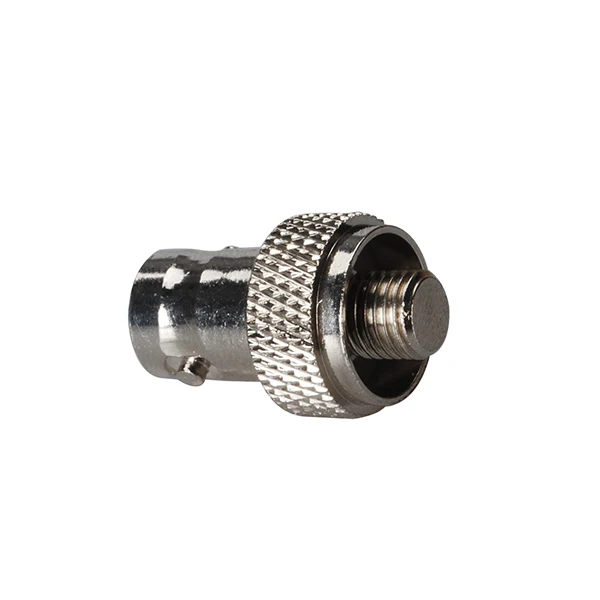

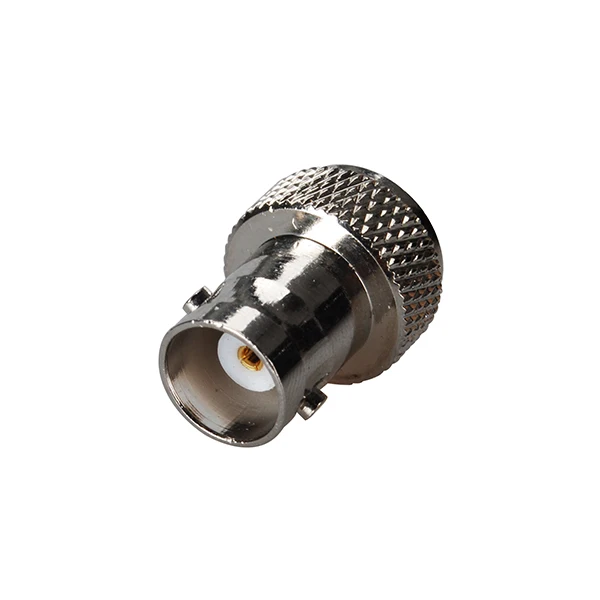

SMA Female To BNC Female RF Connector MX Connector

Product Overview

Description



Type SMA:with inner diameter of outer conductor 4.13mm(0.163in) with screw coupling-Characteristic impedance 50Ω.
The SMA series connectors for use with semi-rihid and flexible RF cables,are used for microwave applications requirng high performance.They are characterized by their small size and high reliability,and be inter-changeable with the same-type connectors of abroad.





Temperature Range	-40~+155( PE cable -40~+85)
Impedance	50ohm
Frequency Range	0-12G,0-18G
Working Voltage	500 VRMS
Contact Resistance	Inner:6miliohms max Outer:2 miliohms max
VSWR:	straight:1.3max,R/A:1.5max
Durability	500cycles
Authentication	ISO9001: 2000, 14001: 2004 RoHS
APPLICABLE STANDARD	IEC169-15  MIL-C-39012



Shell	Shell	Gold plated
Contact pin	Brass	Gold plated
Insulator	PTFE
