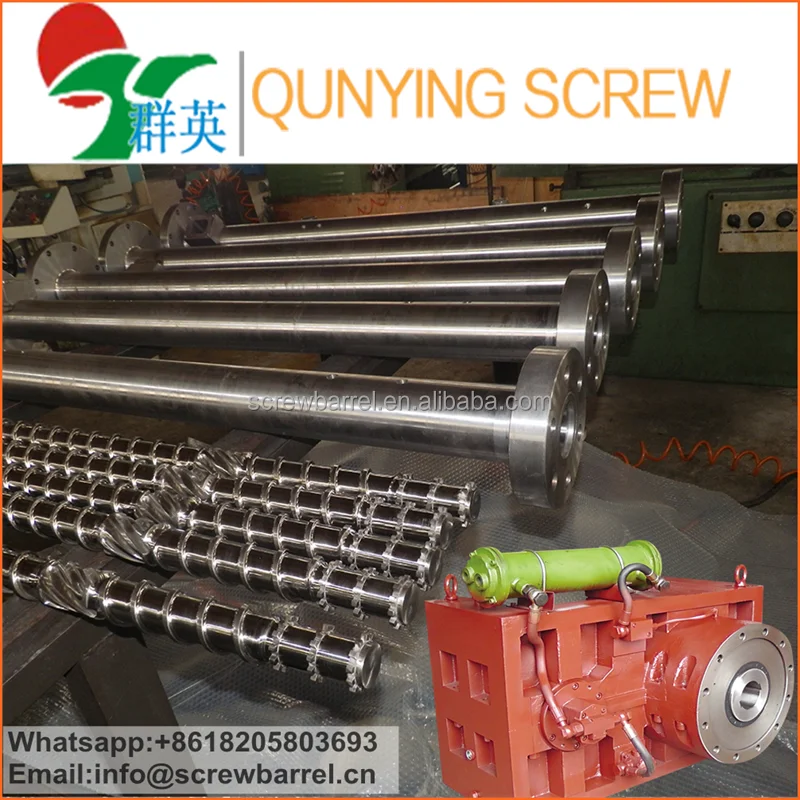

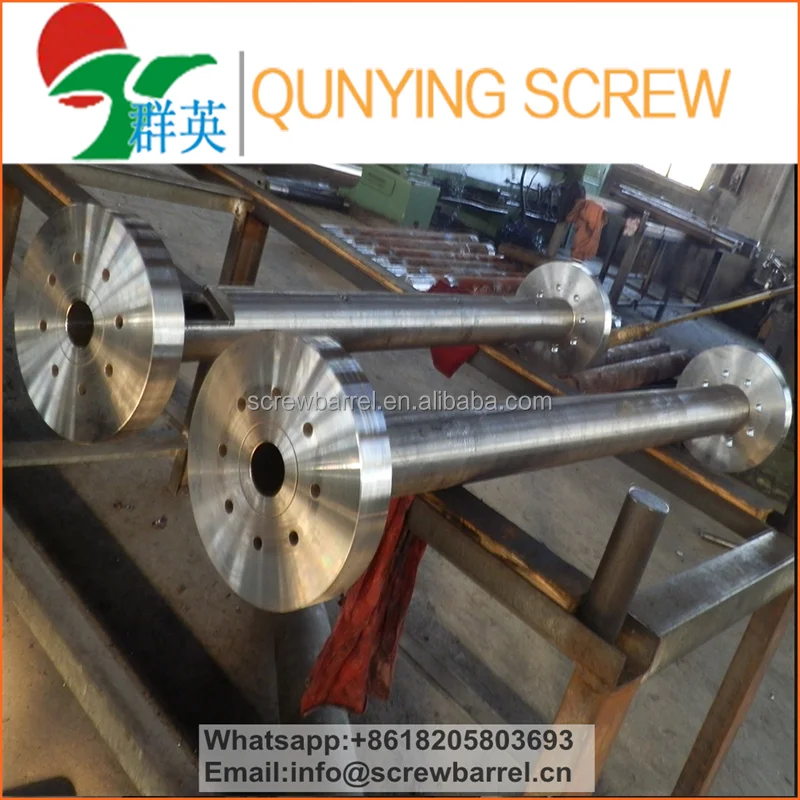

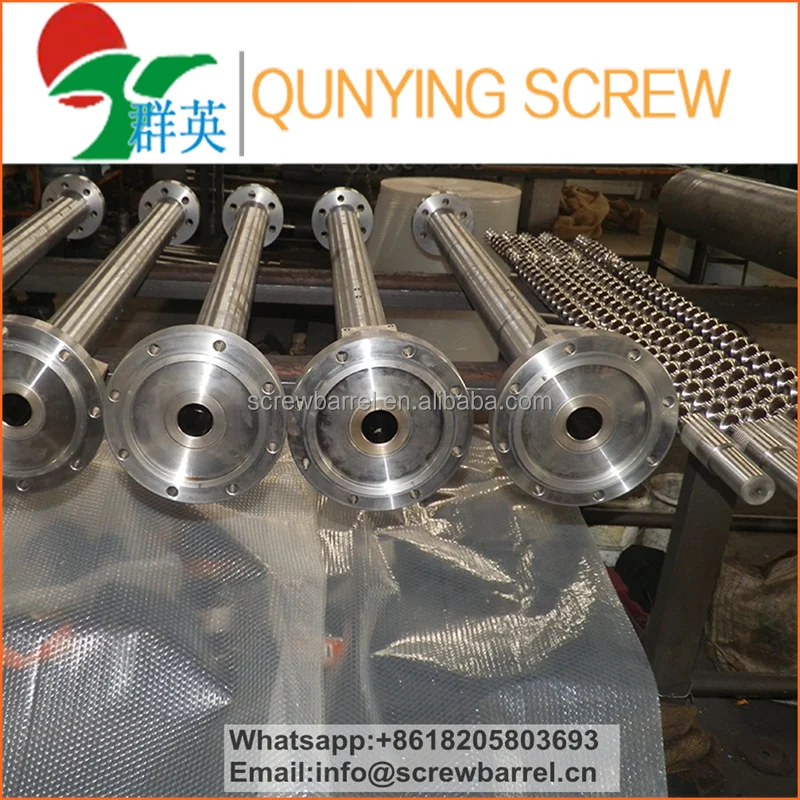

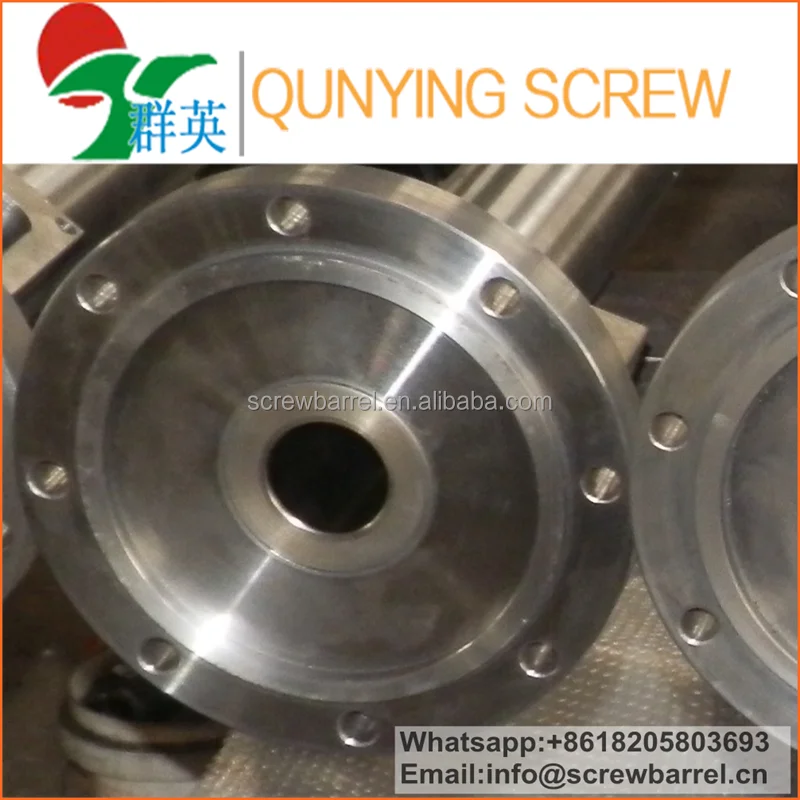

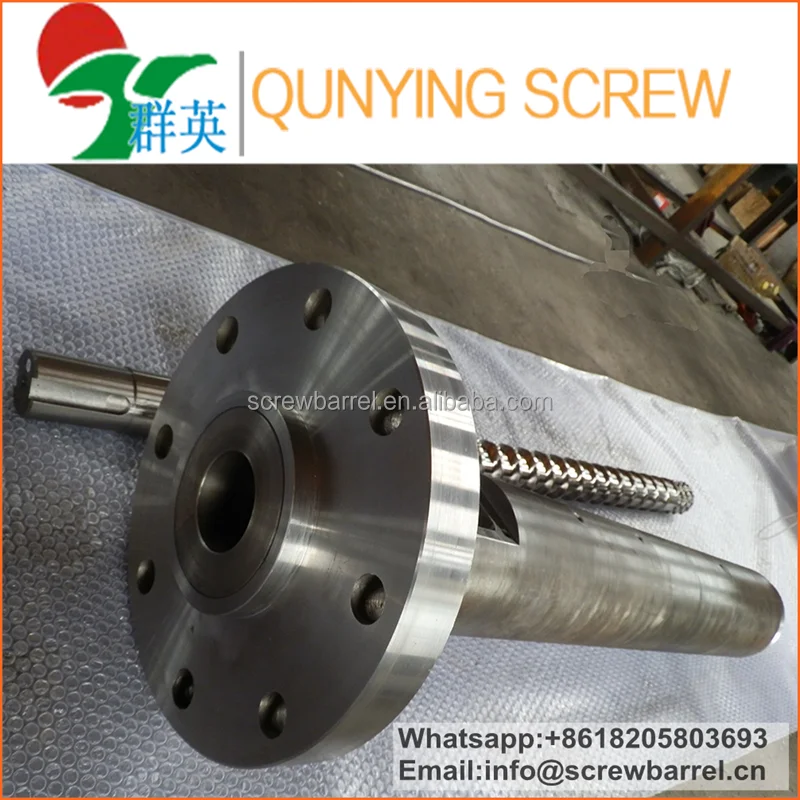

Plastic Extruder Single Screw And Barrel
- Category: >>>
- Supplier: Zhoushan Qunying Plastic Machinery Manufactory
Share on (666562182):
Product Overview
Description
Features specifications: Plastic Extruder single screw and barrel
Material:
Alloy-steel of high-quality
1)38 CrMoAIA(JIS SACM645)
2)42CrMo(AISI4140)
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)SKD61
Heat-treatment
Nitriding treatment
Electroplate hard-chrome
High-frequency quenching
Spraying corrosion wear-resisting dual metal layers
Vacuum quenching
Technical Parameter |
| Steel Material | DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA |
| Deepness of Nitriding Layer | 0.7 mm -0.9 mm |
| Hardness of Nitriding | HV900 - HV1,000 |
| Nitriding Brittleness | ≤Grade 1 |
| Chromate plating | Thickness 0.05 mm - 0.10 mm, hardness HV950 |
| Special treatment | Carbide coating on screw flight and bimetallic barrel |
| Screw straight tolerance | 0.015 mm/m |
| Surface roughness | Ra 0.4μm |
