Product Overview
Description
Communication equipment Optical Fiber EPON OLT(2 PON ports)

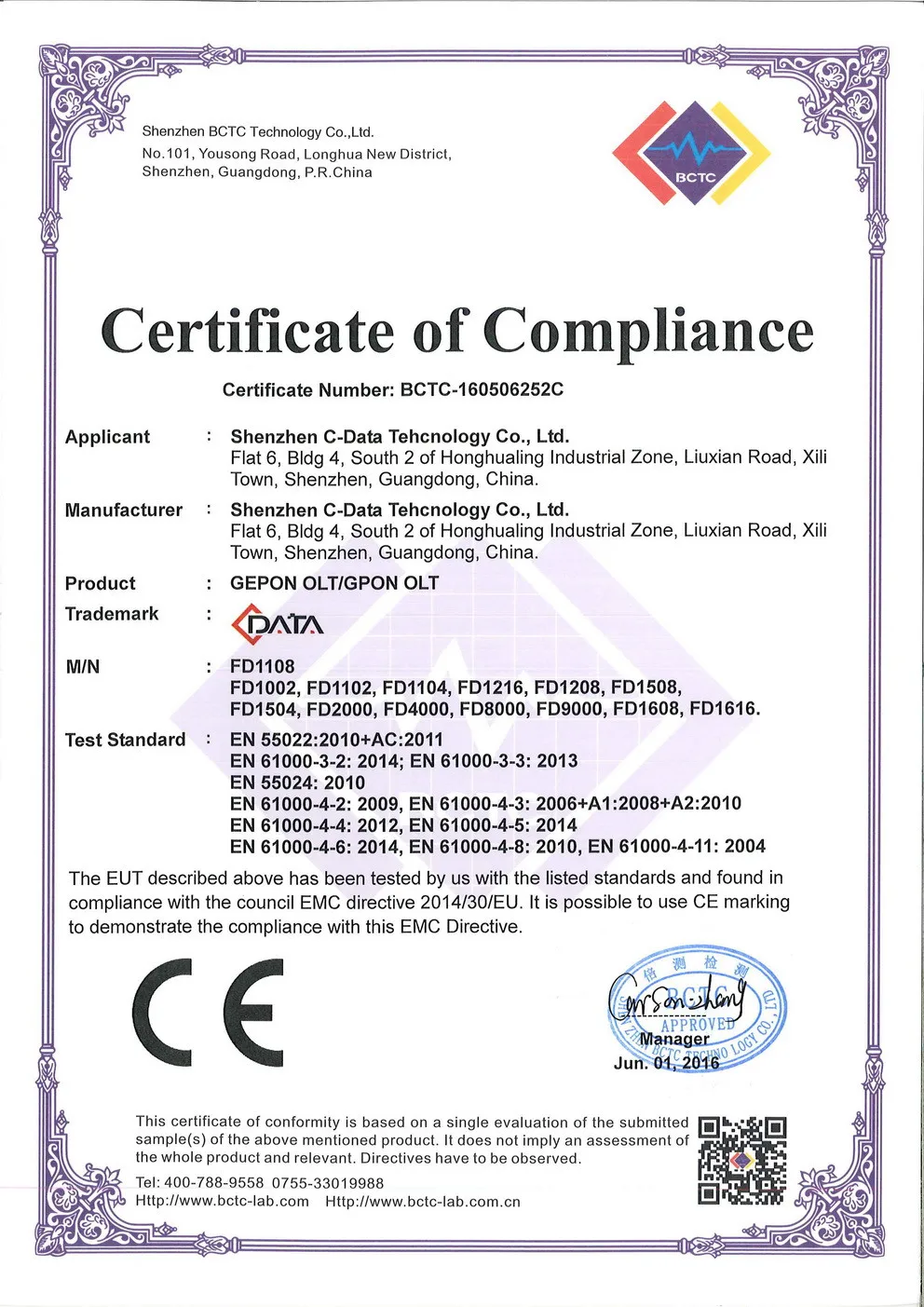

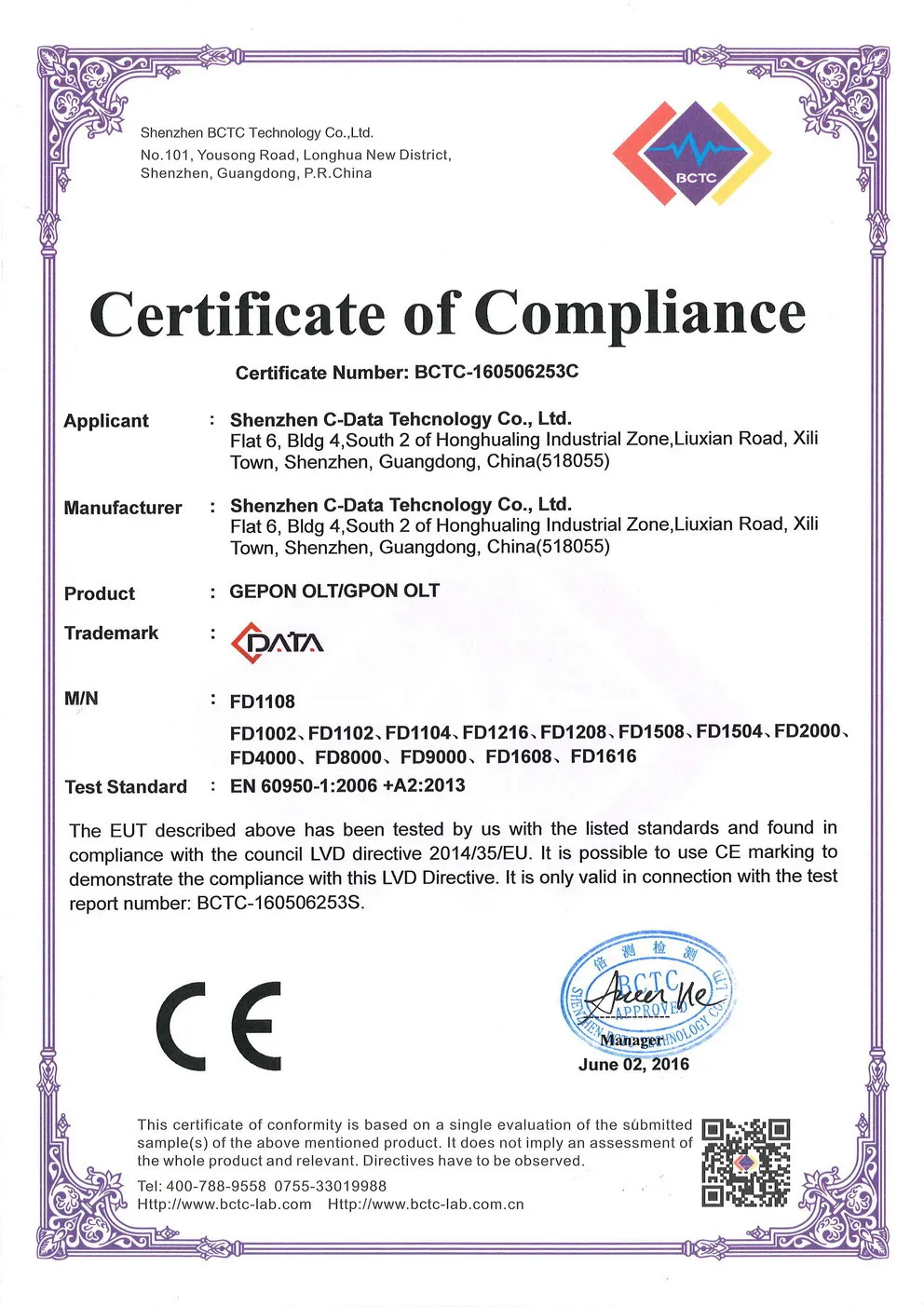

OLT Certifications
Product Description

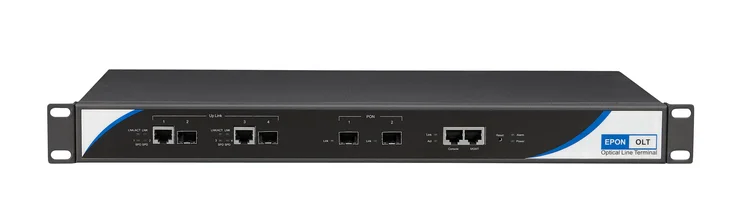

FD1002S can support 2 EPON PON GE ports and connect 128pcs ONU at most (by 1:64 splitting ratio), and provides 2 uplink GE electric slots and 2 uplink copper SFP slots.
1.Functional Features
- High Stability with low cost and flexible networking construction
- Two fixed PON slots with 1:64 splitting ratio at most
- FD1002S could support 128 ONU maximally
- Maximum Transmission distance:20km (1:32 splitting ratio)
- Comprehensive Network Management
- In band and out band management;
- Support Telnet and local command lines management;
- EMS management based on standard SNMP protocol;
- Support online upgrading.
- Powerful QOS Function
- Realize stable and efficient dynamic bandwidth allocation (DBA)
- Various OAM Function
- ONU auto-detection and registration;
- Support LGMP and Snooping function;
- Support port flow control and flow shaping.
2.Typical Application
3.Specification
Item | Parameter | Specification |
Ports | Uplink Port | QTY:4 Physical interface: 10/100/1000M auto-negotiable,RJ45:2pcs; GE SFP ,1000BASE-LX :2pcs |
PON Port | QTY:2 Physical Interface:SFP Slots Connector Type:1000BASE-PX20+ Max splitting ratio:1:64 | |
Management Port | 1*10BASE-T out-band management port 1*Console management port | |
OLT PON SFP | Transmission Distance:20KM PON port speed: symmetrical 1.25Gbps Waves: 1490nm TX,1310nm RX TX Optical power : +2.5~+7dBm RX Sensitivity: -28dBm | |
Management | Management Mode | SNMP,Telnet,CLI Support EMS centralized management based on C-Data development interface independently. |
Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management | |
Functionality | Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.3x flow control Port stability statistic and monitoring |
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlanseparation ,RSTP,etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy | |
Physical Features | Dimension Weight | 440mmX208mmX44mm(LxWxH) GW:4kg NW:3KG |
Power Supply Consumption | 90~264VAC 16W | |
Operating Environment | Working Temperature: 0~50℃ Storage Temperature: -40~85℃ Relative Humidity: 5~90%(non-condensing) |
4.Order Information
Product | Model | QTY | Unit | Configuration |
1U EPON OLT | FD1002S | 1 | Set | 1U EPON OLT with 2 PON slots ,220V(110V) AC power supply; The default configuration is 2pcs of OLT SFP without uplink SFP. |
Uplink SFP | SFP-GFX-D20 | 1~2 | PC | Optional; when the uplink port is optical port , it would be taken into consideration. The default configuration is 20KM dual fiber . |
OLT PON SFP | OLT-SFP-PX20 | 1~2 | PC | The default configuration is 2pcs;at least 1pc ;2 pcs at most. |
Our Services
1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty.
4.Technology support: On-site technical support, Telemaintenance, Free call and E-mail technology supports.
5.Training service support: Provide free training service on installation and debugging.
