Waste Rubber Crushing Equipment Crumb rubber crushing machine waste tire rubber cracker machine
- Category: >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (667561878):
Product Overview
Description
Waste Rubber Crushing Equipment Crumb rubber crushing machine waste tire rubber cracker machine
1.Make waste tire break into powder;
2.28-30mesh rubber powder
3:no waste of the whole line
Promotion Now!
Who we are?
Qingdao Chaoguangyue Industry Co.,Ltd is one of the important backbone enterprises in rubber machinery and textile machinery industry in China and is one member of Shandong machinery union company.The company owns powerful technical strength,advanced technic,the best design and strict quality guarantee system,which owns a high reputation in China rubber machinery industry.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas,such as America,Japan,Korea,India,England,Germany,Russia,Pakistan etc.
The main products are vulcanizing tank,plate vulcanizing press,open mixing mill,rubber kneader,rubber extruder,used tire recycling machine,used tire retreading machine,rubber machinery and textile machinery.All of the products are designed visually by three-dimension CAD design,quickly built module,limited element analysis,analogue action and interfering inspection.The combination of three dimension CAD system and internet guarantees the synchronization with international advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time,the company keeps good contact with several universities and researh institutes.
Factory direct sales,with high quality and competitive price
Product Description
Process flow
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
Features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2),adopt automatic control system for whole line, reduce labor cost;
3),no sewage and waste gas discharge, environment protection.
4), available capacity range of our tyre recycling lines at present: 400~2000kg/h
5), available finial rubber powder size: 20~120mesh.
1. Ring cutter
Function: will whole tire cutting into tire crown, the side of the tire and inner circle
Power | Blades rotating speed | Adapt tire | Productivity | Dimensions | Weight |
3kw | 15R/MIN | 650-1200 | 30strips | 1150*850*1200 | 0.5t |
2. Strips cutter
Function: various tire, glue, glue board piece cut into long strips
Power | Productivity | diameter | Output size | Equipment size | weight |
4kw | 20strips/h | 650-1200 | 25-55 | 1230*650*1580 | 0.8t |
3. Rim cutter
Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.
4. Steel wire separator
Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation

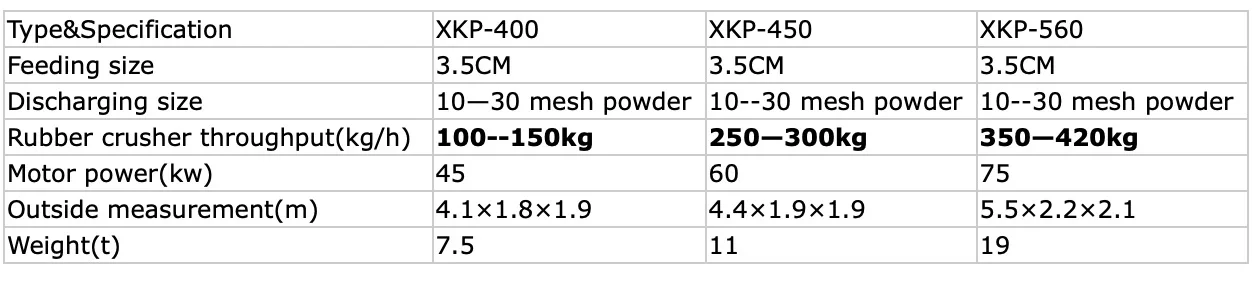

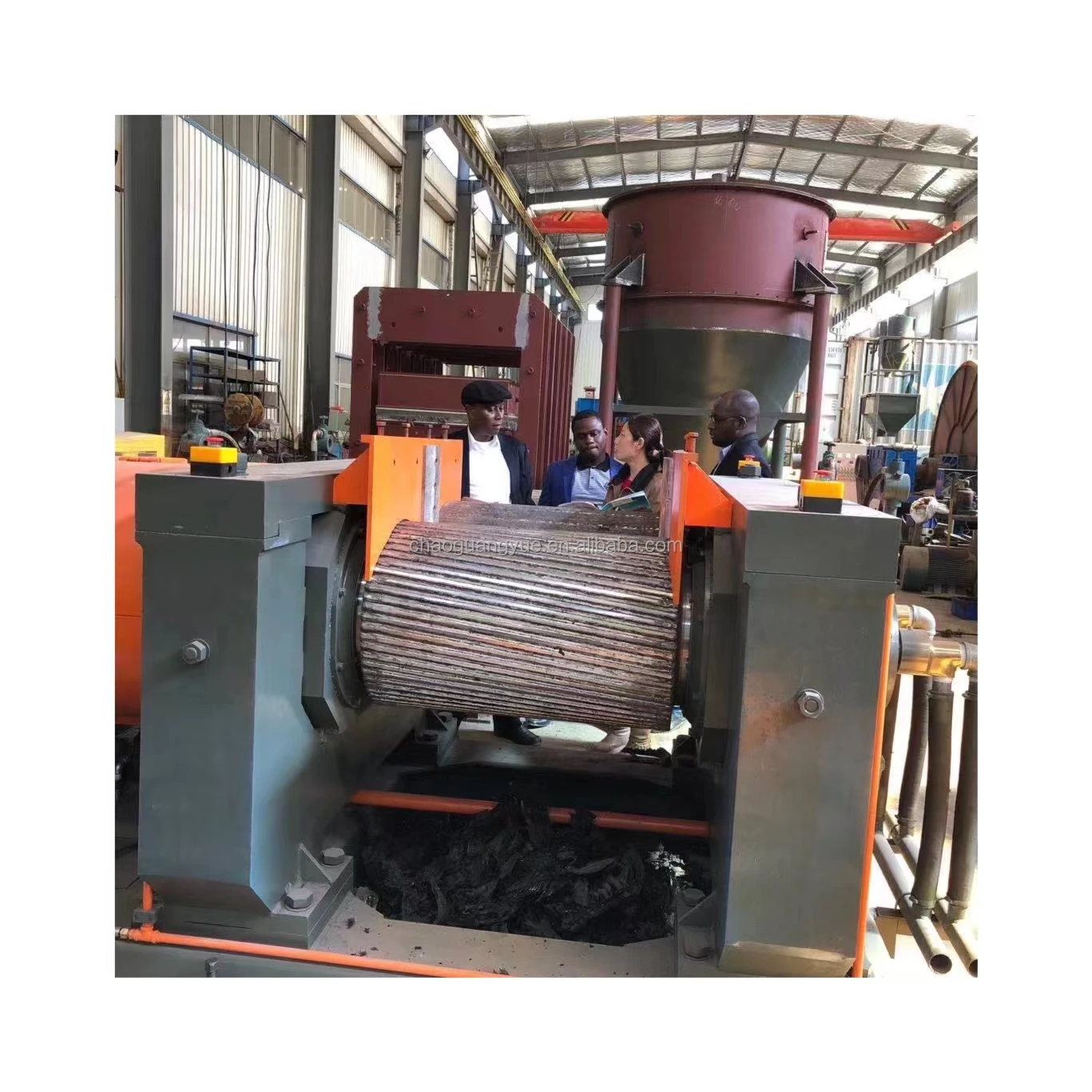

5.Rubber crusher
Advantage of our rollers:
1.The material of our rollers adopts 5Cr6MnMo, which is very strong and wear resistant. It is life-long time using, no need to change, only welding and polishing after long time using.
2.Our both rollers are grooved , the crush ability is stronger.
While most others use one grooved roller, one smooth roller and they usually adopt cast iron or cast steel for the rollers, so it will be very easy to break.
3.The speed ratios of our rollers is 1:2.5, others are 1:1.30. As we all know, the bigger speed ratio difference is, the bigger friction, and the bigger capacity you get.

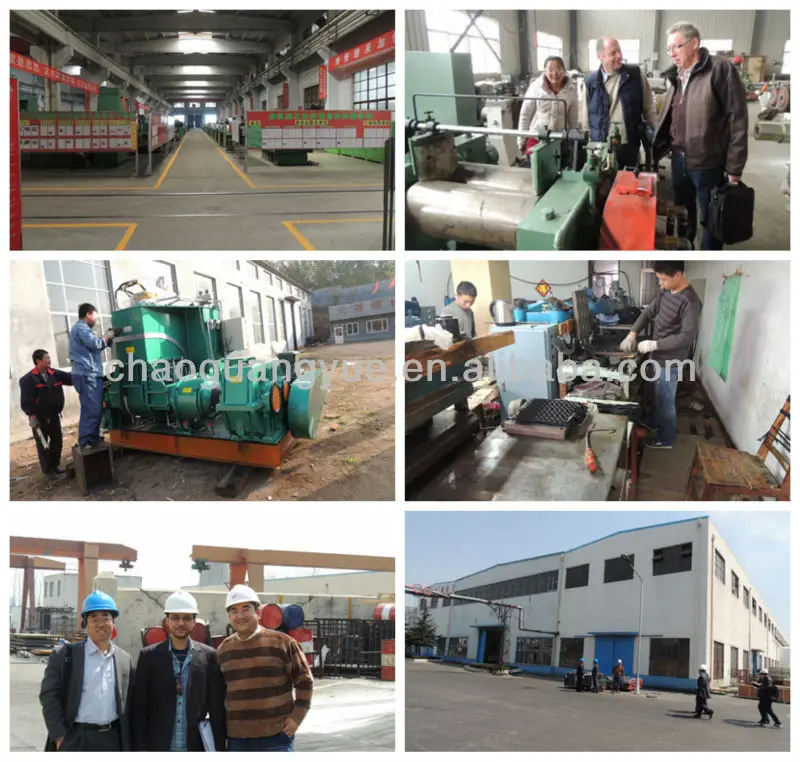

Exibition&Customers
Exibition & Customers
Certifications
All the product are CE,ISO,SGS Approved.
Packaging & Shipping
Packaging Details: Wood Pallet & Film Wrap
Delivery Detail: 60 Working Days Since Down Payment
Our Services
1.pre-sale services
Act as a good adviser and assistant of client enable them to get rich and generous returns on their investments.
1)select equipment model
2)design and manufacture products according to clients' special request
3)train technical personnel for clents.
2.services during the sale
1)Recheck and accept products ahead of delivery
2)Help clients to draft solving plans
3.after-sale services
1)provide considerate services to minimize client's worries.
2)Help client to solve the assembly question
3)take responsibility if any technical problem
FAQ
Q:Are you factory or trading company?
A:We are a manufacturer with over than 15years of experience in Rubber Machine.
which include: plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc
Factory Add: Huang Shan Economic Zone, Jiaonan, Qingdao, Shandong, China (Mainland)
Welcome your visiting and we can arrange our driver to pick up you.
Q:What advantages do you have?
We have15 years trust of our customers. Guarantee Quality and timely Delivery !
Skilled QC staff and do the best quality control,Fast shipment as per customers requirement.
Q: What are your delivery times?
The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
Q:What kind of surface treatment do you provide for your goods?
Galvanized ,chrome coating or powder coating are available. We can also make it according to our customer’s requirement.
Q:I’m not sure about your product, can you send me sample for reference?
Our standard product samples are free of charge except for the freight fee.
For customized products, sample fee as well as the freight fee are charged.
