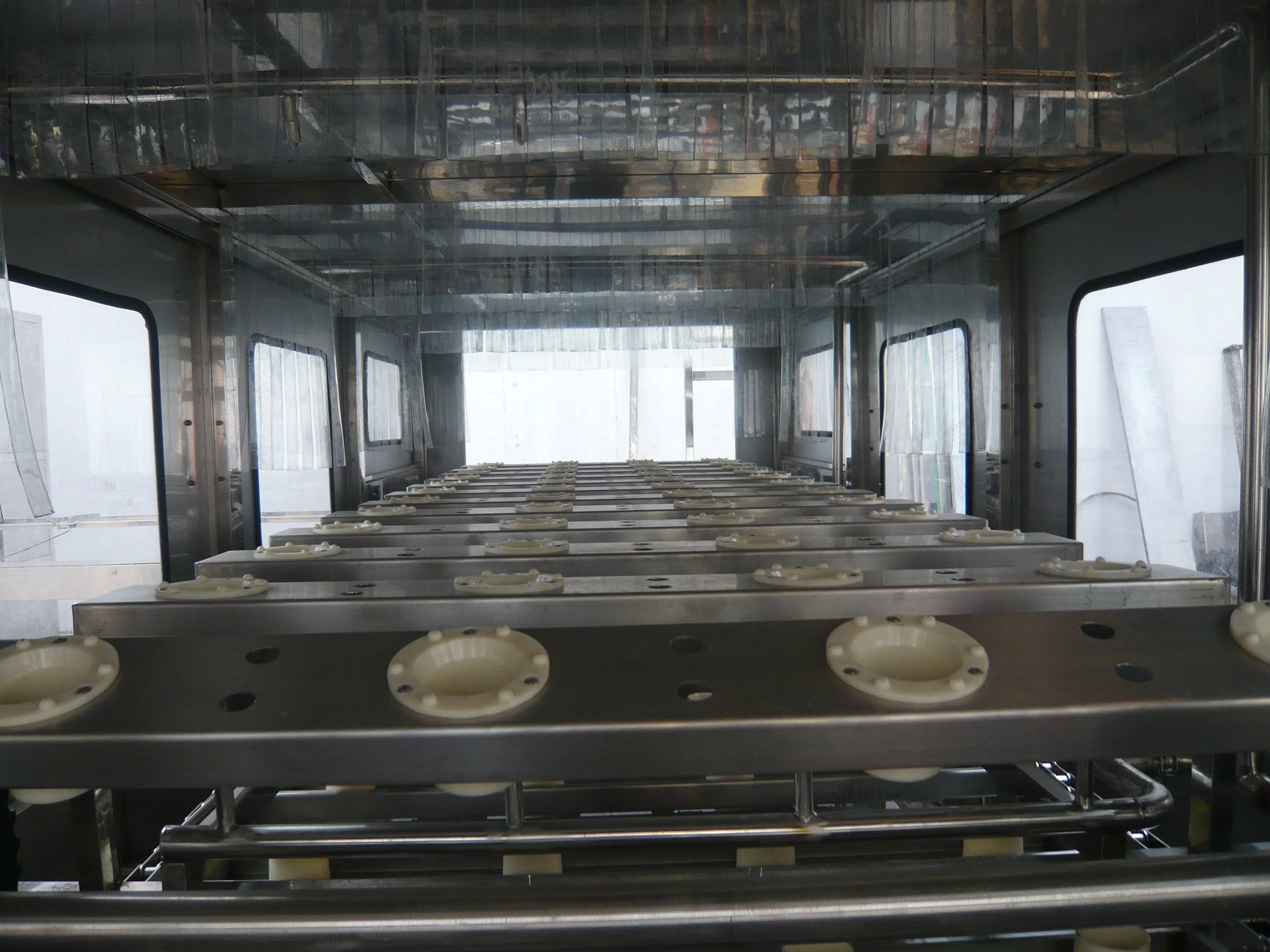

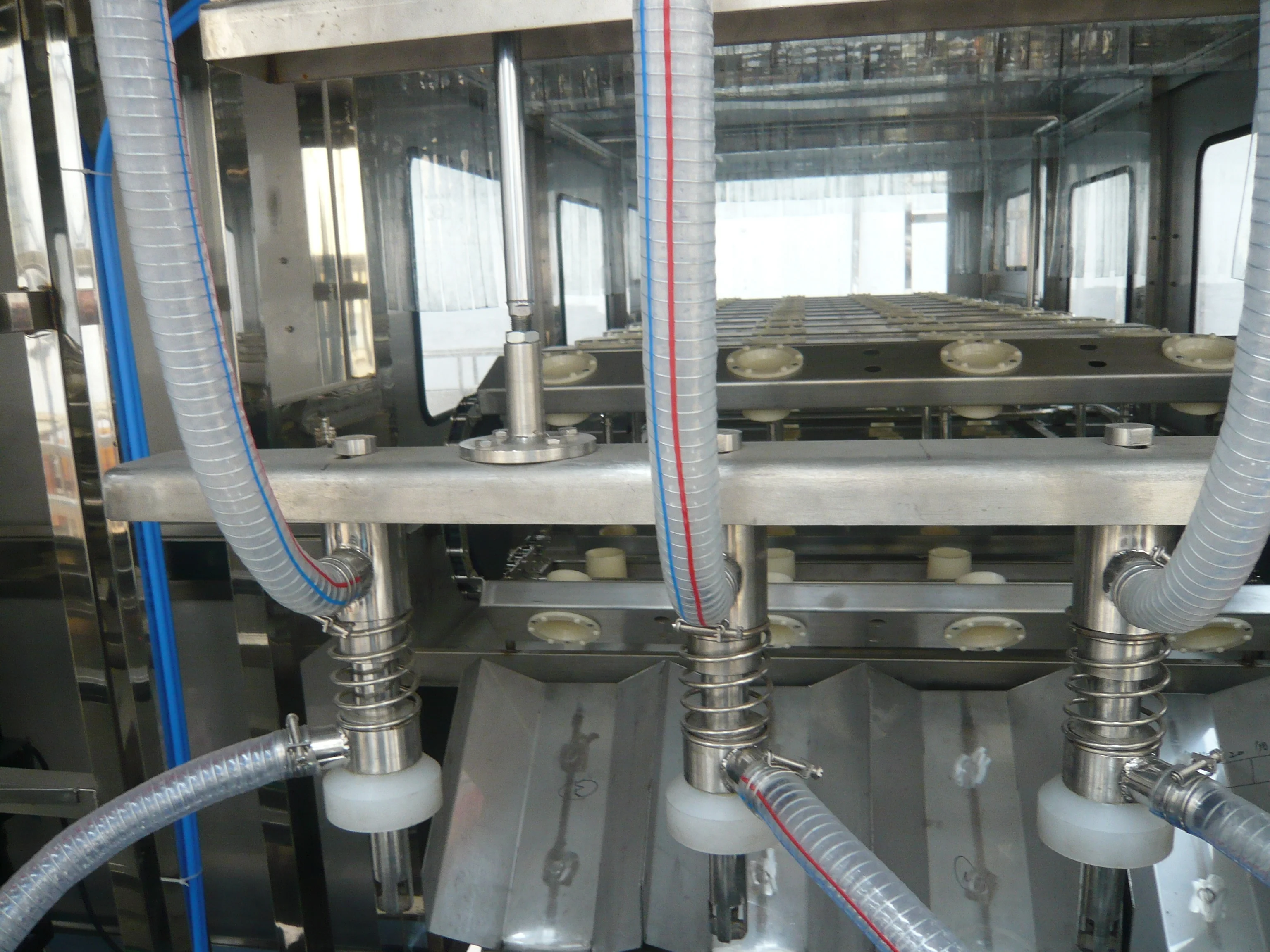

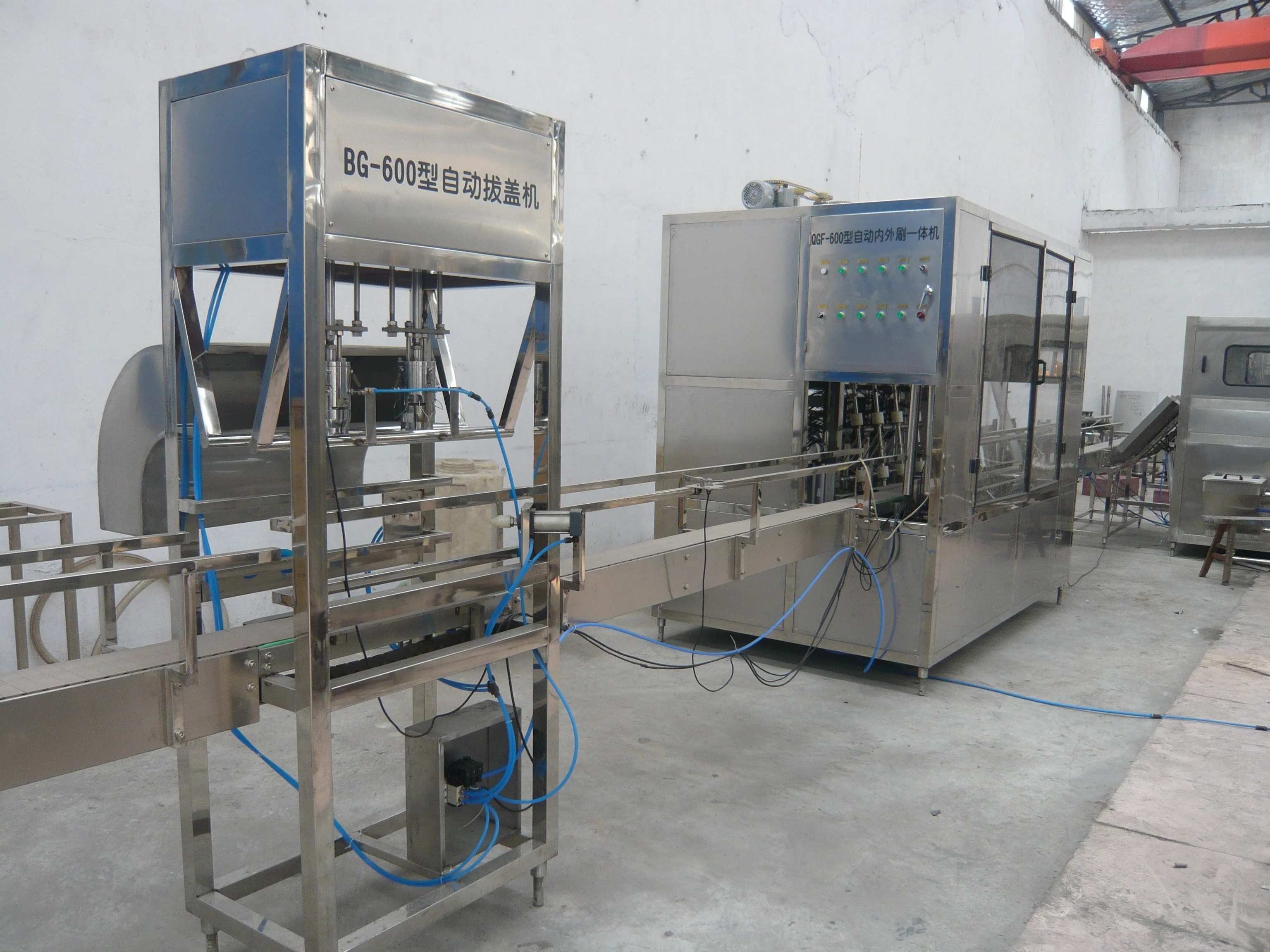

This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.ltintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which integrates mechanism,electricity and pneumatics technologies together.
Main Technical parameters
Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
QGF-2000
Filling heads
1
2
3
4
8
12
16
Volume(L)
18.9
18.9
18.9
18.9
18.9
18.9
18.9
Barrel size(mm)
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
Capacity(B/n)
100-120
200-240
300-400
600
900
1200
2000
Gas pressure(mpa)
0.4-0.6
0.4-0.6
0.6
0.6
0.6
0.6
0.6
Gas consumption (m3/min)
0.37
0.6
0.6
1.2
2.2
3
4.5
Motor power(Kw)
1.75
3.22
4.8
8.5
8.5
8.5
8.5
Rated voltage(V)
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
Outline dimension(mm)
3790×650 ×1550
3550×800 ×1800 2800×1100 ×1800
3550×1200 ×1800 3800×1100 ×1800
3650×1500 ×1800 3800×1100 ×1800
2200×1860 ×2700
2560×2350 ×2750
3100×2800 ×2750
Weight(kg)
800
2800
4000
5500
7500
9500
11800
Packaging & Shipping
Our Services
After-sale service: We provide one year guarantee and life-time technical support.
