GSM Fixed Wireless Terminal 8818 with LCD and backup battery

Product Overview

Description

Features and Functions

1) LCD display GSM FWT,Simple to install and easy to maintain

2) Steady module(SIM500W,300W,Quectel M35) and reliable design ensures good performance

3) Provides optimized circuit directly connecting the exchange device for extensions

4) Compatible to most telephones, PBX (for call extensions), Alarm panels (for security) and VoIP gateways (for call terminations)

5) Strong signals with high gain antenna

6) Attractive plastic casing

7) SIM card supported (1.8V, 3V)

8) Caller ID display

9) Provides reversal polarity signal for metering

10) No noise and clear voice

11) Suitable for wide voltage range and low power consumption

12) Suitable for all kinds of weather and environmen

13) RJ-11 ports

14) Locking PIN / network (optional)



Specification

1) Air interface standard: GSM 900 / 1,800MHz phase 2+

2) Frequency ranges:

     a) GSM 900:

         i) Transmission: 890 ~ 915MHz

         ii) Reception: 935 ~ 960MHz

     b) GSM 1800:

         i) Transmission: 1,710 ~ 1,785MHz

         ii) Reception: 1,805 ~ 1,880MHz

3) Channel space: 200kHz

4) User line, bell signal: in line with GB/T15279

5) Max power: 0.25W / 0.5W

6) Consumption:

    a) Immobility: less than 25mAh

    b) Transmission: less than 400mAh

7) Sensitivity: -105dB

8) Dial tone frequency: 450MHz (standard)

9) Surrounding temperature: -10°C ~ +40°C

10) Relative humidity: 45% ~ 90% (without frost)

11) Atmosphere pressure: 86 ~ 106KPa

12) Environment noise: <60dB

13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction / chosen direction)

14) AC power: DC 10V - 20V

15) Input: AC100 - 230V, 50 / 60Hz

16) Output: 12V 1A

17) Switching type / transformer type AC adapter (optional)

18) Connector of power: EU/US/AU type (optinal)

19) Dimensions (L x W x H) (average): 185 x 135 x 22mm

20) Weight:

a) FWT: 350g

b) Full set with AC adapter, antenna and box: 650g

21) Colors: white / black (optional)

22) Connection mode: RJ-11 phone sockets

23) Antenna connection: SMA antenna connection



Standard Compontent



Item	Qty	Remarks
GSM FWT-8818	1
Manual	1
Power Supply	1
Antenna	1	3m cable antenna with magnetic base











Packing



Inner box MEAS
G.W./unit	0.65kg
Carton MEAS	55*34.5*32.5cm
G.W.	14kg
PCS/CTN	20pcs

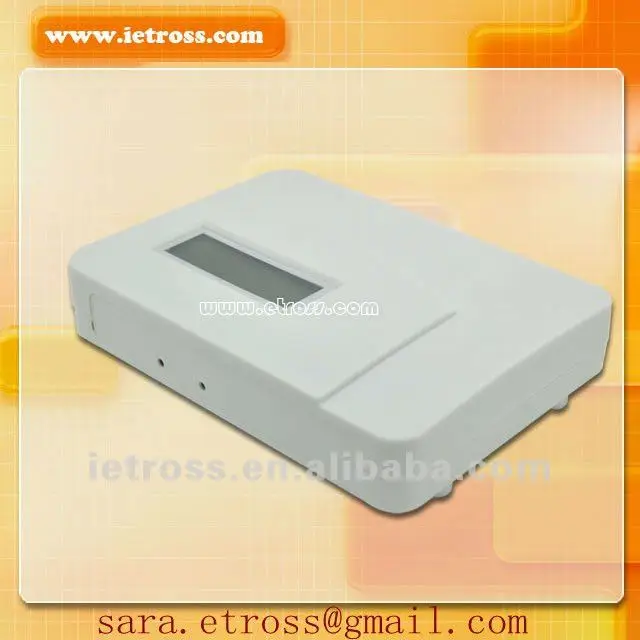

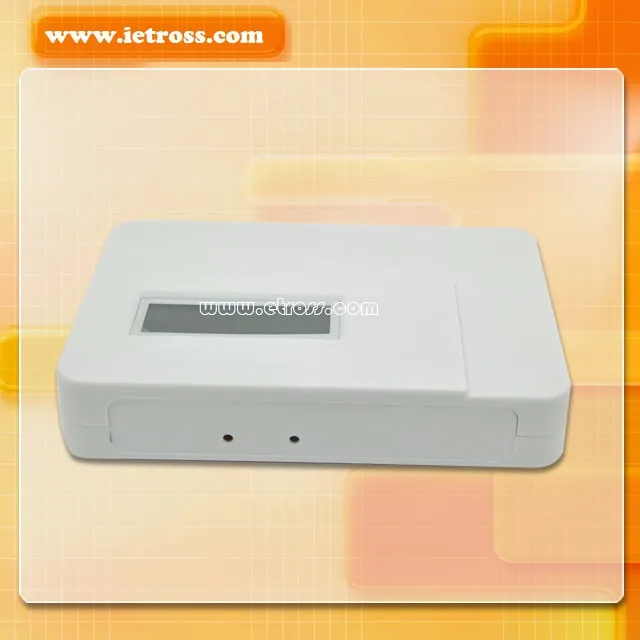

Front  view: Fresh new LCD display

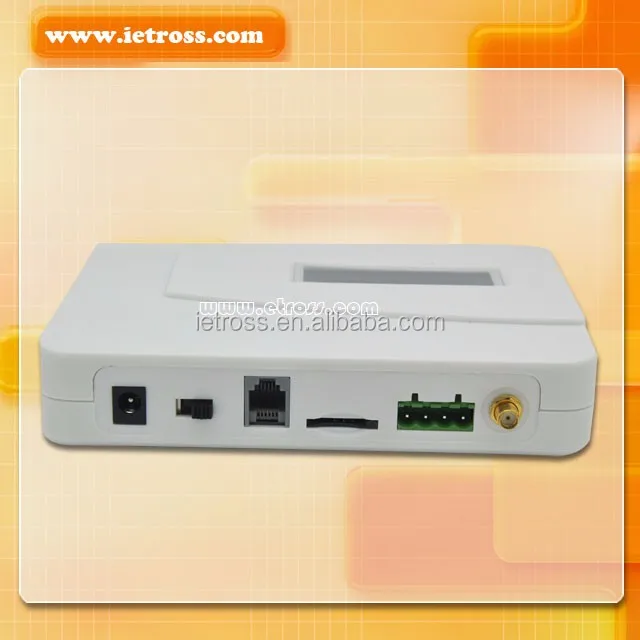

Back view: Easy to install sim card

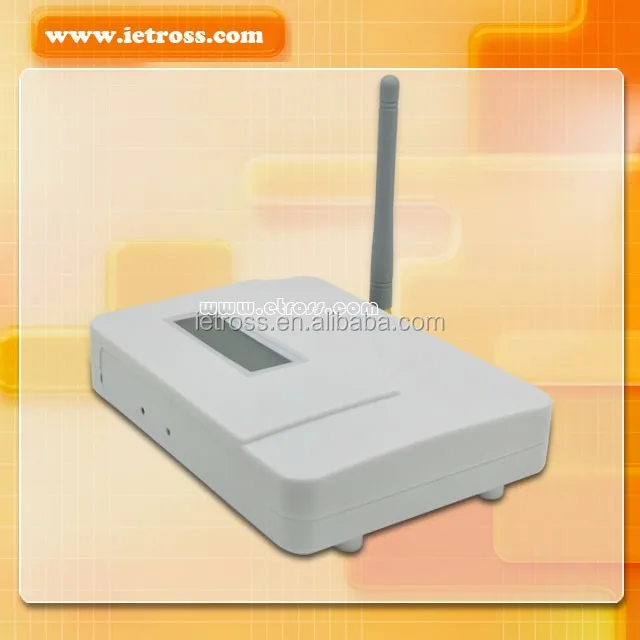

Flank view:
