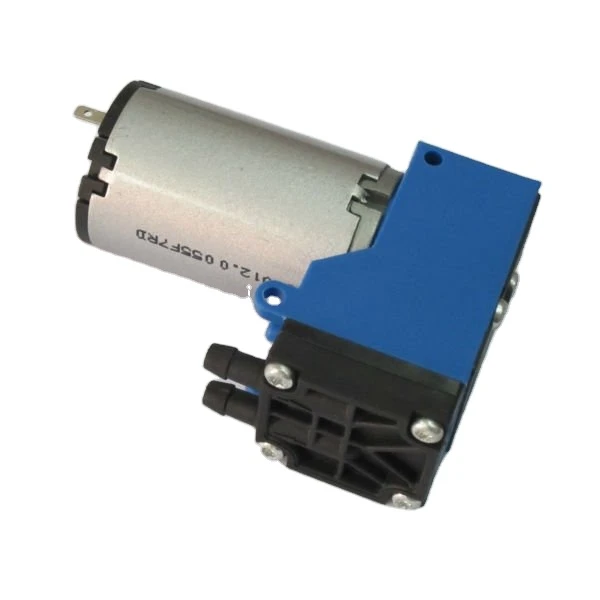

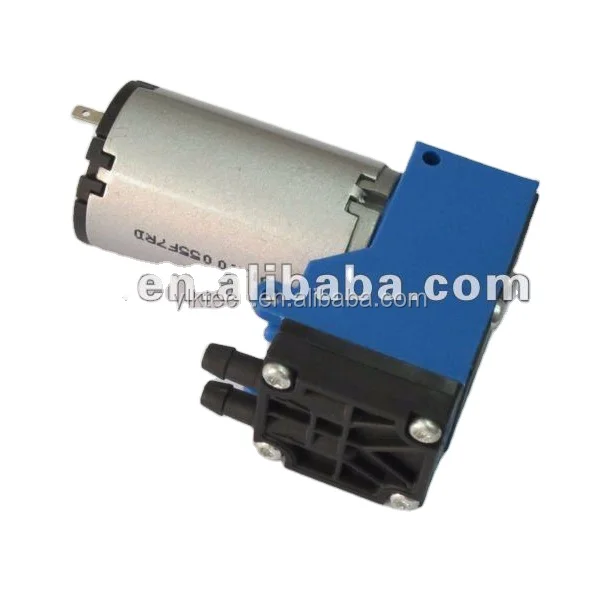

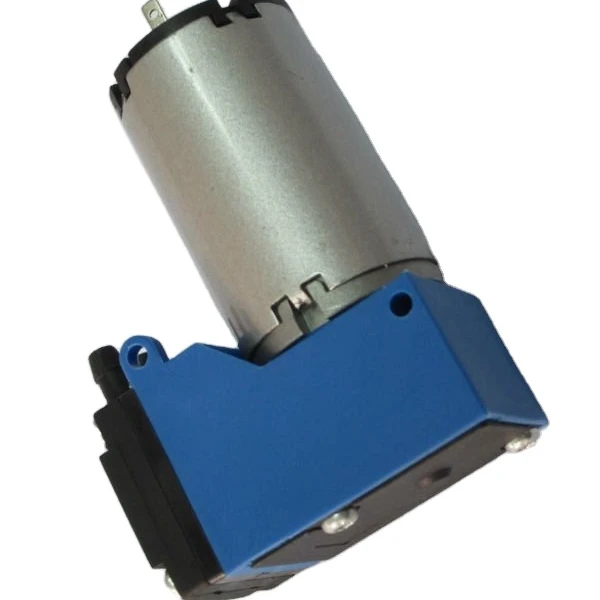

WA55EEDC Electric Piston Air Pump 12V 24V Diaphragm Pump for Low Pressure Vacuum Customizable OEM Support
- Category: >>>
- Supplier: Wuhan Ylk Technology Co. Ltd.
Share on (669280262):
Product Overview
Description
piston air pump
Rated voltage | DC6V | DC12V | DC24V |
Rated current | 1A | 0.5mA | 0.3mA |
Operating voltage range | DC3-6V | DC6-12V | DC10-24V |
Free flowing | 4L/M | 4L/M | 4L/M |
Max. pressure | 1.8Bar | 1.8Bar | 1.8Bar |
Max. vacuum | -65KPa | -65KPa | -65KPa |
Ambient temperature | 0-40 °C | 0-40 °C | 0-40 °C |
Weight | 190g or 230g | ||
Typical Applications
Gas detection devices | sewage disposal |
Patient Monitoring | Wide-Format Printer |
Blood Pressure Monitor | Bio-Chemical Analyzer |
Gas massage products | electrolyte |
Lab equipment | beauty equipment |
Microplate Washer | chemistry analysis |
Air Sampler | vacuum transfer |
Automatic Tourniquet | Autoclave |
Can be mounted in any plane
applicable as vacuum pump or pressure pump
Parts in contact with medium Option
Pump head: Polyarylamide Polyphenylensulfid (PPS)
Diaphragms, valves: NBR Viton, EPDM, Teflon
We can design according to customer requireme
