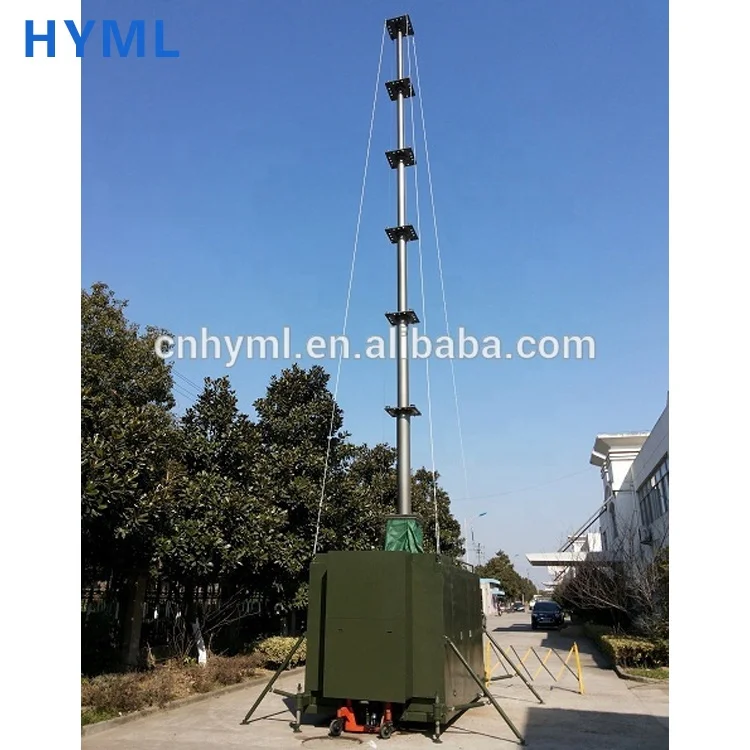

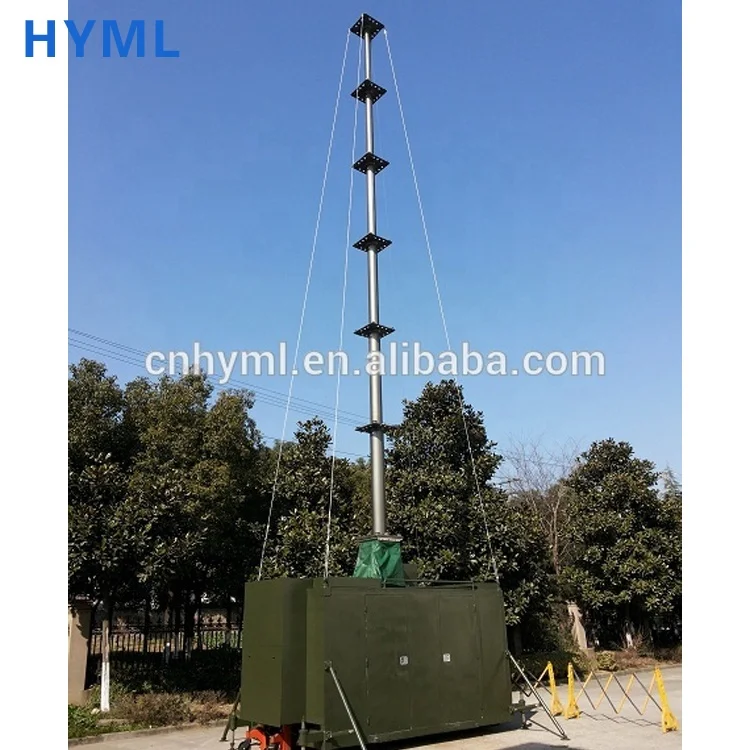

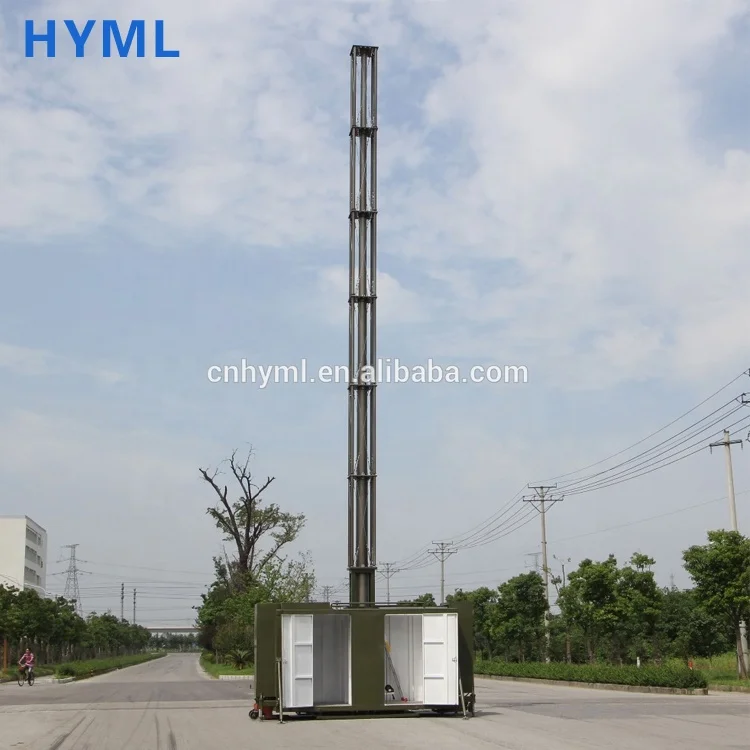

15m telescoping antenna masts tower and mobile telecom antenna tower mast in shelter

Product Overview

Description

Introduction

  The product was originally developed for foreign customers, and its design requirements as follows :

 1. The total lifting height of the telescopic mast : 15-20m

2. telescopic Mast Design top load: ≤300Kg

3. To meet the topload mounting : radar or microwave antenna

4. Telescopic mast wind resistance: without rope, 10 scale,  with rope , 12 scale

5. Telescopic mast torsional capability:  ≤0.25 °, 40Nm

6. Mast environmental adaptability: -40 ~ 60 ℃

7. Mast carrier: steel or steel frame shelter

8. Transport equipment height requirements: <4m (including vehicle height)

 9. Transport Equipment width requirements: <2.5m

10. The equipment can be moved in a short distance

11. the equipment must be achieved dump, without using any crane, forklifts and other equipment

12. Transportation Requirements: ordinary flat truck, more than 6T load and length above 6m

13. Moving, handling, setting up in the short distance,it can be done manually

14. The number of working: 4 people

15. The working time requirements: <2h, do not include installation and testing payload

16. the equipment should have anti-tipping design and device.

17. The equipment should have leveling design and device

18. Mast should be have level testing device

19.The equipment water resistance performance: rain

20. The whole anti-corrosion requirements: hard anodized aluminum, galvanized steel, black, spray



In order to meet these requirements, after repeated demonstration and careful design and manufacturing, HYML creates this products to fill a number of gaps in the technical field and welcomed by users.

If you need details on this product, please contact us, we can provide a complete video information.
