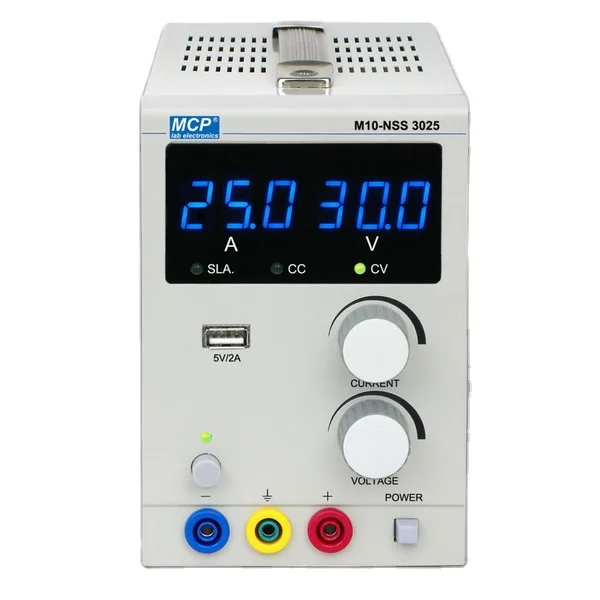

MCP M10 NSS3025 750W SWITCHING POWER SUPPLY 30V 25A 60V 12A

Product Overview

Description

M10-NSS SERIES SWITCHING POWER SUPPLY



Features

. .750W power output
.Constant voltage and constant current
.More units parallel operation
.Remote programmable via USB to computer
.10 programmable sets of voltage and current
.Protection voltage and current settable.
.Rotary encoder knob with definitive action of fine and coarse  tuning
.USB charger 5V/2A



Specifications

.Line Regulation:  CV 1×10^-4+2mV CC 1×10^-4+1mA

.Load Regulation: CV 1×10^-4+4mV CC 1×10^-3+3mA (I<10A)
                             CV 2×10^-4+4mV CC 2×10^-3+3mA (I≥10A)

.Ripple & Noise (RMS): CV 10mVrms, CC 10mArms

.Switching frequency: 60kHz

.Display Accuracy:  Voltmeter ±(0.2%Rdg+2digits)                                 Ampmeter±(0.2%Rdg+5digits)

.Input Voltage: 110VAC±20%, 220VAC±20%, 50Hz/60Hz,  Switchable

.Full load input current: 4.35 (at 220VAC input)/8.7 (at 110VAC  input)

.Efficiency: 80%

.Protections: over voltage, over current, over heat

.Tracking over voltage protection: set voltage +1.5V

:Tracking over current protection: set current +1.5A

.USB output: 5V/2A

.Dimensions: 100(W)×160(H)×320(D)mm

.Weight: 3kg



Model	Output voltage	Output Current
M10-NSS3025	0~30V	0~25A
M10-NSS6012	0~60V	0~12.5A
