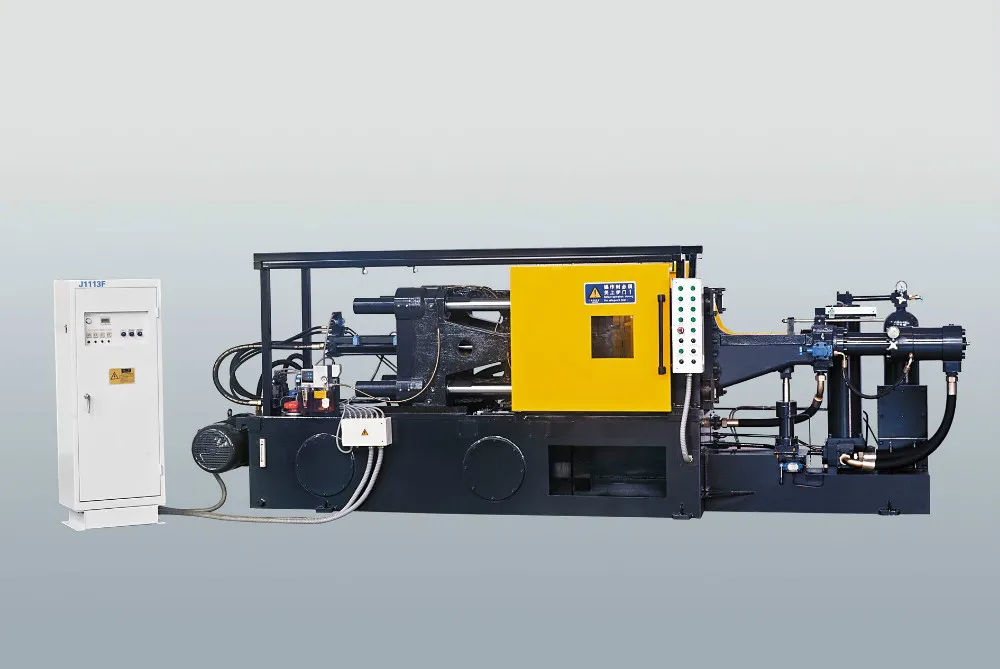

Машина для литья алюминия холодной камеры 130T
- Category: >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (670022363):
Product Overview
Description
Features and applications of
130Ton copper/brass,aluminum, zinc Horziontal die casting machine
- 130T Cold Chamber die Casting Machine
- Suitable for aluminum,zinc and copper alloy
- Computer-programmed control
- 4-rod pilot elastic framework for more faster and reliable
- 3-step hydraulic boosting and injecting system for more effective
- Efficiency: maximum injection rate over 6m/s
- minimum boosting time less than 25ms
This cold chamber aluminum injection machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in the industries of automobiles, motorcycles, meters and instruments, household appliance hardware of daily necessities.
The die casting machine with Computer-programmed control;hydraulic drive; crank expanding structure; 4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic ejector for lift-out, mould thickness can be controlled by hydraulic motor; 3-step hydraulic boosting and injection system that is constant and effective; injection rate over 6M/S and minimum boosting time less than 25ms.
This metal die casting machine is superior in performance, high in productivity and smooth in operation. It is advantageous in technology in China's mainland.

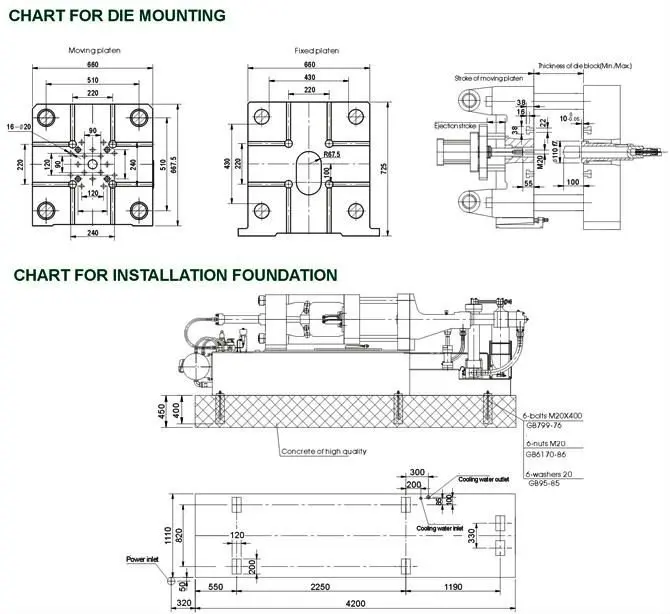

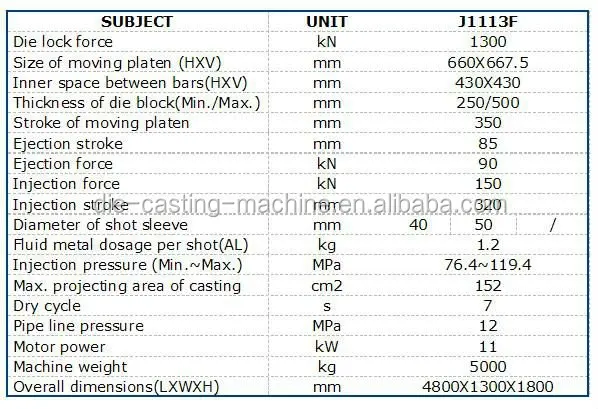

Specifications and Parameters
| the project | the unit | J1113F |
| Die locking force | kN | 1300 |
| Stroke of moving platen | mm | 350 |
| Inner space between the bars(HXV) | mm | 430x430 |
| Thickness of die block(Min./Max) | mm | 250/500 |
| Injection force | kN | 150 |
| Ejection stroke | mm | 85 |
| Ejection force | kN | 90 |
| Diameter of shot sleeve | mm | 40/50 |
| Dosage of fluid metal per shot(Al) | kG | 1.2 |
| Injection stroke | mm | 320 |
| Max.projecting area of casting | cm2 | 152 |
| Injection pressure(Min./Max) | MPa | 76.4-119.4 |
| Dry cycle | s | 7 |
| Working pressure of vane pump | MPa | 12 |
| Motor power | kW | 11 |
| Machine weight | kg | 5000 |
| Overall dimensions(L*W*H) | mm | 4800x1300x1800 |
J1113F 130ton copper pressure die casting machine is also suitable for aluminum or zinc alloy die cast, which is equiped with Mitsubishi PLC and screen,
YUKEN electronic valve
SUNNY vane pump.

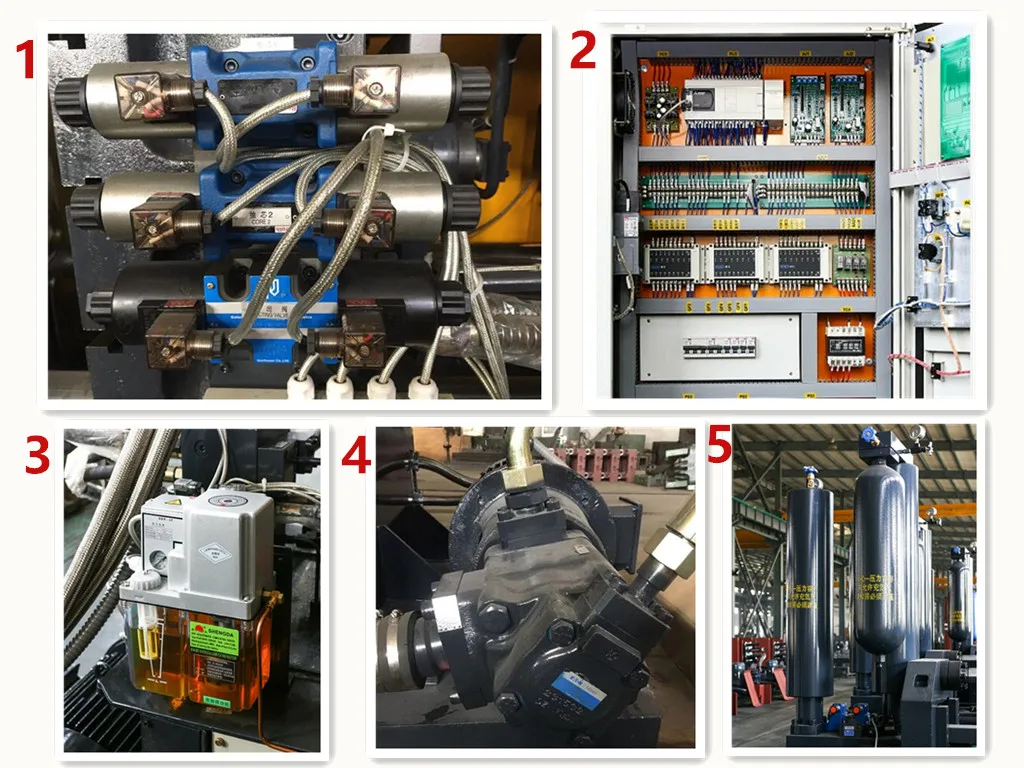

Details pictures of 130Ton aluminum and brass die casting machine
The hydraulic driving system of the machine is open type, which is formed by oil tank, oil filter, oil pump feeding system, driving cylinder (cylinders of die closing, injection, pressurizing, ejecting and dnockout core, etc.), all flow, pressure and direction control valves, accumulator, cooler and hydraulic pipeline, etc.
All hydraulic direction control valvesand pressure valves in the machine are national standard valves, for convenient replacement.
The whole machine is controlled by electric system. Choose automatic Cycle working procedure
normally; during debugging manual operation can be chosen. Through “Manual” and “Automatic”
switch to change the two operation system, viz. the working switch in the electric drawing.

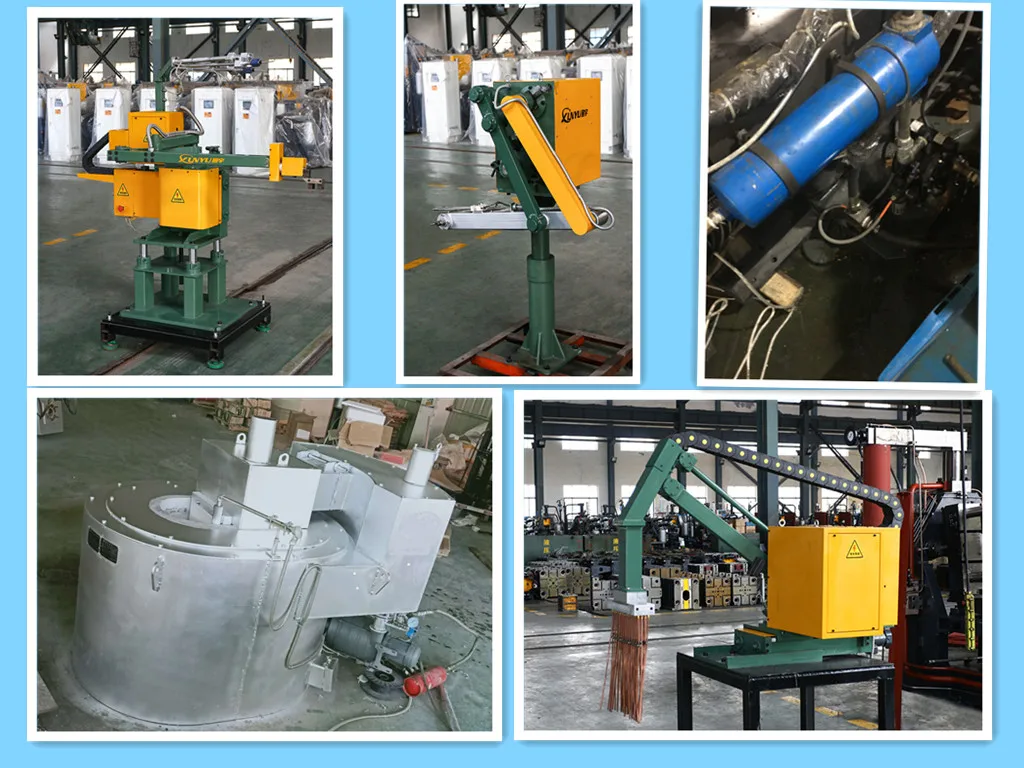

Pls kindly note the all the cold chamber die casting machine can't work automatically itself , if you need the machine work automatically ,you should need the auxiliary machines .The main auxiliary machine has auto ladle ,auto sprayer ,auto extractor and other machine like auto conveyor ,matching machine etc .
Strategy of the Company

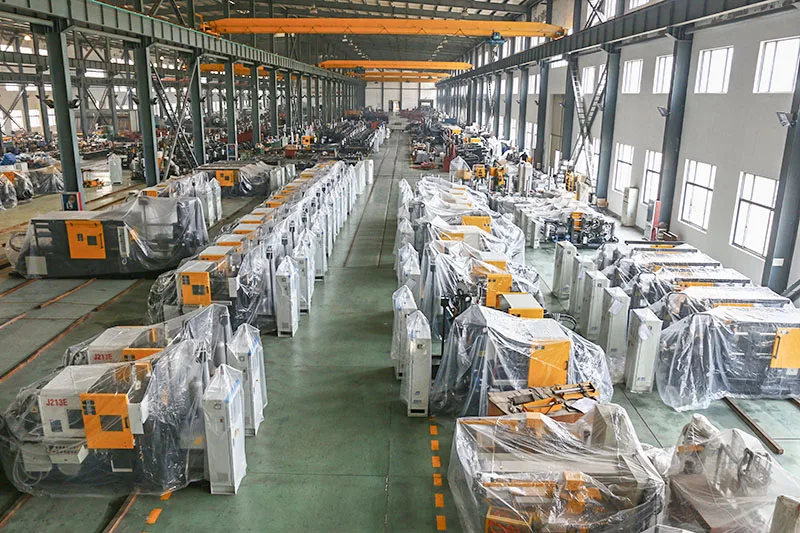

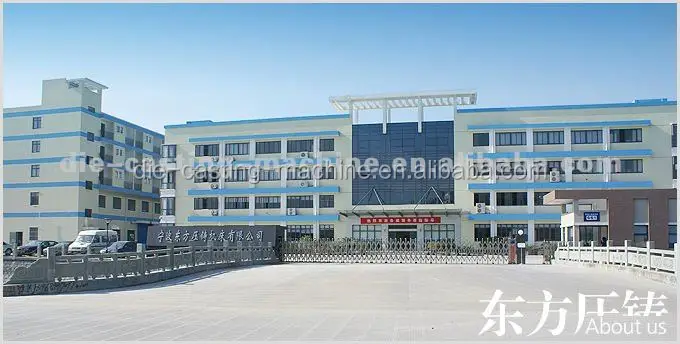

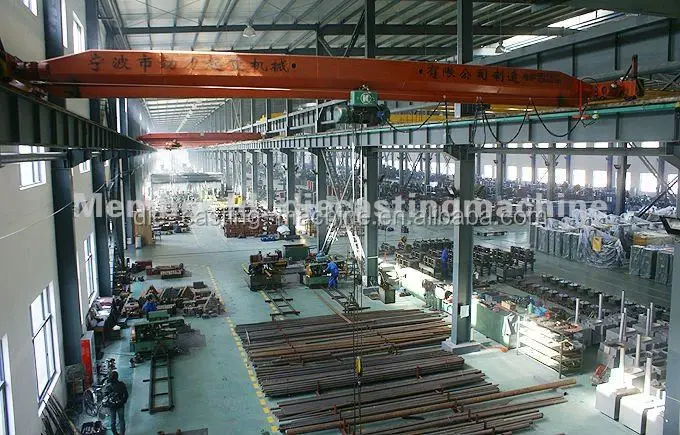

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 40 years, we always have perisistently pursue to provide perfect hot and cold die casting machine and sincere service.
* With a history of over 40 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
If you want to know more details pls contact us without hesitate.
