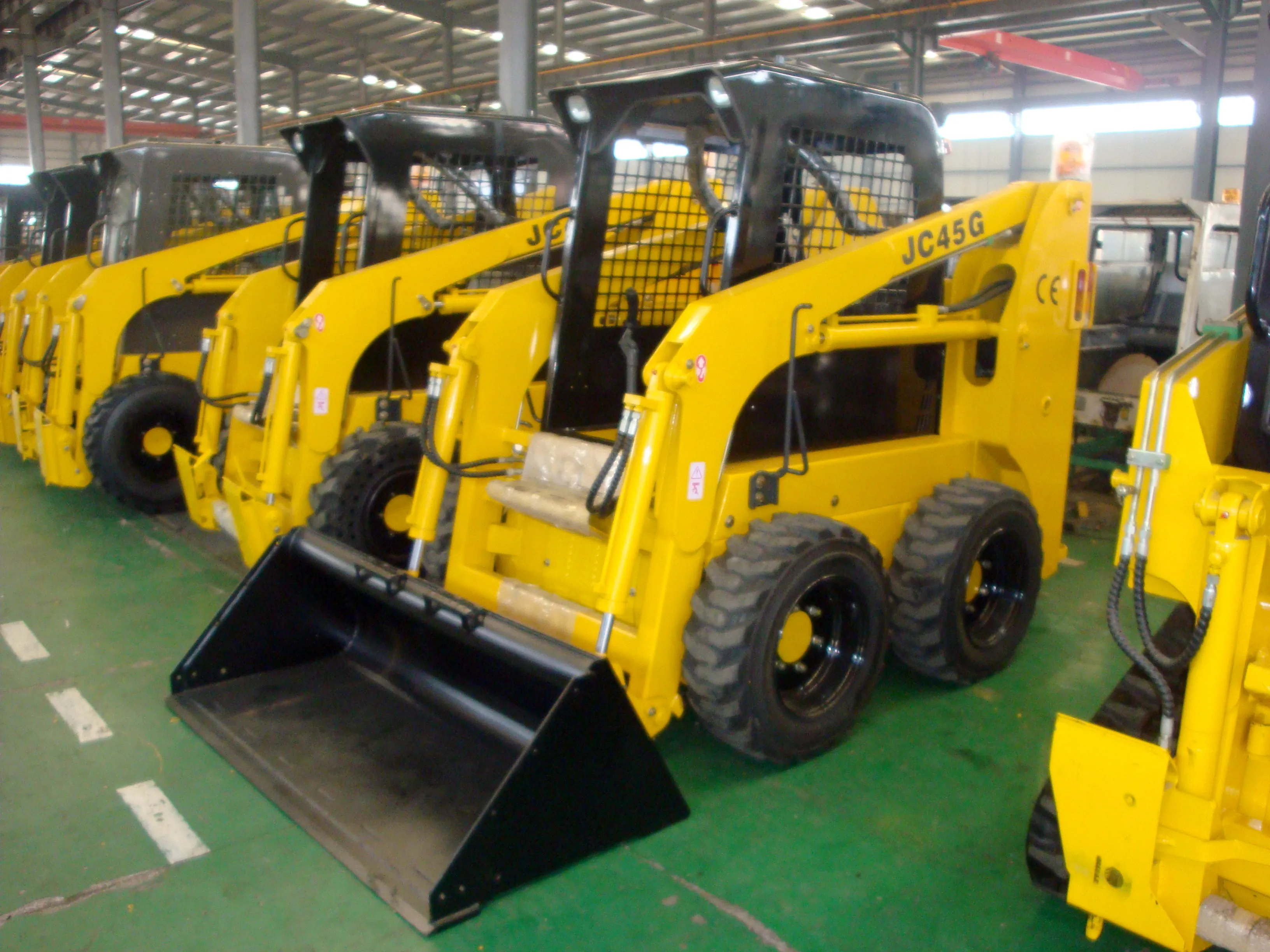

Original factory CE Construction Machinery capacity 700kg skid steer loader
- Category: >>>
- Supplier: Taian Luyue Modern Agricultural Equipment Co. Ltd.
Share on (670113376):
Product Overview
Description
..
Specification For JC45G Skid Steer Loader
Loading Capacity (kg) | 700 |
Rated power (Kw) | 40 |
Max. Speed (km/h) | 12 |
Tire (track) model | 10-16.5 |
Bucket capacity(m3) | 0.4 |
Rated flow(L/min) | 75 |
Tank capacity(L) | 65 |
Weight with bucket(kg) | 3100 |

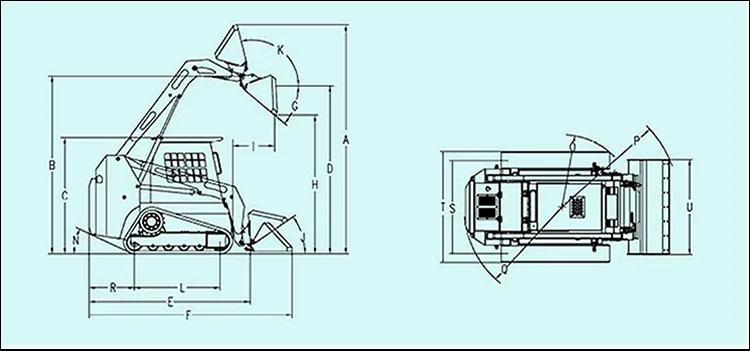

Dimension For JC45G Skid Steer Loader
A | Height at Maximum Extension (mm) | 3980 |
B | Hinge Pin Height (mm) | 3080 |
C | Total Height (mm) | 2140 |
D | Height to bottom o1 bucket(mm) | 2913 |
E | Overall length without bucket ( mm ) | 2640 |
F | verall length with bucket(mm) | 3420 |
G | Dumping angle at maximum height(° ) | 40 |
H | Dumping height(mm) | 2380 |
I | Dumping reach(mm) | 750 |
J | Rollback at ground position(° ) | 30 |
K | Rollback fully raised at max height(° ) | 104 |
L | Wheelbase(mm) | 991 |
M | Ground clearance(mm) | 185 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1168 |
P | Front turning radius(mm) | 1958 |
Q | Rear tuning radius(mm) | 1630 |
R | Rear length (mm) | 1108 |
S | Track width(mm) | 1450 |
T | Width (mm) | 1720 |
U | Bucket width (mm) | 1740 |

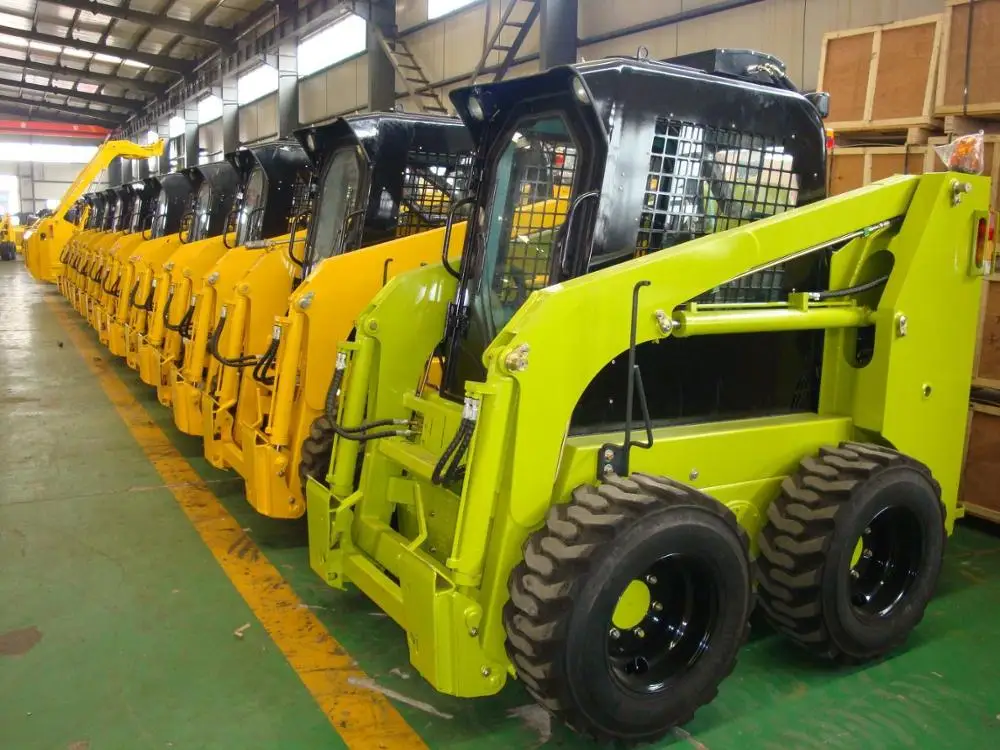

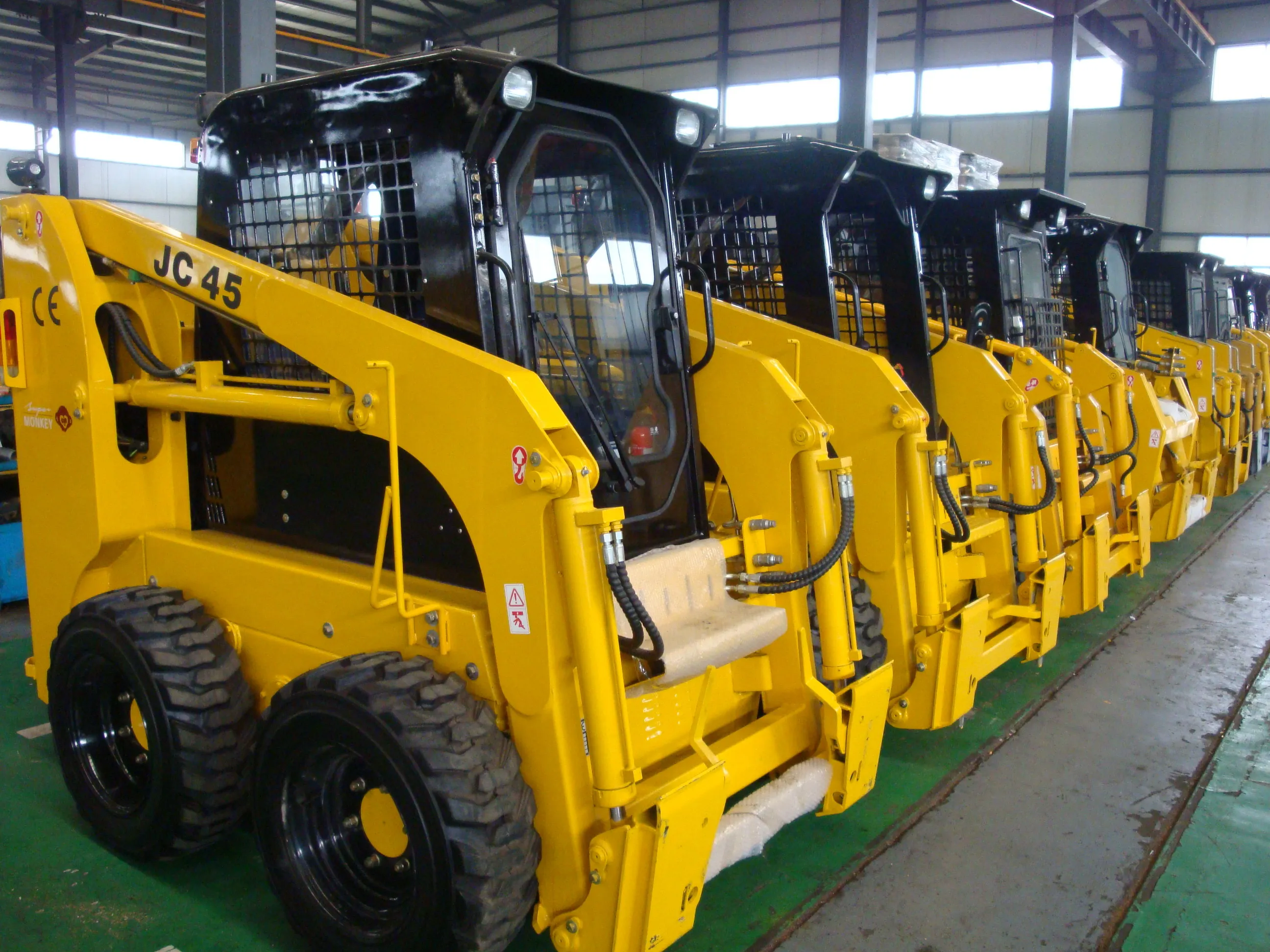

Factory show
We,the first one muanfacturer and exporter of skid steer loader and attachment in China since1993
The original manufacturer of skid steer loader in China.
More than 85% skid steer loader from China are made in our factory.
Product Name: JC&TS Series Skid Steer Loader
Model Number: JC35,JC 40,JC45,JC60,JC65,JC75,JC95,JC120,TS50,TS65,TS75,TS100,TS125
Place of Origin: China
Features:
1. The original manufacturer of JC serial model skid steer loader
2. The first manufacturer and biggest exporter of skid loader and attachments in China
3. 30 years of experience in skid steer loader manufacturing.
4. Certified quality control system and Guarantee System.
5. The fullest and extensive range of skid steer loaders and attachments in China
HOW ABOUT OUR PRODUCTS COMPARED WITH OTHER DEALERS?
Because we are the original manufacturer of the JC model skid steer loader, our product price is competitive. For after-sales service, you can contact us directly without going through the intermediate dealer. This will bring you great convenience
HOW LONG IS OUR PRODUCT WARRANTY?
The guaranteed period for the main parts of our new machine is 12 months commencing from the issue date of the Bill of loading or within 1500 working hours, whichever occurs first.
The main pars include, the engine, the hydraulic pumps, hydraulic control system, all kinds of hydraulic valves, hydraulic motors, hydraulic gear pumps, hydraulic cylinders, radiator, all pipes and hoses, chassis and shafts, quick-attach system and attachments, etc.
WHAT ARE THE TERMS OF AFTER SALES SERVICE?
During the guaranteed period, service of guarantee will be supplied on condition that the machine itself appears to have defects. We will supply the maintenance component parts of the machine free of charge.
We also offer engineer training and technology supporting during machine all life
Overseas engineer service is also available if it is agreed by both parties.
HOW LONG IS THE DELIVERY TIME?
In the case of stock, the delivery time is 7 days after receipt of the balance. In the case of non-stock, the delivery time is 20 days
WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can accept T/T term or L/C term.
(1) On T/T term. 30% by T/T as down payment , the balance will be paid before shipment.
(2) On L/C term. Irrevocable Letter of Credit at sight
