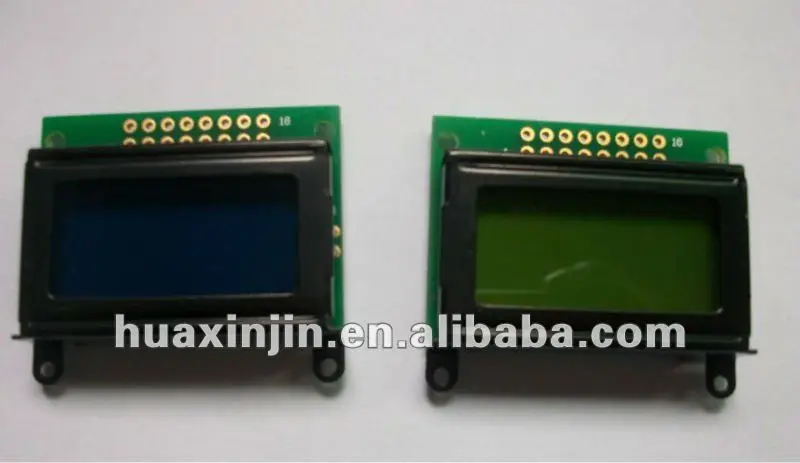

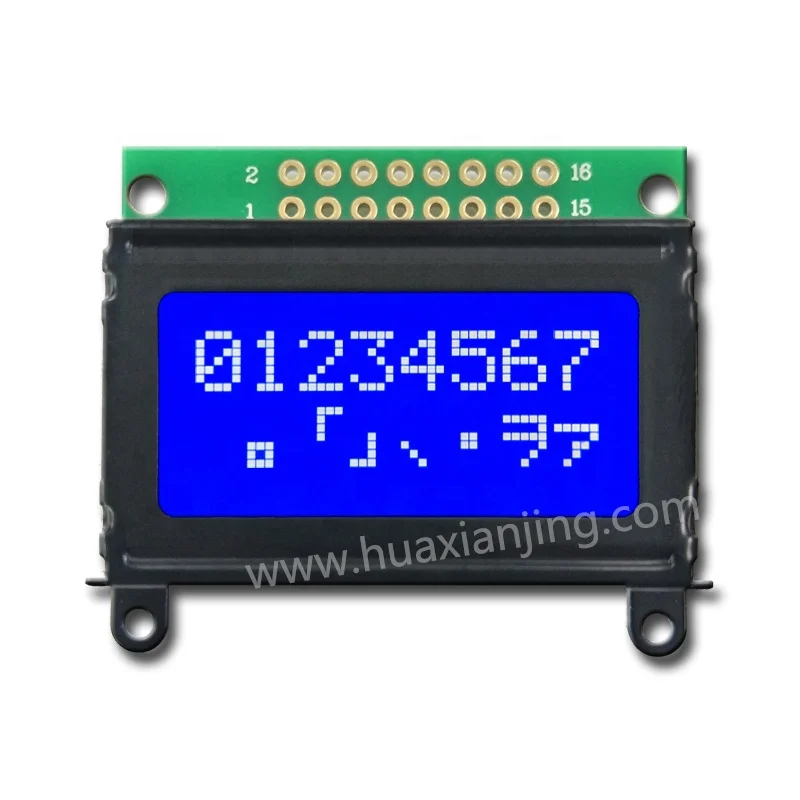

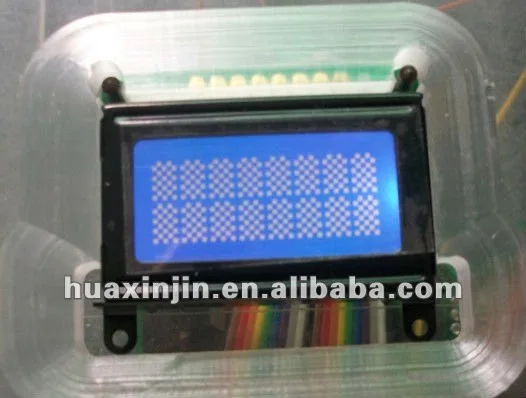

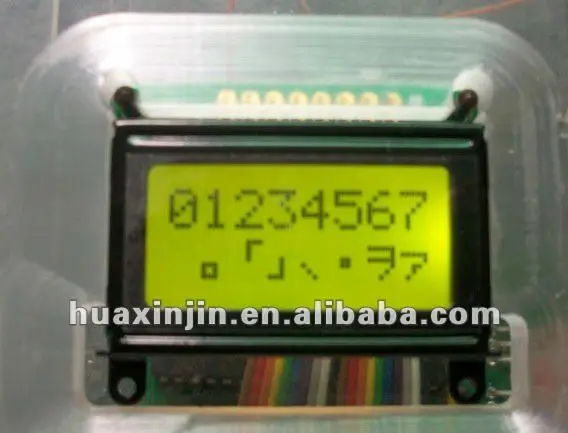

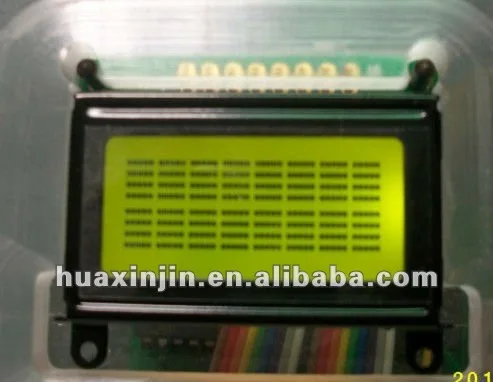

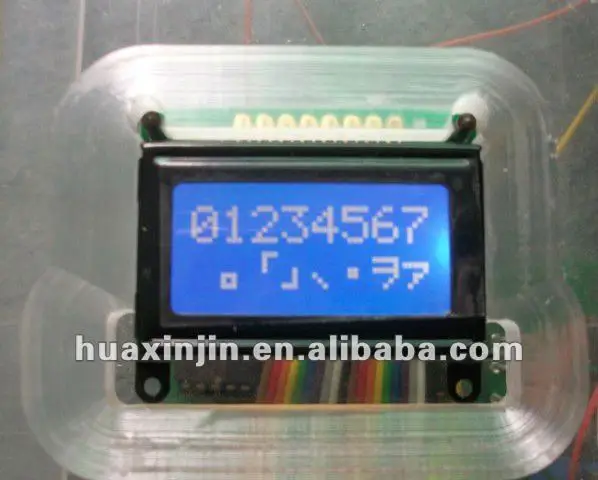

Небольшой ЖК модуль отрицательный 8x2 символьный ЖК модуль с подсветкой

Model No.

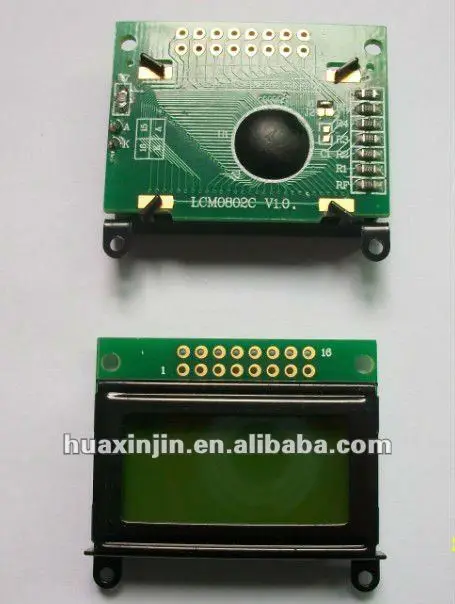

LCM0802C-1

Type

COB

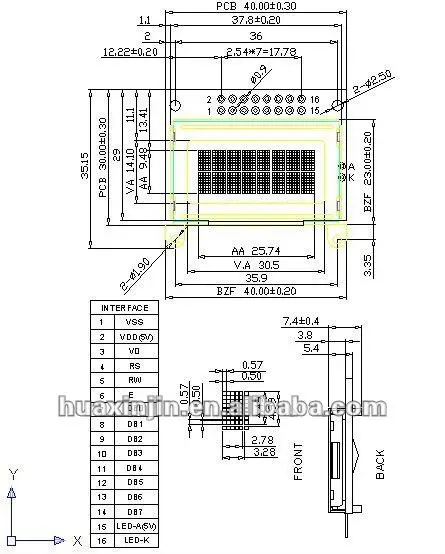

Outline Size(mm)

40.0mm×35.2mm

Connector

Zebra

Viewing Area (mm)

30.5mm×14.0mm

Interface

Single Parallel Connection

Dot Size (mm)

0.50mm×0.50mm

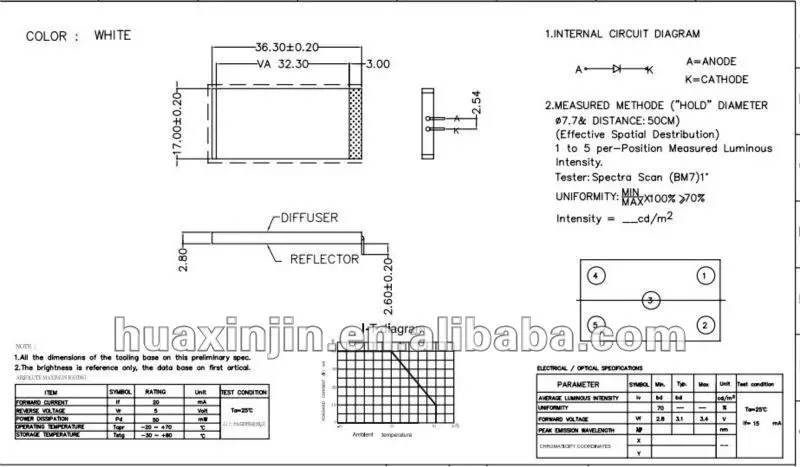

Backlight Type

LED

Character Size (mm)

2.78mm×4.49mm

Backlight Color

Yellow-Green / White

Display Type

8 characters ×2 lines

Operating Voltage

+5V/3.3V

Background Color

Yellow-Green / Blue / Gray

Operating Temp

-20~+70°C

IC

SPLC780D

Storage Temp

-30~+80°C
